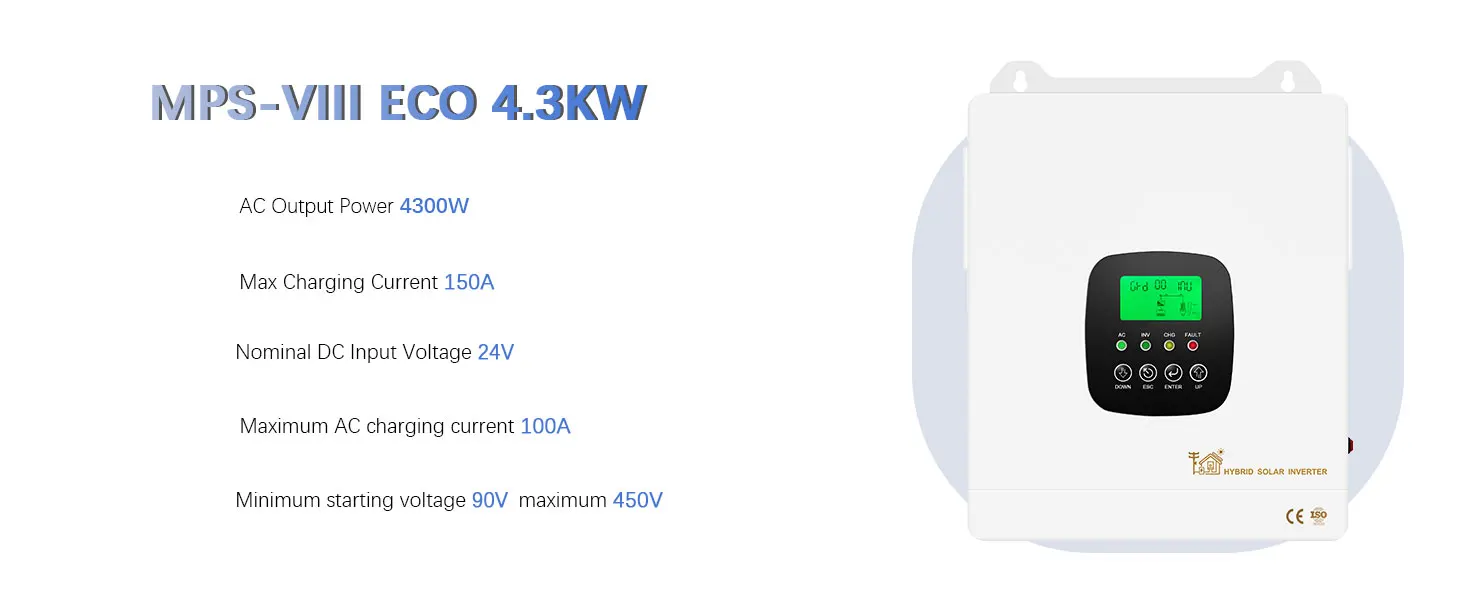

4300W 24V Solar Hybrid Inverter MPPT 150A Controller Dual communication PACE BMS

For 110/120V US home appliances Devices：you can simply add a Transformer (not includes) which stepping down 220/240V AC power to 110/120V AC Power, then your 110V home appliances is also ok to use at the same time, this inverter can't output 110V power, this is a Single-phase 220V output inverter. Ensure that you operate and use our products smoothly. Contact us if you have any questions.

【PURE SINE WAVE INVERTER】4300W Off Grid Solar Inverter 24V Built-in 150A MPPT Charge Controller, Pure Sine Wave Inverter Single-phase output 230VAC, 4.3kw new all-in-one inverter combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in a single package.

【TECHNICAL PARAMETERS】150A MPPT Solar Charging Inverter, MAX. PV Array Power: 5000W, Max.PV Open Circuit Voltage: 450Vdc; Starting voltage>90V, MAX.Charging Current:150A, PV Array MPPT Voltage Range: 40~450Vdc;Cold start function(23V).

【Dual communication ports】The inverter supports battery-less operation mode, and at the same time, it has the communication function with the lithium battery pack (PACE BMS), which can realise the monitoring and management of the battery status. Monitor the working status of the inverter anytime, anywhere via WIFI communication

【Pure Sine Wave Output】The current output from the inverter is pure sine wave, adapting to various types of loads, stable and reliable.Can be accessed to a variety of household and office loads, including refrigerators, lamps, televisions, fans, air conditioning and other loads.

【3 Working Modes】On/ Off-grid/Hybrid working mode, you can use inverter as energy storage device without power Grid (Off Grid). Maybe you will also like to reduce the household electricity bill through it (On Grid);3 charging modes support: Utility first, Solar first,Solar&Utility

【Y&H can provide you with a battery package.】

The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise, it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.

【Important Note】

1. In utility bypass mode, the device cannot be connected to two-phase 220V AC, i.e. L1-L2 cannot be connected to L-N.

2. In inverter mode, after the device is connected to two-phase 220V, please do not select utility priority for the output priority, so as not to cause safety hazards to the device.

3. Please do not connect the AC output of the device to the autotransformer, so as not to affect the normal service life of the device.

4.(Single phase/A Hot Leg 230V Output, Cannot Output 110V AC)

5.This Y&H off grid solar inverter all-in-one does not support parallel operation, and does not support phase separation!

Describe:

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

4200W On Grid/Off-Grid Solar Inverter Features：

1. High-frequency design: high power density, small size, high efficiency of the whole machine, which can make fuller use of space and resources.

2. Bidirectional energy storage design: with bidirectional flow control function, it can realise bidirectional charging from photovoltaic and utility to battery, and realise flexible management of energy.

3. Pure sine wave output: adapt to various types of loads, stable and reliable.

4. Ultra-wide MPPT range: with ultra-wide maximum power point tracking range, it is able to work under the lowest DC voltage and improve the efficiency of PV system.

5. Charging and discharging voltage parameters can be set: users can set charging and discharging voltage parameters according to different types of batteries, prolonging the service life of the batteries and improving system performance.

6. Battery charging current can be set: users can set the charging current according to the battery capacity configuration, more flexible and convenient.

7. Multiple working modes can be set: the inverter has the function of setting grid-connected mode, off-grid mode and hybrid mode, which can be selected according to different needs. At the same time, the output priority and charging priority can also be set to flexibly meet user needs.

8. Support battery-less operation mode and Li-ion battery BMS communication function: The inverter supports battery-less operation mode, and at the same time, it has the communication function with Li-ion battery BMS, which can realise the monitoring and management of battery status.

9. Setting output voltage/frequency: the inverter has the function of setting output voltage and frequency, which can adapt to different grid environments and improve the applicability of the inverter.

10. Multiple communication support: the inverter supports RS485 communication, dry contact signal and mobile phone APP (WIFI monitoring/GPRS monitoring), which is convenient for users to monitor and manage.

Technical Parameter
Model ： HFP		HFP-4.3KW	HFP-6.3KW	HFP-10.3KW
PV	Max PV Input Power	5000W	7000W	6000W*2
	MPPT Tracking Voltage Range	40VDC-450VDC	80VDC-450VDC
	Rated Voltage	360VDC
	Max PV Input Voltage voc	500VDC
	(at the lowest temperature)
	Max PV Input Current	18A	22A	22A*2
	MPPT Tracking Channels	1 Routed		2 Routed
	(Input Routed )
Battery&	Battery Type	Lead-acid Battery/Lithium Battery
Charging		Custom Battery (Charging and discharging paramcters of different types of batteriescan be set through the operation board)
	Rated Battery Voltage	24VDC	48VDC
	Battery voltage Range	21~30VDC(default)	42~60VDC(default)
	Max PV Charging Current	150A	120A	180A
	Max AC Charging Current	80A	80A	120A
	Max Charging Current	120A	120A	120A
On-Grid Operation
On-Grid	Rated Output Power	4300W	6300W	10.3KW
Output	Rated Output Voltage	220VAC/230VAC/240VAC
(AC)	Grid Voltage Range	187VAC~264VAC
	Rated Output Frequency	50Hz/60Hz
	Frequency Range	47Hz~52Hz(50Hz),57Hz~62Hz(60Hz)
	Rated Output Current	19.5A/18.7A/17.9A	28.6A/27.4A/26.2A	46.7A/44.9A/42.9A
	Power Factor	＞0.98(Rated Power)
Off-Grid Operation
AC	Rated Input voltage	220V /230V/240V
Input	Mains input voltage range	165VAC-280VAC/ 120VAC~280VAC(Can be set)
	Rated Input Frequency	50Hz/60Hz
	Input Frequency Range	45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz)
AC	Rated Output Power	4300W	6300W	10.3KW
Output	Rated Output Voltage	220V /230V/240V
	Output Voltage Accuracy	±2%
	Rated Input Frequency	50Hz/60Hz
	Output Frequency Accuracy	±1%
	Output Wave	Pure Sine Wave
Hybrid Operation (Complementary Mode)
AC	Rated Input voltage	220V /230V/240V
Input	Mains input voltage range	187VAC~264VAC
	Rated Input Frequency	50Hz/60Hz
	Input Frequency Range	47Hz~52Hz(50Hz)，57Hz-62Hz(60Hz)
AC	Rated Output Power	4300W	6300W	10.3KW
Output	Rated Voltage Rated	220VAC/230VAC/240VAC
	Output Current	19.5A/18.7A/17.9A	28.6A/27.4A/26.2A	46.7A/44.9A/42.9A
Regular Parameters
Maximum Conversion Efficiency		94%(peak value)
(Battery Discharge)
MPPT Tracking Efficiency		≥99.9
Transfer Time		10ms(Typical value)
Display		LCD+LED
Cooling Method		Cooling fan in intelligent control
Communication		RS485/Mobile APP(WIFI Monitoring or GPRS monitoring)(Does Not Contain WIFI Monitoring)
Protection Degree		IP20
Installation		Wall-Mounted
Protection Degree	Battery low voltage alarm	22VDC（default value）	44VDC(default value）
	Battery low voltage protection	21VDC（default value）	42VDC（default value）
	Anti-islanding protection	≤2S
	overload power protection	Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)
	Inverter output short circuit	Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)
	protection
	Temperature protection	＞90 ℃(Turn off inverter and charging)
Environment	Operating temperature	-10℃~50℃
	Storage temperature	-15℃~60℃
	Nois	≤55dB
	Elevation	2000m（More than derating）
	Humidity	0%~95% ,No condensation
Dimension and Weight
Product Size(LWHmm)		365297102	390320112	535462117
Package Size(LWHmm)		440352167	465375187	615527192
N.W.(kg)		6.5	10.5	17
G.W.(kg)		7	12	19
Note: All specifications are subject to change without prior notice
