36v 250w electric bike hub motor kit waterproof connectionThis is 36v 250w hub motor kit for ebike, can assemble on to all regular bicycle to change any bicycle to ebike .
You will get speed, power when ride it, which will save your time and help you riding Farer.
Specification
Rated voltage/power 36V 250W Rated speed 25-32km/h Max speed 32km/h Dropout 100mm/135mm Assemble Postion Front/rear Brake available V brake /disk brake Suitable controller 36V14A/17A Suitable rim 16-29inch ,12G/13G Max torque 38Nm Available voltage 24-48V Black and silver color for choose.
What you should ask yourself if you want to order this motor kit?
1)What's the size of wheel?( 20inch----29inch rim) 2)Which color do you like? 3)What loaded speed do you need ? 4)Other special requirement..... Note: Please leave message about these information, if nothing information, we will send you 26 inch motor, at regular25km/h.
What the motor kit include?

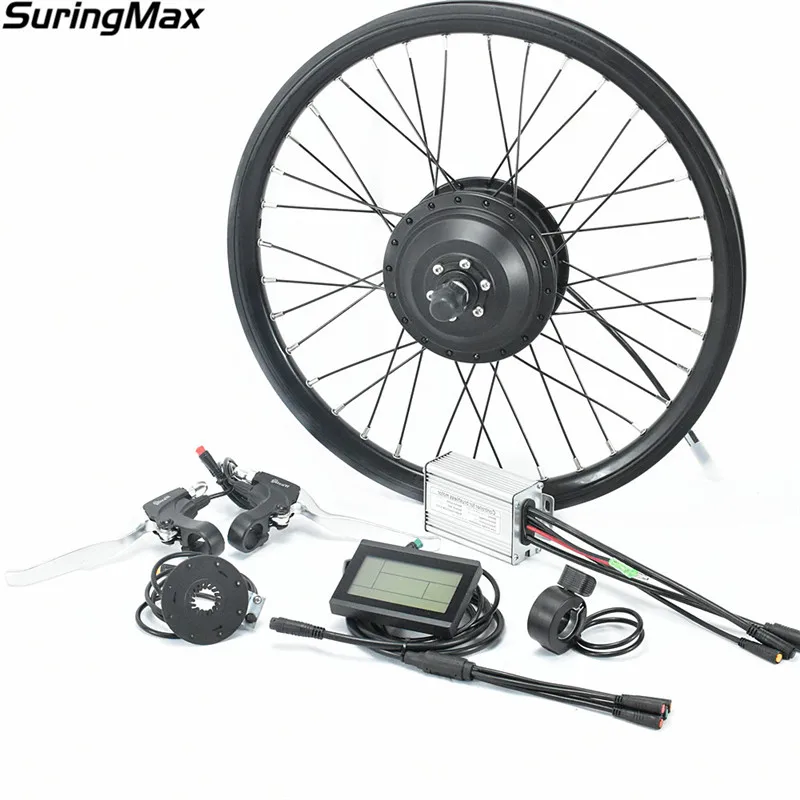

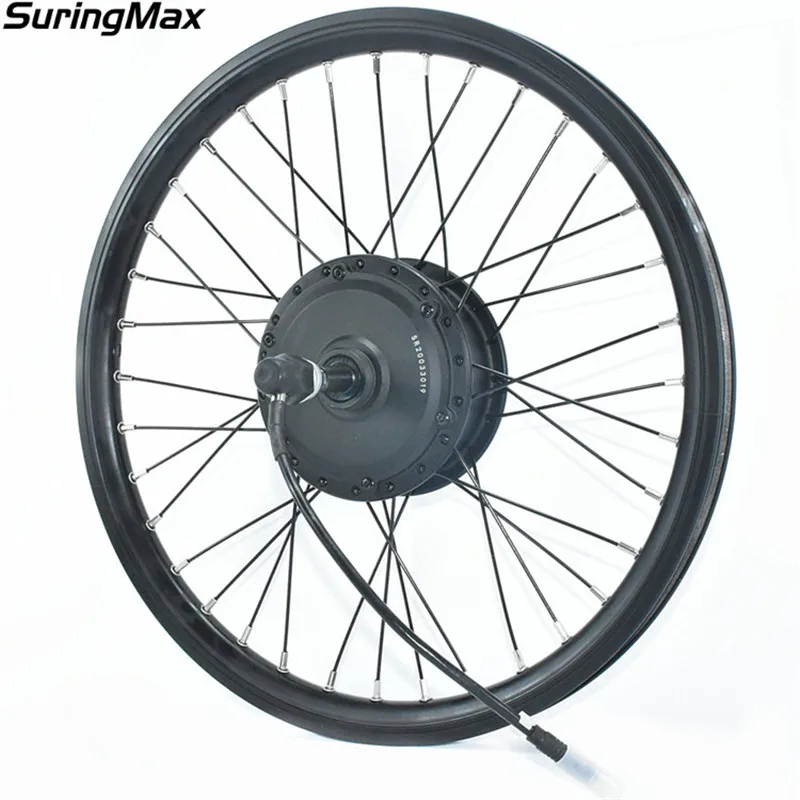

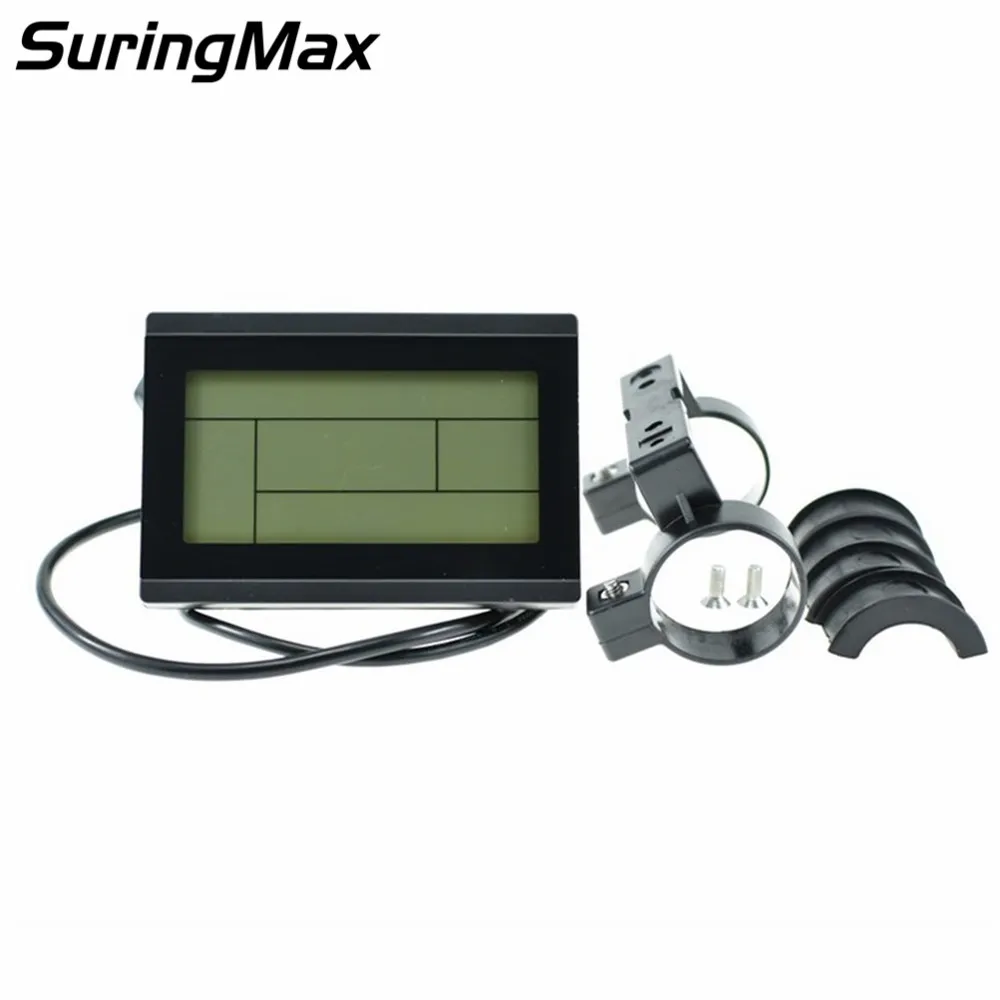

This 36v 250w hub motor kit includes: * 36V 250W gear dc brushless hub motor * 16-29'' rim and spokes assemble as default. * 36v 14a/17a standard square wave controller * 8/10 magnets PAS * Wuxing electric brake lever * Wuxing hall thumb throttle * KUNTENG LCD 3 display * 4 IN 1 waterproof cable All these are waterproof connection
Diagram
Diagram of 100mm dropout front 36v 250w hub motor Diagram of 135mm dropout rear 36v 250w hub motor
Testing report of 36v 250w hub motor
Package
Each kit will be packed in one 5-layer good quality carton. Usually 6 motors in one 5-layer good quality carton lined with foam and plastic bag for big quantity. For only one motor in one 5-layer good quality carton lined with foam and plastice bag.
Warranty:
Motor---3 years Battery--2 years The others--1 year You only need to send us the video or pic to show the problem and the series number ,we will ship the new one or the repair parts together with the next shippment. Also will be post by air if need urgent! Accordning to your experience , the defective pecentage is only about 1‰.
OEM&ODM:
You are welcome to send OEM and ODM request to make your products competitive ! We have made motor for Medical machine/warehouse motive machine and so on.
