Product Description
Why Choose GT08?

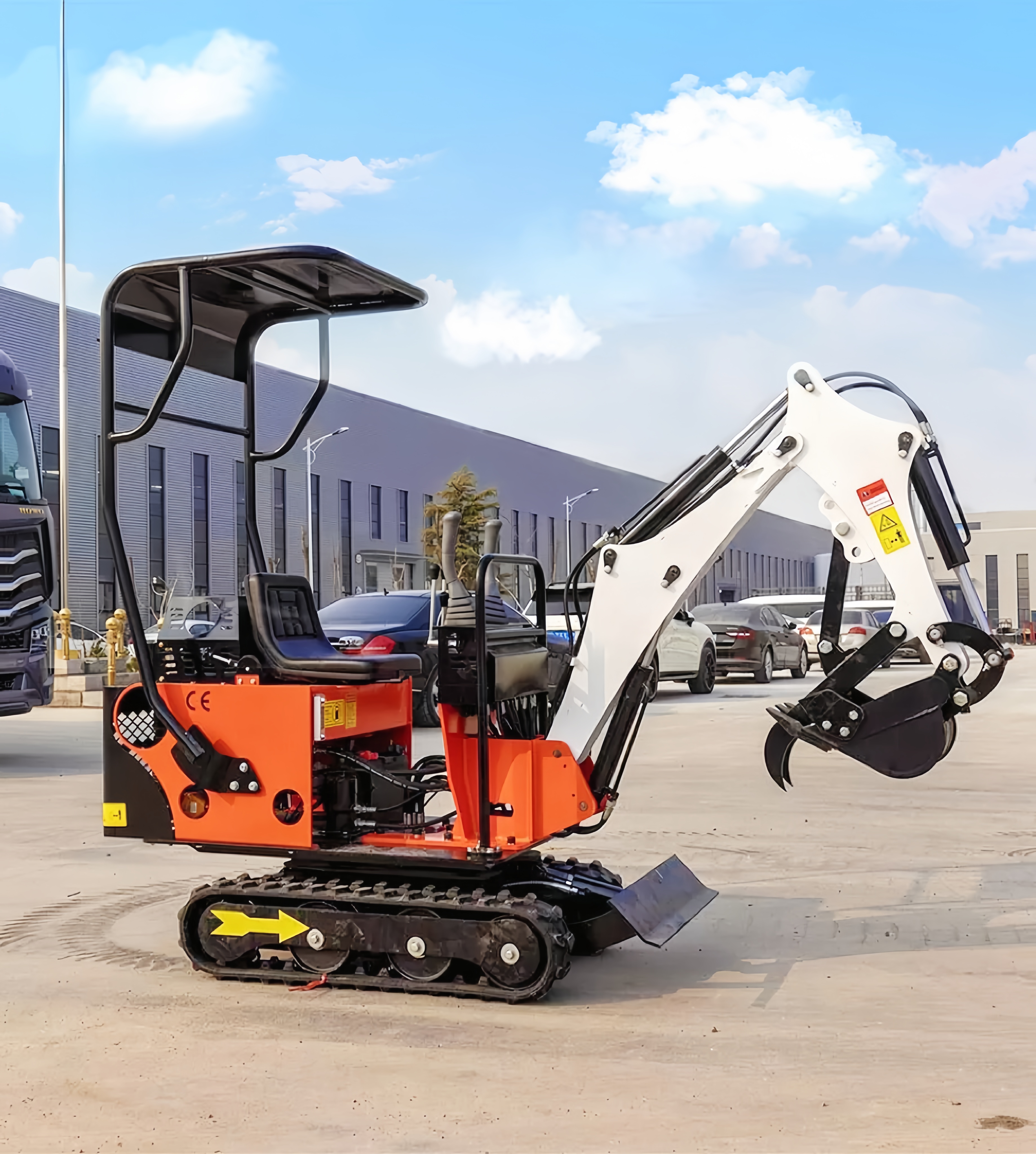

Designed for precision and agility in confined areas, the GT08 is an 800kg operating weight mini excavator that redefines efficiency for small-scale projects. Whether you’re working indoors, in narrow alleys, or on tight job sites, its compact build and smart engineering make it a reliable partner.
Standout Features
--Ultra-Compact Design with Smart Boom Structure
Its 720-780mm width and unique boom design let it glide through tight spaces – perfect for indoor renovations, backyard projects, or narrow alleys. No more struggling with bulky equipment in confined areas.
--Protected Pipelines for Longevity
Pre-operation pipelines are streamlined and shielded by protective covers, preventing damage from collisions or debris. This reduces wear and tear, cutting down on maintenance hassle.

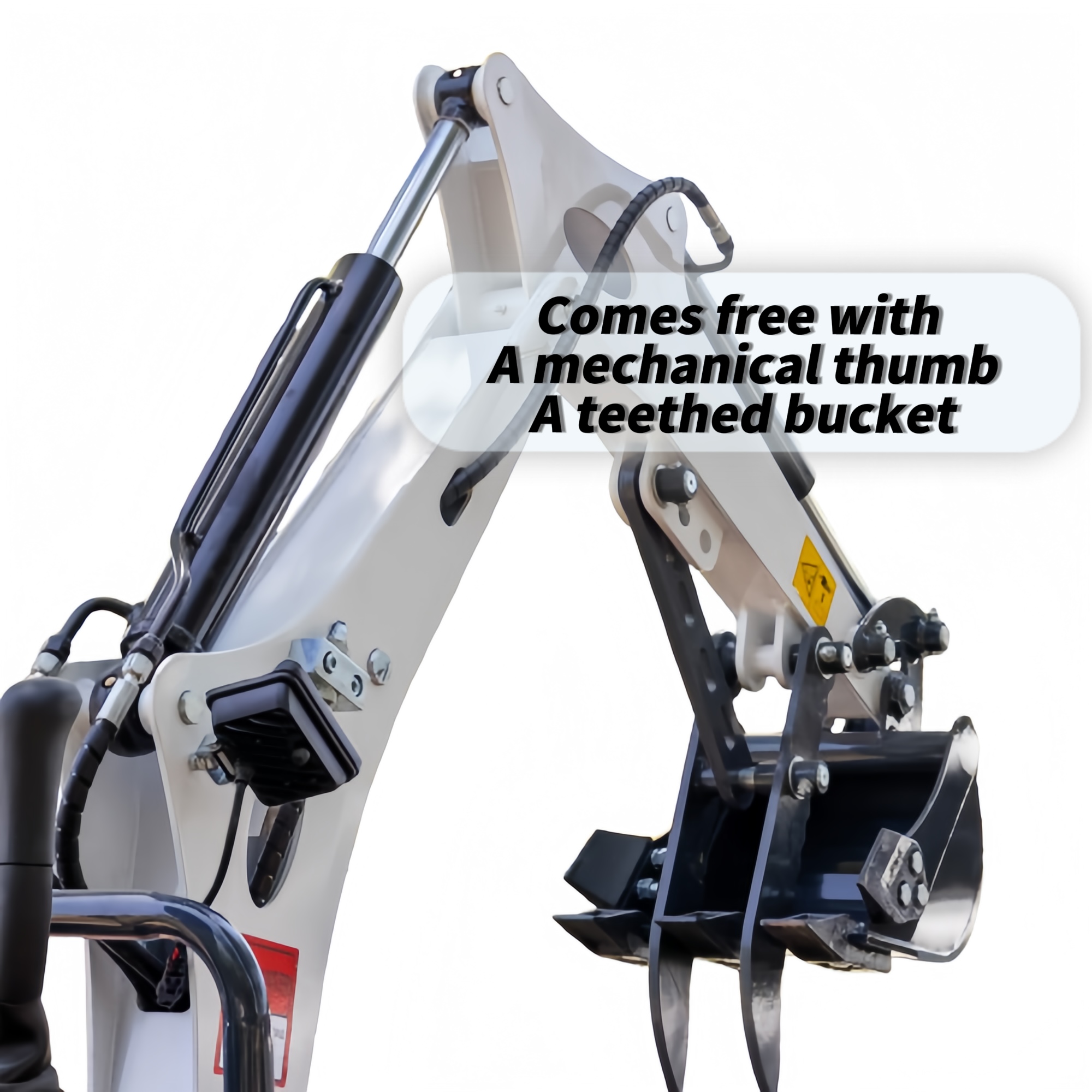

--Integrally Formed Boom Cylinder
Equipped with a branded cylinder made via one-piece forming (not welded), it boasts higher structural strength and better sealing. Say goodbye to frequent oil leaks or cracks – built to last.
--Premium Build & Rust Resistance
All structural parts undergo precision machining, paired with shot blasting, pickling, and baking treatments. The result? A high-gloss finish with strong paint adhesion, far more resistant to rust than standard models – ideal for humid or dusty work environments.
Ideal For
Small construction, indoor demolition, garden landscaping, trench digging, and any project where space is limited but performance can’t be compromised.
The GT08 proves that big power doesn’t need a big footprint – it’s built to work where larger excavators can’t, without sacrificing reliability.
| Parameter: |
|
| Rated power | 13.5HP |
| Bucket Capacity | 0.025 m3 |
| Weight | 800 kg |
| Max. digging force | 7.5KN |
| Pump form | Single gear pump |
| Set working pressure | 14Mpa |
| Swing speed | 12 rpm |
| Travel speed | 2.2Km/h |
| Gradeability | 30° |
| Ground pressure | 19Kpa |
| Max. dgging distance | 2450mm |
| Max.digging depth | 1200mm |
| Max.diging height | 2350mm |
| Max.dumping height | 1600mm |
| Min.Swing radius | 1100mm |

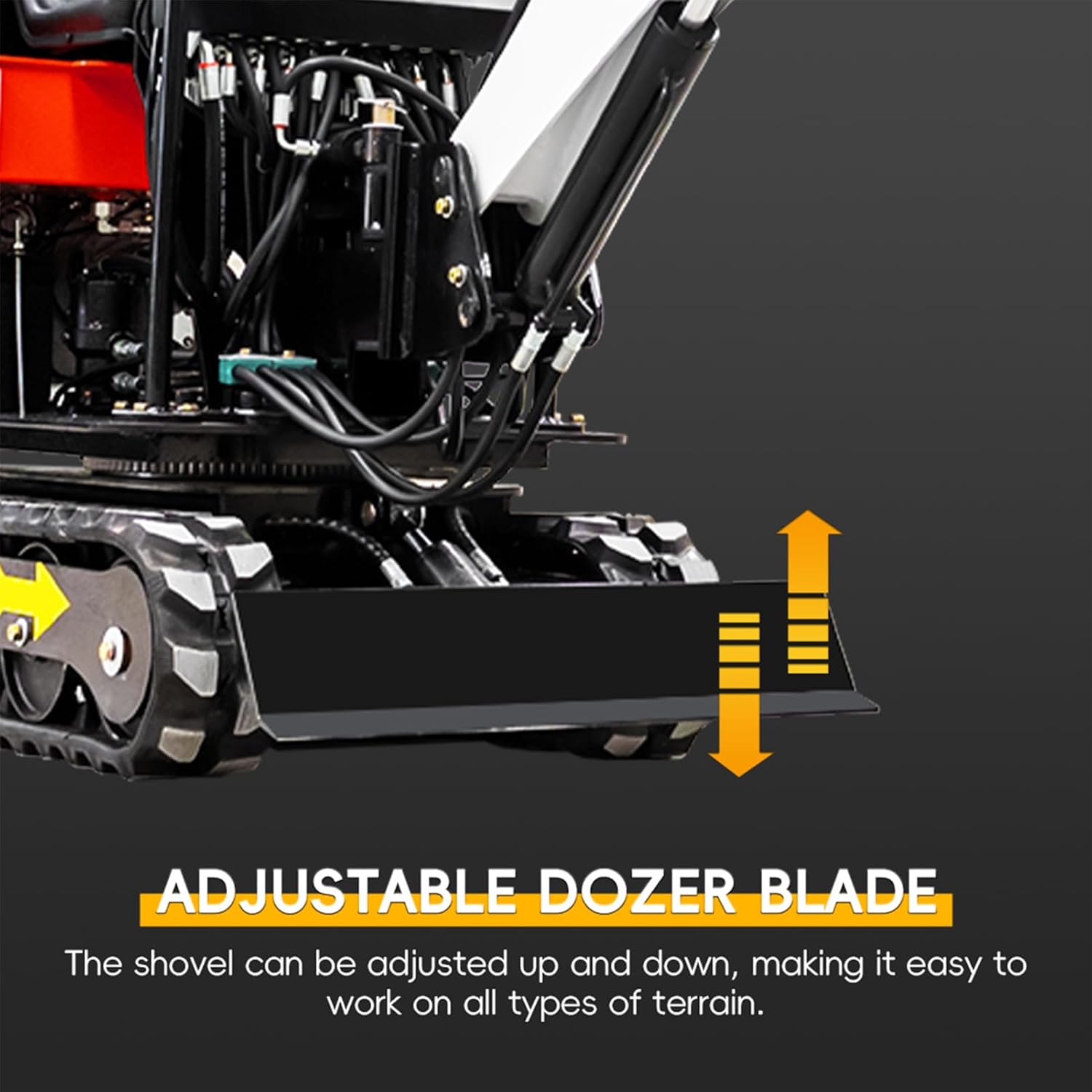

| Max. Upgrade height of blldozer blade | 120mm |
| Max. Digging depth of blldozer blade | 200mm |
| Total width | 720-780mm |
| Total height | 1300mm |
| Total length | 2430mm |
| Min. ground clearance | 80mm |
| Track ground length | 1140mm |
| Track width | 150mm |
