Air Suspension Kit W/ Compressor for Renault Master X70 FWD 1998-2010 4000KG
.jpg)
Why choose MaXpeedingrods?
.jpg)
Unique Identifiacation Code
Every MaXpeedingrods Air Spring bags with unique ID Code to trace the raw materials or process batches better quality control.
.jpg)
Air Tightness Test
Every MaXpeedingrods Air Spring bag pasts water air tightness test. Ensure no air leakage
.jpg)
Fatigue Testing
Every MaXpeedingrods Air Spring bag pasts withstand 500,000 times fatigue tests, far exceeding industry standards, more durable and safer
.jpg)
100% Air Pressure Test
Every MaXpeedingrods Air Spring bag pasts 24 hours air tightness test ≤2.0Mpa.
.jpg)
MaXpeedingrods Air suspension kit
Air Suspension Kit For Renault Master X70 FWD 1998-2010
Air Suspension spring Bag + Compressor + Bracket + Accessories
Easy to install, no-drill systems, typically takes 1 to 2 hours. Professional installation is recommended
Galvanised Heavy duty bracket, with Natural Rubber and Hi-tensile steel offers high load-bearing 4000KG capacity and long life
.jpg)

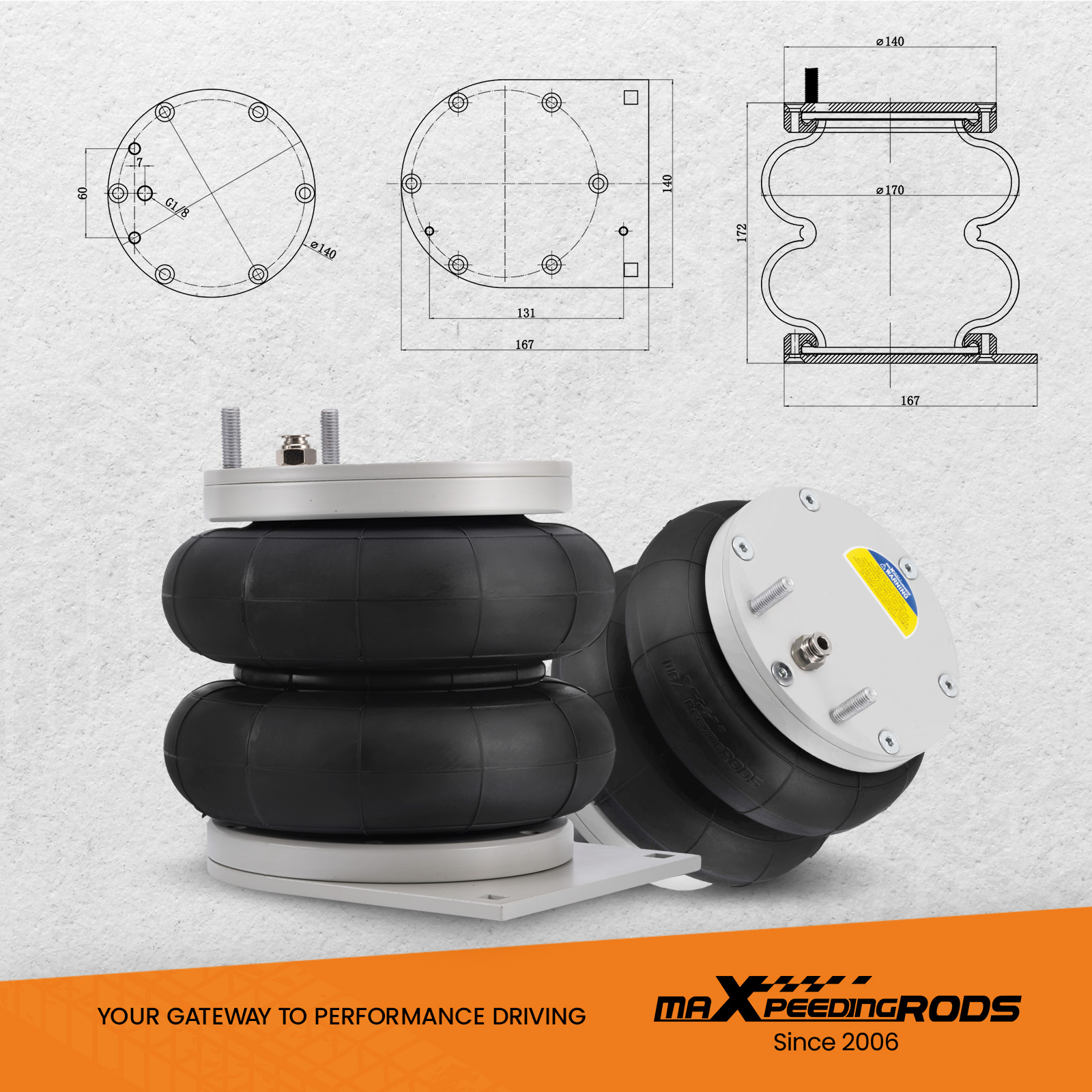

Air spring bag Dimensions
Design height: 170 mm
Stroke: 180 mm
Max. Extended: 255 mm
Min. Compressed: 75 mm
Operating Pressure : ≤2.0Mpa
Temperature：≤+70° , ≥-40°
Min 10 PSI (unloaded)
75 PSI ( loaded)
.jpg)
Appliation
- For Nissan Interstar X70 FWD 1999-2010
- For Opel / Vauxhall Movano X70, single tires, FWD 1999-2010
- For Renault Master X70 FWD 1998-2010
Body type: Panel van, tipper, motorhome, camper, box, chassis, minibus, luton, crew van, Recovery
Note: For standard chassis types except AL-KO chassis.

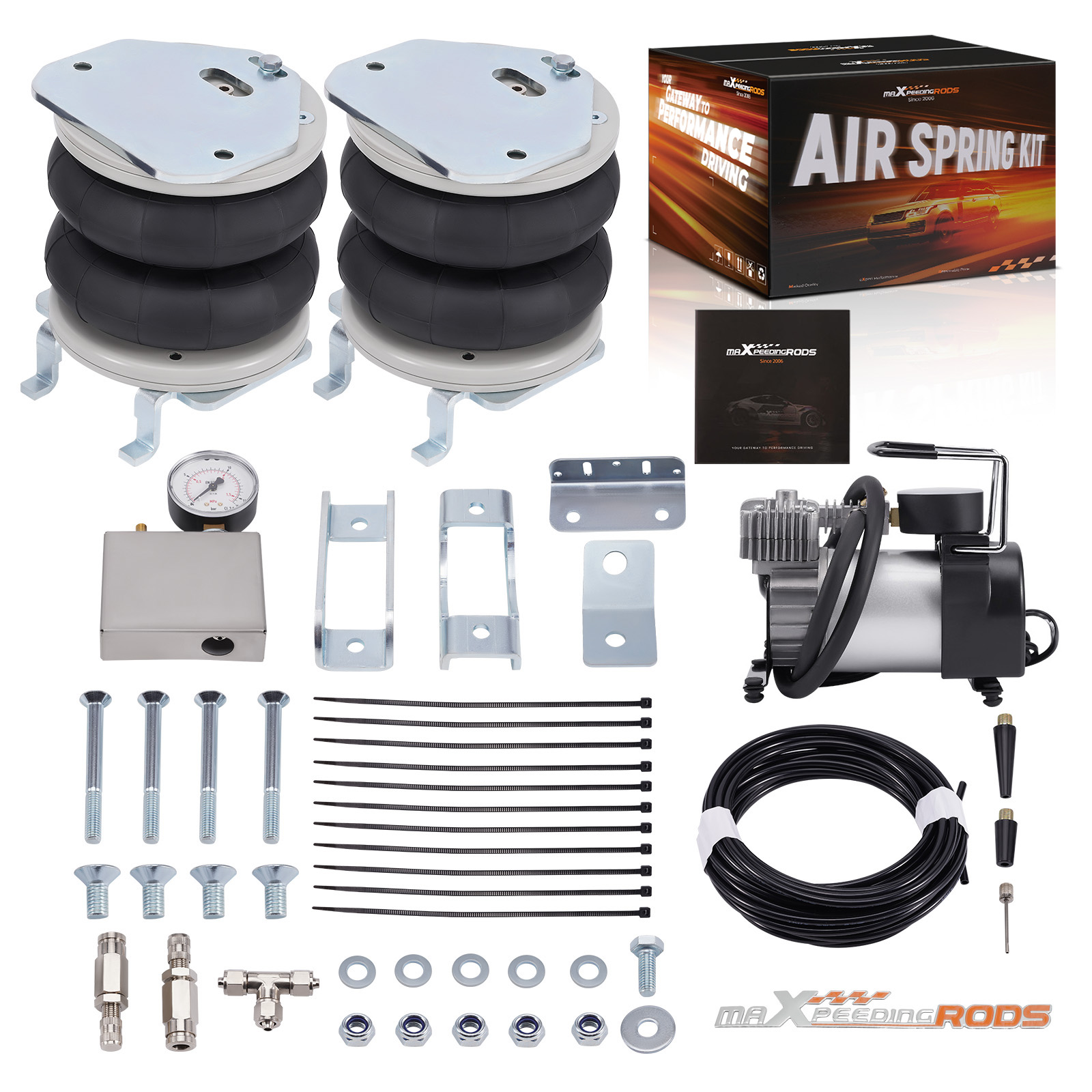

Package Includes:
- 2x Natural Rubber & Hi-tensile steel air springs
- 1x Air suspension compressor
- 1x Installation box
- 1x Air panel guage
- 4x Galvanised Heavy duty Mounting brackets
- 1x Air line 10m
- Mounting bolts and Air fittings
Specifications
| Condition | Brand New |
| Placement on Vehicle | Rear Left and Right |
| Capacity | 8800 LB / 4000 KG |
| Package Dimensions | 420X340x260 mm |
| Package Wight | 14.7 KG |
| Air Compressor inlcuded | Yes |
| Power | 150 W |
| Output Voltage | 12 V |
| Maximum Current | 10 A |
| Maximum Working Voltage | 10 bar (1 MPa ) |
.jpg)

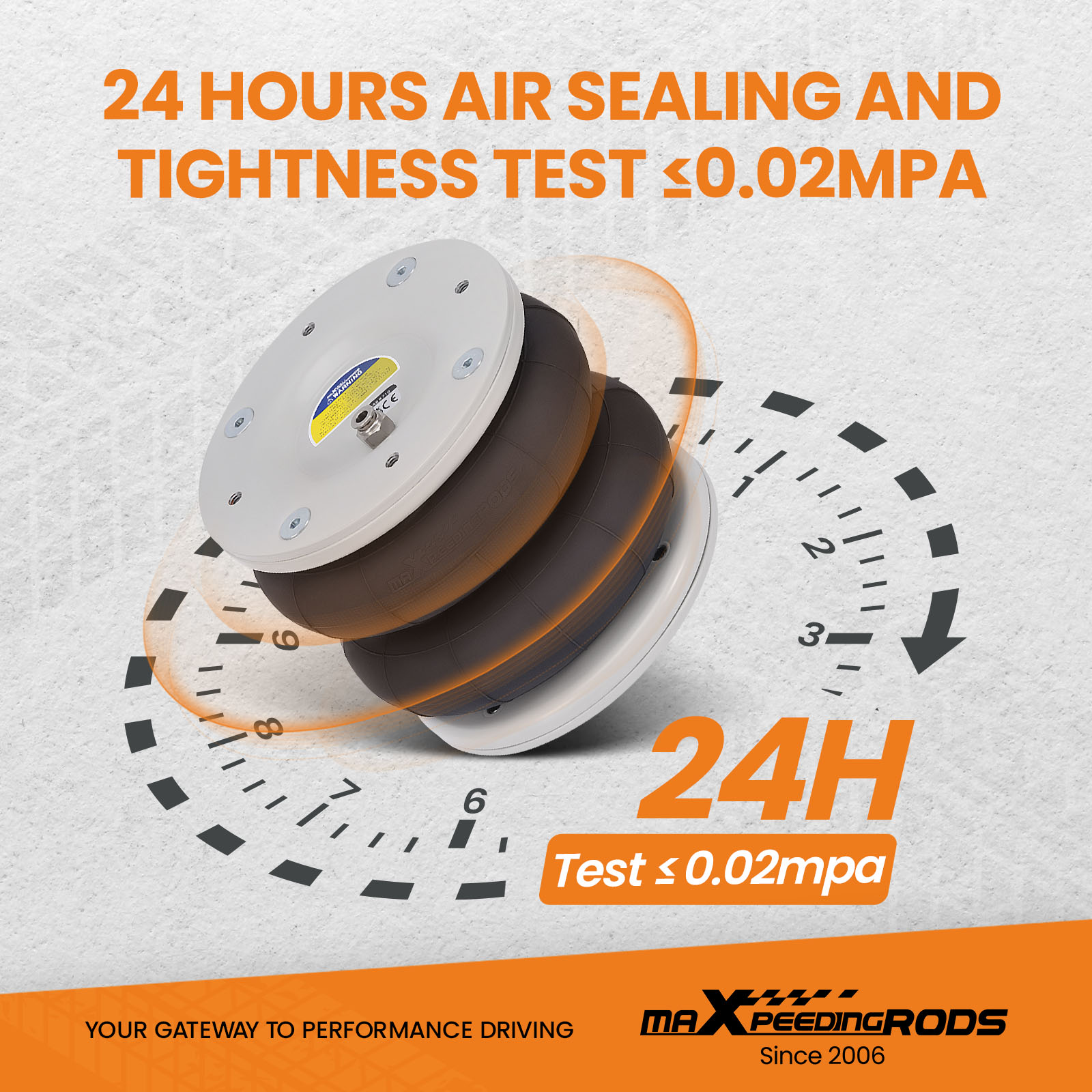

Air Tightness Test
MaXpeedingrods air spring bags past 24 hours air tightness test ≤2.0Mpa. Ensure no air leakage
.jpg)

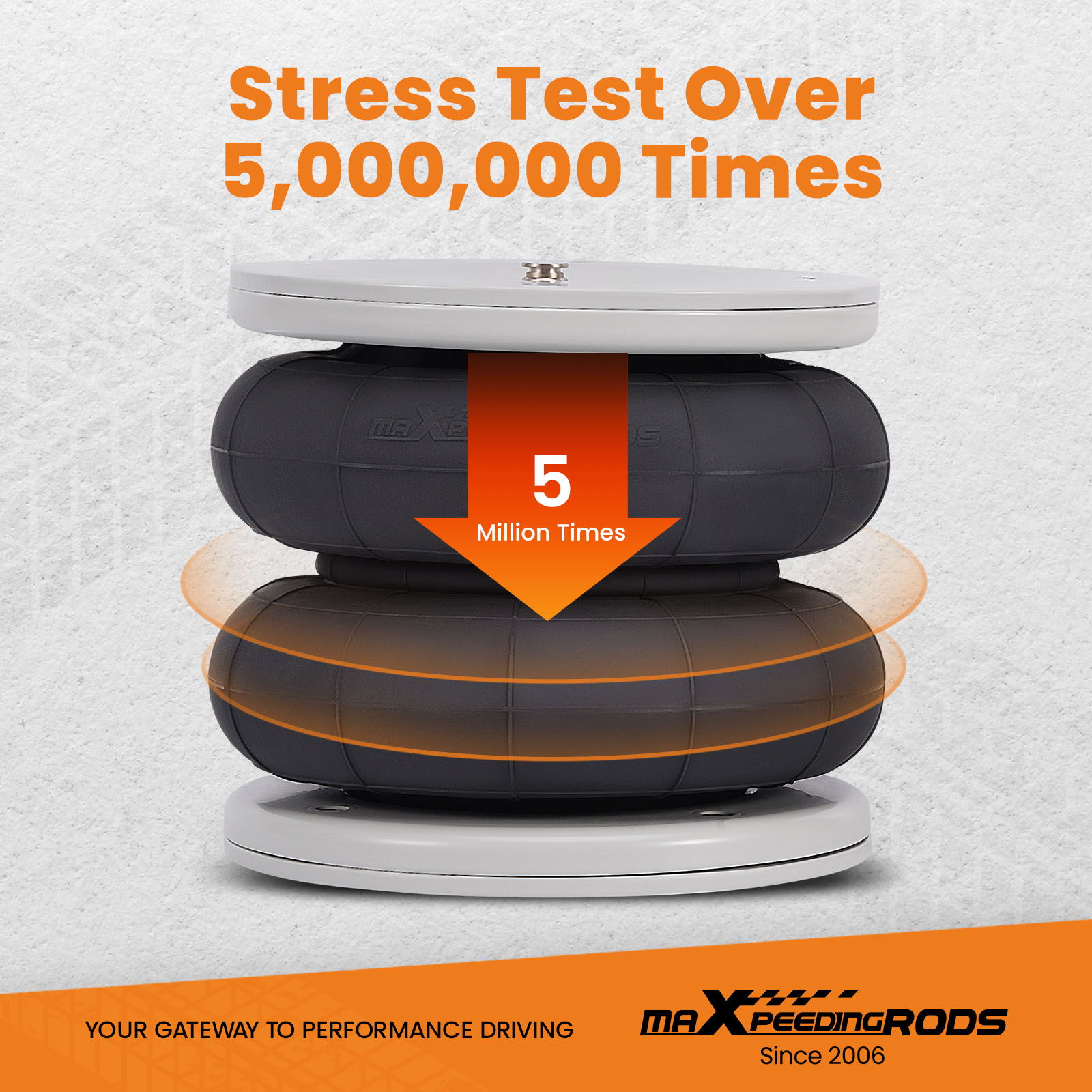

Stress Test
MaXpeedingrods air spring bags past stress test over 5000000 times. Ensure high load-bearing capacity and long life
.jpg)

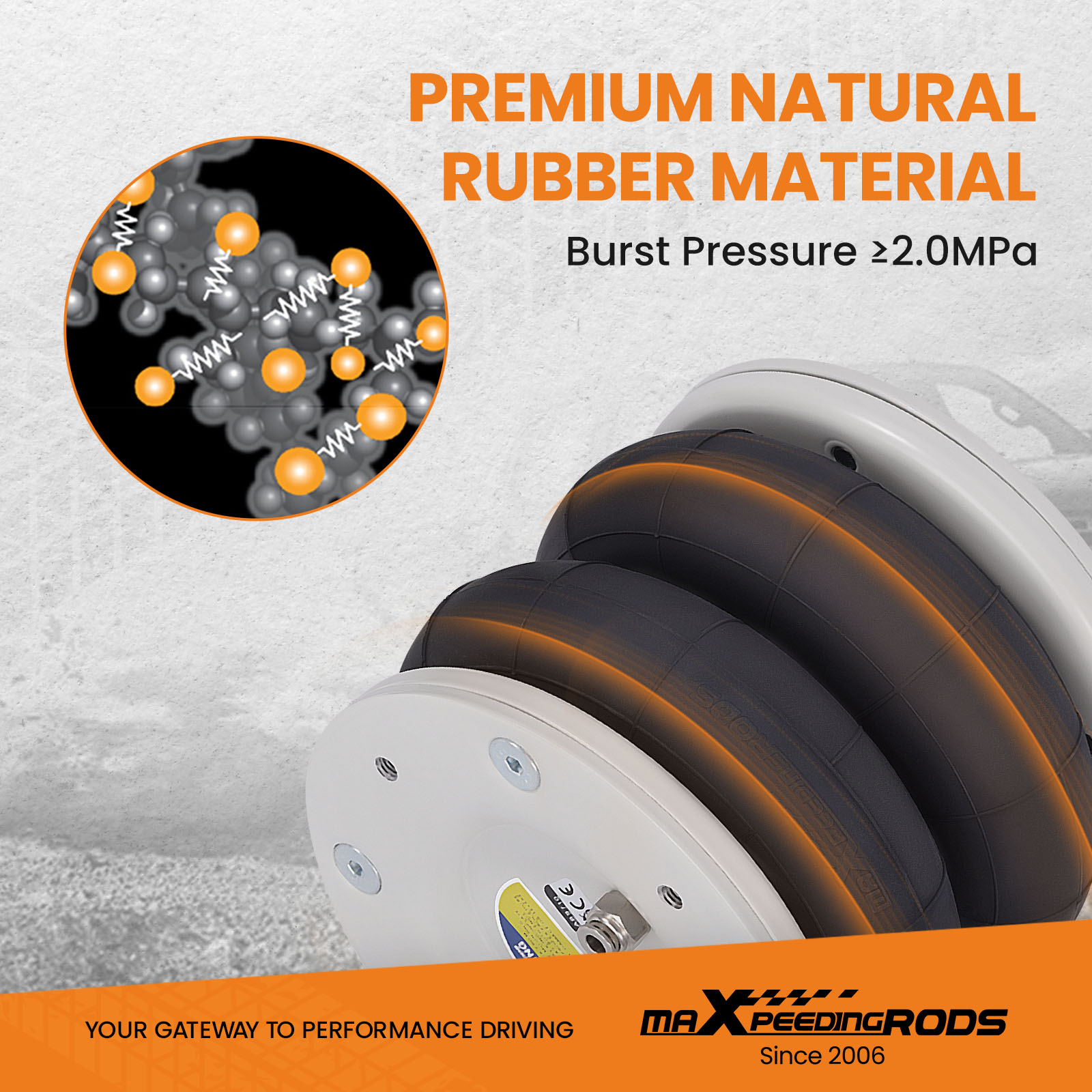

High quality material
MaXpeedingrods air spring bags are made of High quality heavy duty rubber, using Natural Rubber and Hi-tensile steel
.jpg)

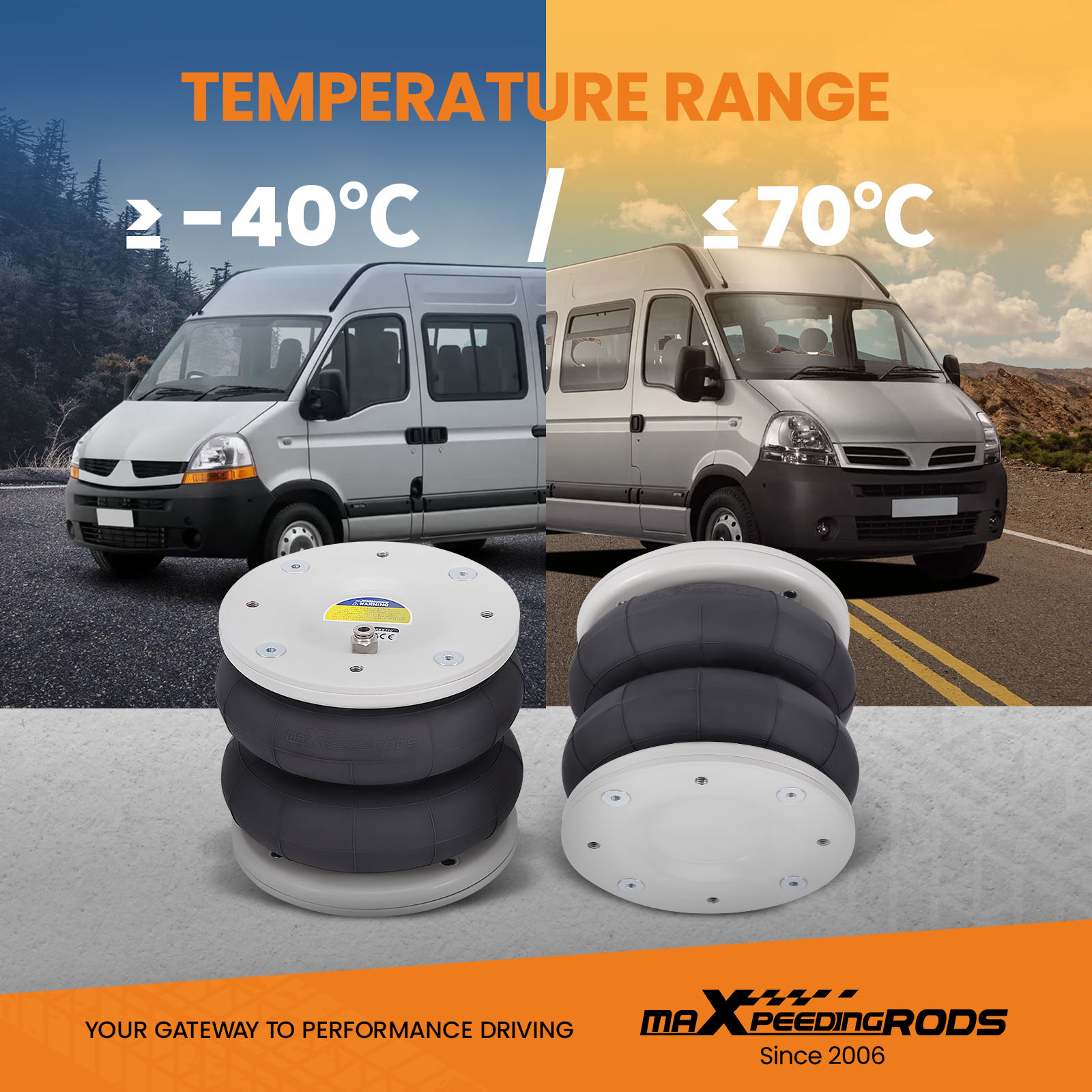

Works well in complicated climate
MaXpeedingrods air spring bags work well in temperature ≤+70° , ≥-40°, easily handle complicated climate
.jpg)
.jpg)
Notice:
- Professional installation is recommended
- Contact us please for whatever we can help
