Product Features:
1. Small engine tachometer rpm - Inductive tach gauge can display real-time rpm in digital when your engine is running. Help diaganose working condition of your vehicles & gas generator or equipment like boat, marine outboard motor, motorcycle, lawn mower, compressor, chainsaw, atv, dirt bike, tractor, truck, etc. The rpm meter tester with programmable rev limiter setting and max rpm recall keeps the engine safe. The recordable rpm range is 0-18000.
2. Hour meters for small engines - Accurate tot running time, which is sum run time of all engines it meters. Resettable job time can record working time of two engines separately. That means you can track how many hours of two different equipment have worked with only one timer tool. When the engine is off or not working, the tot time remains visible. Time display range of this hr meter is 0-9999.9 hours.
3. Maintenance reminder - Timing analyzer as hour/rpm checker can memorize the service time of two different engines in different time. When it's time to repair one of your engines, the tool's screen will show red backlit meanwhile the icon flashes as indicator to remind you. Tuning tachometer helps monitor your engine or car in good condition.

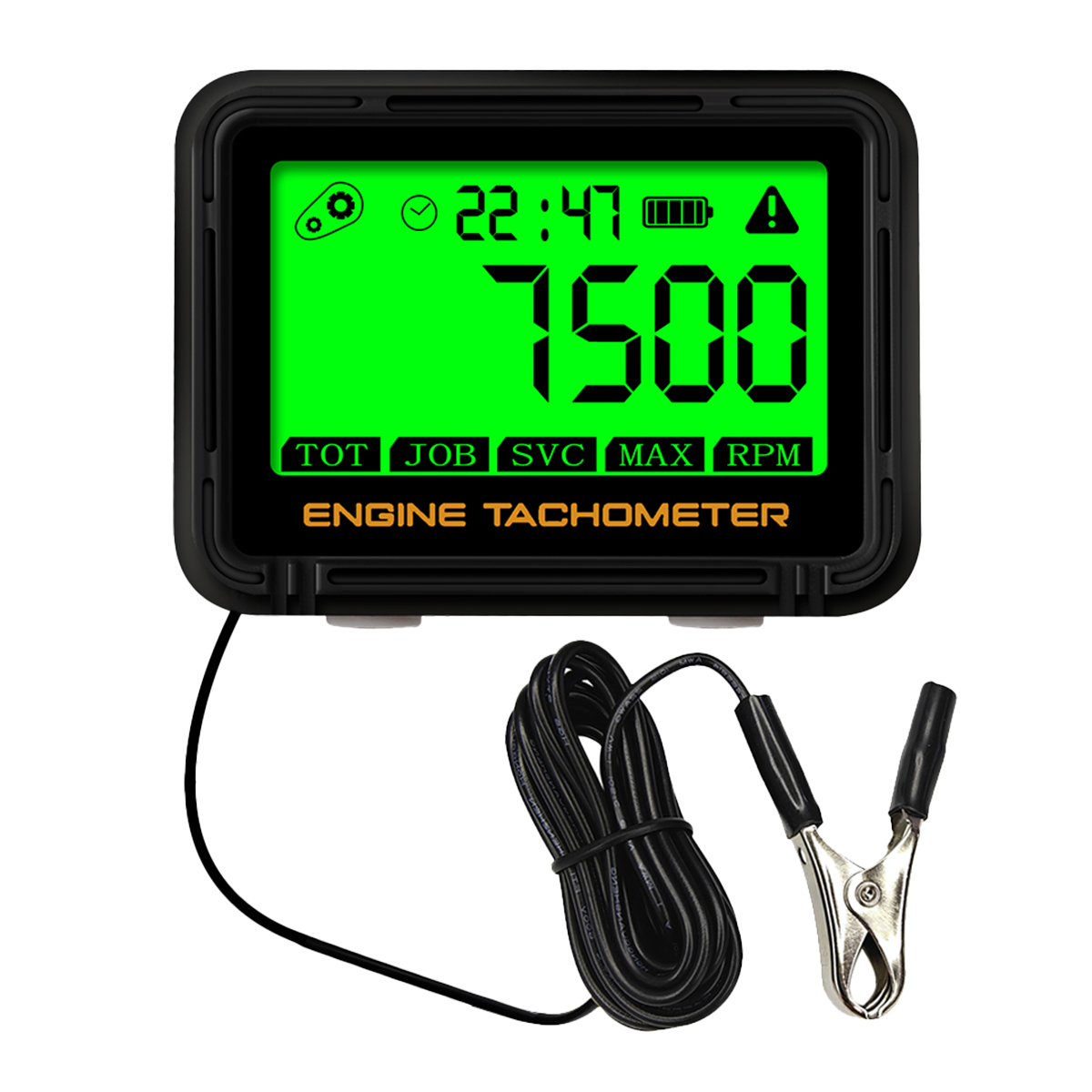

4. Digital tachometer gauge - Easily operated: Simple contact tach/hour meter sensor, just clamp the alligator clip onto the spark plug wire to use. Replaceable battery: the electronic induction tach meter has data memory function. The previous data can be recovered after replacing new battery. Auto sleep mode and selectable backlight time help save the energy. The waterproof grading of the rpm gauge: ip68.

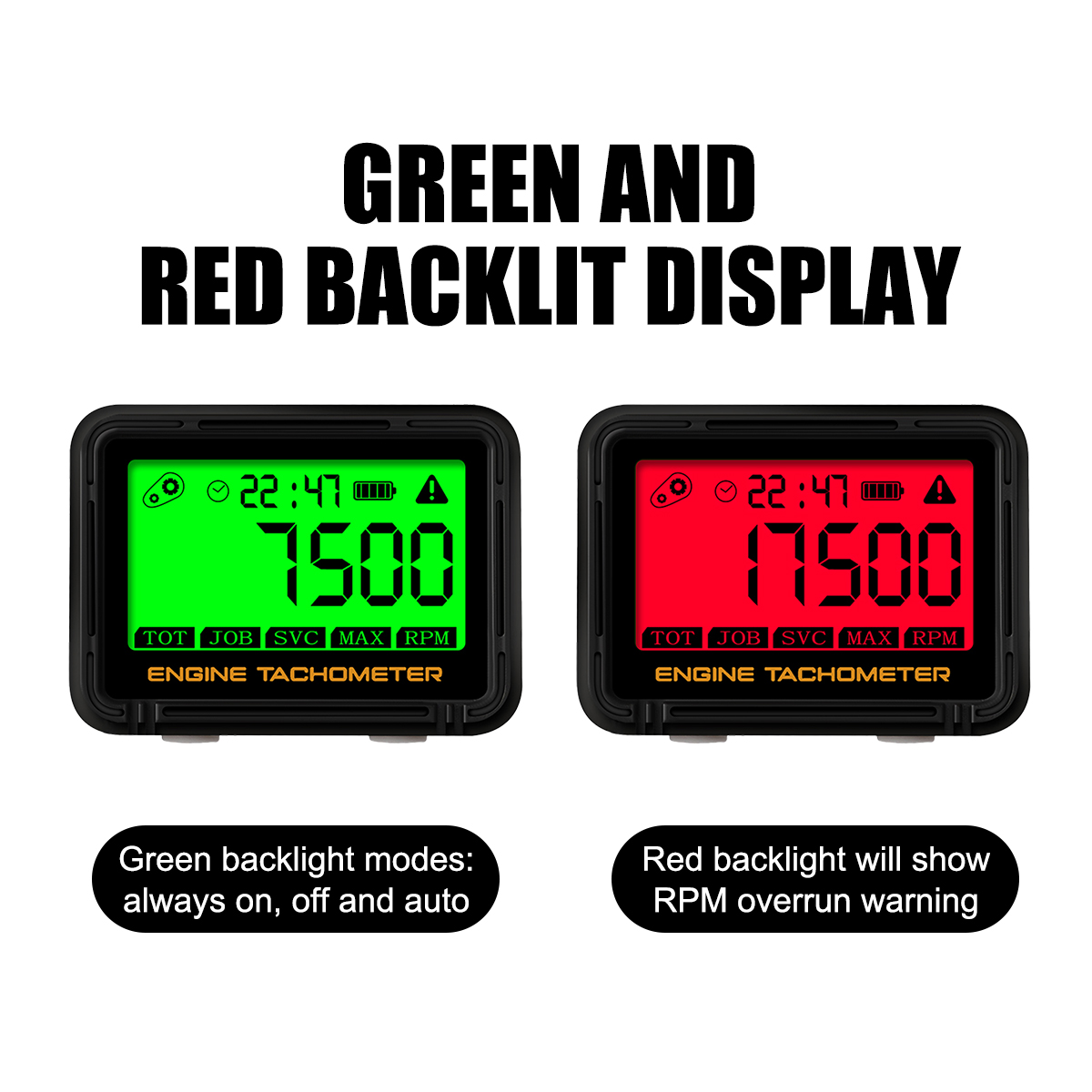

5. GREEN & RED BACKLIGHTS DISPLAY ---- Green backligh mode: always-on, OFF and automatical ; Red backlight will display to remind the RPM exceed warning.
6. Upgraded appearance design - 2024 all new product appearance design, we made the size even smaller than our last edition, only 54.2*41.3*18.8 millimeters in size, and we porvide 3 sizes of O rings, which means it will much easier to install the tachometer on your motorcycle or engine.
Features:
1 Inductive design——Inductive tachometer, close to the engine spark plug wire, can measure the RPM. After 2 minutes of no signal, it will automatically switch to sleep mode to save power and wake up to work when needed.

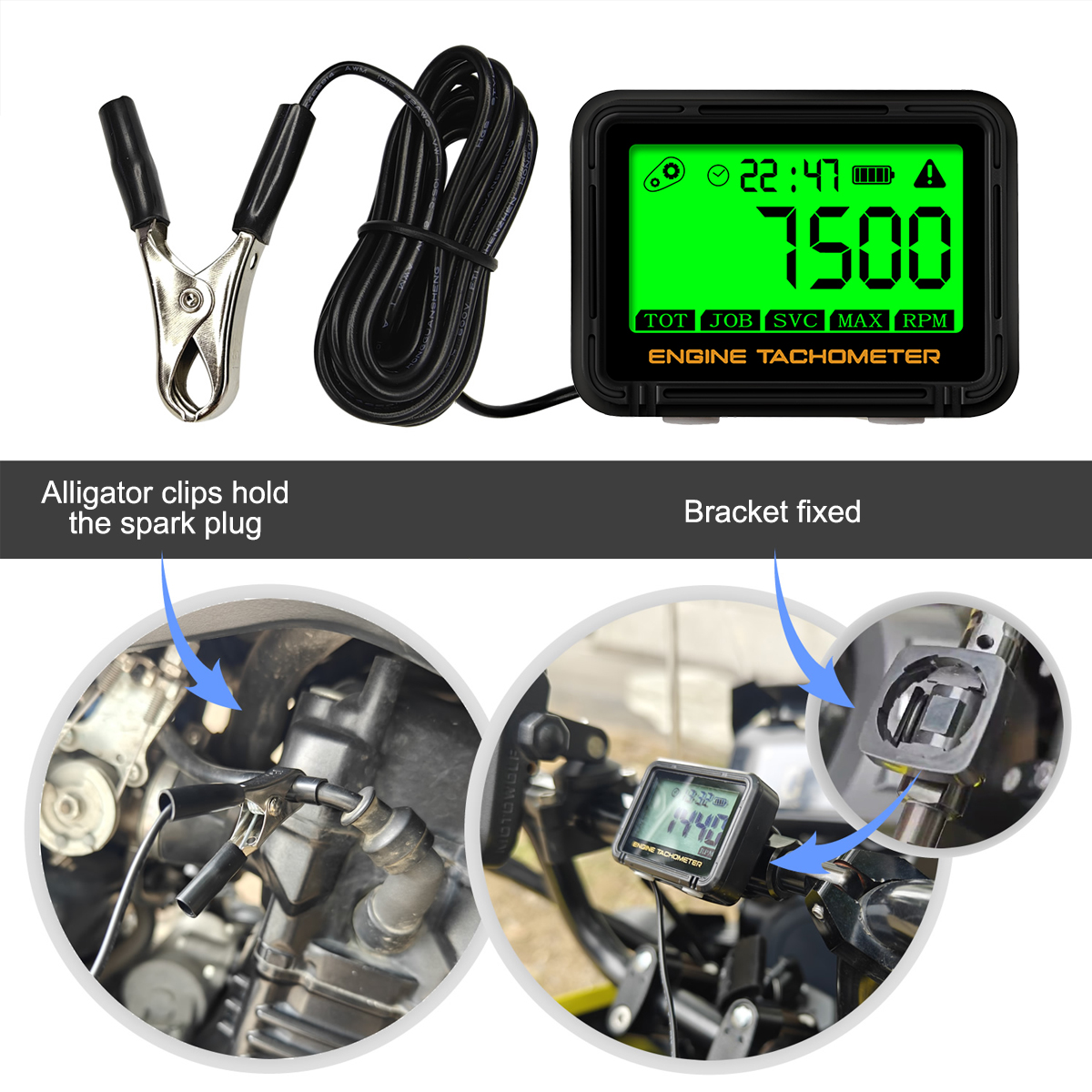

2 Easy to use —— This tachometer is equipped with alligator clips, just clamp the spark plug wire with the clip to receive the signal, safe and reliable.

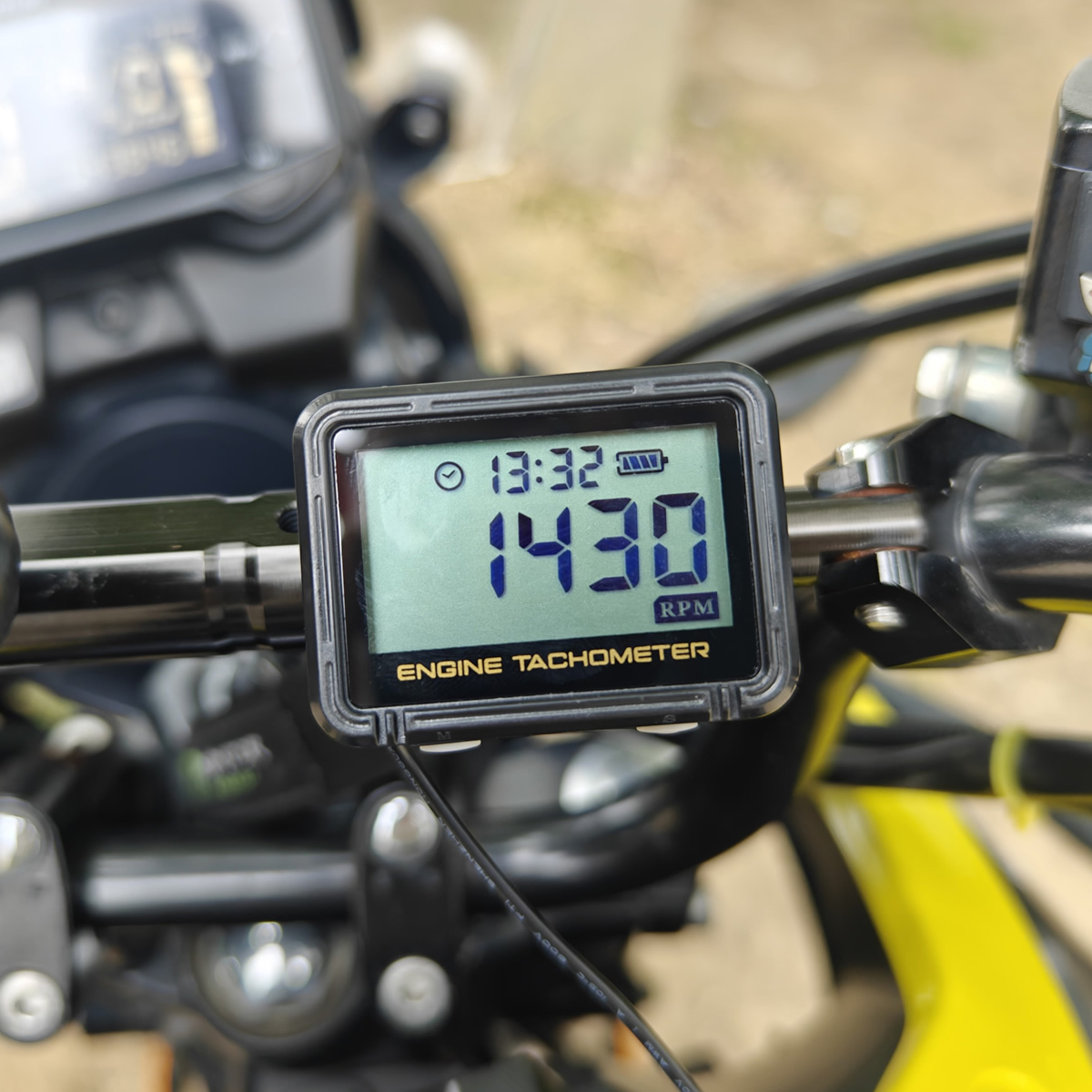

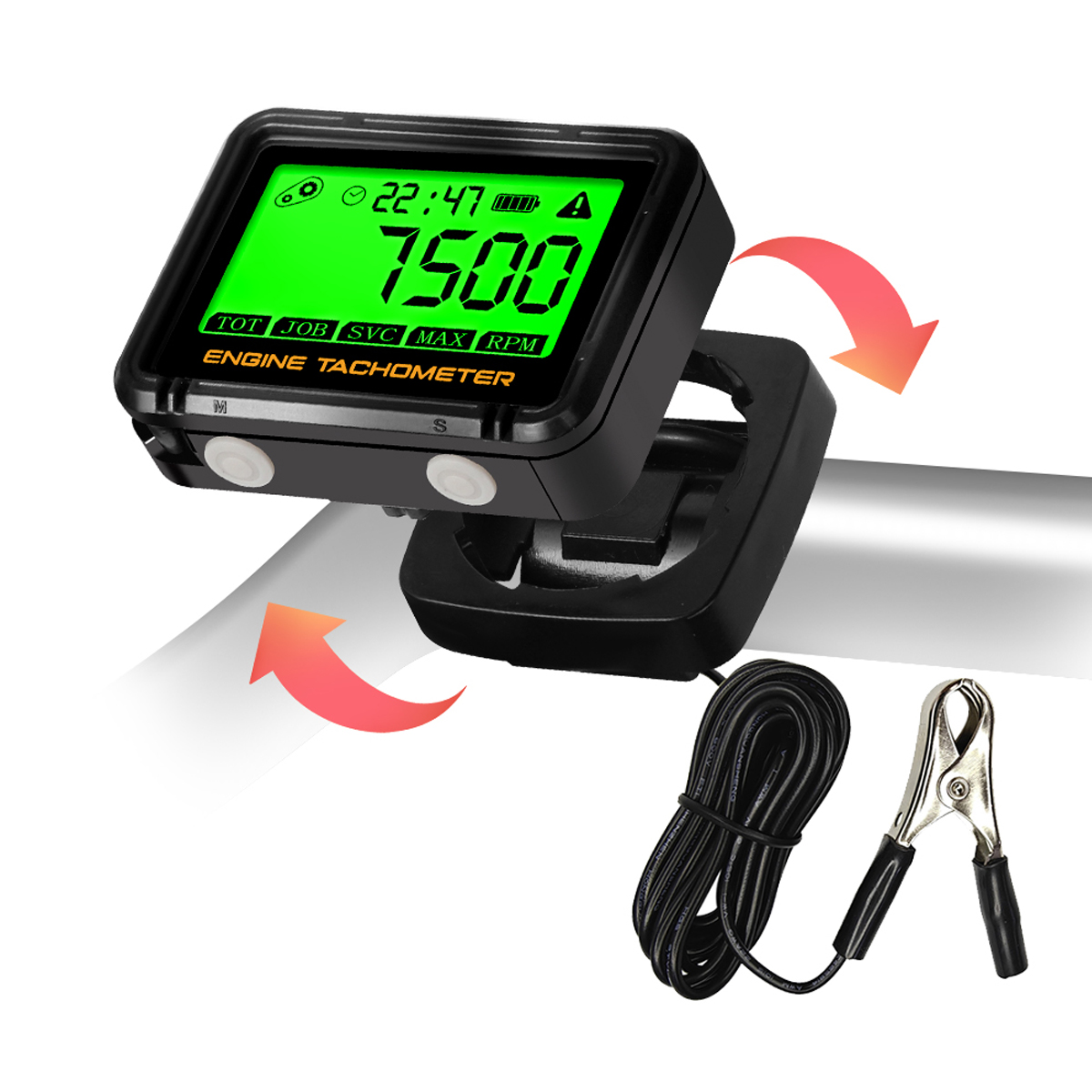

3 Easy to install —— Easy to installed with its bracket, which is firm and stable and can be fixed on any tubular object.
4 BACKLIGHTS—— Default green backlight will help to use it at night or dim place, Red backlight will remind when the engine RPM is higher than the set RPM alarm value. RPM alarm value is programmable.
5 Replaceable battery—— The tachometer has a battery power detection function. When the battery shows low, please replace the battery in time. Remove the bracket and open the battery door to replace the battery. The data is memorized and the data will not be lost when replacing the battery.
6 Wide range of applications —— induction tachometer suitable for any gasoline engine，Accuracy ±10RPM, speed range 0-18000, 0.5 second refresh rate.
7 Ultra-long distance sensing—— The sensing line is 2.2m long and can be welded to lengthen or cut short.
8 Resettable ——Press and hold the M and S keys simultaneously for 5 seconds to reset and restore to factory settings.
Product Function:
Timing System Including:
Total running hours TOT,total hours are non-resettable;
Partial running time JOB,partial hours are resettable;
Maintenance timer can be set freely to 0-500 hours SVC;
Hours Range 0-9999.9 hours
RPM Measuring System:
Measuring current engine RPM;
Recording and recall engine MAX RPM;
Setting overspeed warning function and can resettable;
RPM Range 0- 18,000;
Replaceable battery.
Product Specification:
Waterproof Rate:IP68
Induction Wire:2.2M

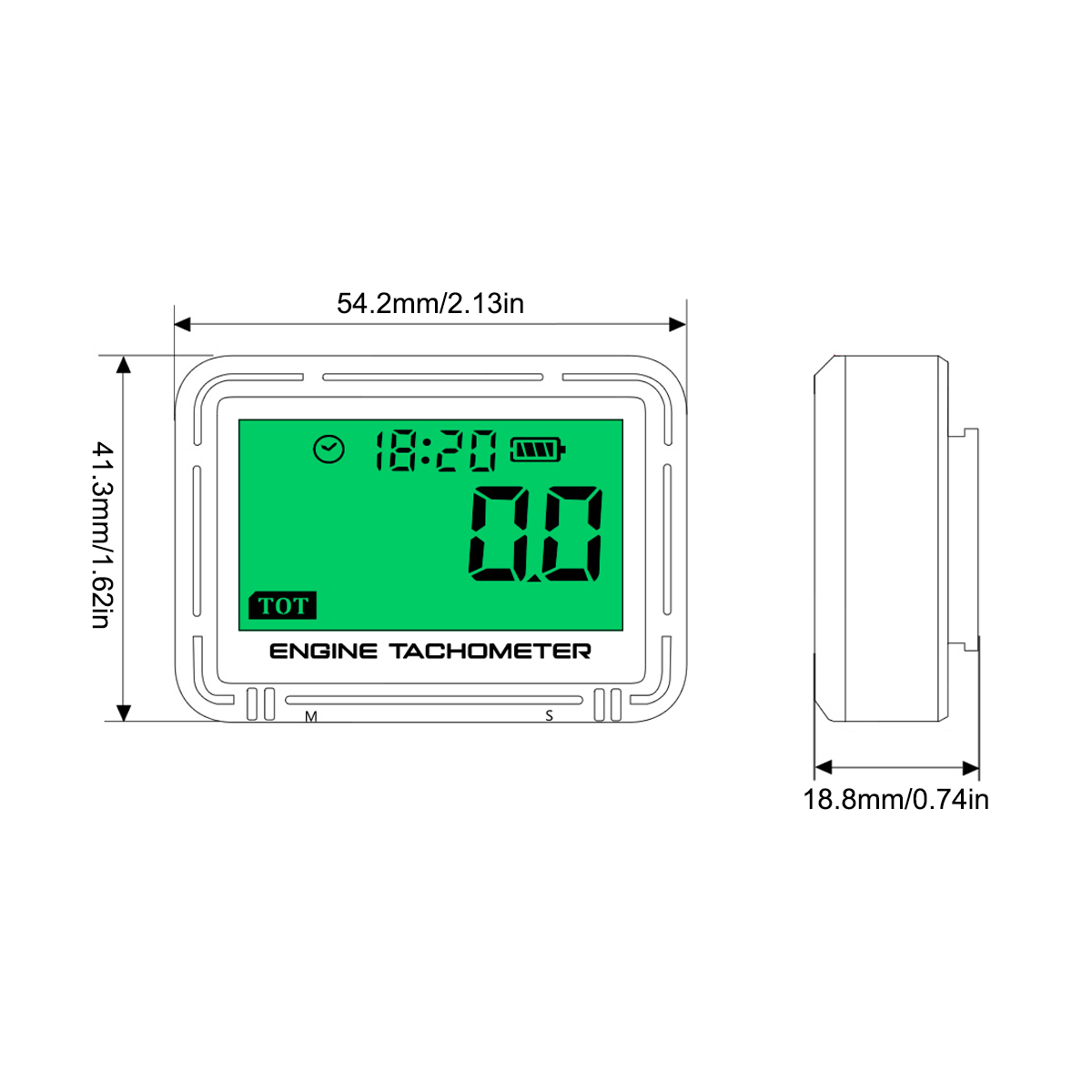

Product Size:54.2*41.3*18.8(mm)
Display Screen:LCD+Green Backlight
Screen Size:41x18(mm)
Refresh Rate:0.5S
Hours Range:0-9999.9H
RPM Range:0-18000RPM
RPM Alert Setting Range:1000-18000RPM
Housing Material:ABS
Length Battery Sepctification:CR2450
Timing Precision:0.1H
Maintinance Timer:0-500H
RPM Accuracy:10RPM

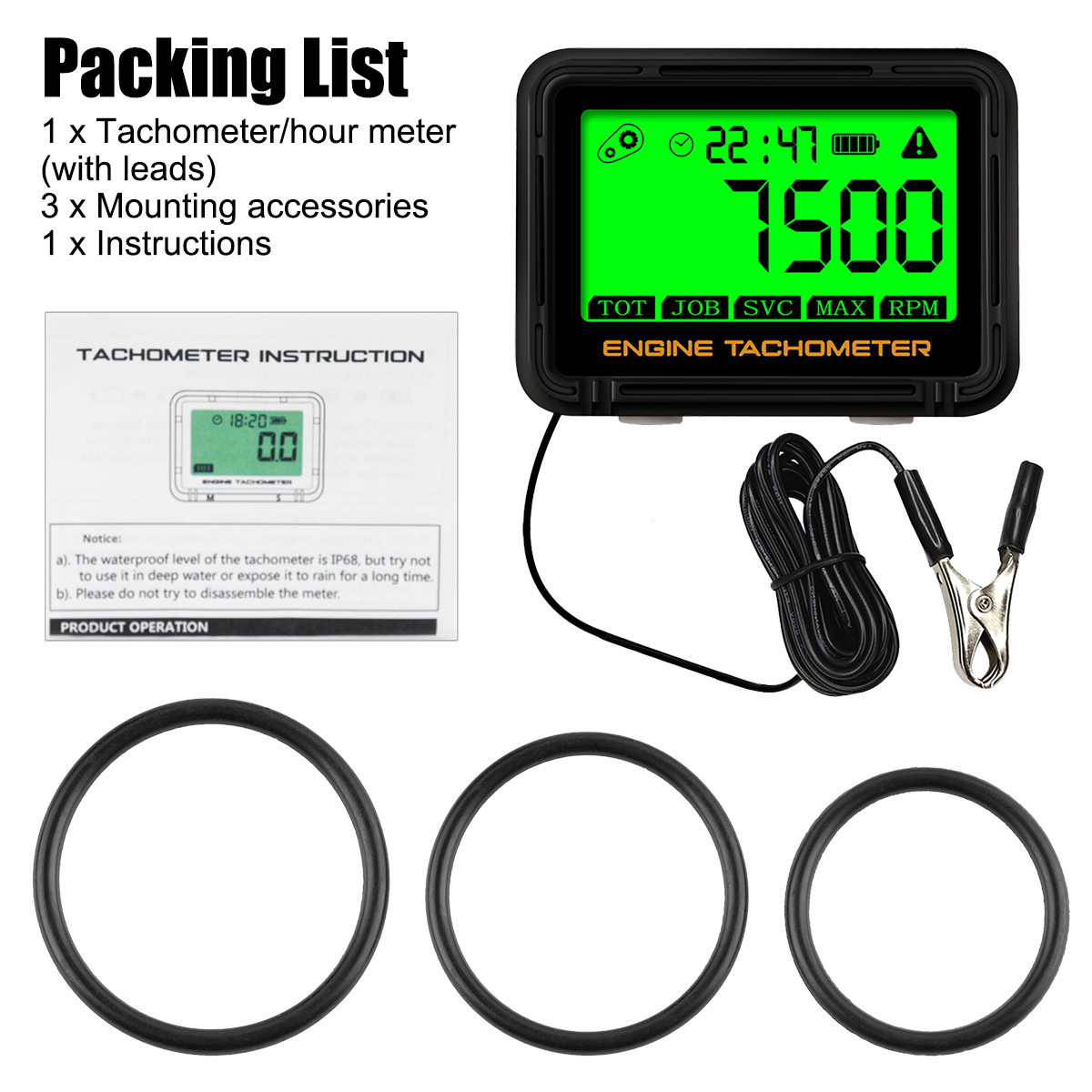

Package Includes:
1x Tach/Hour Meter with Wire
1 x Mount Accessories in the pictures
1x User Manual
