15057-001 Trim Tab Actuator for 2009 to Present Air Boat, with 5-16" Mount Hardware & 6ft Cable, 2-1/4" Stroke 12V,
Replacement for 101XDS Short Actuator,
Replace for Lenco Marine Actuators 101XD-4
Product Features:
Used with OEM specific kits and limited space applications;
The shortest actuator manufactured with 2.25 stroke and overall length10 7/8 inches (tip to tip)

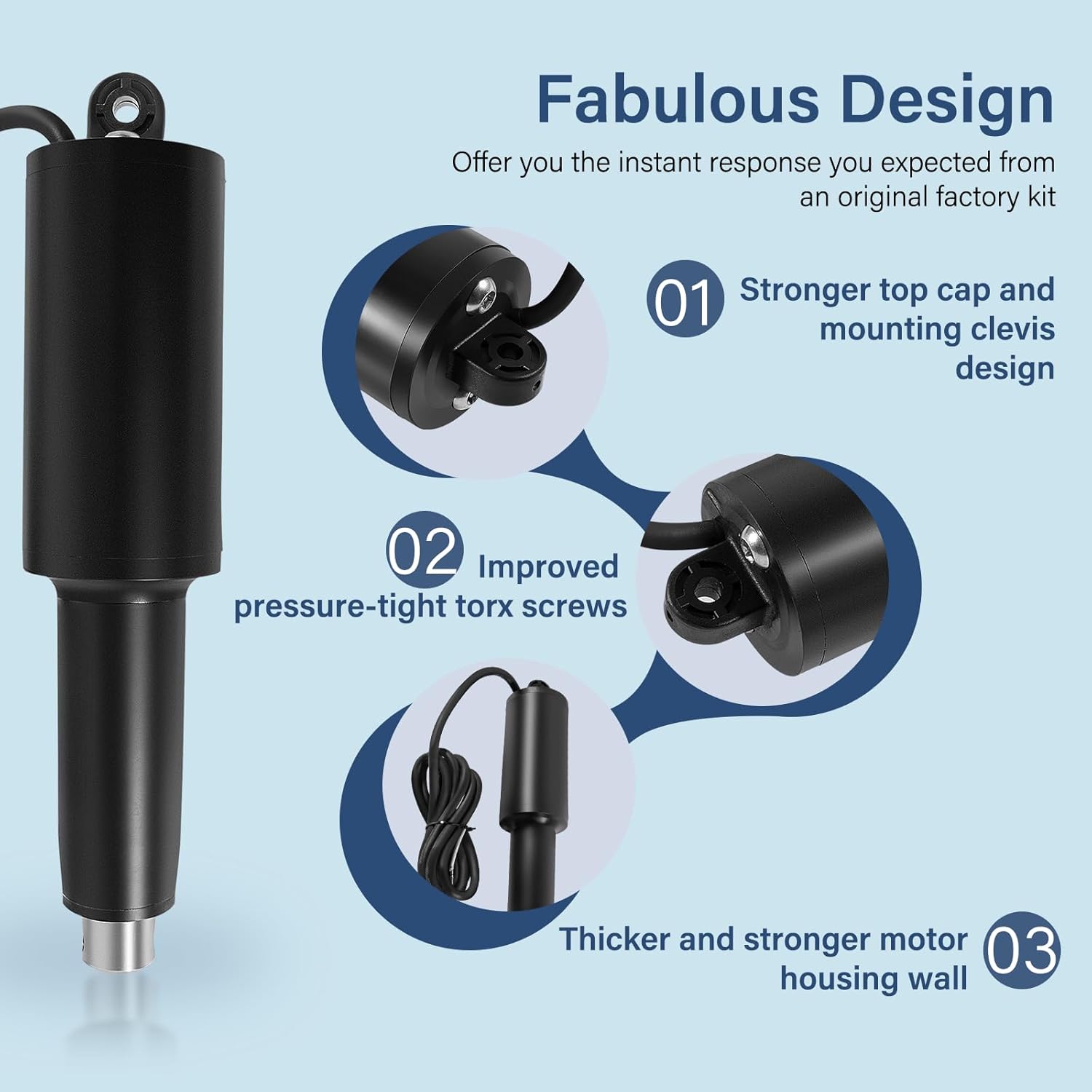

Fabulous Design:
High impact glass fiber filled and the ultraviolet-resistant nylon material along with the 316 super buff stainless steel work together to reinforce thermoplastic housing;
Ball screw design facilitates free rotation on 12 ball bearings at both ends of its stroke and decrease friction making it more reliable and twice as efficient compared with typical hydraulics;
Extreme Duty Actuator:
Tough, high-torque actuator motor easily pushes 750 pounds: leads with waterproof "Plug & Play" Deutsch connectors to reduce the possibility of water intrusion.
High Performance:
With stronger top cap and mounting clevis design, improved pressure-tight torx screws, integrated wiper seal at actuator base.
Molded-in brass thrust bearing design, thicker and stronger motor housing wall, improved O-Ring design for more consistent seal and maximum protection and the over-molded cable.
Technical Specification:
Stroke: 2-1/4"
Length overall: 10-7/8"
Length pin to pin: 10-1/4"
Diameter (upper housing): 2-1/2";
5/16" mounting hardware;12 Volt;
6 feet cable.
Package Included:
15057-001 Trim Tab Actuator
| Brand | for Lenco Marine Actuators |
|---|---|
| Manufacturer Part Number | 15057-001,101XDS ,101XD-4 |
| Type | Short Extreme Duty Actuator |
| OE/OEM Part Number | 15057-001,101XDS ,101XD-4 |
| Replace Part# | 15057-001,101XDS ,101XD-4 |
| Voltage | 12 V |
