[Simple installation] Easy to convert, DIY rear wheel electric bicycle conversion kit, suitable for bicycles with a rear drop size "142mm", easily convert your pedal bicycle to motorized bicycle within 1 hour.
[Complete Accessories] Equipped with all necessary accessories. Rear wheel and motor, controller, display (optional), brake lever, thumb throttle, PAS, extension cable, controller package.
[Not recommended] We do not recommend that you install a motor kit on a carbon fiber bicycle

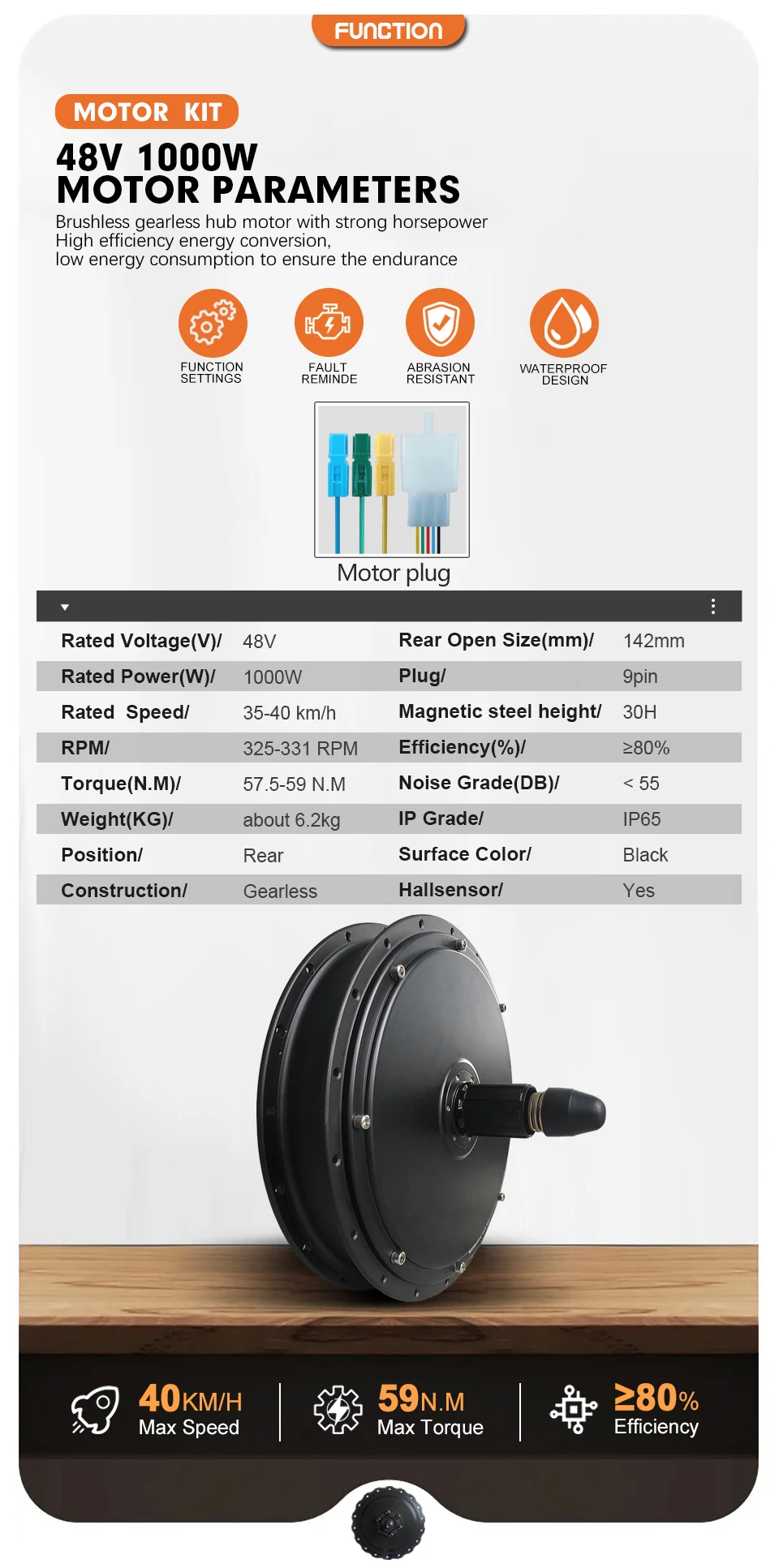

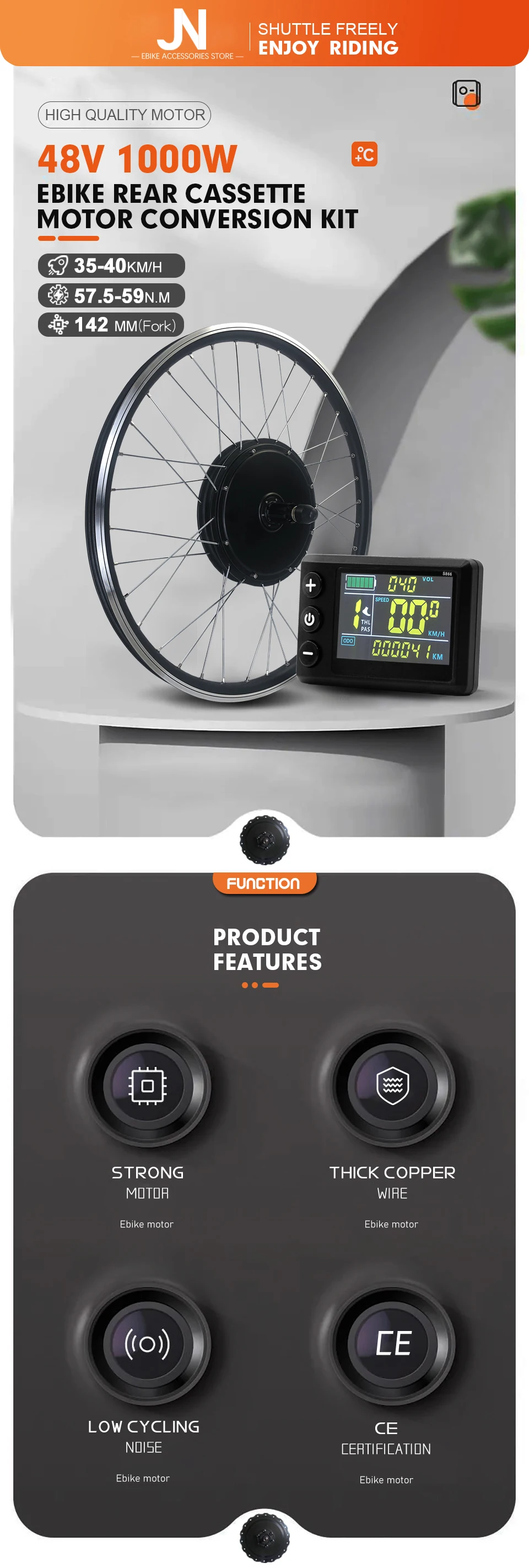

1000W Motor Wheel:
1. Full Speed:
1000W about 35-40km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)

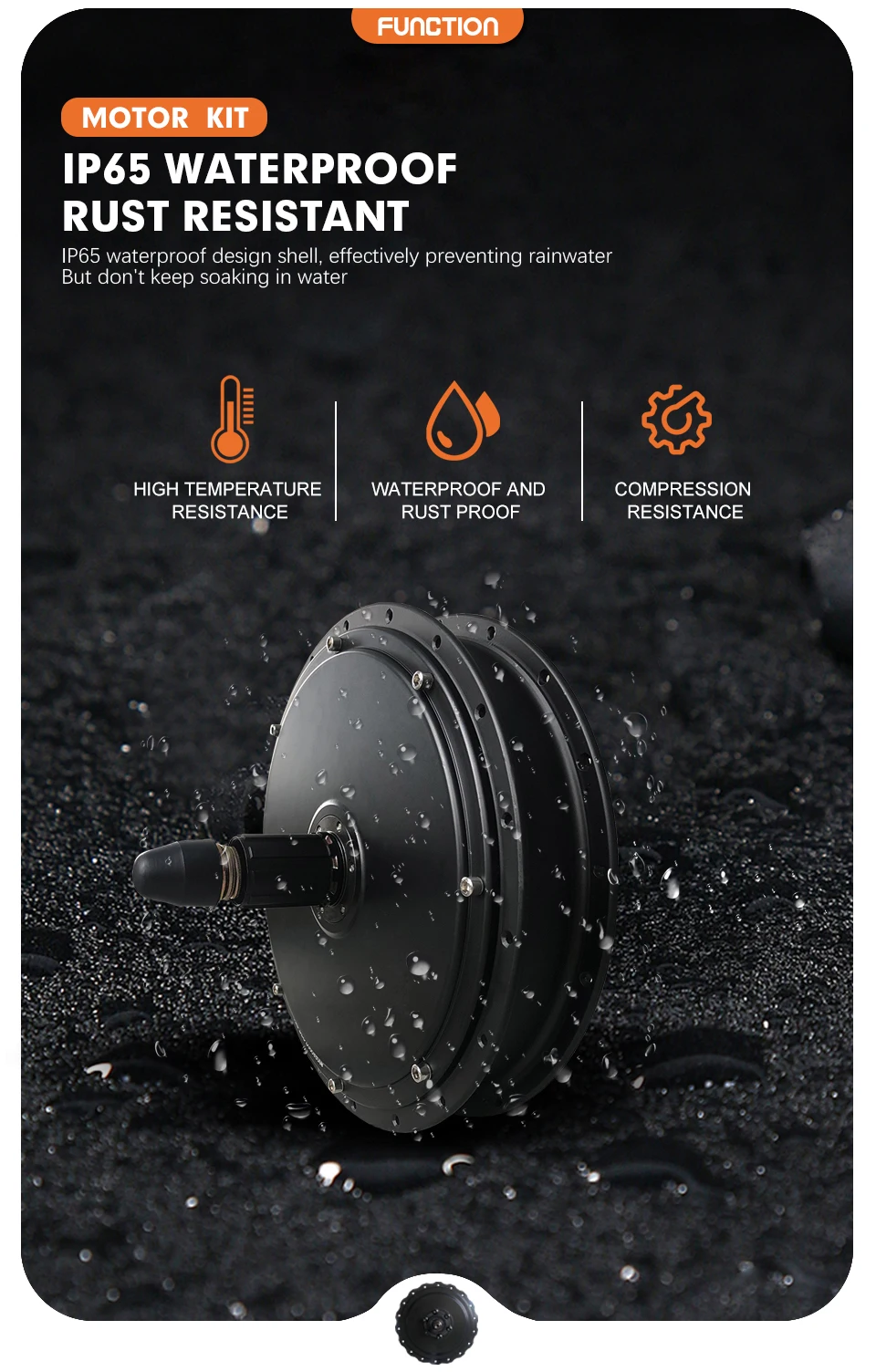

2. Hub Motor:
Brushless gearless Hub Motor for 48V 1000W
3. Rim:Double-wall Aluminium Alloy Rim

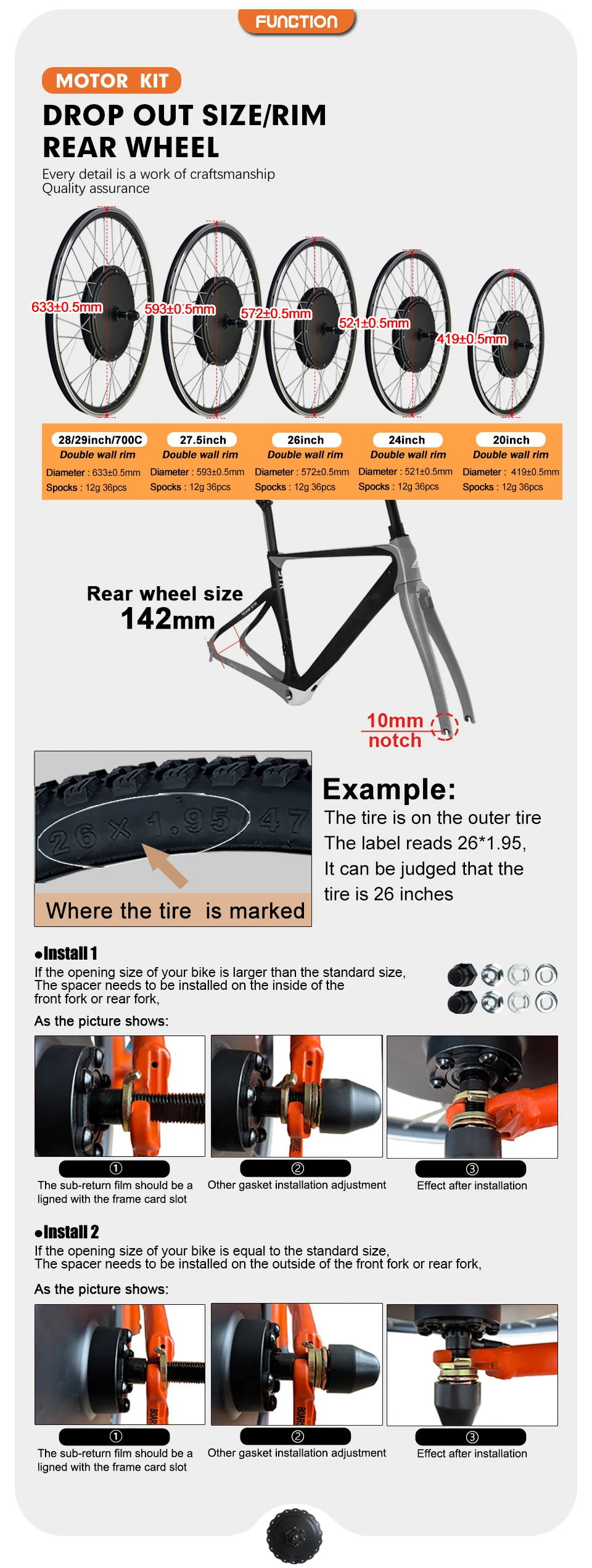

4. Wheel Bottom bracket: Rear 142mm
5. Torque:
57.5-59N.M
6. RPM:
325-331Rpm
7. Magnet height:30H
8.Operating Temperature: -20-45℃
9.Installation: Rear
10.Certification: CE
11.Wheel Diameter (Inch): 20/24/26/27.5/28/29/700Cinch---Optional

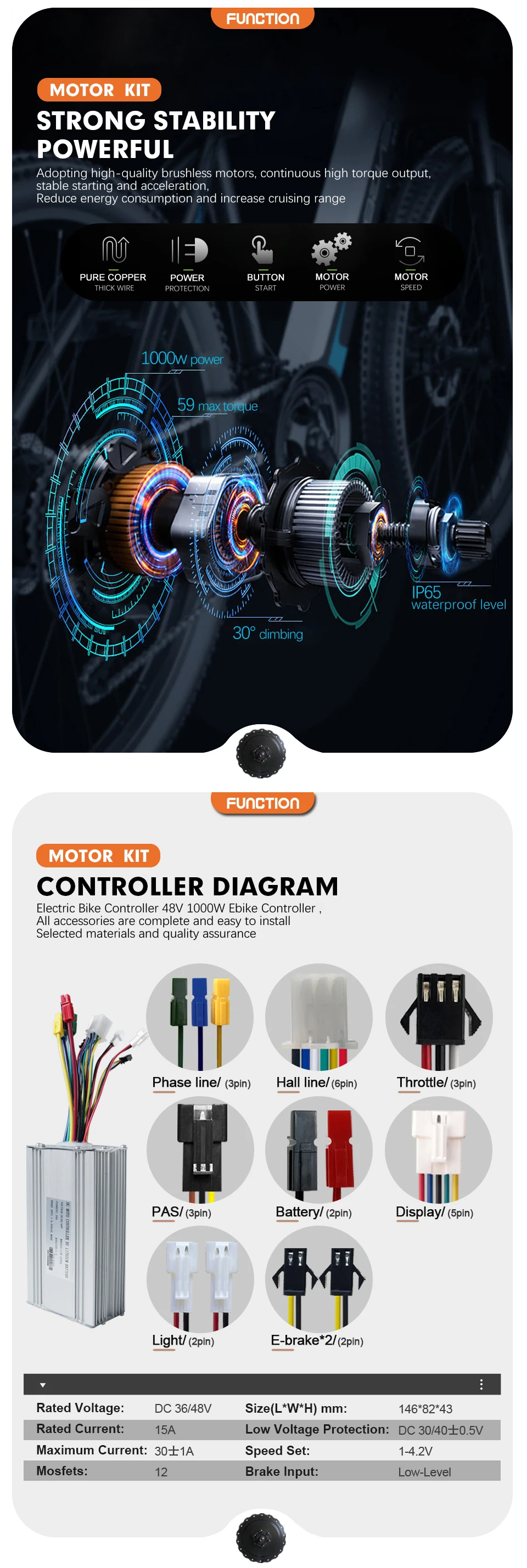

JN 30A Controller
●Dimension :146*82*43mm
●Maximum current :30±1A
●Rated current :15A
●Mosfets :12 mosfets
●Weight :467g
●Rated voltage :DC36/48V
●Speed set :1-42V
●Brake input :Low-Level
●Low voltage protection :DC30/40±0.5V

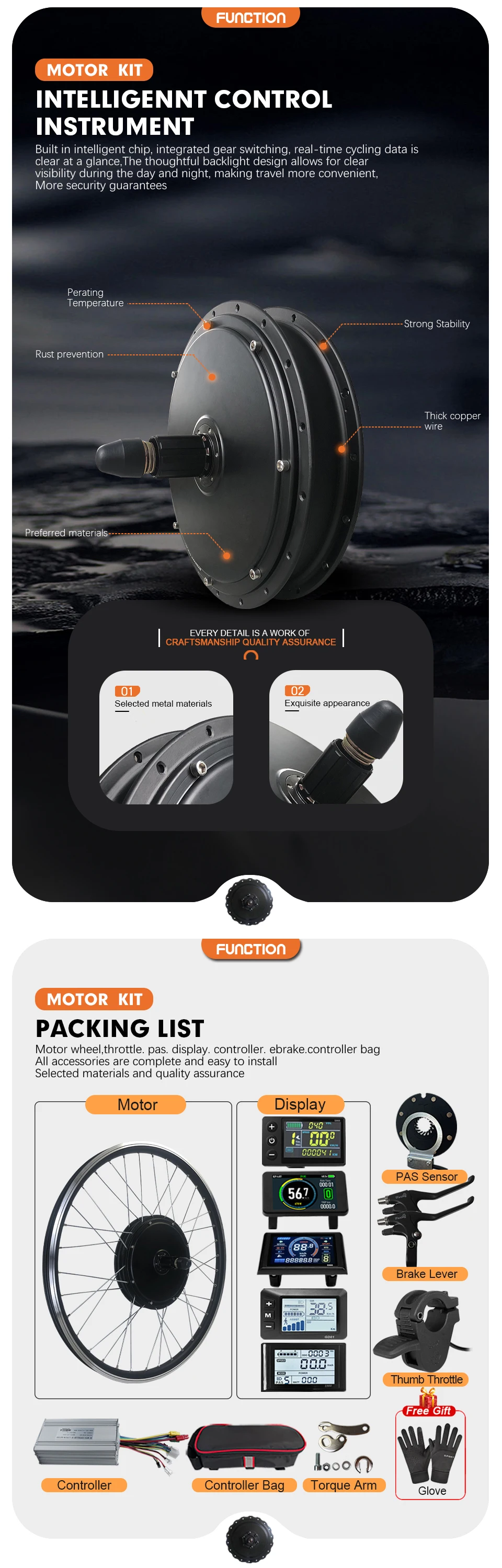

Packing List
Noted:Conversion Kit not include Battery, tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee )
1 * Motor wheel
1 * Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever

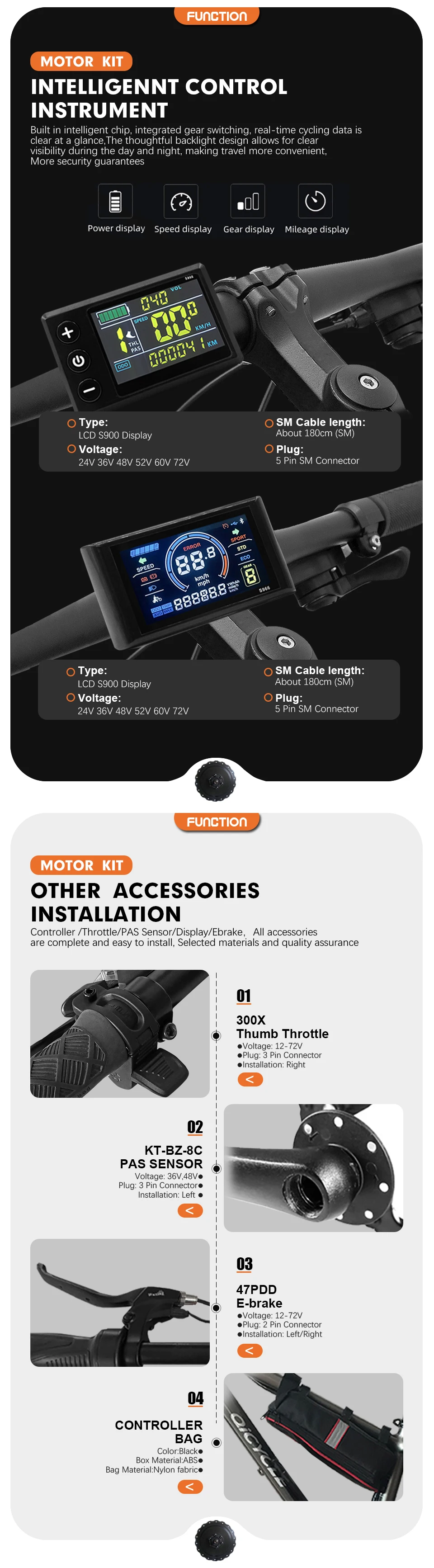

1 * Display (Option)
1 * 8 Magnet Pedal Assistant Sensor
1 * Thumb Throttle (default)
