Performance parameter:
The overall medical white color is novel and generous
Physical button (machine side switch button, one-button pressure
measurement button) + touch button

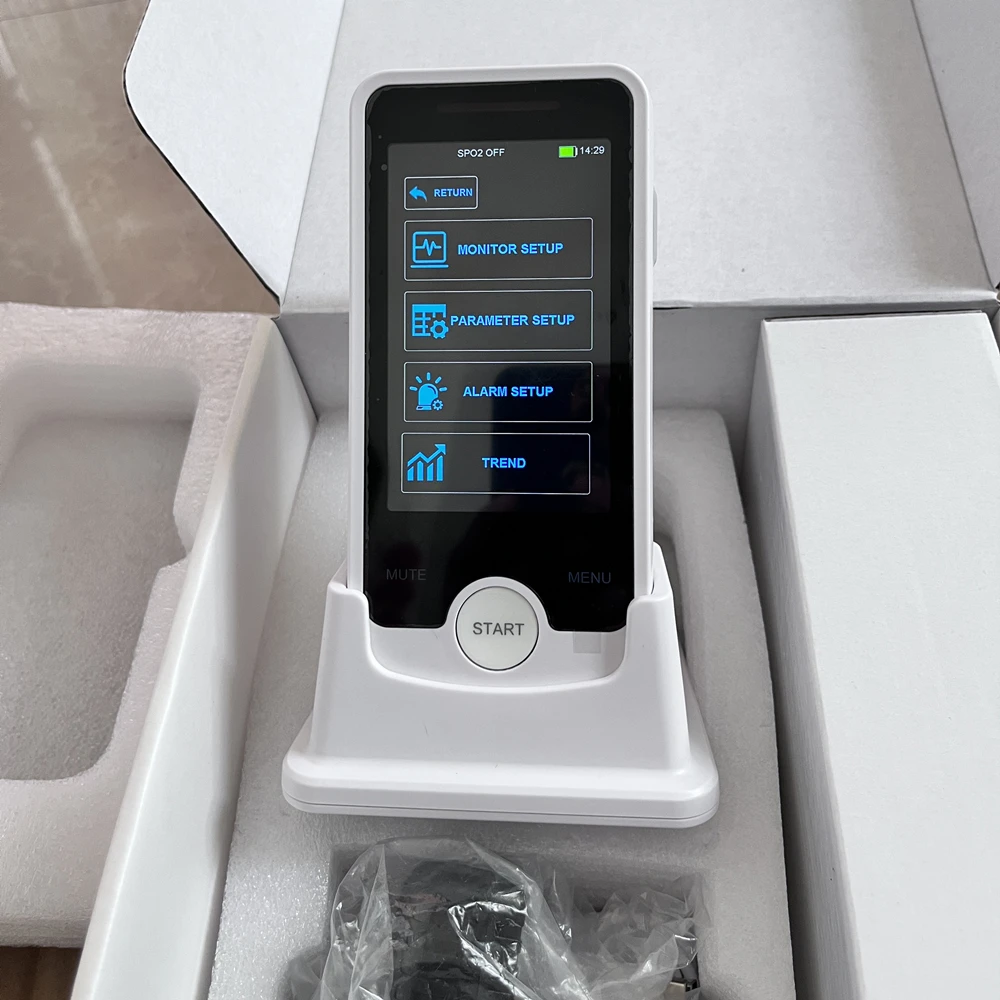

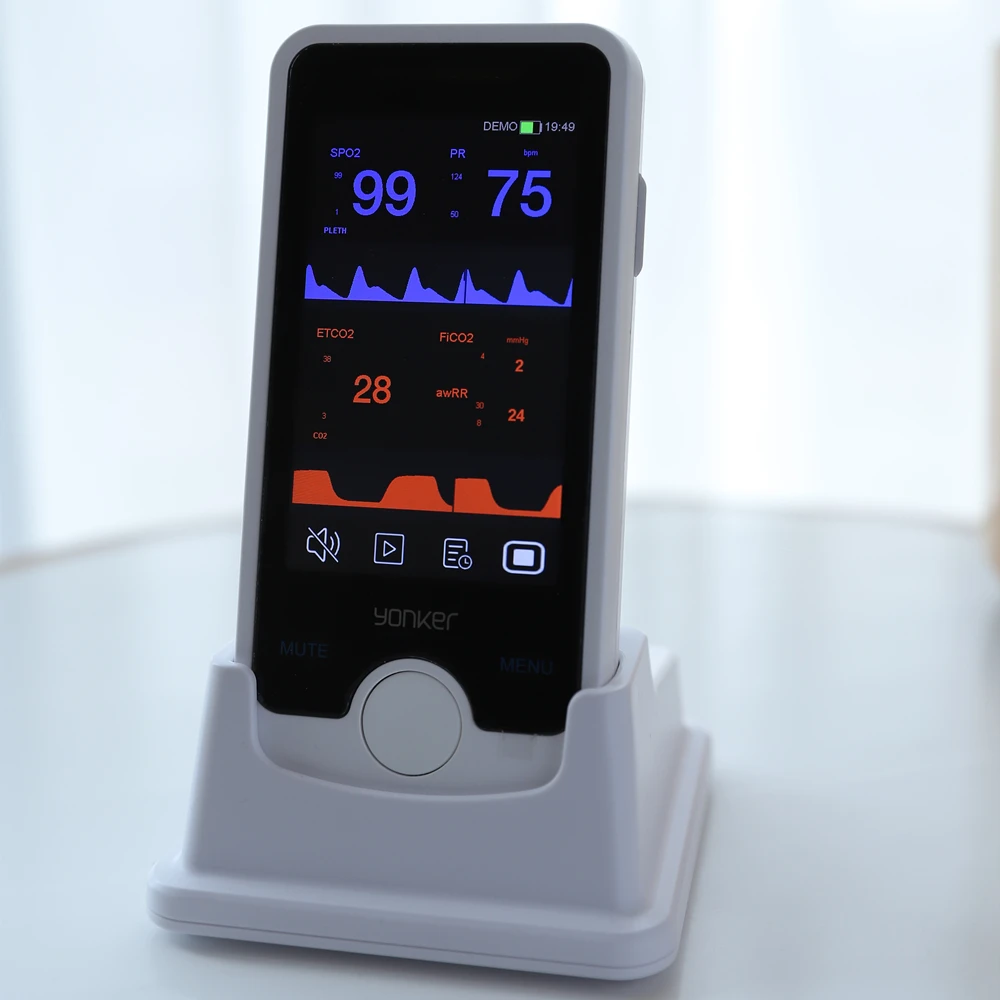

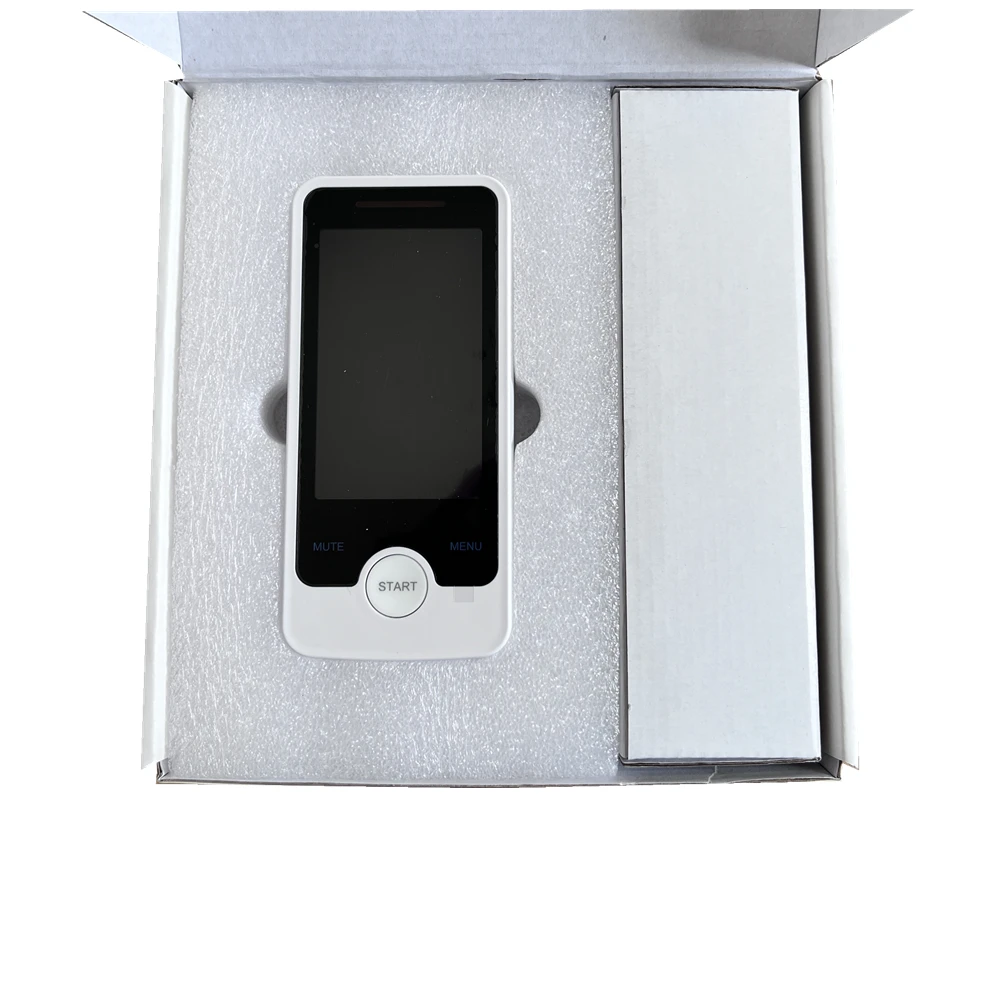

4 inch TP fit touch screen
Sound and light alarm, more convenient for doctors to observe the
patient's status
Built-in 3.7V 2000mAh polymer lithium battery

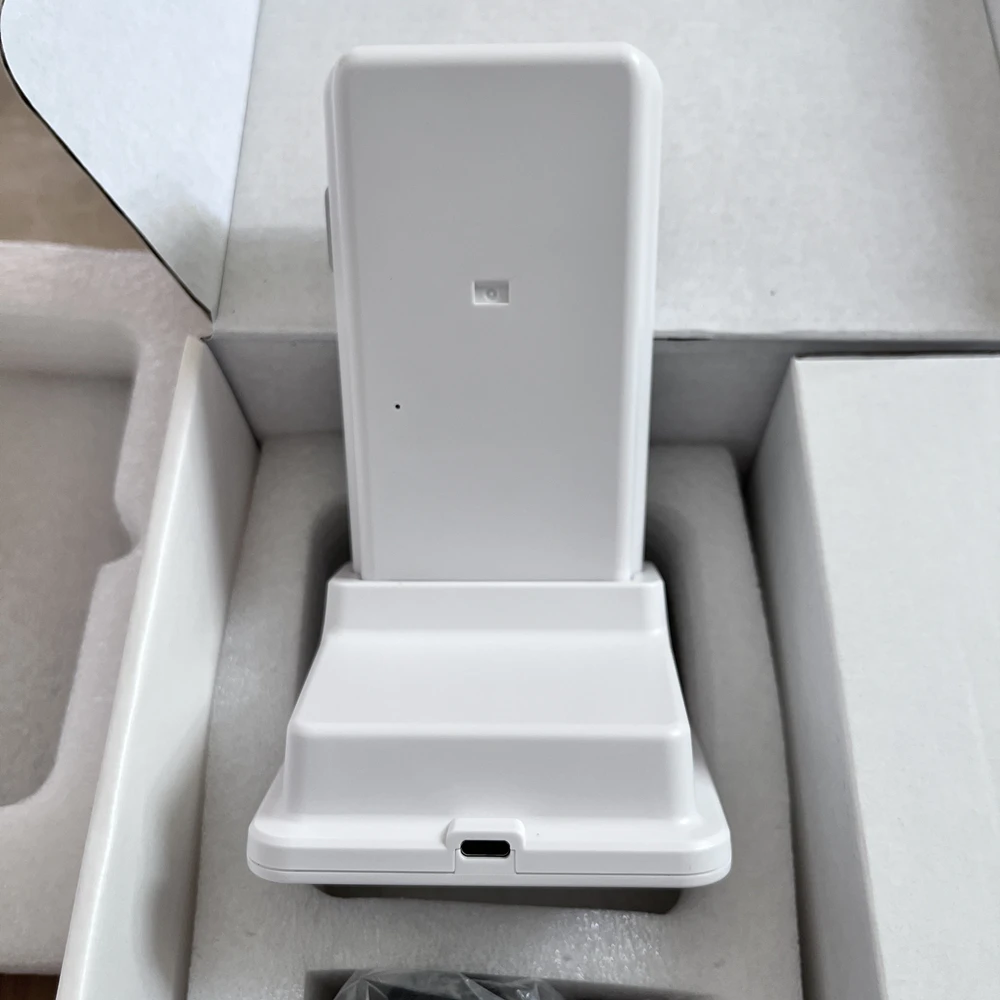

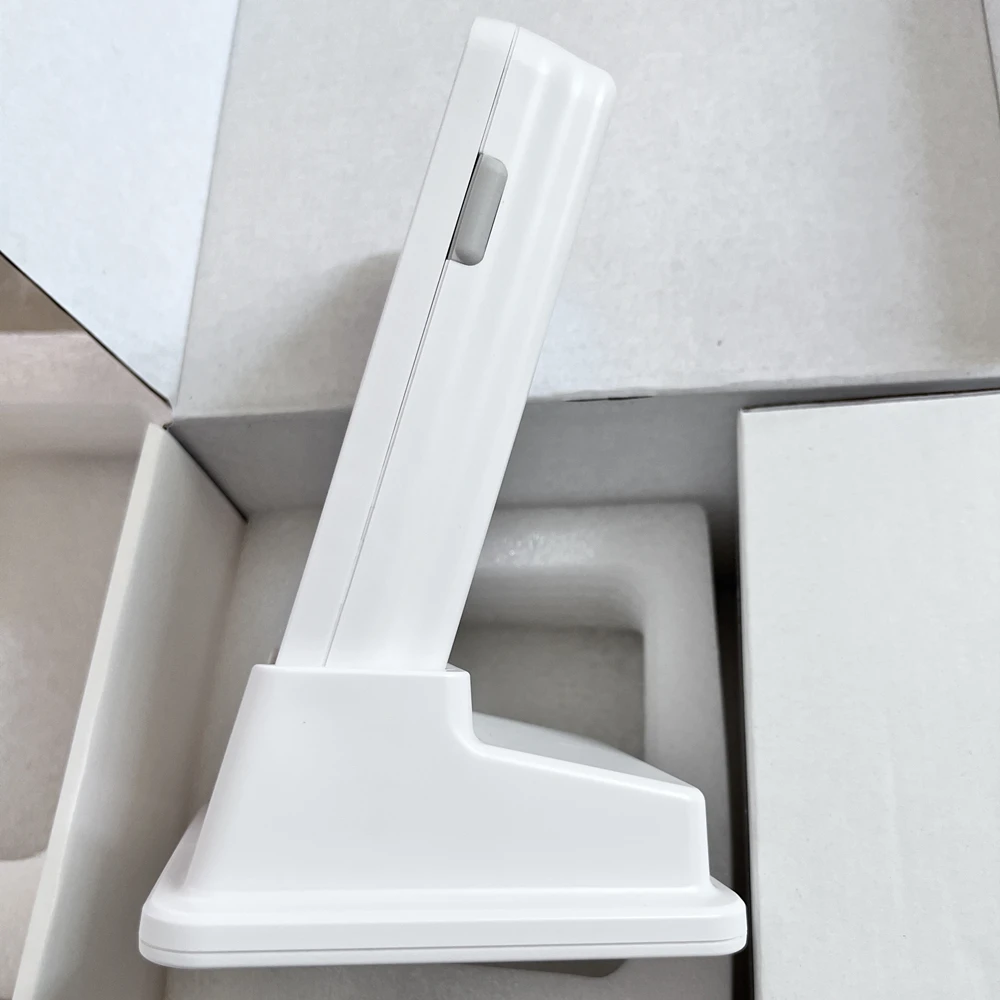

Humanized charging base
Support contact and TYPE-C charging
Waterproof rating: IPX2
Host size: 155*72.5*28.6
Support Chinese and English
Technical parameters of
blood oxygen pulse rate:
Blood oxygen saturation
Blood oxygen saturation measurement range: 0%~100%
Blood oxygen saturation display resolution: 1%
The accuracy of blood oxygen saturation measurement: in the
range of 70% ~100%, the measurement error should be ±4%; in the
range of 0% ~ 69%, the measurement error is not defined.
Blood oxygen saturation alarm setting range: the upper limit of the
alarm should be 1%~100%; the lower limit of the alarm should be
0%~99%
Blood oxygen saturation alarm accuracy: the alarm accuracy should
not exceed ± 1% of the alarm setting value.
Technical alarm: there should be an alarm when the sensor falls off Pulse rate:
The pulse rate detection range should be 30bpm~240bpm
Pulse rate detection resolution: 1bpm;
The accuracy of pulse rate measurement should be ±3bpm;
Pulse rate alarm setting range: the upper limit of the alarm
should be 2bpm—254bpm;
The lower alarm limit should be
0bpm—252bpm
Pulse rate alarm accuracy: the alarm accuracy should not
exceed the set value ± 1bpm.

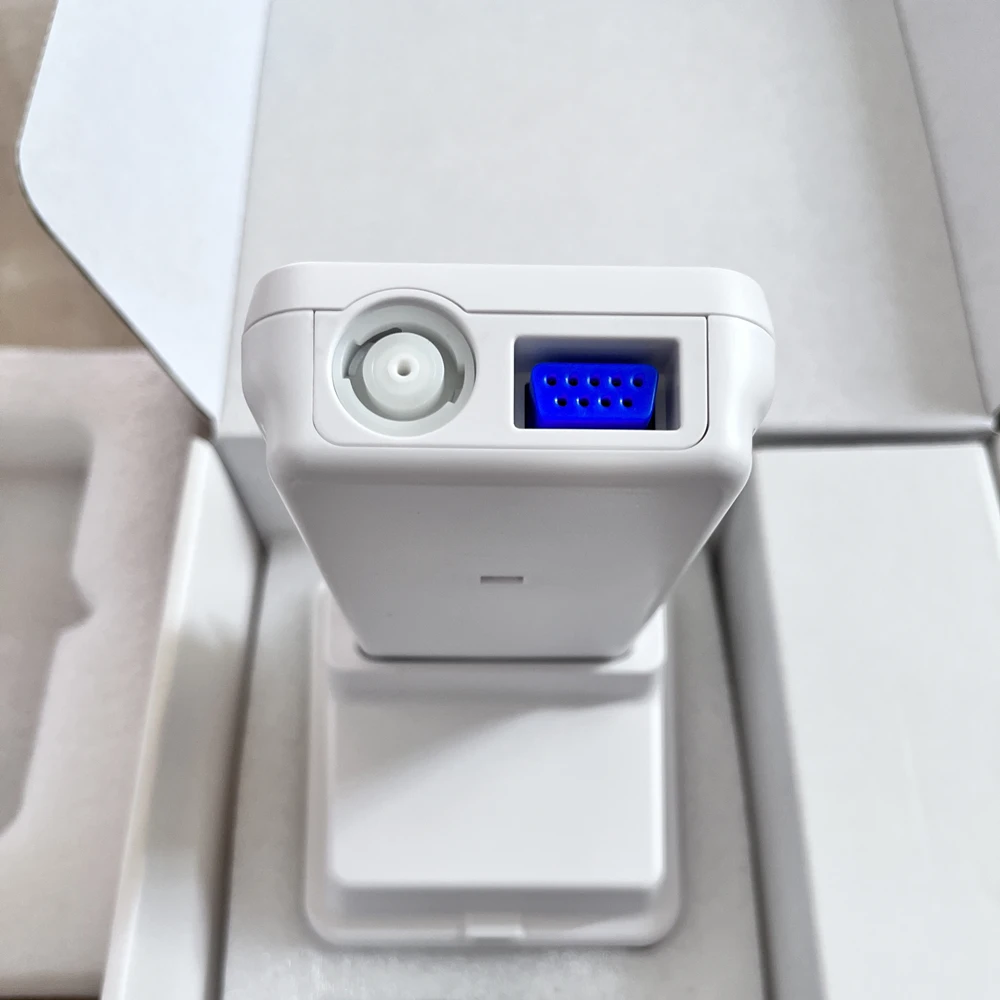

Built-in side stream CO2
technical parameters:
Sensor type: side stream CO2
Sampling flow: 50 -150ml/min; default 75ml/min
Technical principle: dual-wavelength non-dispersive infrared
(NDIR), no moving parts
Initialization time: display the waveform within 3 seconds, reach the
index requirement within 5 minutes (at 25°C room temperature)
Carbon dioxide range: 0 – 114 mmHg, 0 – 15 %, 0 – 15.2 kPa Rise
time: less than 4s
Carbon dioxide resolution:0.1mmHg 0 – 38 mmHg
0.25 mmHg 39 – 114mmHg
Carbon dioxide accuracy: 0 – 40mmHg ±2 mmHg
41 – 76 mmHg ±5% of reading
77 – 114 mmHg ±8% of reading
Respiration rate greater than 80 BPM ±12% of reading
Carbon dioxide stability: short-term drift: less than 1 mmHg within 4
hours
Long-term drift: meet the measurement accuracy requirements
within 120 hours
Data sampling rate: 100 Hz
Respiration rate range: 3-120 times/min
Respiration rate accuracy: ±1 times/minute
Compensation: Atmospheric pressure range: 400 mmHg-800 mmHg
(automatic compensation)
Calibration: The user does not need to calibrate regularly.
Voltage requirements: 5.0 VDC ±5%, 2W
Power consumption: 1.0W (typical value); 1.8W maximum
(warm-up)
Data interface: RS232, 19200 baud rate, Standard N-8-1
Data output: carbon dioxide concentration curve, end-tidal carbon
dioxide concentration, inhaled carbon dioxide concentration,
respiration rate. (The host is equipped with a mixed gas type, and
the measurement result is the compensated value)
The design follows the standard: 60601-1
80601-2-55 (ISO21647)
