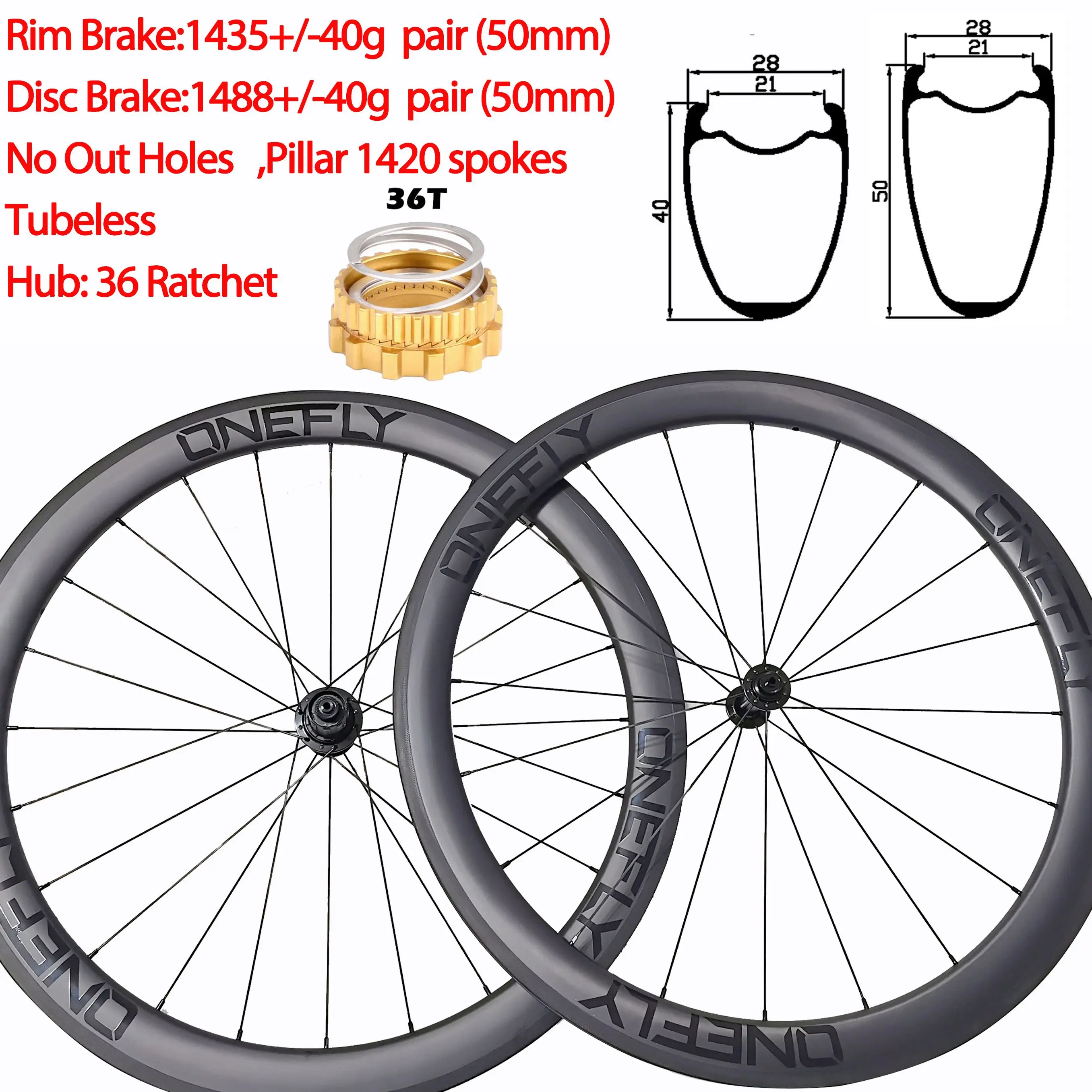

Width 28mm Super Light Carbon Road Bike Wheels Clincher Tubeless 36 Ratchet Disc Rim V Brake 40/45/50/55mm Wheelset 700C
Rim Information
Material：Toray T800 carbon fiber
Width：28mm
Size：700C
Depth：40/45/50/55mm
Appearance：3K/UD,Matte/Glossy
Spoke Hole：
front 20,rear 24 (rim brake)
front 24,rear 24 (disc brake)
Brake Surface：3K/UD
Decal ：Customized logo design available(need based cost of decal)
Standard：EN
Test ：UCI APPROVED
Rim weight：
40mm---415+/-15g /pc
45mm---445+/-15g /pc
50mm---460+/-15g /pc
55mm---475+/-15g /pc
Geometry:
Wheel weight:
40mm wheel with rim brake hub:1353+/-40g
45mm wheel with rim brake hub:1398+/-40g
50mm wheel with rim brake hub:1419+/-40g
55mm wheel with rim brake hub:1419+/-40g
40mm wheel with disc brake hub:1388+/-40g
45mm wheel with disc brake hub:1437+/-40g
50mm wheel with disc brake hub:1458+/-40g
55mm wheel with disc brake hub:1458+/-40g

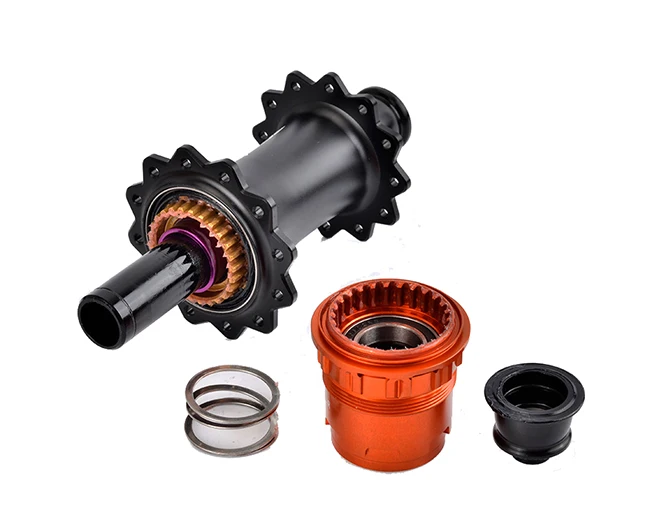

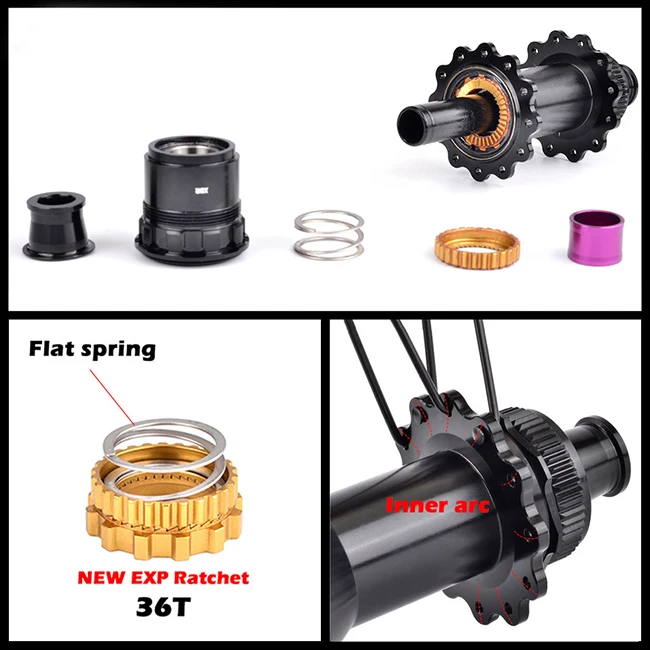

Hub Information
O. L.D：Front 100mm,Rear 130mm ( rim brake )
Front 12x100,Rear 12x142 ( disc brake ) ,center lock or 6 bolt
For Rim brake wheel ,normally we send wheel with sh1mano 11s ,if you need wheel with XDR ,please inform us after order
For Disc wheel ,normally we send wheel with center lock sh1mano 11s ,if you need wheel with 6 bolt or XDR ,please inform us after order
Cassette body：sh1man0 10/11
Hub Color:Black
Spoke Information

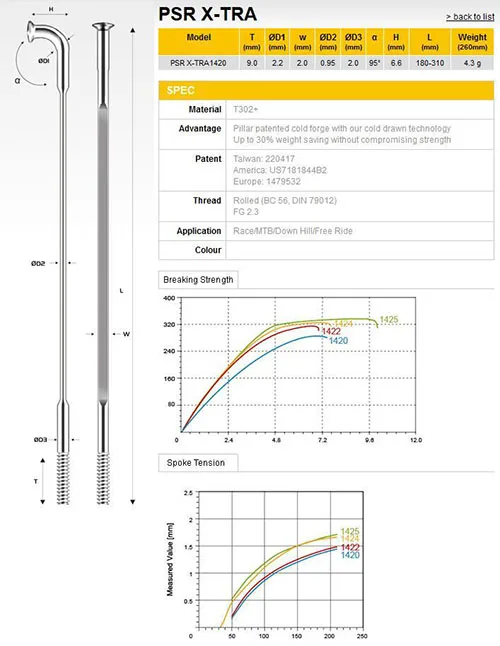

Spoke Name:Pillar 1420 alloy flat spoke
Spoke Color:Black
Spoke Pattern:2 x cross drive side
Nipple Information
Nipple Name :Pillar Alloy nipple
Nipple Color:Red/Black
Recommendation
Max Rider Weight:120kg
Max Tire Pressure:125psi
Max Spoke Tension:180kgf
Gift
1 pair of skewer,2 pairs of brake pads
Warranty
2 years
Note:
1.If you need to put customized logo design on wheel ,please leave message to us
Finish:
Rim Warranty and Basic Information
2 years warranty is offered to this wheel covering defects both material and manufacturing from the date when the product is delivered on your hands .
Clincher and Tubeless ready ,comfortable riding,low rolling resistance and better puncture protection.
Wide rims with a U-profile, rider can get the addition of great handling and reduced drag across a wide range of yaw angles.
Made from T800 carbon fiber to be more lighter and stronger.
High TG 255° resin of rim to be sure rim in good performance when wheel braking (the temperature is increasing on brake surface)
UCI Test

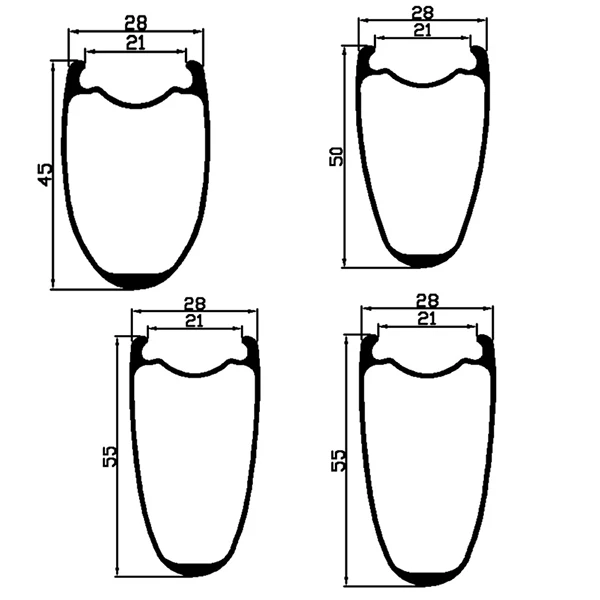

Rim structure
①Carbon rims made from T800 to improve rim strength and be more stronger ,also reduce the weight .
②Designed with wider rim also works excellently with clincher tyres and tubes.
③Tubeless ready for lower weight, rolling resistance and better puncture protection.
