Applications:

For Mazda MX-5 I (NA) (09/1989-04/1998)

For Mazda MX-5 II (NB) (01/1998-10/2005)

For Mazda Miata MX-5 NA (1.6L,1.8L) 1989-1997

For Mazda Miata MX-5 NB (1.6L,1.8L) 1998- 2005

For Mazda Miata Base Convertible 2D 1990-1997

For Mazda Miata Base Convertible 2D 1999-2005

For Mazda Miata SE Convertible 2D 2000-2003

For Mazda Miata LE Convertible 2D 1993

For Mazda Miata M Edition Convertible 2D 1994-1997

For Mazda Miata STO Convertible 2D 1997

For Mazda Miata 10th Anniversary Convertible 2D 1999

For Mazda Miata LS Convertible 2D 2000-2005

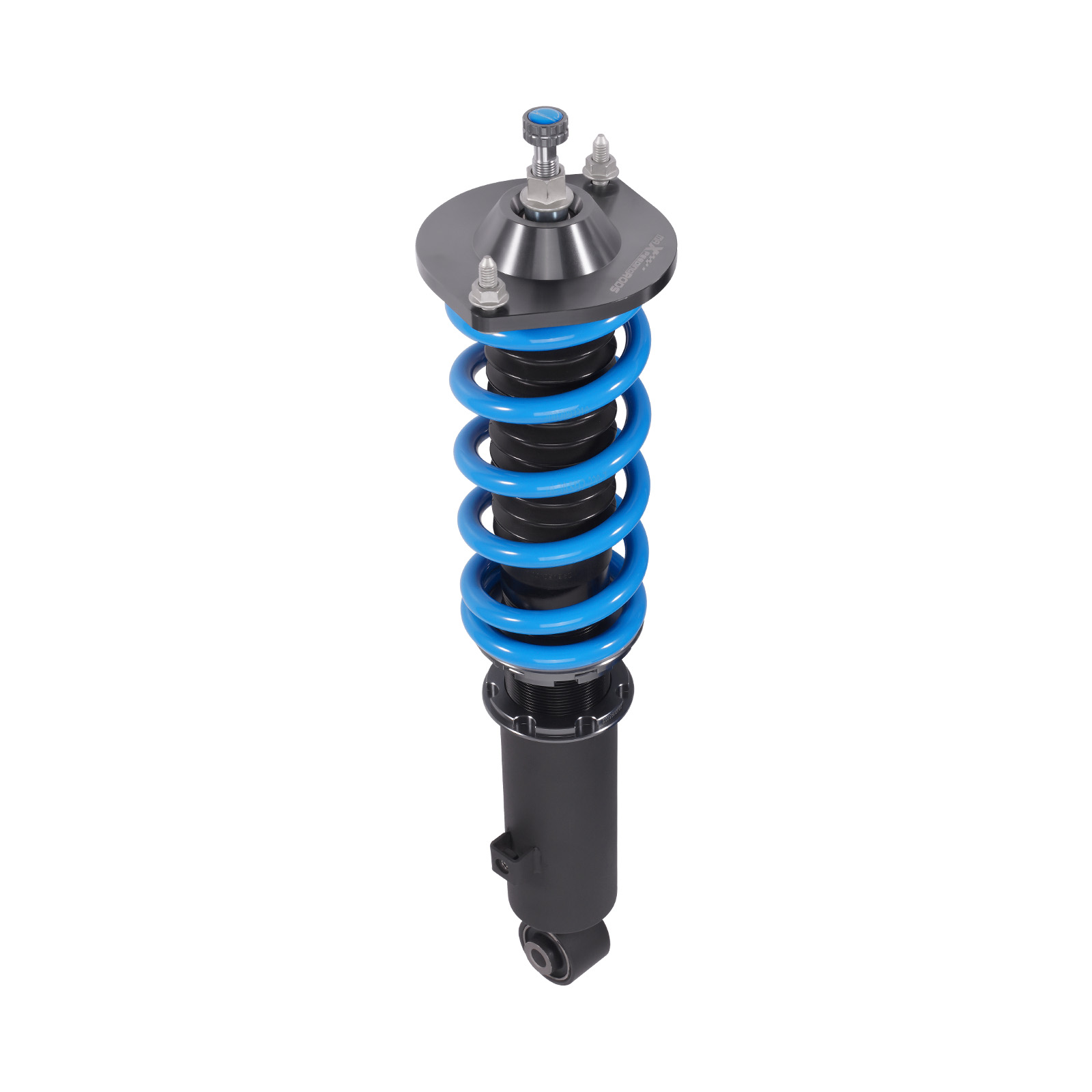

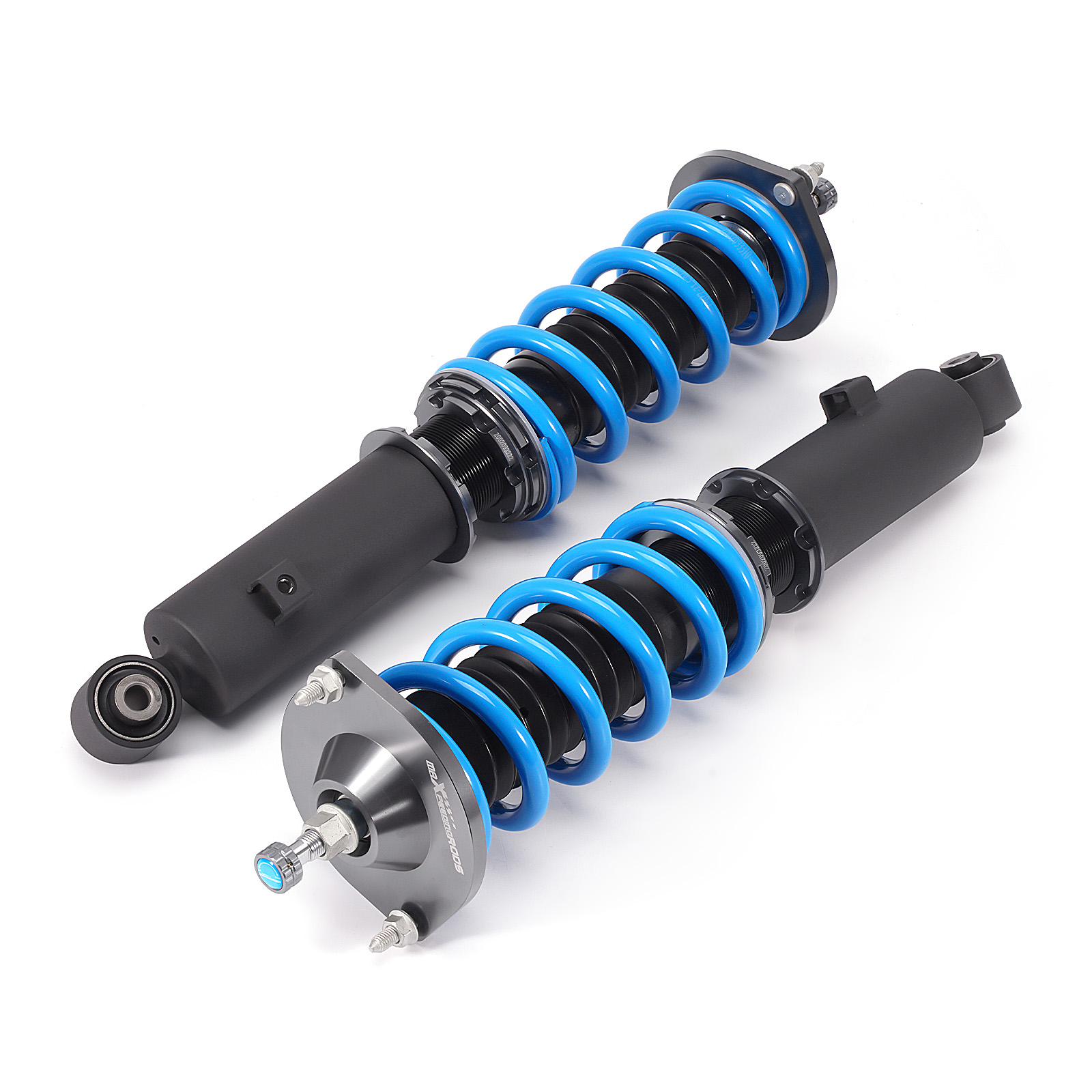

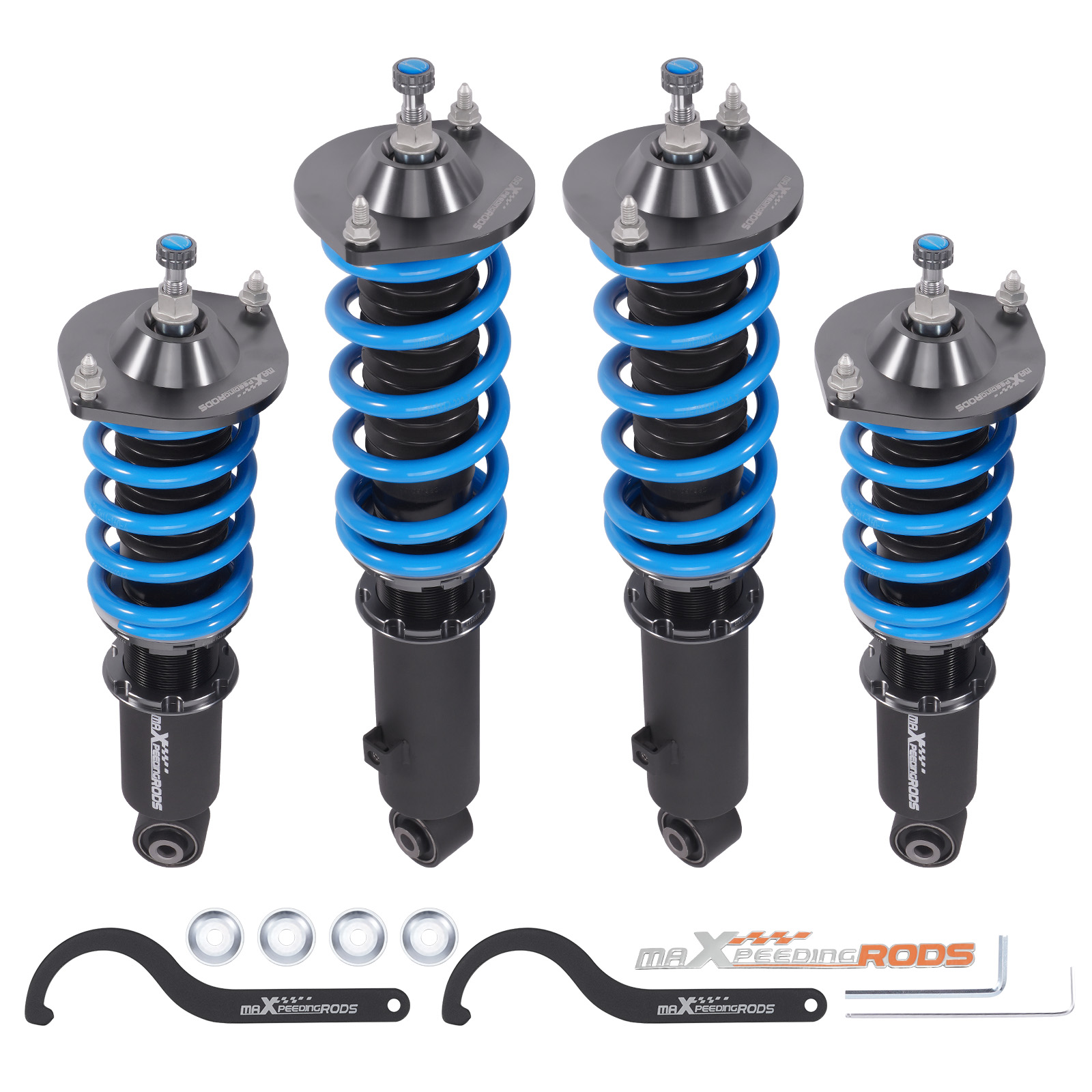

Specifications:

Height adjustable Front: Yes, lowering 0 -25mm from the original height

Height adjustable Rear: Yes, lowering 0-10mm from the original height

Damping adjustable: Available, 24 levels of rebound damping force

Spring Rate Front: 7 kg/mm (392 lbs/in)

Spring Rate Rear: 6 kg/mm (336 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 220 mm

Spring length Rear: 160 mm

Front top mount structure: Pillow ball

Rear top mount structure: Pillow ball

Camber adjustable: Not available

Shock type: twin tube

Spring Preload: 7-10 mm


Feature:

1. Lowered height adjustment which allows a lower center of gravity and also adds a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. 24 levels adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
4. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

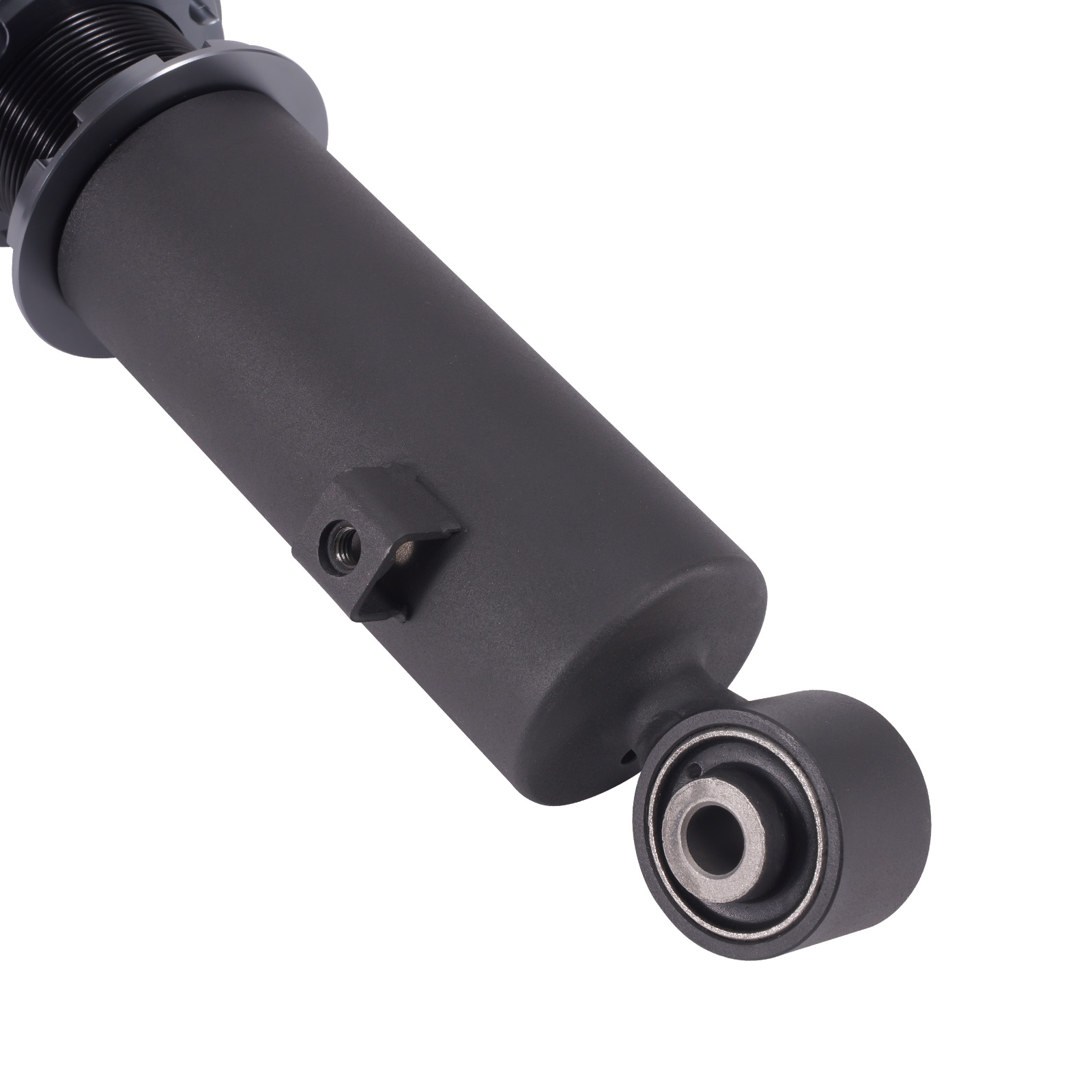

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. Upgraded spring --- more than 600,000 times continuously test to assure its high tensile strength.

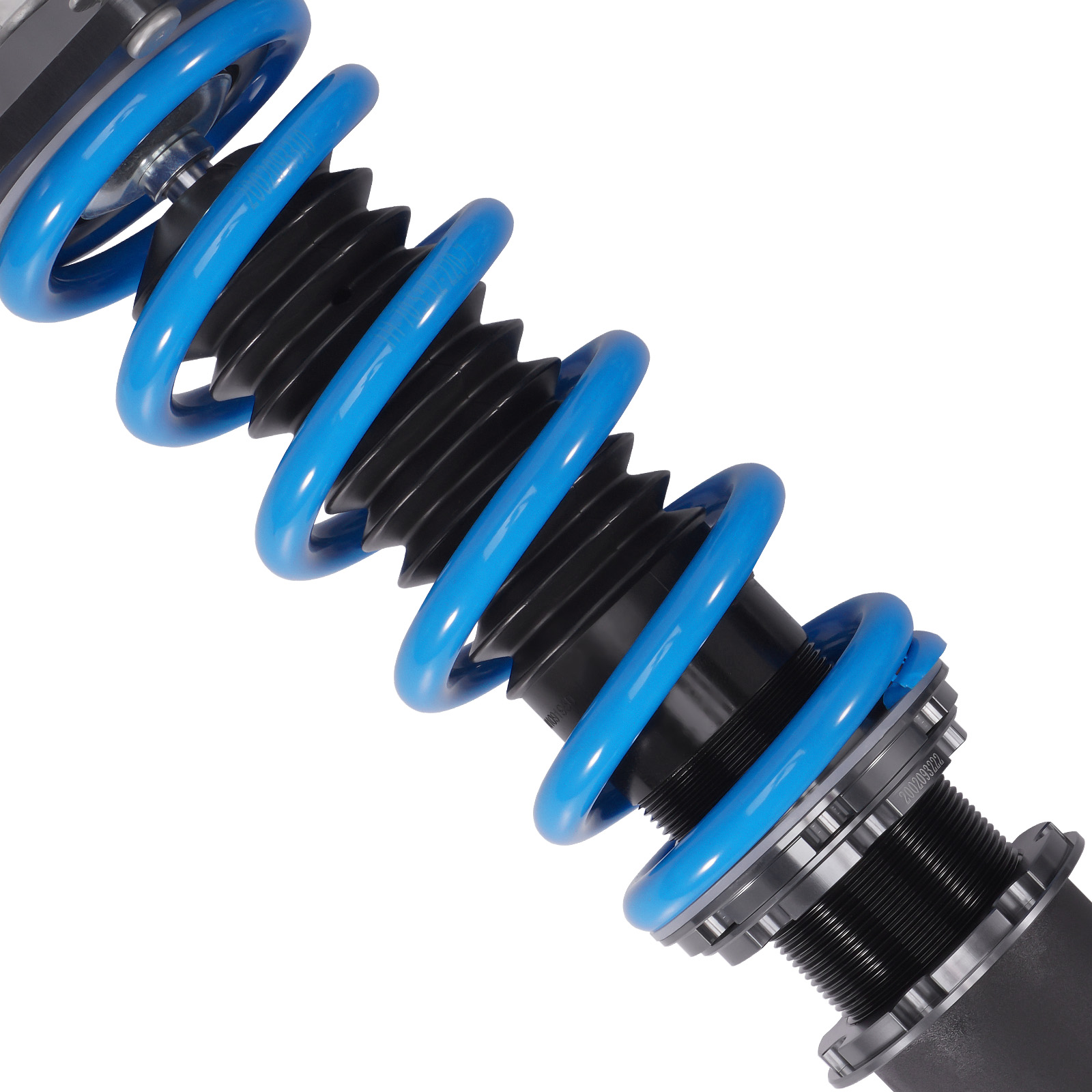

7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. With a better-damping setting, you will get better performance and comfort at the same time.
9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
10. Anti-corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
11. Test for the best---Every part was tested on our professional machine before being assembled and tested by our professional racers on the road.
12. Clean room assembled---maintain a higher level of accuracy and reliability.
13. Upgraded damper oil---make damping more stable and smooth in a wide temperature range.

Notice:

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
