Attention

1.KT controller only compatible with KT display .Same communication protocol.We have given pictures to teach you how to distinguish.Please check before place the order .

2.The cable length is manually measured, there may be some difference, please understand.

  Parameter

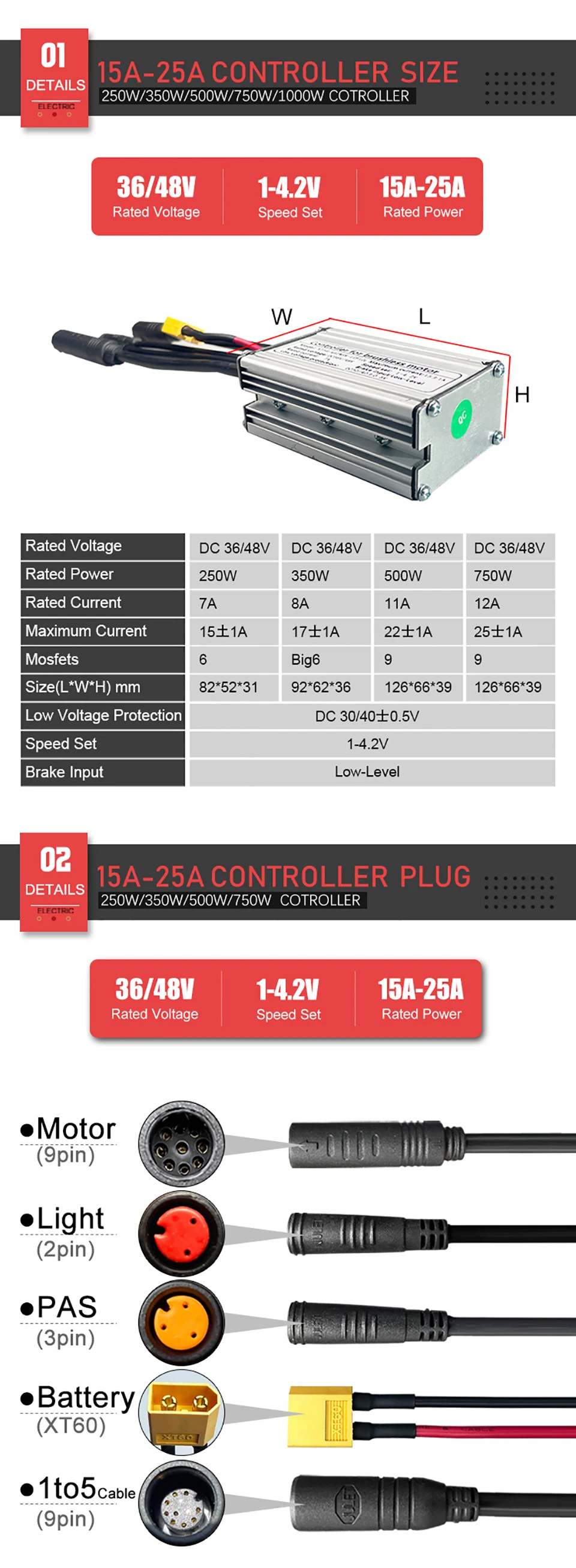

  KT-15A

◆Mosfets :6 mosfets

◆Size :81.5 * 51.7 * 31mm(3.2*2.04* 1.2in)

◆Maximum current :15±1A

◆Weight :202g

◆Rated current :7A

◆Rated power：250W

◆Rated voltage :DC36V/48V

◆Brake input :Low-Level

◆Speed set :1-4.2V

  KT-17A

◆Mosfets :Big 6 better mosfets

◆Size :92.5 * 61.3 * 35mm(3.6*2.4*1.4in)

◆Maximum current :17±1A

◆Weight :250g

◆Rated current :8A

◆Rated power：350W

◆Rated voltage :DC36V/48V

◆Brake input :Low-Level

◆Speed set :1-4.2V

 KT-22A

◆Mosfets :9 Mosfets

◆Size :125 * 66 * 38mm[4. 9*2.6*1.5in)

◆Maximum current :22±1A

◆Weight :356g

◆Rated current :11A

◆Rated power：500W

◆Rated voltage :DC36V/48V

◆Brake input :Low-Level

◆Speed set :1-4.2V

 KT-25A

◆Mosfets : Big 9 Mosfets

◆Size :125 * 66 * 38mm[4. 9*2.6*1.5in)

◆Maximum current :25±1A

◆Weight :356g

◆Rated current :12A

◆Rated power：750W

◆Rated voltage :DC36V/48V

◆Brake input :Low-Level

◆Speed set :1-4.2V

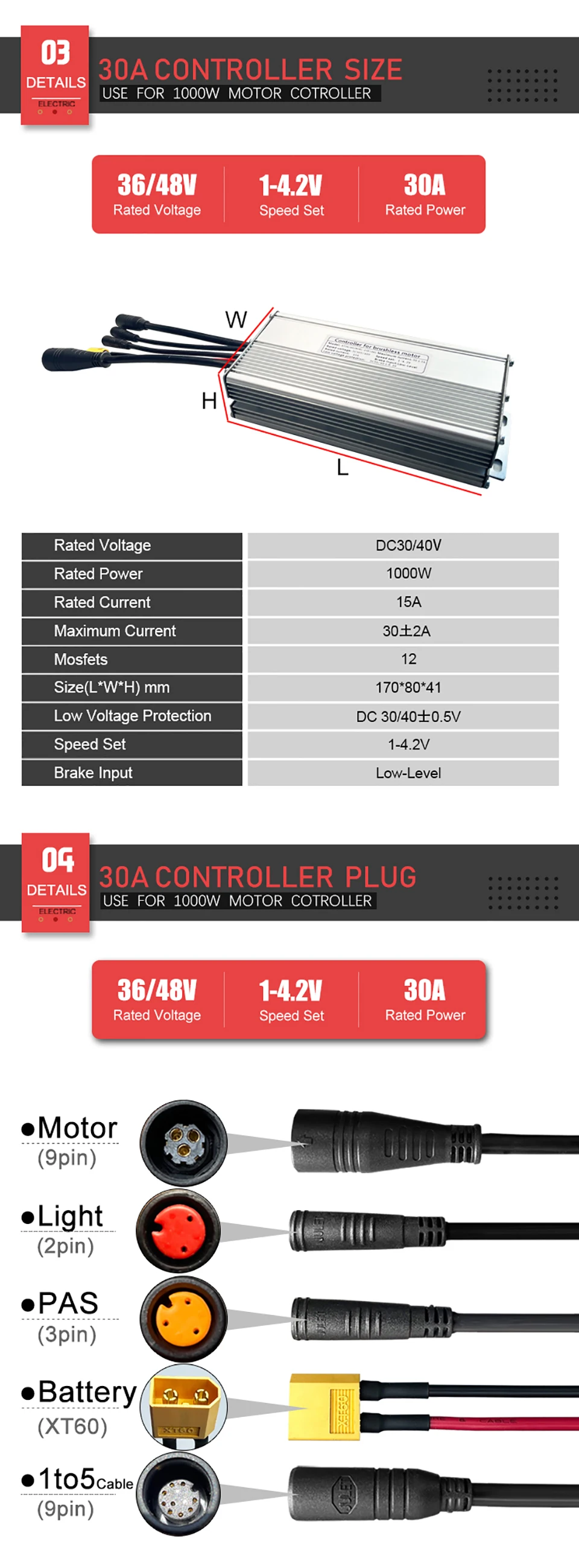

 KT-30A

◆Mosfets :12 Mosfets

◆Size :170* 82 * 41. 2mm[6.7*3.2*1.6in)

◆Maximum current :30±2A

◆Weight :503g

◆Rated current :15A

◆Rated power：1000W

◆Rated voltage :DC36V/48V

◆Brake input :Low-Level

◆Speed set :1-4.2V
