Attention

●1.KT controller only compatible with KT display .Same communication protocol.We have given pictures to teach you how to distinguish.Please check before place the order .

 ●2.Please contact me if you are not sure which is right for you or have further questions by Aliexpress message.

●3.The cable length is manually measured, there may be some difference, please understand.

●4.This ebike controller is not suitable for scooters.

●5.Work voltage:36V or 48V Universal (support both voltage)

●6.Suitable for Brushless Gear Hub Motor 500W

●7.This one is Square Wave Controller.

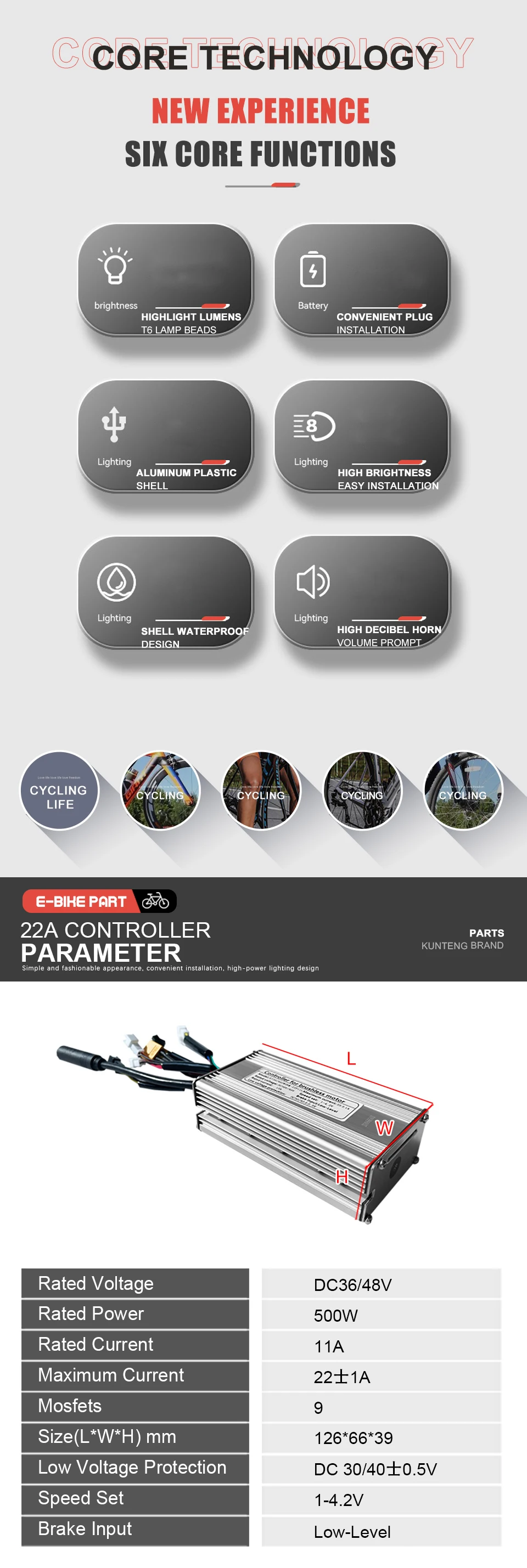

  36/48V 22A Controller

●A:WP+SM Squarewave

●Brand:KT

●Color:silver

●Dimesion:126*66*39 mm

●Mosfet:9mosfets

●Maximum current:22±1A

●Rated current:11A

●Rated voltage:DC36V/48V

●Speed set:1-4.2V

●Brake input :Low-Level

●Low voltage protection:DC30/40±0.5V

●Cable length:all about 10-13cm

●Weight:359g


  KT LCD LED Display Parameter

Type:KT LCD/LED/Colourful Display

Color:Black

Voltage:24V 36V 48V universal,72V for LCD3/LCD8H

Cable length:About 180cm(SM),25cm(WP)

Plug:5 Pin SM/Waterproof Connector

The item comply with UL requirement, and it is certified to meet UL 2849 safety standardsThe item comply with UL requirement, and it is certified to meet
UL 2849 safety standards
