Motor：

●Type:Brushless gearless hub motor

●Installation location:Rear wheel

●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes

●Brake Type:Disc brake available

●Rated speed:40-45 KM/H.

●Load≤200KG

●Motor cable length:200mm

●Wheel size:20inch 26 inch wheel

●Rear fork:170mm

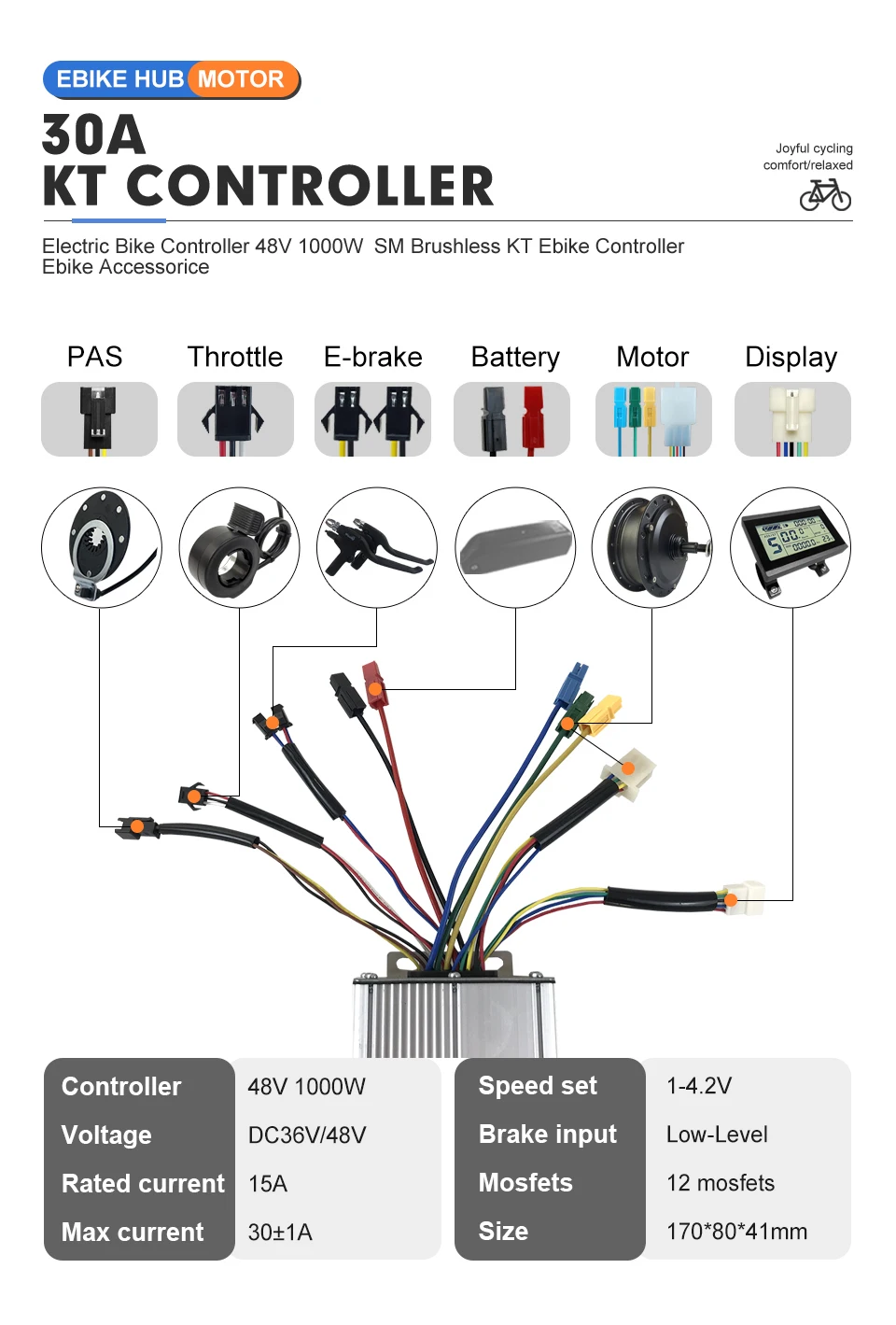

Controller：

●Dimension:170* 80 * 40 mm

●Weight:400g

●Cable length :all about 13-15cm

●Mosfets :12 mosfets

●Maximum current:30±1A

●Rated voltage:DC36V/48V

●Speed set:1-4.2V

●Rated current:15A

●Brake input :Low-Level

●Low voltage protection:DC30/40±0.5V

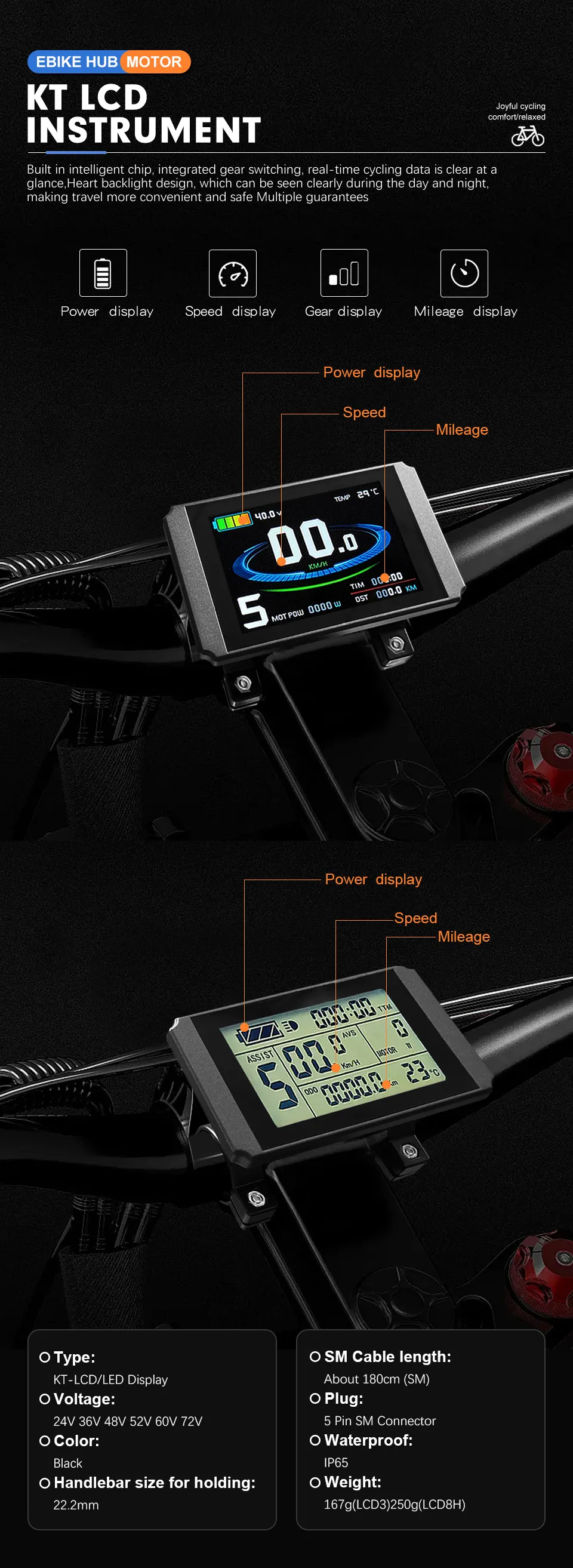

Display（Opition):

●Type :KT LCD/LED/Colourful Display

●Color :Black

●Voltage :24V 36V 48V universal

●Cable length :About 180cm(SM)

●Plug :5 Pin SM plug

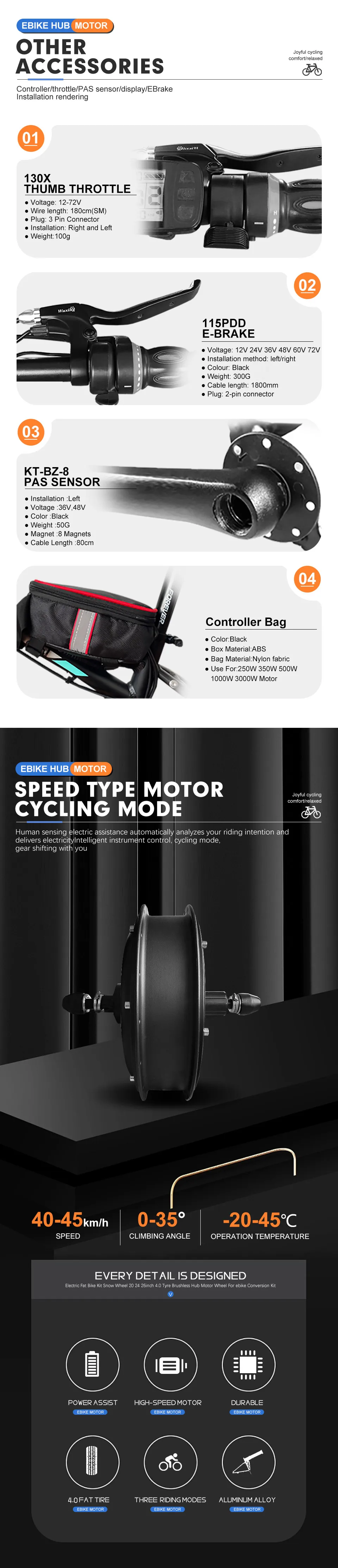

130X Throttle (Default):

●Type:130X Thumb Throttle

●Voltage:12V 24V 36V 48V 52V 60V 72V

●Wire length:180cm(SM)

●Weight :100g

●Waterproof :IP76

●Plug Type:3 Pin SM plug

●Color :Black

●Installation:Right

●Apply to:E-bike, E-Scooter, Ebike Conversion Kit

●Function:E-bike accelerator Finger Thumb Throttle

115PDD E-Brake (Default):

●Type:●Type:115PDD E-brake Cut Off Power

●Voltage:12V 24V 36V 48V 60V 72V

●Cable Length:180cm (SM)

●Weight :300g

●Waterproof :IP76

●Material:Aluminum Alloy

●Installation:Left/Right

●Size:L156mm W105mm H34mm

●Plug :2 pin SM plug

PAS KT-BZ-8(Default):

●Type:●Type:KT-BZ-4 (8) Pulse assist sensor

●Voltage:●Voltage:36V/48V

●Cable Length:180cm including the connector

●Magnet :●Magnet :8 Magnets

●Weight :100 g

●Plug Type:3 Pin SM plug

●Color :As pictures shown

● Material:Plastic

●Installation:Left

●Adaptation:Ebike Electric Bike Bicycle

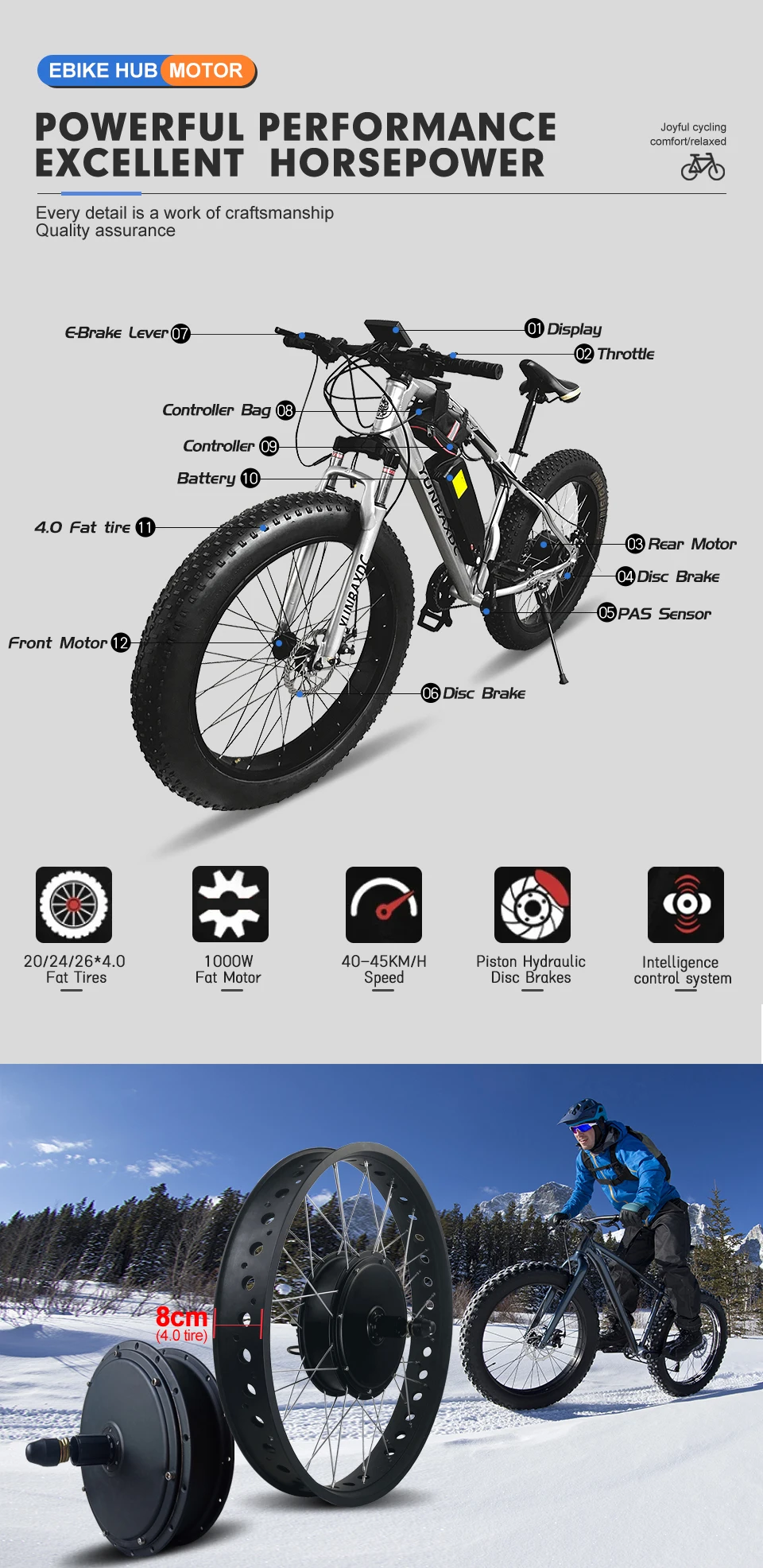

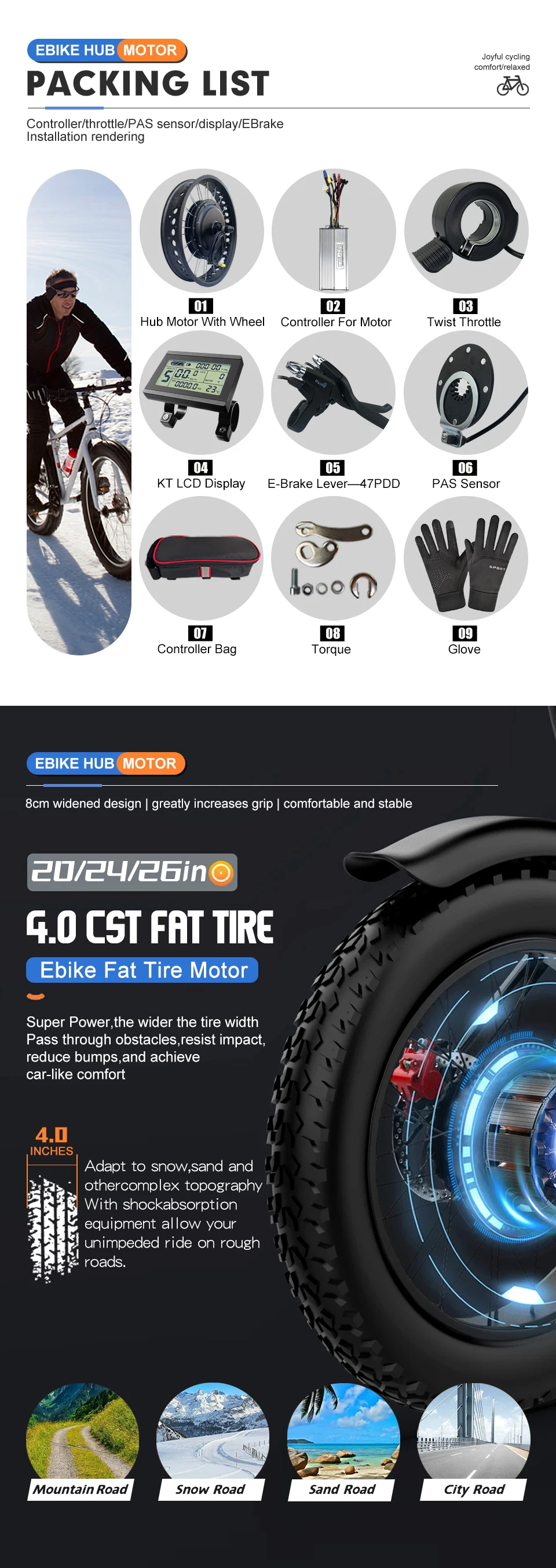

【Packing List】

(1) 48V 1000W rear Wheel x1 (without tire)

(2) 30A controller x1

(3) Display and manual x1

(4) Throttle x1

(5) Power Cut-off Brake x1

(6) PAS sensor x1

(7) Zip ties and Protection line x1

(8) Gift! controller bag x1
