【About transportation】

■ Our motor kits are mainly transported byChina-Europe Railway + UPS special line, and some countries/regions use online transport;

■ If you want to receive the goods faster, we can choose air transportation for you, but you need to pay additional freight;

■ If your area is remote, we will charge you a certain amount of remote service fee.

■ If your address is on an island, please contact us before ordering so that we can check if we can arrange delivery for you.

Our default shipping method is rail/sea + UPS, if you want to receive the goods faster, we can send you air transportation, the time is 7-10 days.

【Note】

■ The conversion kitdoes not include batteries,freewheel,tires, disc brakes.(If you need batteries,freewheel,tires, disc brakes, please contact us for additional costs) If you choose "wheels only", there is only one electric wheel, without any other accessories;

■ If youneed Freewheel,Disc brake, Torque Arm Amplifier.please contact us;

■ PAS, Throttle, and E-brake in the kit are optional. If you need to replace it,please contact us.

■ Please refer to the list form for packaging products.

【Product Features】

This product can easily convert your ordinary bike into an electric bike.It's hundreds of doller cheaper than buying a

new electric bike.It takes one person 1-2 hours to successfully convert it.We will put the installation manual in the box.

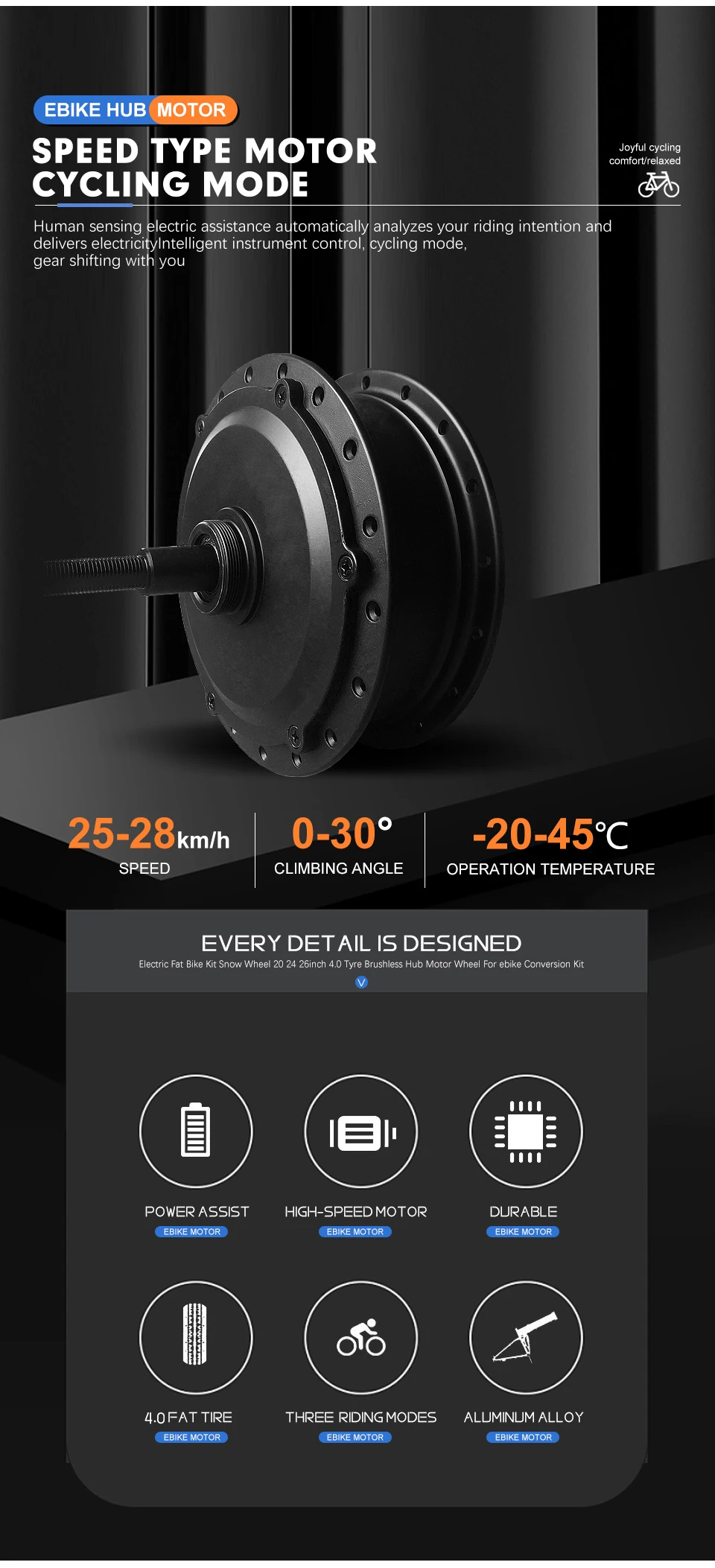

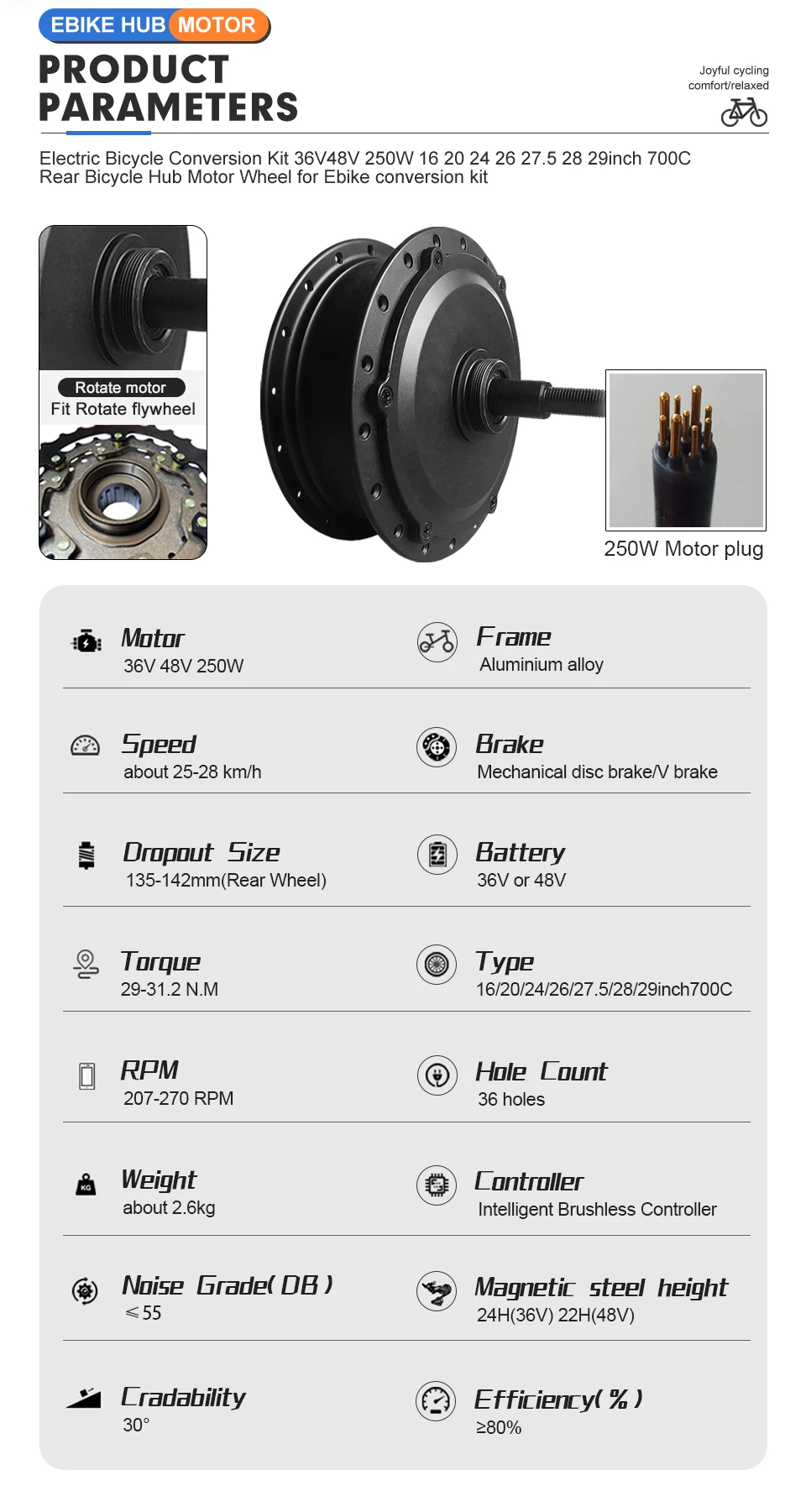

36V 48V 250W Hub Motor:

●Construction:Gear drive

●Speed (KM/H): 25-28km/h

●Speed (Rpm): 207-270Rpm

●Torque (N.M): 29-31.2N.M

●Front drive open size (mm): 100mm

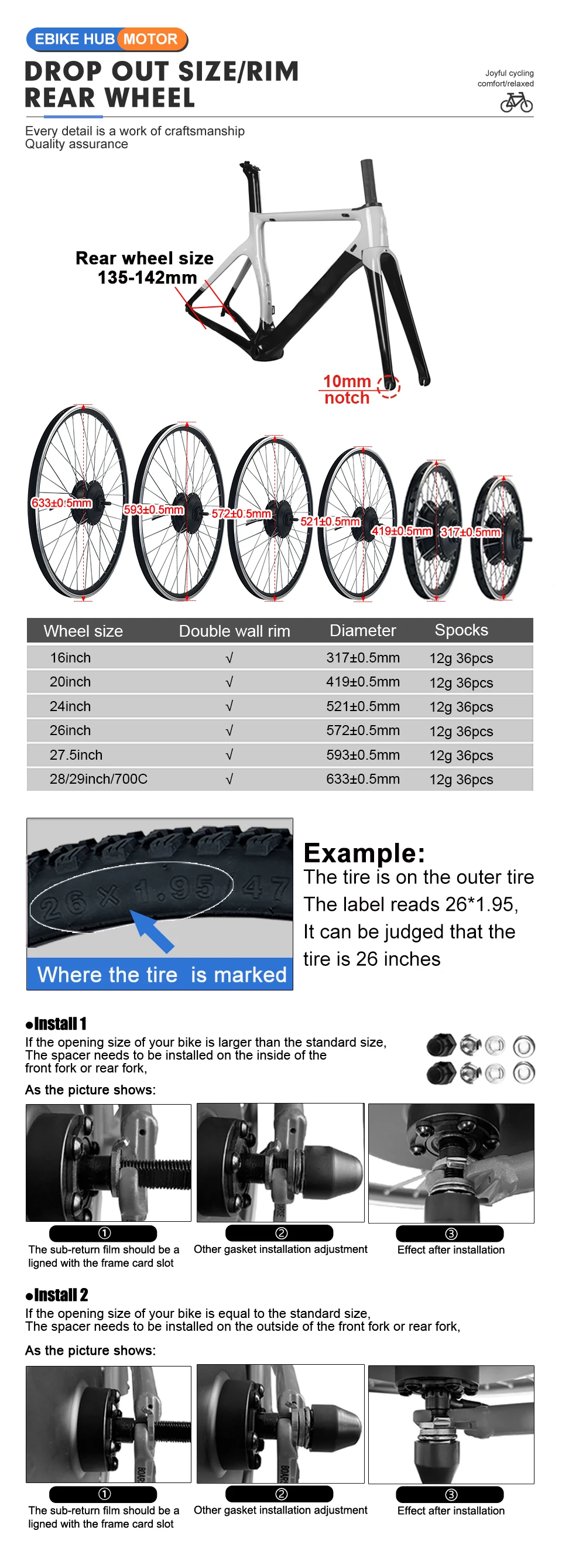

●Rear Rotate drive open size (mm): 135-142mm

●Rear Cassette drive open size (mm): 142mm

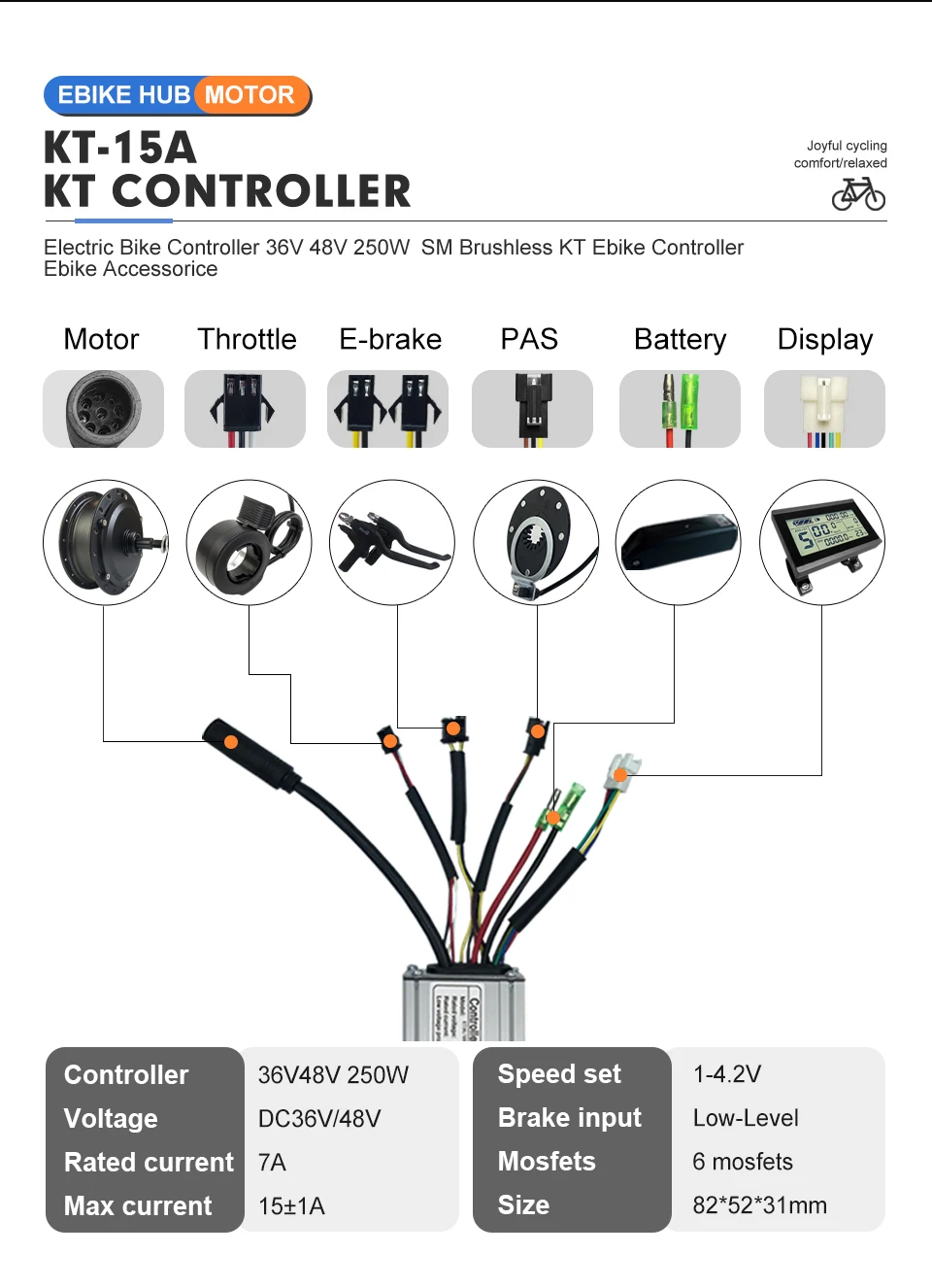

15A Controller details:

●Dimension :82 *53* 32mm

●Mosfet :6 Mosfets

●Maximum current :15±1A

●Rated current :7A

●Rated voltage :DC36V/48V

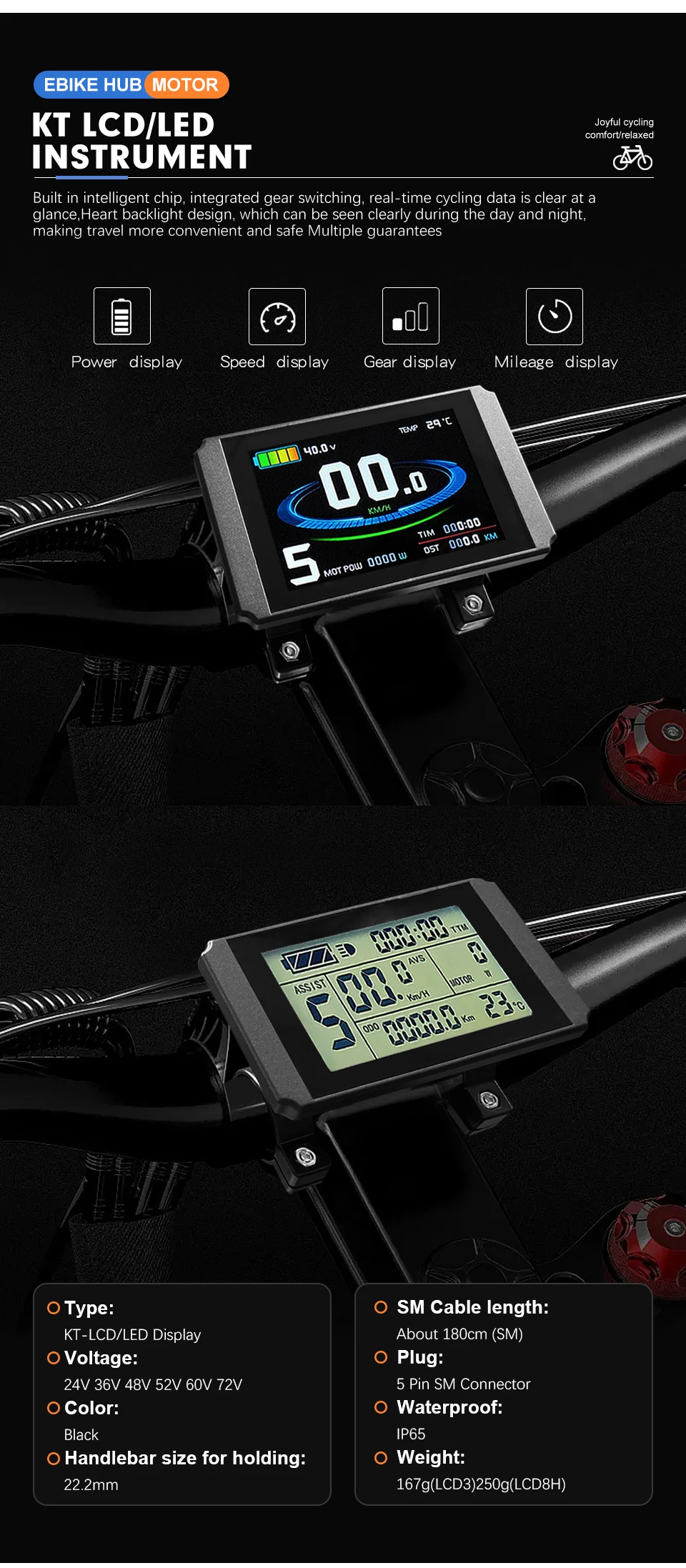

Display（Opition):

●Type :KT LCD/LED/Colourful Display

●Color :Black

●Voltage :36V 48V universal

●Cable length :About 180cm(SM)

●Plug :5 Pin SM plug

130X Throttle (Default):

●Type:130X Thumb Throttle

●Voltage:12V 24V 36V 48V 52V 60V 72V

●Wire length:180cm(SM)

●Weight :100g

●Waterproof :IP76

●Plug Type:3 Pin SM plug

●Color :Black

●Installation:Right

●Apply to:E-bike, E-Scooter, Ebike Conversion Kit

●Function:●Function:E-bike accelerator Finger Thumb Throttle

115PDD E-Brake (Default):

●Type:●Type:115PDD E-brake Cut Off Power

●Voltage:12V 24V 36V 48V 60V 72V

●Cable Length:180cm (SM)

●Weight :300g

●Waterproof :●Waterproof :IP76

●Material:Aluminum Alloy

●Installation:Left/Right

●Size:L156mm W105mm H34mm

●Plug :2 pin SM plug

PAS KT-BZ-8(Default):

●Type:KT-BZ-4 (8) Pulse assist sensor

●Voltage:36V/48V

●Cable Length:180cm including the connector

●Magnet :8 Magnets

●Weight :100 g

●Plug Type:3 Pin SM plug

●Color :As pictures shown

● Material:Plastic

●Installation:Left

●Adaptation:Ebike Electric Bike Bicycle

Packing List:

①36V/48V 250W wheel x1 (without tire)

②15A controller x1

③Display and manual x1

④Throttle x1

⑤Power Cut-off Brake Levers x1

⑥PAS sensor x1

⑦Zip ties and Protection line x1

⑧Controller bag x1
