Aluminum Alloy LCG Chassis Kit Frame With Double Servo Support Servo/Winch Double Stent Rescue Truck/Tow Truck Crane Arm Wrecker Kit for 1/10 RC Rigs Crawler Capra SCX10 II LCG DIY
Aluminum alloy precision machining, silver purple black red anodizing, paired with colored carbon fiber support pipes and Sai steel bottom plate side pedals, lightweight and durable;

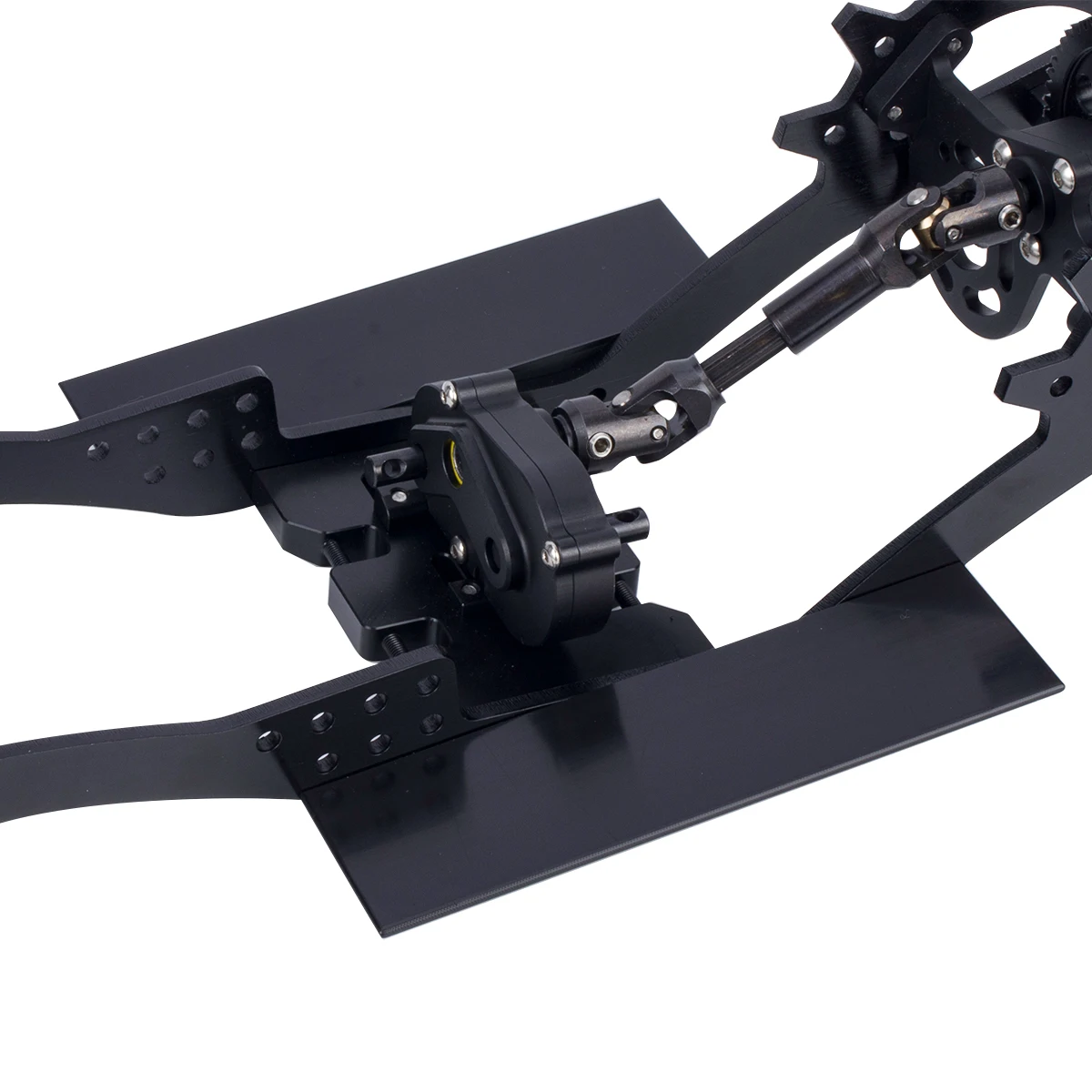

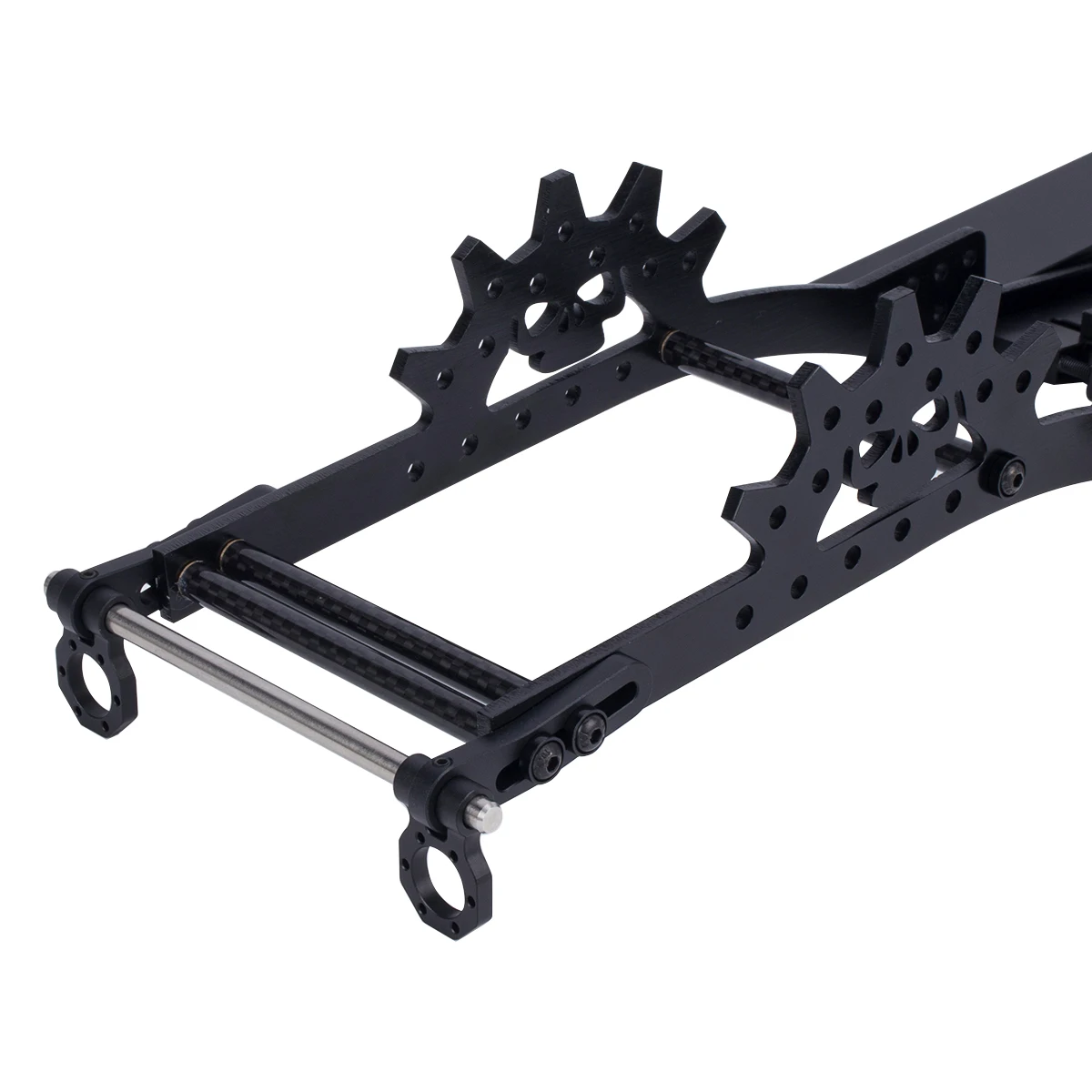

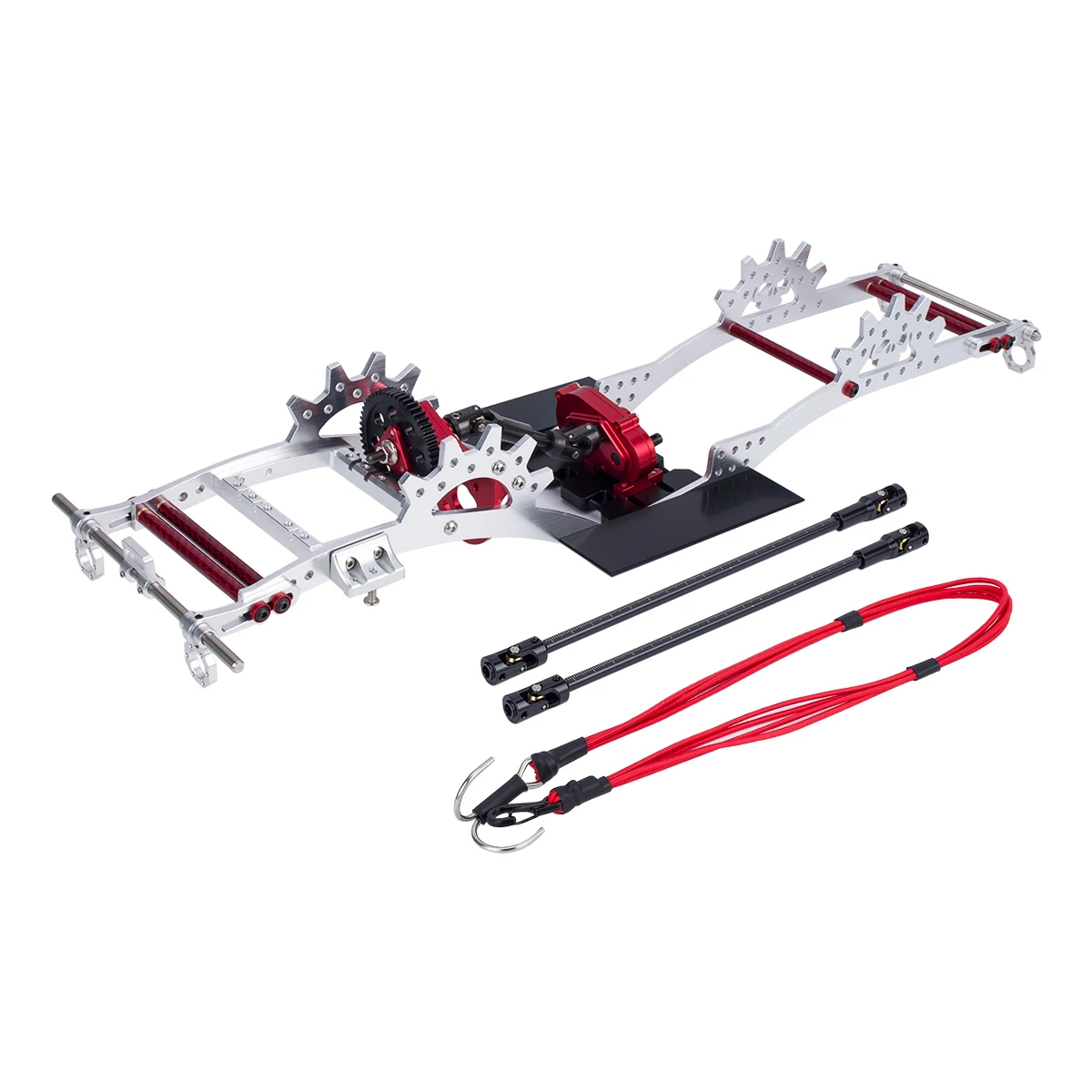

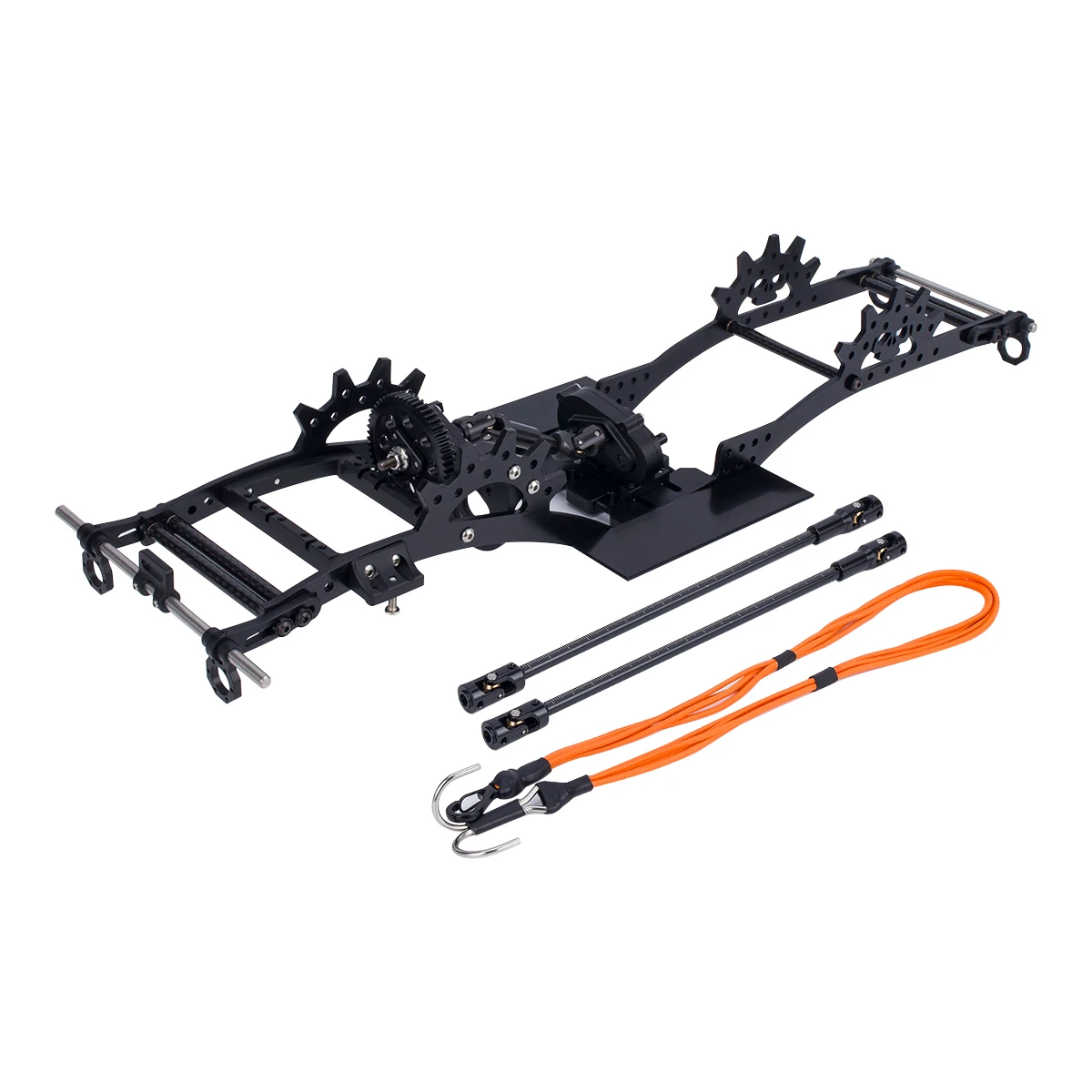

Includes basic chassis accessories (beam, 5 colored carbon fiber support tubes, front and rear bumpers, cable guides, trailer hooks, dual steering mounts, Panhard mounts, transfer box, front motor mount, gearbox drive shaft, 2 cuttable long drive shafts, Delrin bottom plate, Delrin side pedals, and an elastic hook car shell fixing rope)
Specifications:
Chassis kit
Materials: aluminum alloy, stainless steel, Saigang
Usage scenario: Self assembling climbing frame
Wheelbase: 313mm (adjustable)
Beam length: 413mm
Bottom plate, front motor seat, servo seat, and carbon tube width: 67mm
Transfer case front output ratio: 1.94:1 (excluding 56T large teeth)
Transfer case rear output ratio: 2.65:1 (excluding 56T large teeth)
Colors: purple, black, silver, red
Frame weight: 602g
Loose shipment, buyer needs to assemble it themselves

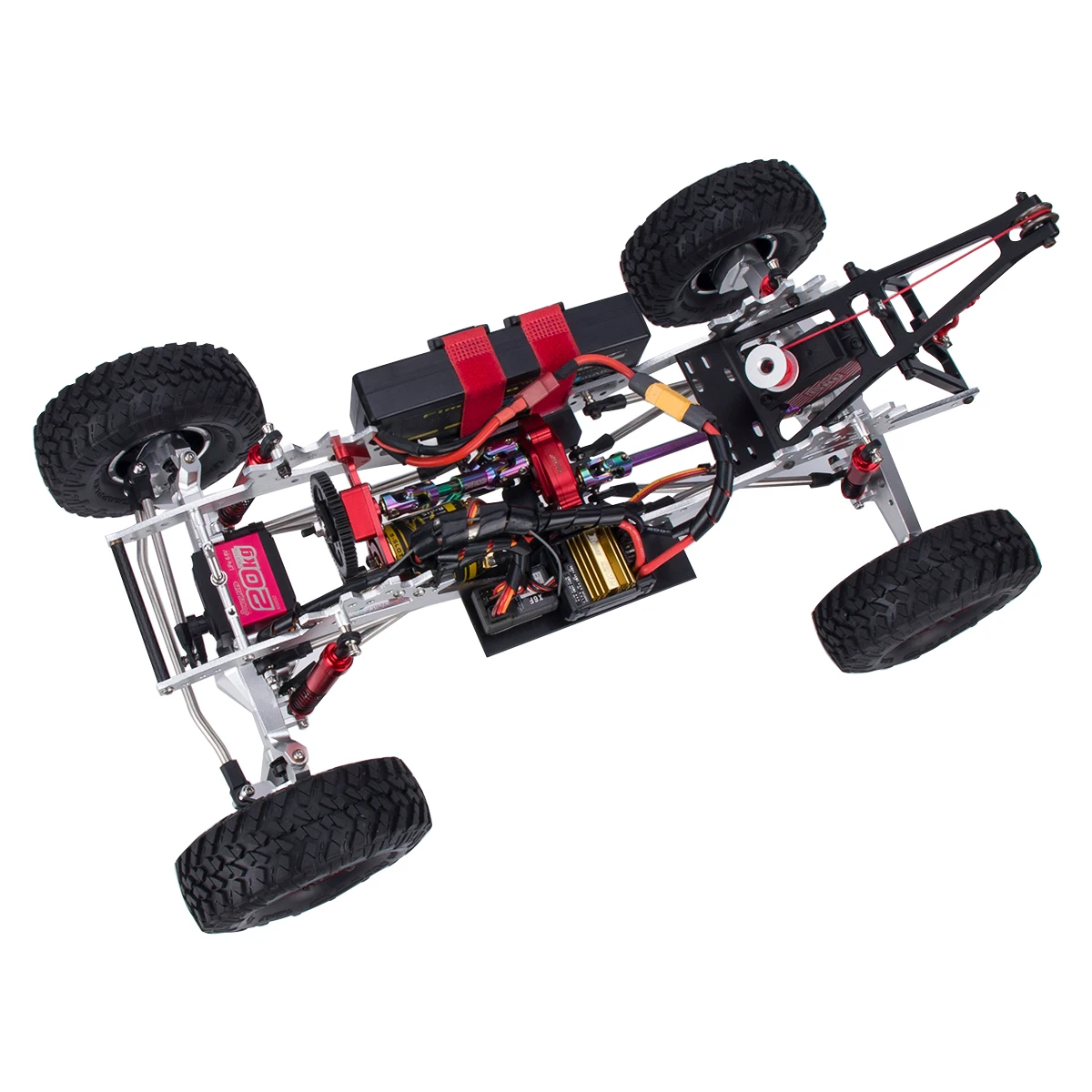

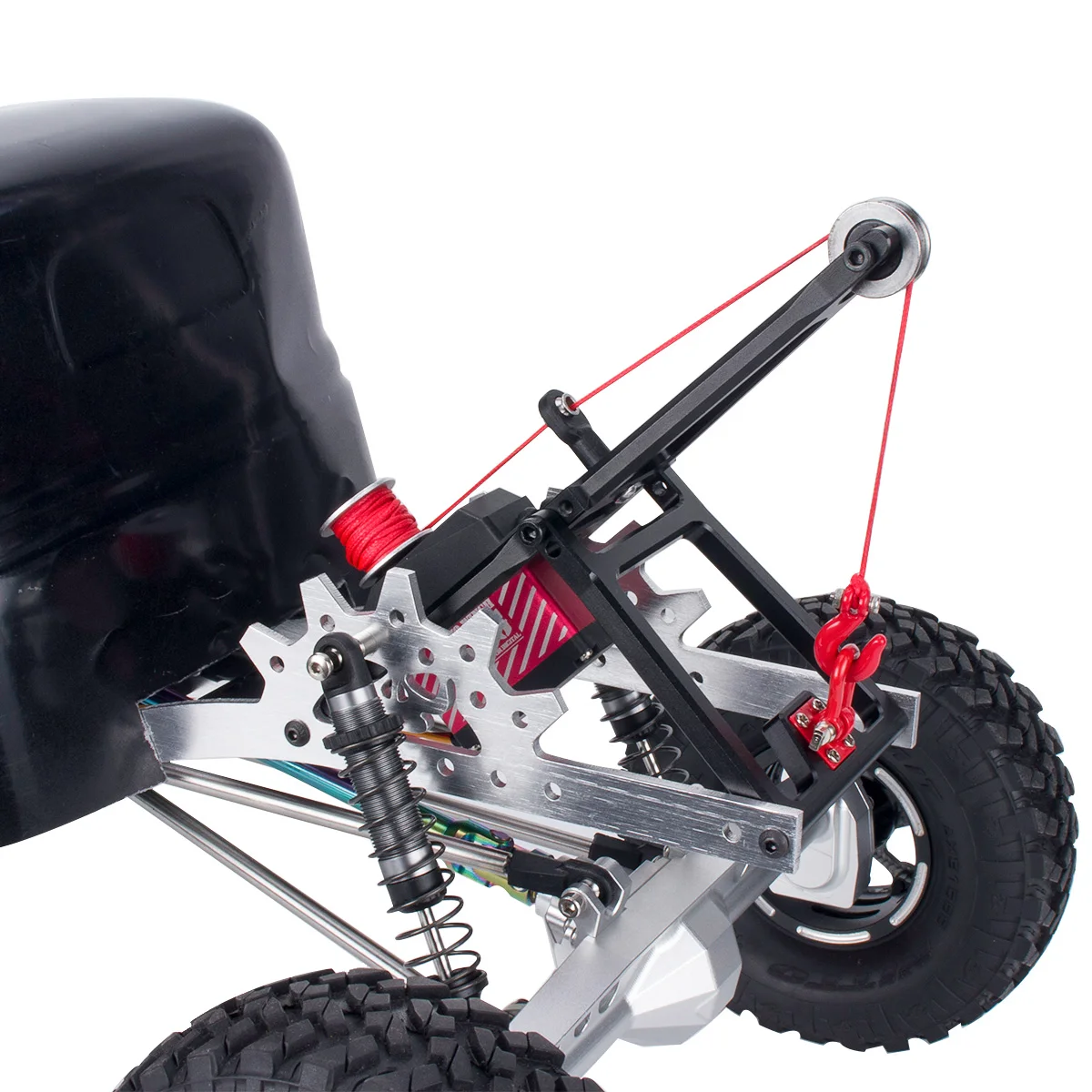

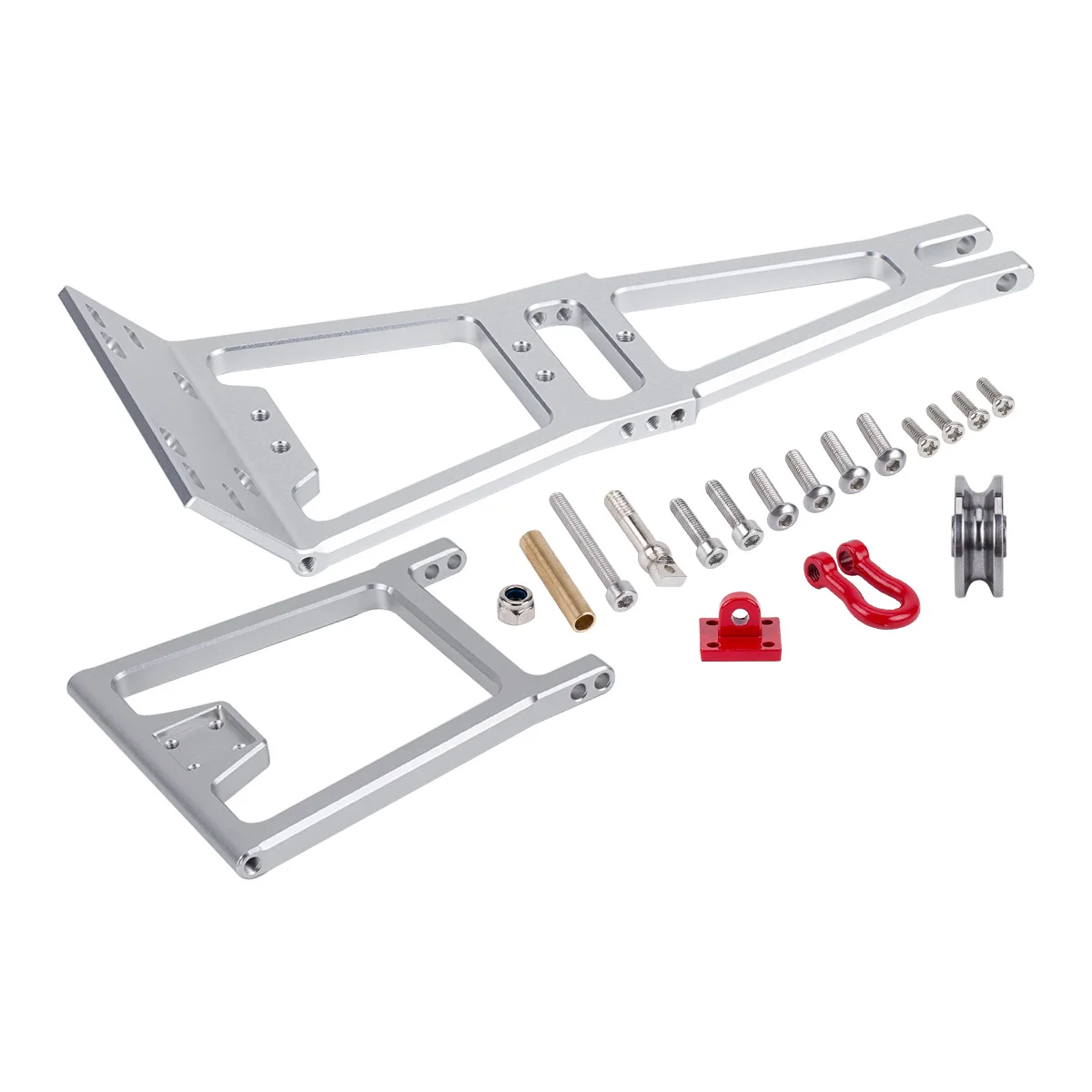

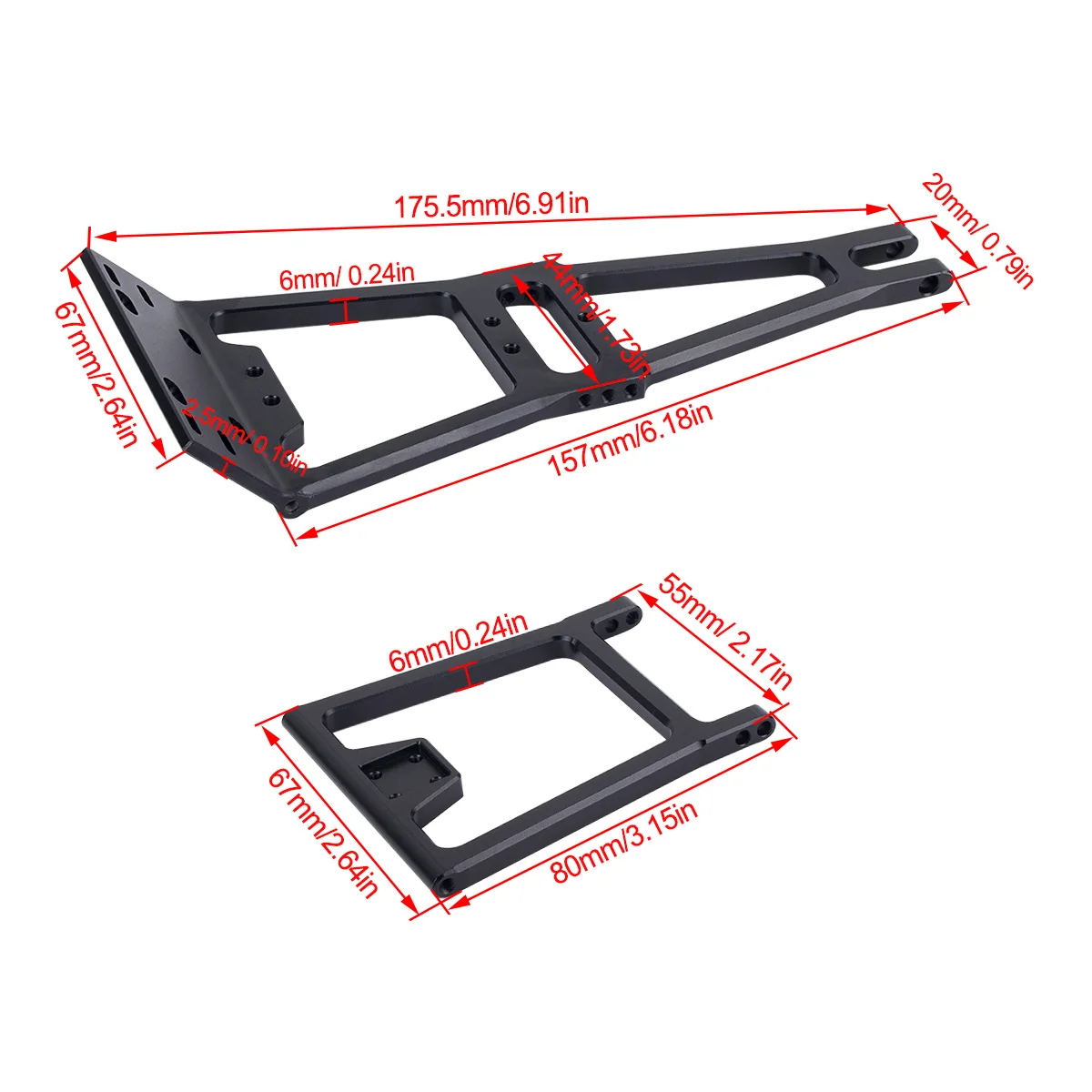

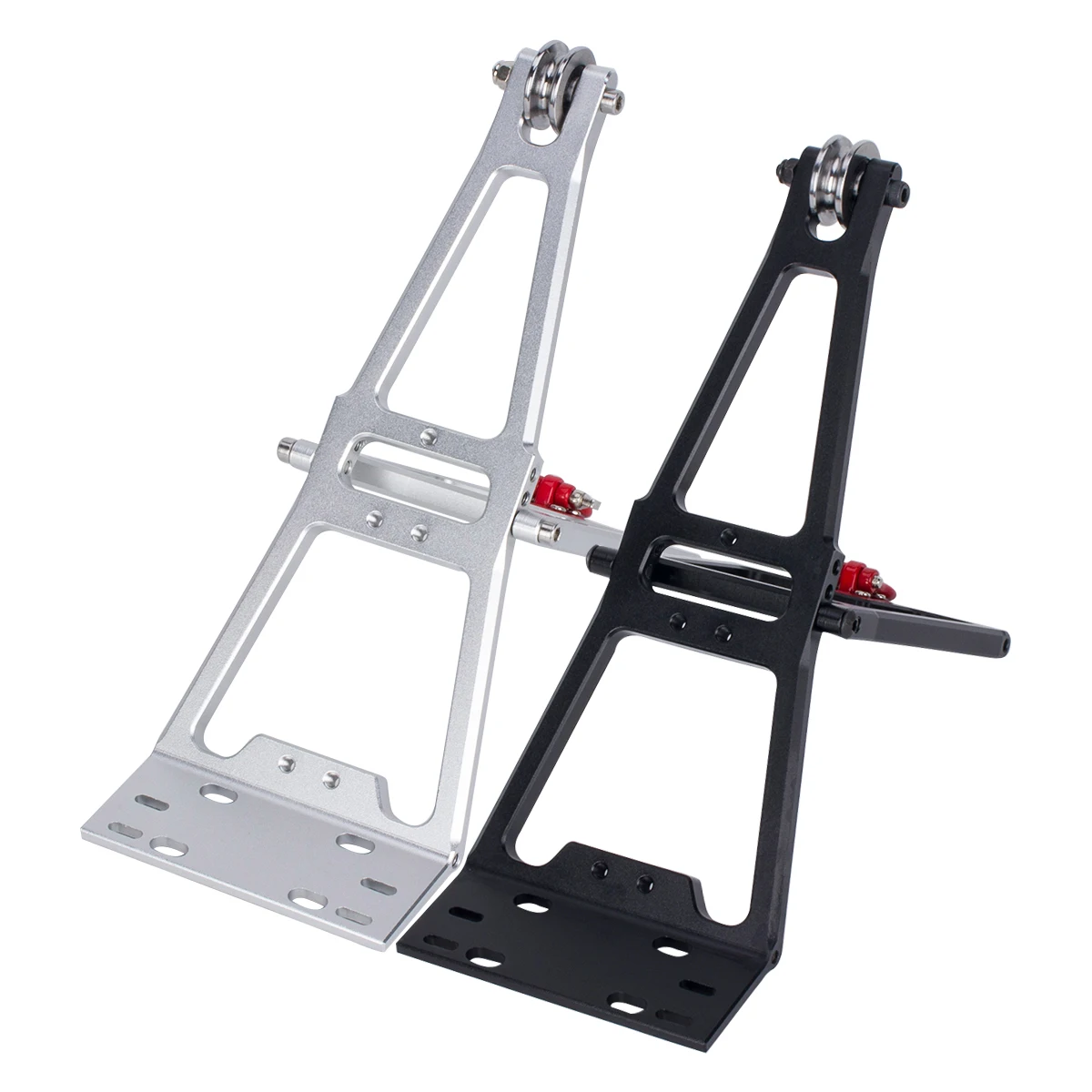

Lifting Crane Arm
Material: Aluminum alloy (main frame), stainless steel (fixed pulley/silver screw), copper (sleeve)
Size: 135 * 67 * 112mm (lowest installation position) (adjustable installation angle/height)
Color: Black, Silver
Weight: 104g

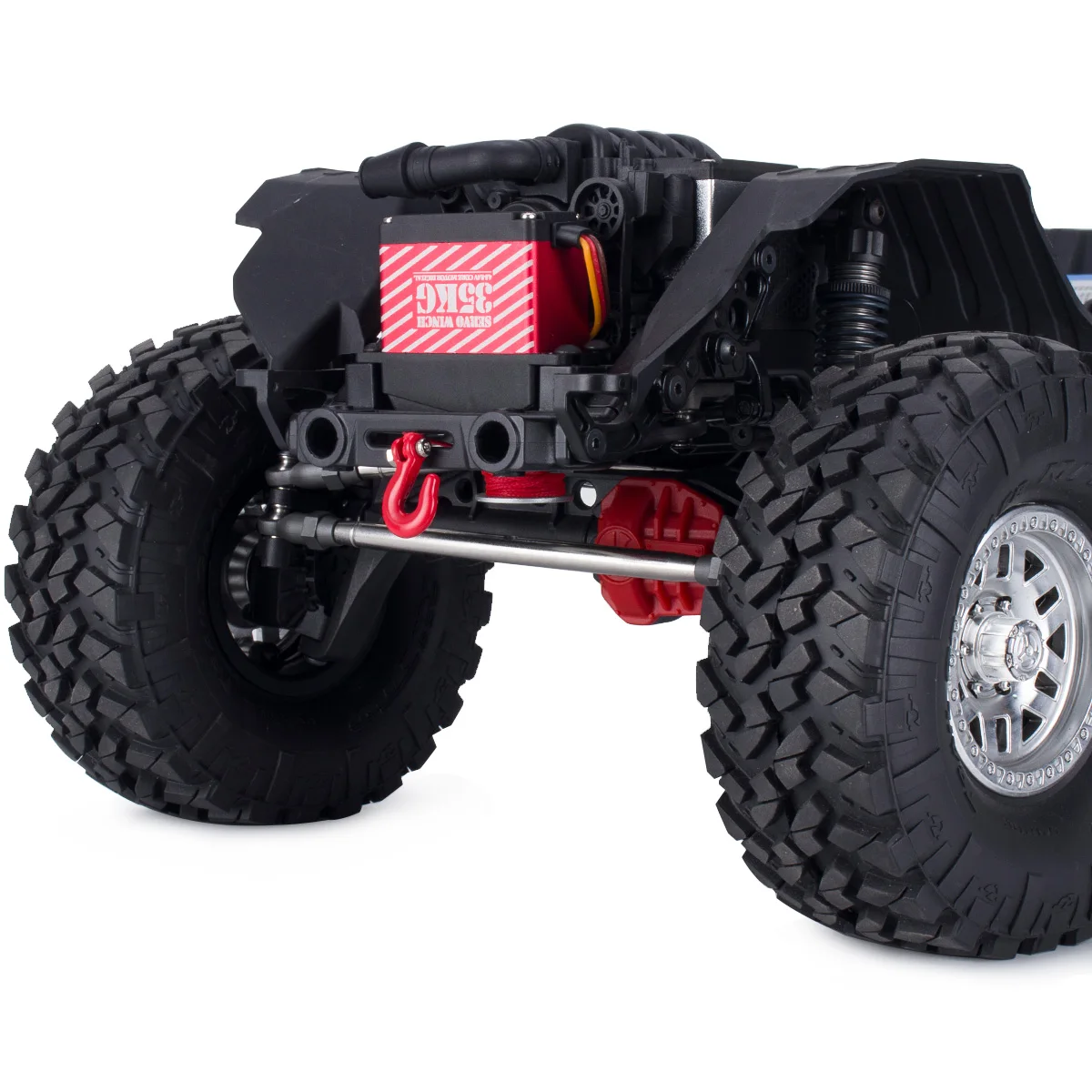

Servo+Winch Wheel

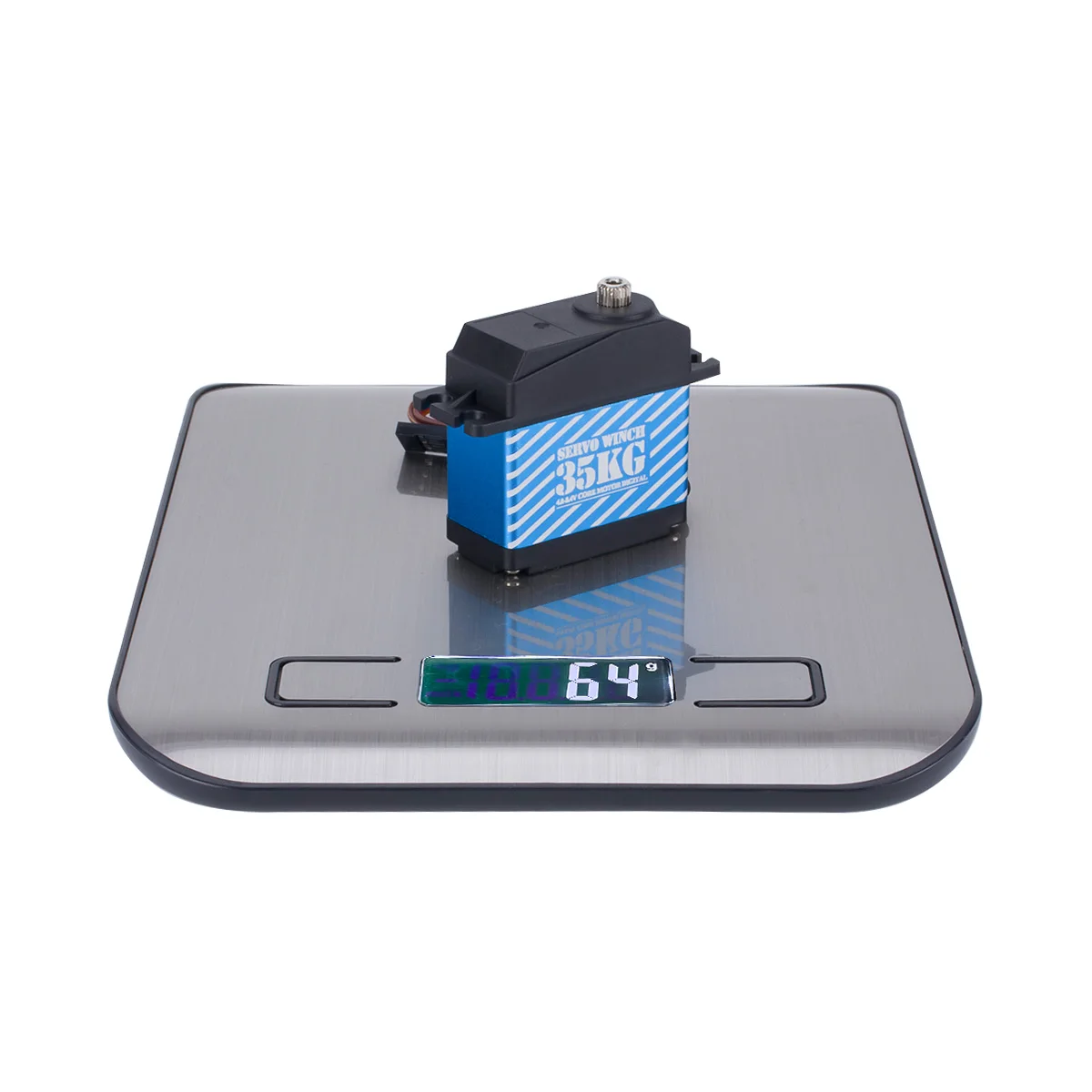

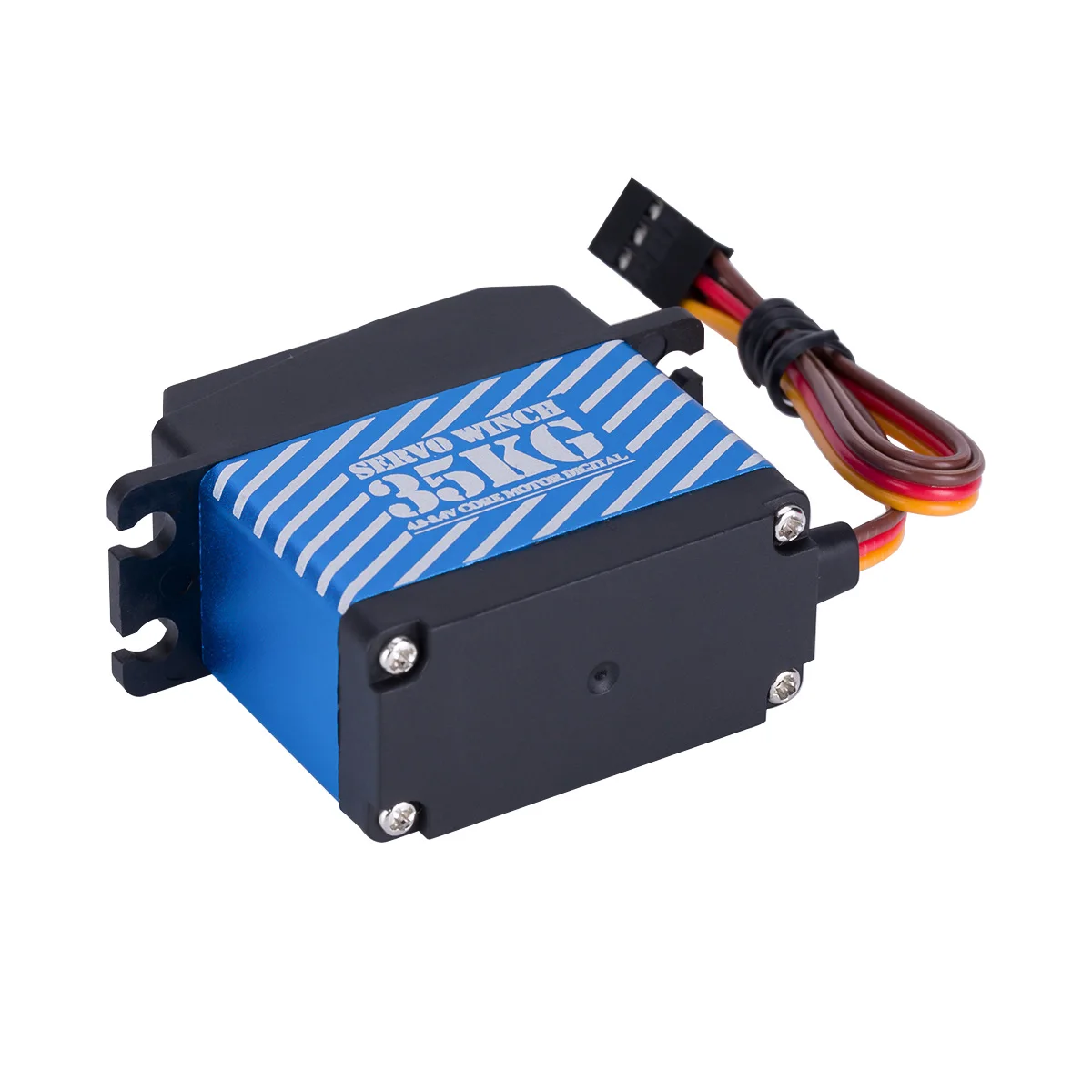

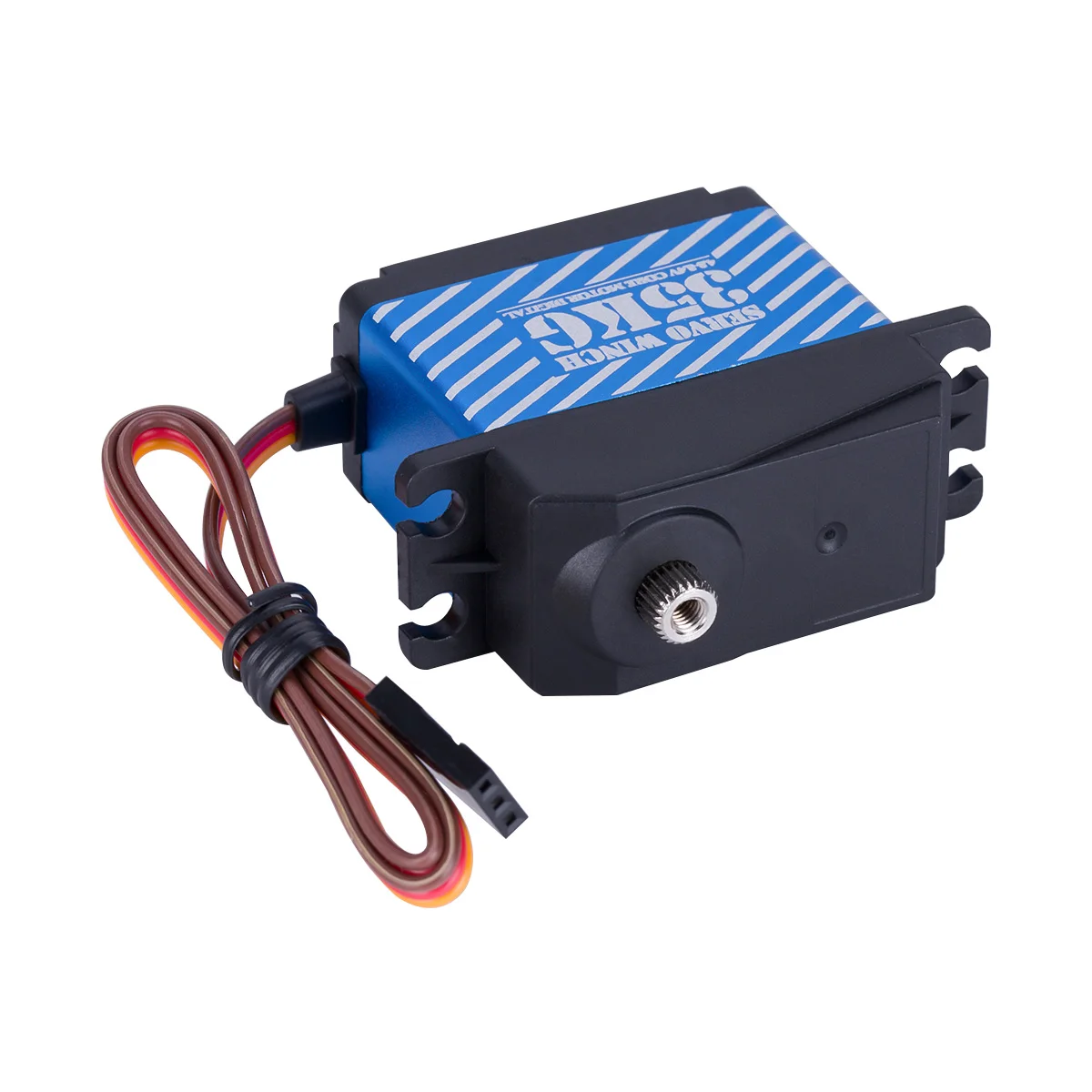

Product name: 35KG Servo
Materials: plastic, aluminum alloy, alloy steel, electronic components
Motor: Core Motor
Output teeth: 25T
Voltage range: 4.8V-8.4V
800-2200us angle: 360 °

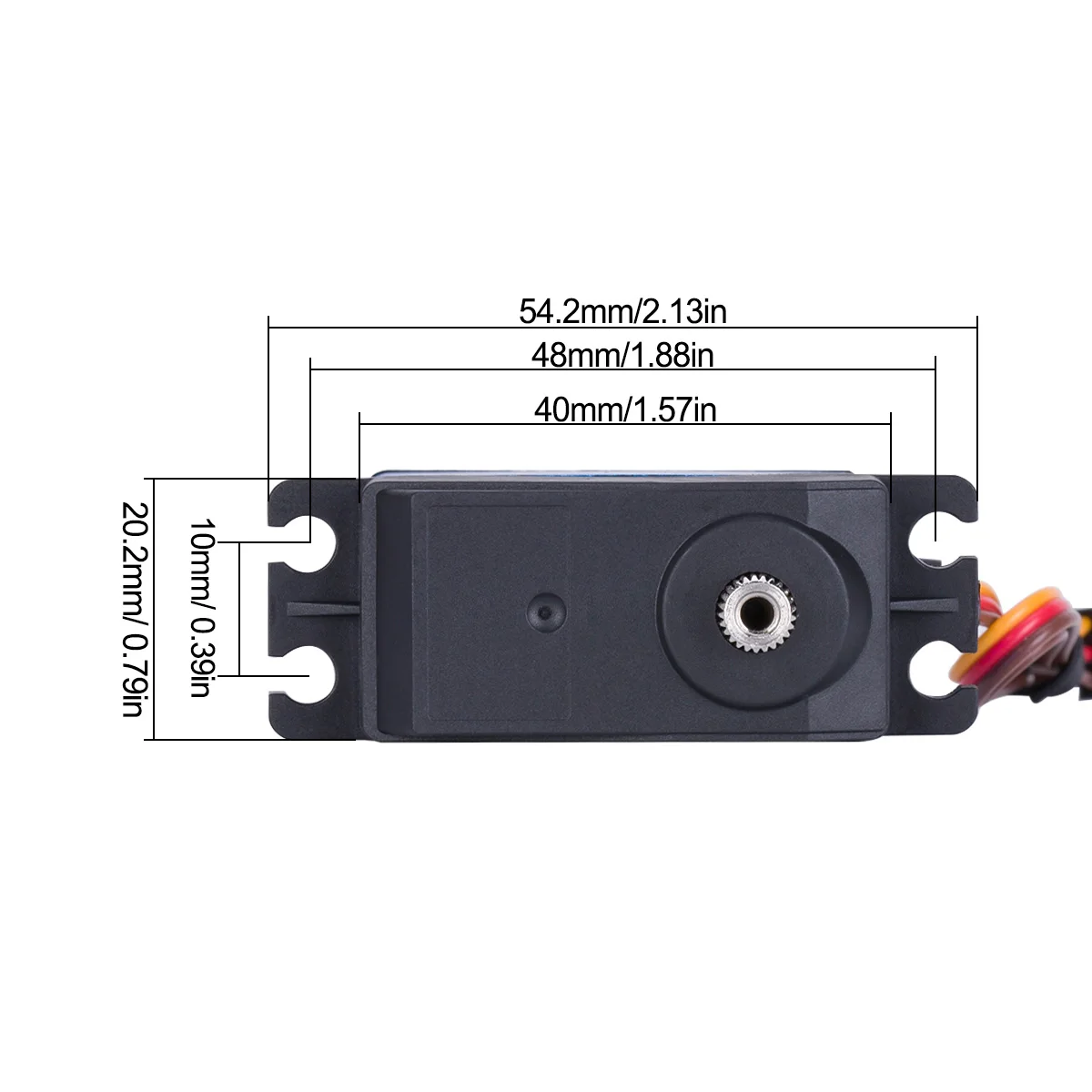

Size: 40 * 20.2 * 41mm (excluding installation side ears and top shaft teeth)
Servo line: JR, 300mm
Weight: 65g
Waterproof performance: IP66 (dustproof and splash proof)
Stop rotating: 1430us-1530us
From slow to fast/counterclockwise: 1530us-2200us
From slow to fast/clockwise: 800us-1430us
Installation wiring/control method: The third channel of the receiver is powered on, and the third channel switch of the remote control controls the forward and reverse continuous rotation
Product name: Winch Wheel
Materials: Aluminium
Standard Winch Spool Teeth:25T
Steel Rope Length: 180cm
Wheel size: 20*16mm
Weight: 12g
Product name:Winch tow rope/Trailer Hook
Material: Polyethylene fiber/Metal
Color: Red, Black, Blue, Grey
Diameter: 1mm
Length: 2m(78.74in)

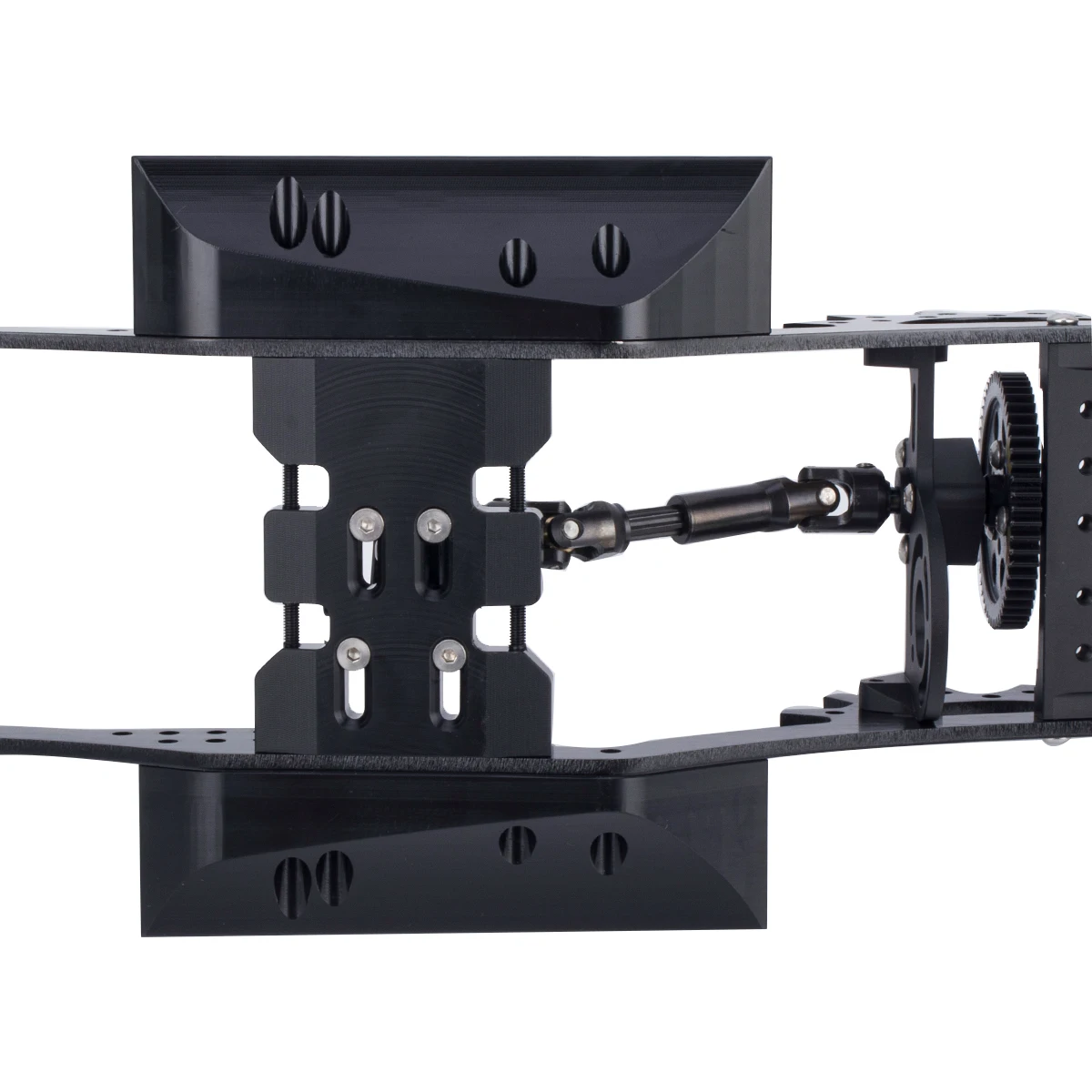

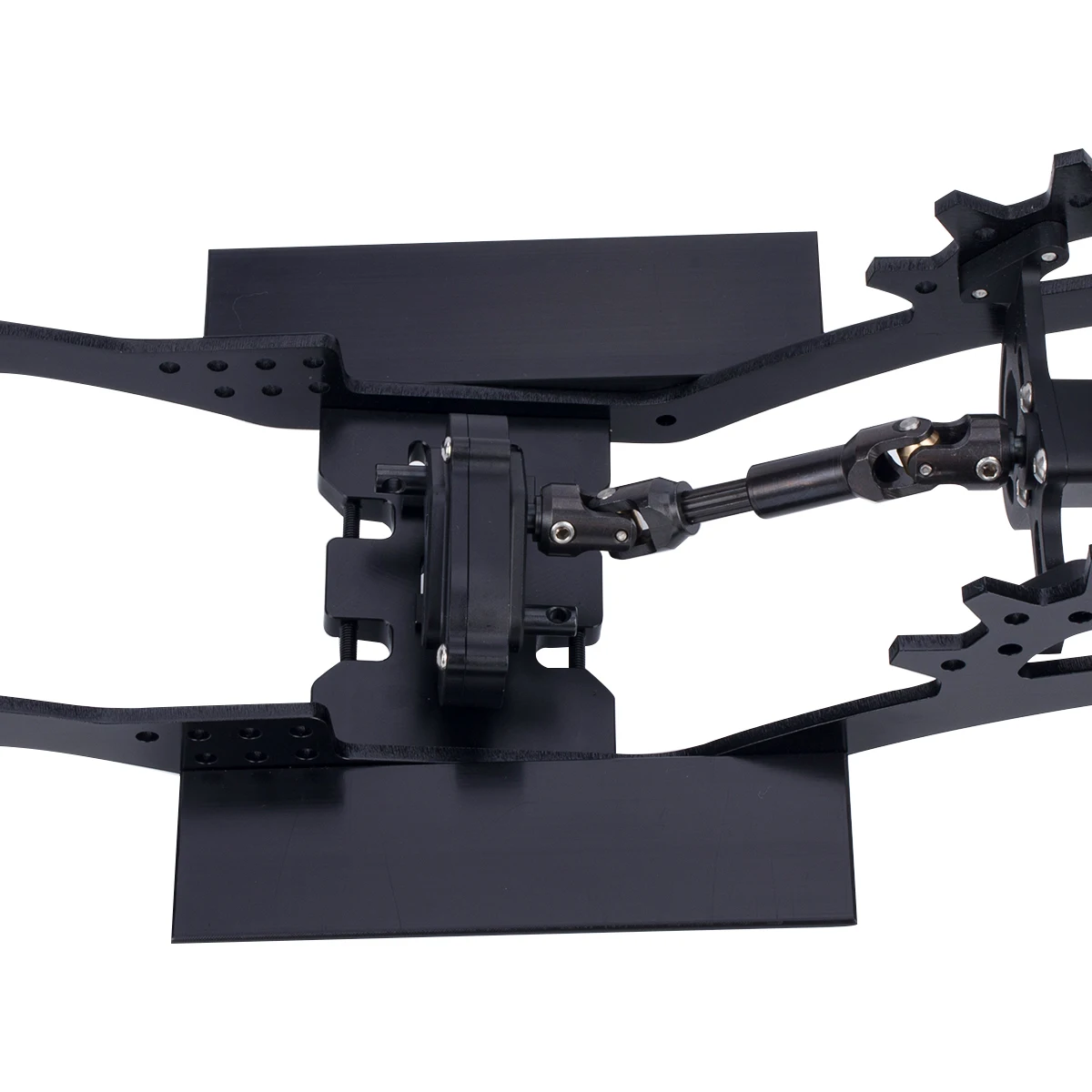

Chassis kit list include Chassis rails, transmission, skid plate, dual servo mount , panhard mount, Side Plates，front and rear bumper links

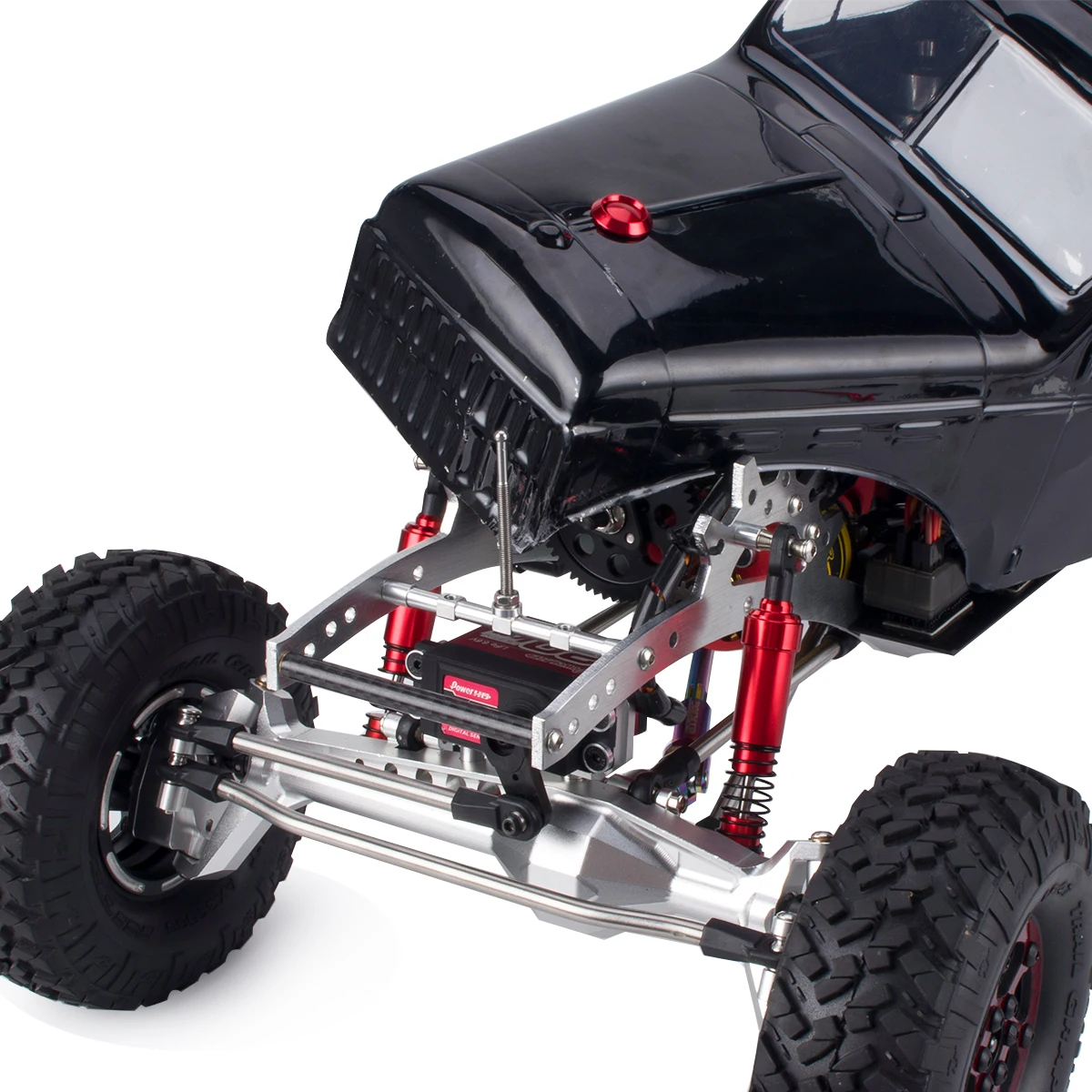

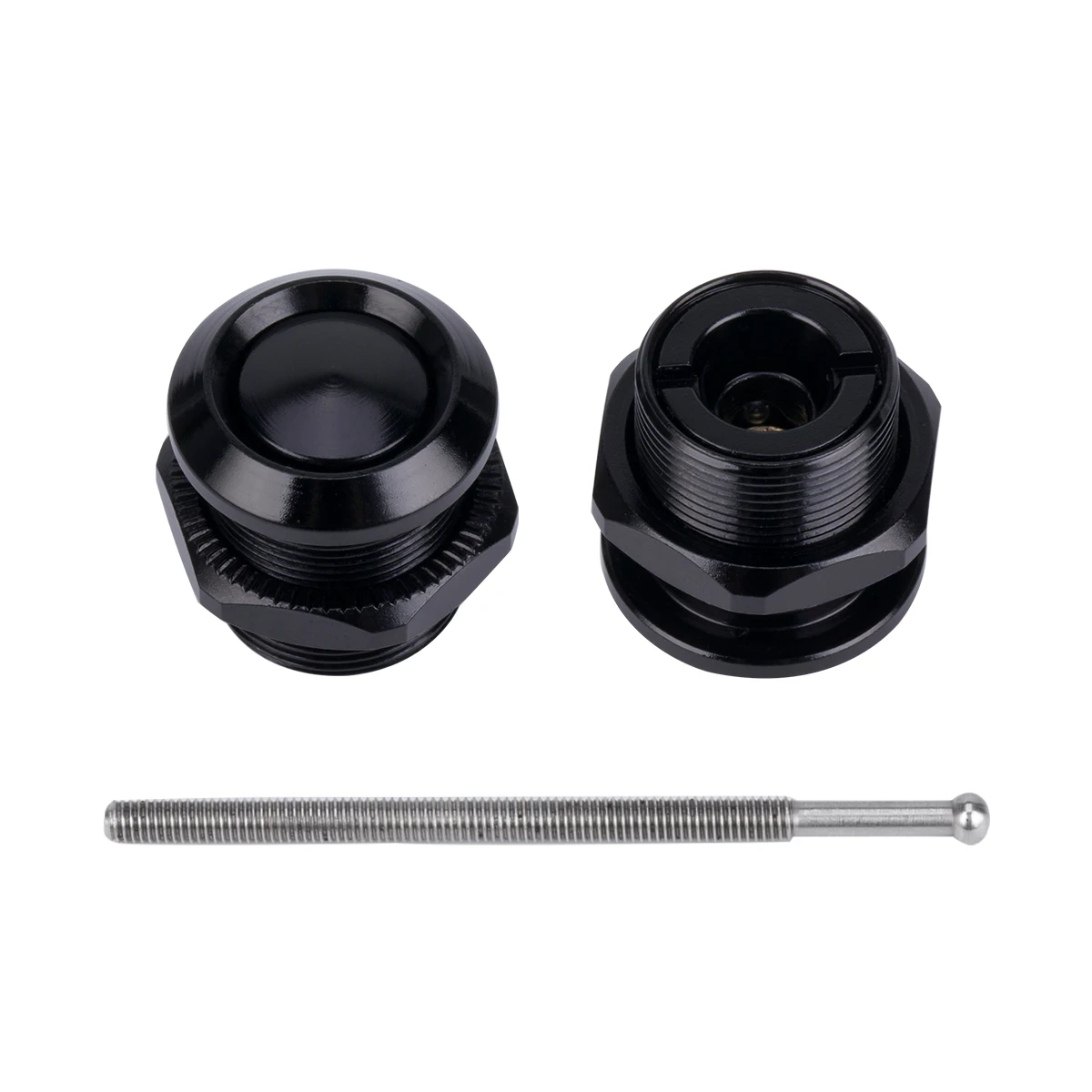

Quick Release Latch Button Specifications:
Material: aluminum alloy (button), stainless steel (screw)
Color: Black/Red/Silver
As shown in the figure
Button outer ring diameter: 14.8mm
Button diameter: 9mm
Button thread (hole diameter required for car shell): 11.8mm
Lock shell nut: 15mm (hexagonal opposite side)
M3 Ball Head Sccrew:54.3mm (can be cut as needed)
Weight: 5.9g
Suitable for PVC soft shell and plastic hard shell

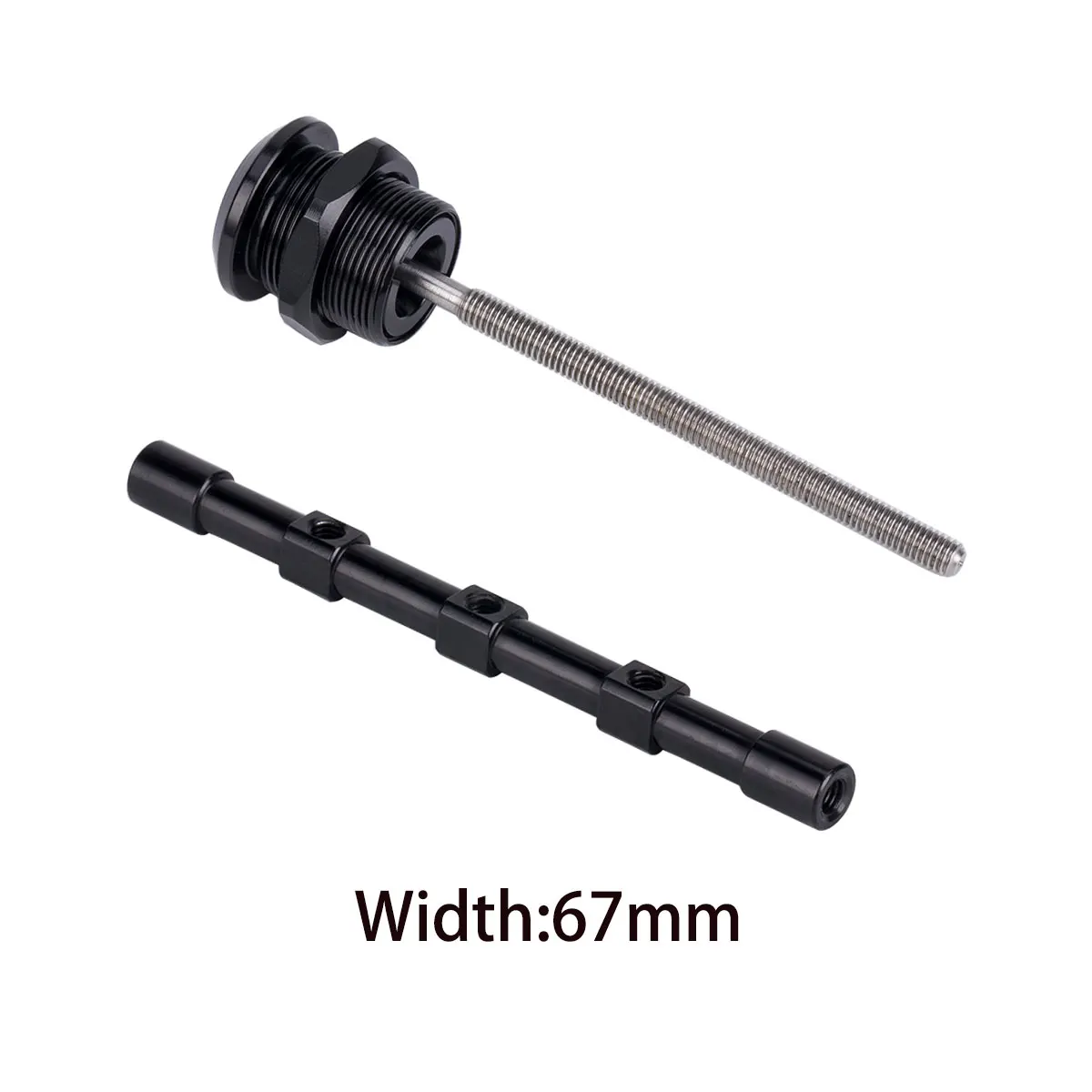

Fixed column Specifications:
lateral three-hole support
Material: aluminum alloy
Color: Black/Red/Silver
Width: 67MM
Weight: 2.7 g
Number: 1 pcs
Chassis kit list include Chassis rails, transmission, skid plate, dual servo mount , panhard mount, Side Plates，front and rear bumper links
