FNIRSI 2C53P 2C23T Digital Oscilloscope Multimeter Signal Generator Dual Channel
Details

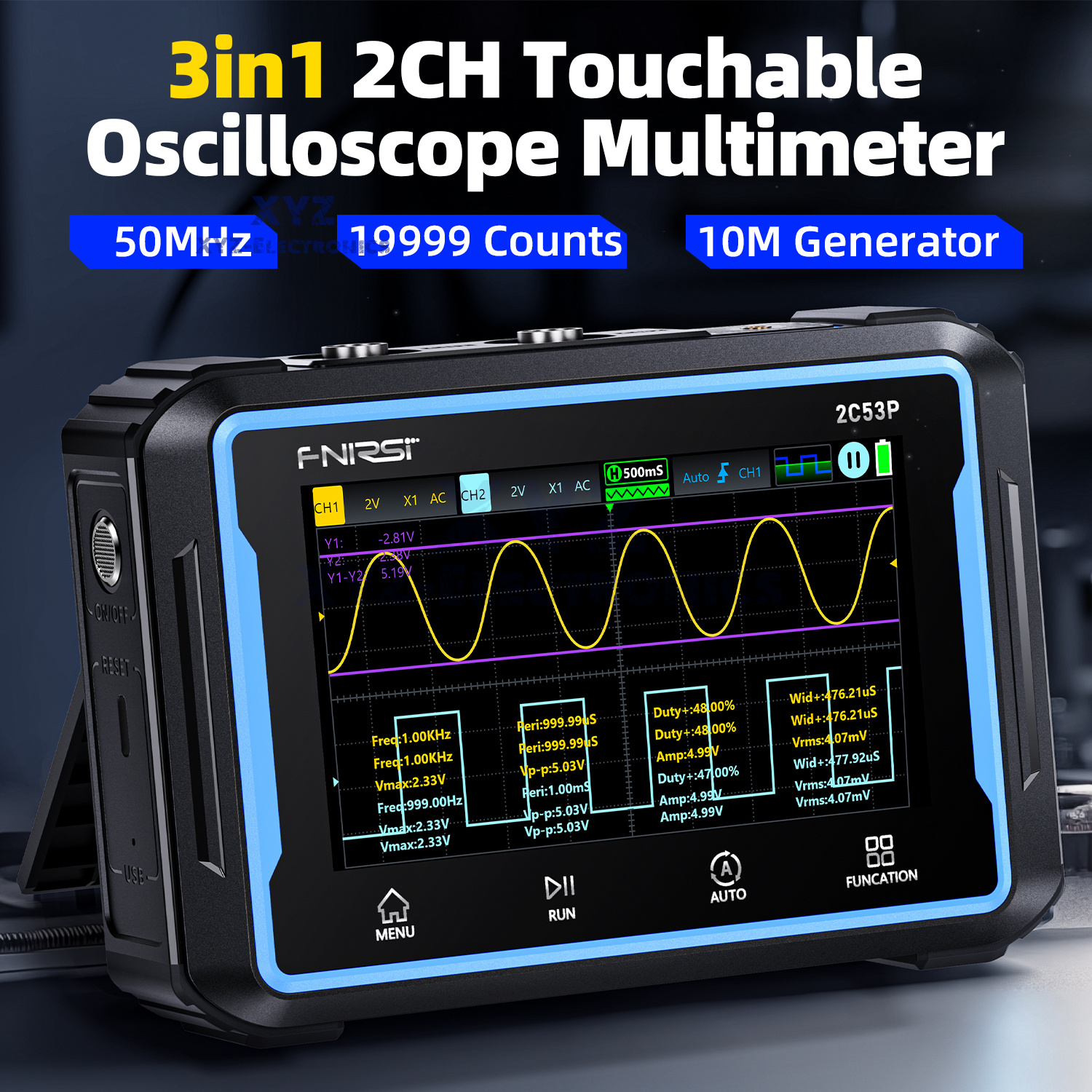

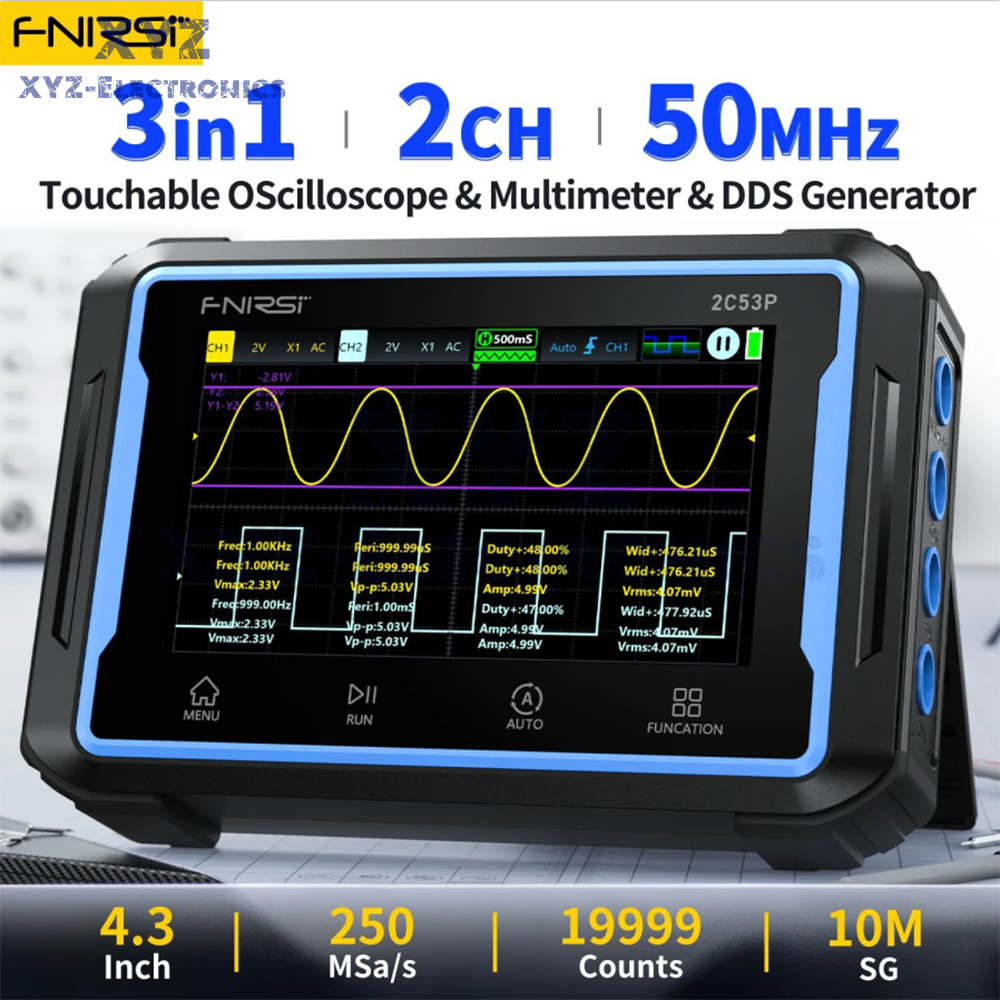

FNIRSI 2C53P
Features
1.Measure weak signals at millivolt level, support 20M bandwidth limitation for power ripple measurement.
2. Efficient operation: switch the trigger mode according to the actual needs, so that every measurement is accurate, so that every detail jumps to the fore!
3.High-precision 4.5-digit true RMS multimeter: 4.5-digit high-precision, with full auto range
4.4.3 inch high definition touch screen, precision and operation display is very powerful

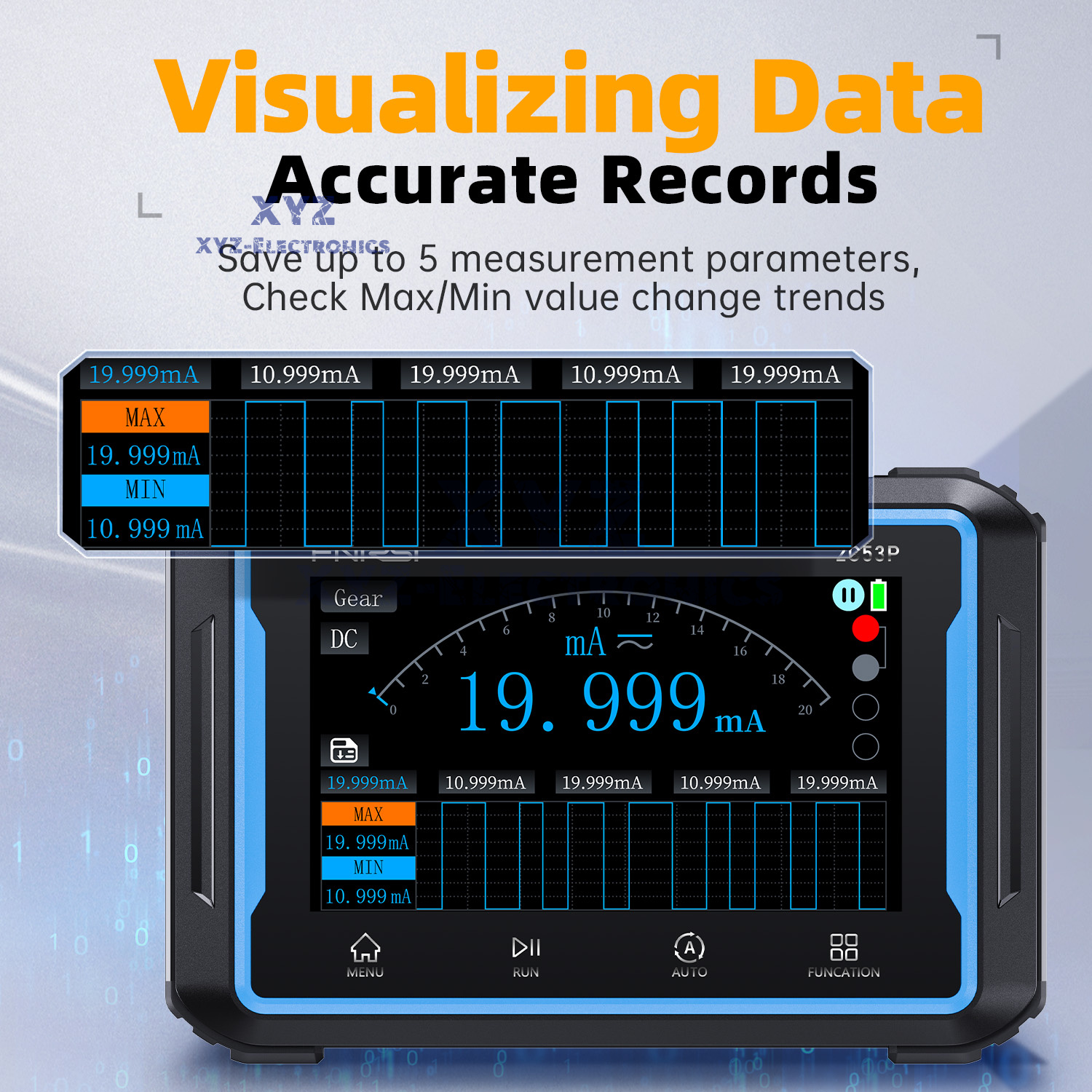

5. Real-time capture and display the changes of various measurement parameters to form a clear and concise data trend graph. Also has the ability to retain up to 5 groups of measurement data, at a glance!
6. Intelligent anti-burning, wrong gear does not burn the meter. Dual current fuse to prevent burning the meter safer

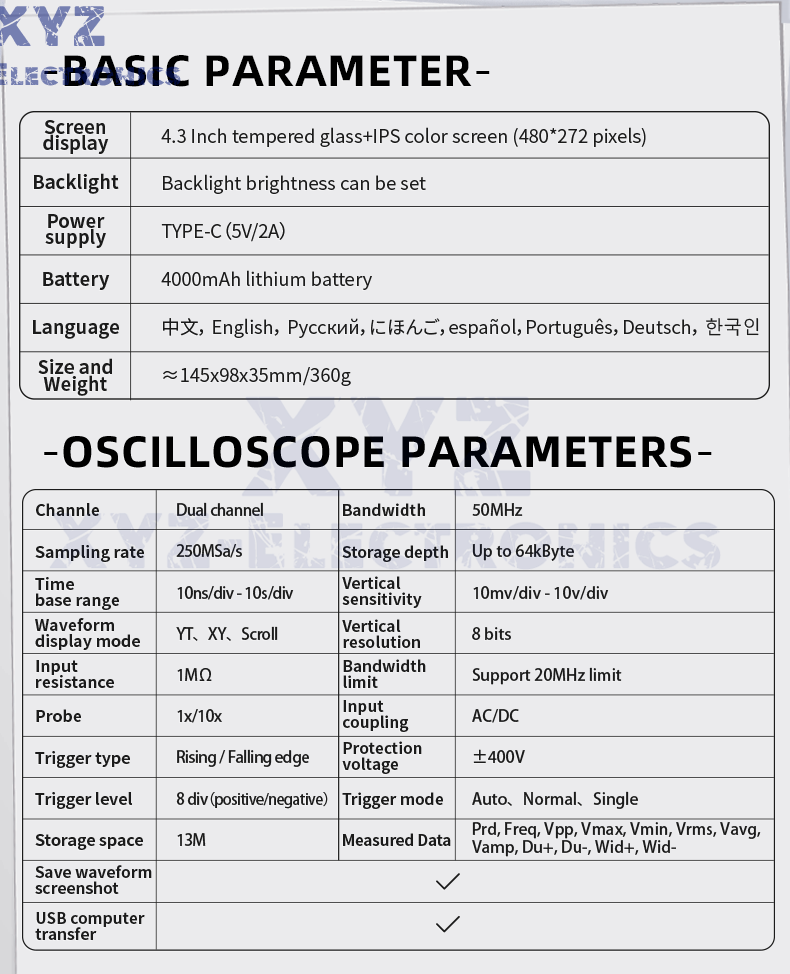

Basic parameters:
Backlight: backlight brightness can be set
Power supply: Type-C (5V/2A)
Battery: 4000mAh lithium battery (built-in)
2. Efficient operation: switch the trigger mode according to the actual needs, so that every measurement is accurate, so that every detail jumps to the fore!
3.High-precision 4.5-digit true RMS multimeter: 4.5-digit high-precision, with full auto range
4.4.3 inch high definition touch screen, precision and operation display is very powerful
5. Real-time capture and display the changes of various measurement parameters to form a clear and concise data trend graph. Also has the ability to retain up to 5 groups of measurement data, at a glance!
6. Intelligent anti-burning, wrong gear does not burn the meter. Dual current fuse to prevent burning the meter safer
Basic parameters:
Backlight: backlight brightness can be set
Power supply: Type-C (5V/2A)
Battery: 4000mAh lithium battery (built-in)
Oscilloscope parameters:
Channel: dual-channel
Real-time sampling rate: 250MSa/s
Time base range: 10ns/div-10s/div
Waveform display mode: YT/XY/Scroll
Input impedance: 1MΩ
Probe attenuation factor: 1x/10x
Trigger type: rising edge/falling edge
Trigger level range: 8 cells (positive and negative)
Storage space: 13M
Bandwidth: 50MHZ
Storage depth: up to 64kByte
Vertical Sensitivity: 10mv/div-10v/div
Vertical Resolution: 8 bits
Bandwidth Limit: Supports 20MHz limit
Input coupling: AC/DC
Peak voltage: ±400V
Trigger mode: automatic/normal/single
Measurement data: period, frequency, peak-to-peak, maximum value, minimum average value, RMS value, amplitude, duty cycle, pulse width
Channel: dual-channel
Real-time sampling rate: 250MSa/s
Time base range: 10ns/div-10s/div
Waveform display mode: YT/XY/Scroll
Input impedance: 1MΩ
Probe attenuation factor: 1x/10x
Trigger type: rising edge/falling edge
Trigger level range: 8 cells (positive and negative)
Storage space: 13M
Bandwidth: 50MHZ
Storage depth: up to 64kByte
Vertical Sensitivity: 10mv/div-10v/div
Vertical Resolution: 8 bits
Bandwidth Limit: Supports 20MHz limit
Input coupling: AC/DC
Peak voltage: ±400V
Trigger mode: automatic/normal/single
Measurement data: period, frequency, peak-to-peak, maximum value, minimum average value, RMS value, amplitude, duty cycle, pulse width

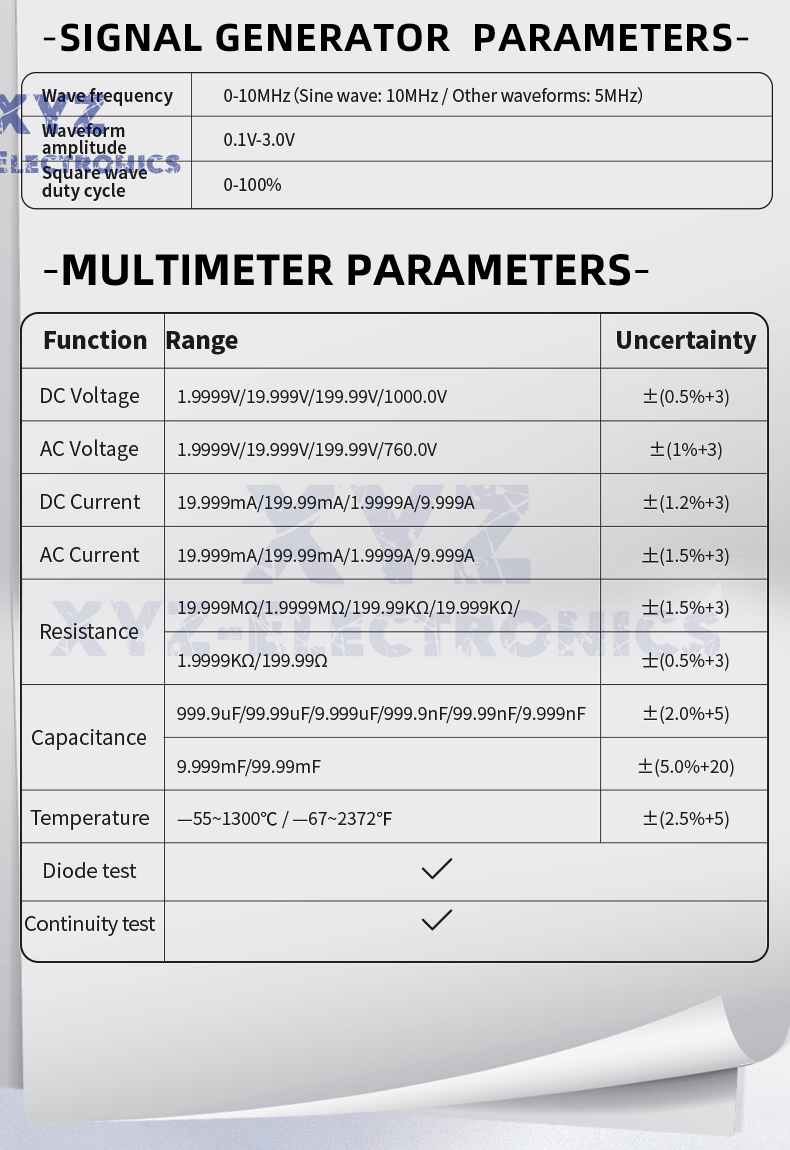

Signal generator parameters:
Different waveform output frequency: sine wave: 10MHZ, other waveforms 5MHZ
Waveform frequency: 0-10MHz
Waveform amplitude: 0.1V-3.0V
Duty cycle of square wave: 0-100%
Different waveform output frequency: sine wave: 10MHZ, other waveforms 5MHZ
Waveform frequency: 0-10MHz
Waveform amplitude: 0.1V-3.0V
Duty cycle of square wave: 0-100%
Multimeter parameters:
DC voltage: 1.9999V/19.999V/199.99V/1000.0V, accuracy ± (0.5%+3)
AC voltage: 1.9999V/19.999V/199.99V/760.0V, accuracy ±(1%+3)
DC current: 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.2%+3)
AC Current: 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.5%+3)
Resistance: 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ/, accuracy ±(1.5%+3)
1.9999KΩ/199.99Ω, accuracy ±(0.5%+3)
Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF, accuracy ±(2.0%+5)
9.999mF/99.99mF, accuracy ±(5.0%+20)
Temperature: -55~1300℃/-67~2372℉, accuracy ±(2.5%+5)
Diode/On/Off: √
DC voltage: 1.9999V/19.999V/199.99V/1000.0V, accuracy ± (0.5%+3)
AC voltage: 1.9999V/19.999V/199.99V/760.0V, accuracy ±(1%+3)
DC current: 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.2%+3)
AC Current: 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.5%+3)
Resistance: 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ/, accuracy ±(1.5%+3)
1.9999KΩ/199.99Ω, accuracy ±(0.5%+3)
Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF, accuracy ±(2.0%+5)
9.999mF/99.99mF, accuracy ±(5.0%+20)
Temperature: -55~1300℃/-67~2372℉, accuracy ±(2.5%+5)
Diode/On/Off: √
List
1 x Tester
1 x Instruction Manual
2 x P6100 Probe
1 x Type-C Data Cable
1 x Multimeter Pen
1 x Alligator Clip Probe
1 x Tester
1 x Instruction Manual
2 x P6100 Probe
1 x Type-C Data Cable
1 x Multimeter Pen
1 x Alligator Clip Probe
FNIRSI 2C23T
Features
1. Dual-channel 3-in-1 digital oscilloscope: multimeter + oscilloscope + signal generator
2.Dual-channel 2X10MHz bandwidth, isolated channels are independent of each other to avoid interference between them, more accurate signal detection
3. Oscilloscope performance: hardware architecture and desktop computer with the same ARM + FPGA + high-speed ADC program, high cost, non-general CPU direct mining program, trigger system is powerful, with super waveform capture capability, waveform details are not lost
4. One-key measurement: with a complete range of trigger modes: automatic, single, conventional equipped with efficient one-key automatic adjustment, without the need for cumbersome adjustment can display the measured signal waveforms
5. Built-in double insurance tube intelligent anti-burn overload does not burn the table: intelligent anti-burn power measurement is safer, novice can also easily measure!
1. Dual-channel 3-in-1 digital oscilloscope: multimeter + oscilloscope + signal generator
2.Dual-channel 2X10MHz bandwidth, isolated channels are independent of each other to avoid interference between them, more accurate signal detection
3. Oscilloscope performance: hardware architecture and desktop computer with the same ARM + FPGA + high-speed ADC program, high cost, non-general CPU direct mining program, trigger system is powerful, with super waveform capture capability, waveform details are not lost
4. One-key measurement: with a complete range of trigger modes: automatic, single, conventional equipped with efficient one-key automatic adjustment, without the need for cumbersome adjustment can display the measured signal waveforms
5. Built-in double insurance tube intelligent anti-burn overload does not burn the table: intelligent anti-burn power measurement is safer, novice can also easily measure!
Overview
Model: 2C23T
Screen: 2.8-inch true color screen
Resolution: 320 * 240
Charging: TYPE-C (5V/1A)
Battery: 3000mAh lithium battery
Support function: Oscilloscope, signal generator, digital multimeter (see function parameters)
Standby time: 8 hours (laboratory theory maximum)
Model: 2C23T
Screen: 2.8-inch true color screen
Resolution: 320 * 240
Charging: TYPE-C (5V/1A)
Battery: 3000mAh lithium battery
Support function: Oscilloscope, signal generator, digital multimeter (see function parameters)
Standby time: 8 hours (laboratory theory maximum)
Multimeter specifications
DC voltage: 9.999V/99.99V/999.9V, accuracy: ±(0.5%+3)
AC voltage: 9.999V/99.99V/750.0V, accuracy: ±(1%+3)
DC current: 9999uA/99.99mA/999.9mA/9.999A, accuracy: ±(1.2%+3)
AC Current: 9999uA/99.99mA/999.9mA/9.999A, Accuracy: ±(1.5%+3)
Resistance: 9.999MΩ/999.9KΩ199.99KΩ19.999KΩ/999.9Ω, accuracy: ±(0.5%+3)
99.99MΩ, Accuracy: ±(1.5%+3)
Capacitance: 999.9uF199.99uF/9.999uF/999.9nF/99.99nF9.999nF, Accuracy: ±(2.0%+5)
9.999mF/99.99mF, accuracy: ±(5.0%+20)
Temperature: (-55~1300℃/(-67~2372℉), Accuracy: ±(2.5%+5)
Diode: √
On-off: √
Firewire detection: √
DC voltage: 9.999V/99.99V/999.9V, accuracy: ±(0.5%+3)
AC voltage: 9.999V/99.99V/750.0V, accuracy: ±(1%+3)
DC current: 9999uA/99.99mA/999.9mA/9.999A, accuracy: ±(1.2%+3)
AC Current: 9999uA/99.99mA/999.9mA/9.999A, Accuracy: ±(1.5%+3)
Resistance: 9.999MΩ/999.9KΩ199.99KΩ19.999KΩ/999.9Ω, accuracy: ±(0.5%+3)
99.99MΩ, Accuracy: ±(1.5%+3)
Capacitance: 999.9uF199.99uF/9.999uF/999.9nF/99.99nF9.999nF, Accuracy: ±(2.0%+5)
9.999mF/99.99mF, accuracy: ±(5.0%+20)
Temperature: (-55~1300℃/(-67~2372℉), Accuracy: ±(2.5%+5)
Diode: √
On-off: √
Firewire detection: √
Oscilloscope Specifications
Channel: Dual Channel
Sampling rate: 50M
Analog bandwidth: 10M (dual-channel independent 10M)
Memory depth: 32kb
Input impedance: 1MΩ
Time base range: 50ns-10s
Vertical sensitivity: 20mV/div-10V/div (X1 step)
Maximum measurement voltage: ±400V
Trigger mode: automatic, normal, single
Trigger type: rising edge, falling edge
Display Mode: YT/Scrolling
Coupling: AC/DC
Waveform Screenshot Saving: Support
View waveforms on computer: Support
Channel: Dual Channel
Sampling rate: 50M
Analog bandwidth: 10M (dual-channel independent 10M)
Memory depth: 32kb
Input impedance: 1MΩ
Time base range: 50ns-10s
Vertical sensitivity: 20mV/div-10V/div (X1 step)
Maximum measurement voltage: ±400V
Trigger mode: automatic, normal, single
Trigger type: rising edge, falling edge
Display Mode: YT/Scrolling
Coupling: AC/DC
Waveform Screenshot Saving: Support
View waveforms on computer: Support
Function Signal Generator Specifications
Channel: single channel
Frequency: 1Hz-2MHz
Amplitude: 0.1-3
Channel: single channel
Frequency: 1Hz-2MHz
Amplitude: 0.1-3
Package List
1 x Main unit
1 x Instruction Manual
2 x Probe
1 x Alligator Clip Probes
1 x Multimeter Pen Cable
1 x Type-C Charging Cable
1 x Main unit
1 x Instruction Manual
2 x Probe
1 x Alligator Clip Probes
1 x Multimeter Pen Cable
1 x Type-C Charging Cable
