Details
1.Using high quality materials, product quality is guaranteed
2.RX470 receiver module is a UHF ASK receiver demodulator, supporting ASK and OOK modulation.
3. The receiver module has high sensitivity (-108dBm), low power consumption performance, and at the same time has a high dynamic range (greater than 60dB)
4. The module uses a highly integrated chip, built-in front-end low-noise amplifier, mixer, filter, frequency synthesiser and other circuits, the maximum degree of signal optimisation
5. Good radiation suppression capability of the local oscillation, can be more than one receiver module to work together (i.e., single-emitter multi-receiver) and will not interfere with each other, together with the use of the reception distance is not affected
6. Wide range of applications, suitable for wireless power switches, sockets, remote control curtains, access control, electric vehicles, security, monitoring systems, hotel room control, smart home products and so on.
Support ASK / OOK modulation, receiving sensitivity of -108dBm

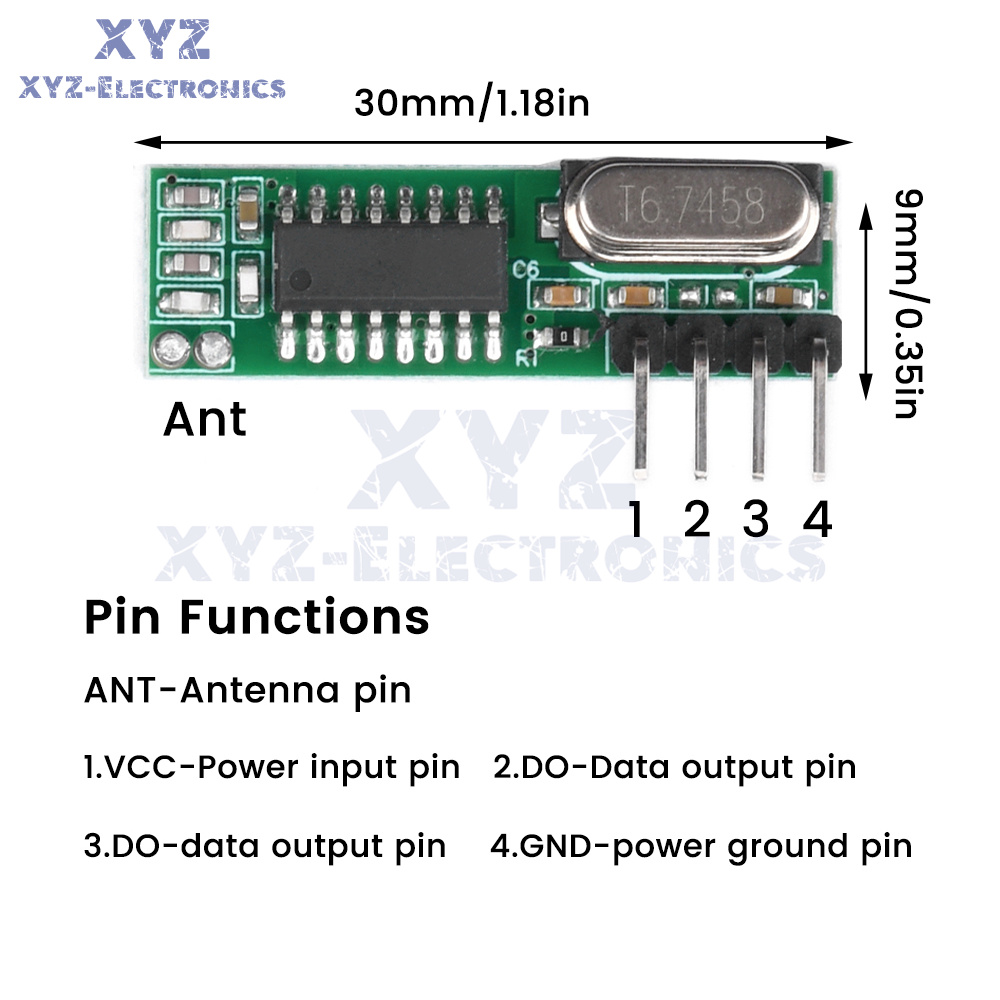

Receiving module:
Operating frequency: 433.92MHz, bandwidth of about ± 150KHz
Power supply voltage input range: 2.2V-5.0V
Temperature range: -40-85 ℃ even in harsh ambient temperatures can work normally
Operating frequency: 433.92 MHz
Supply voltage input range: 2.0V-3.6V
Low supply power consumption, shutdown mode current less than 1uA
Transmission rate up to 20Kbps
Temperature range: -45-85 ℃ even in harsh ambient temperatures can work normally

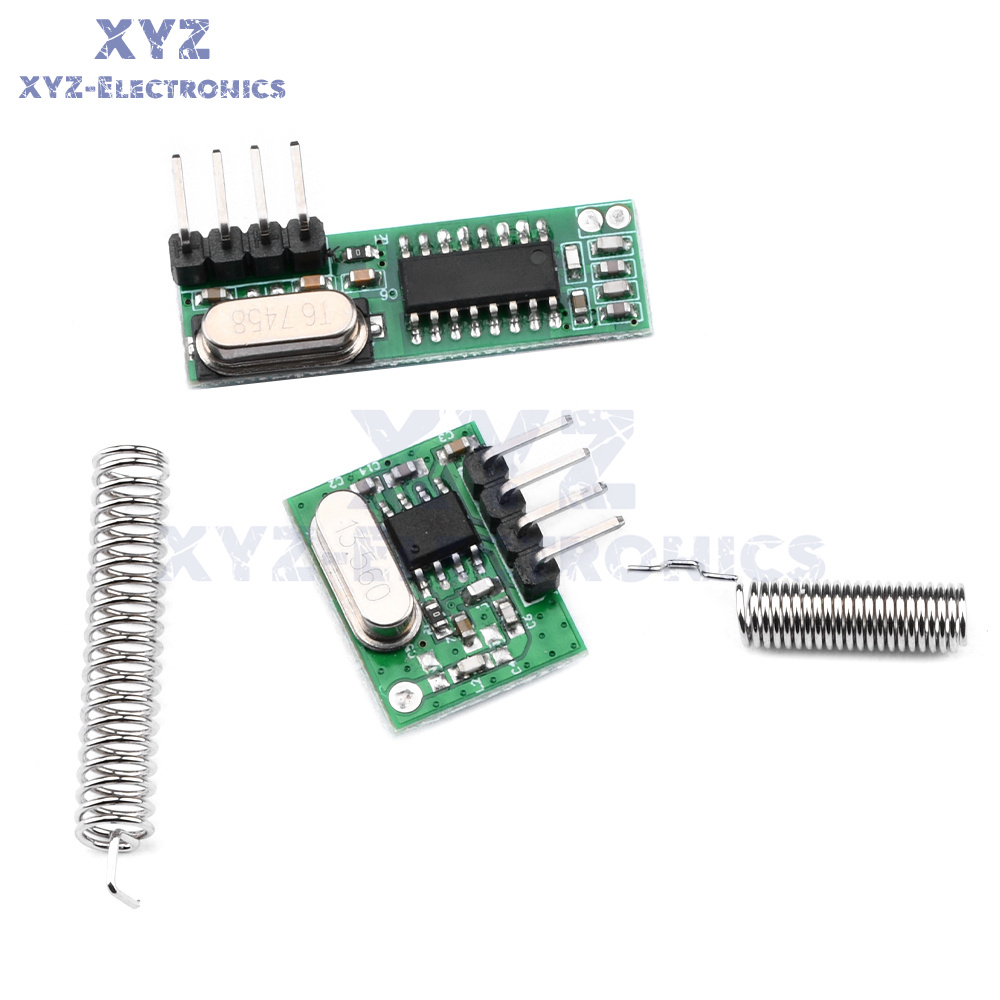

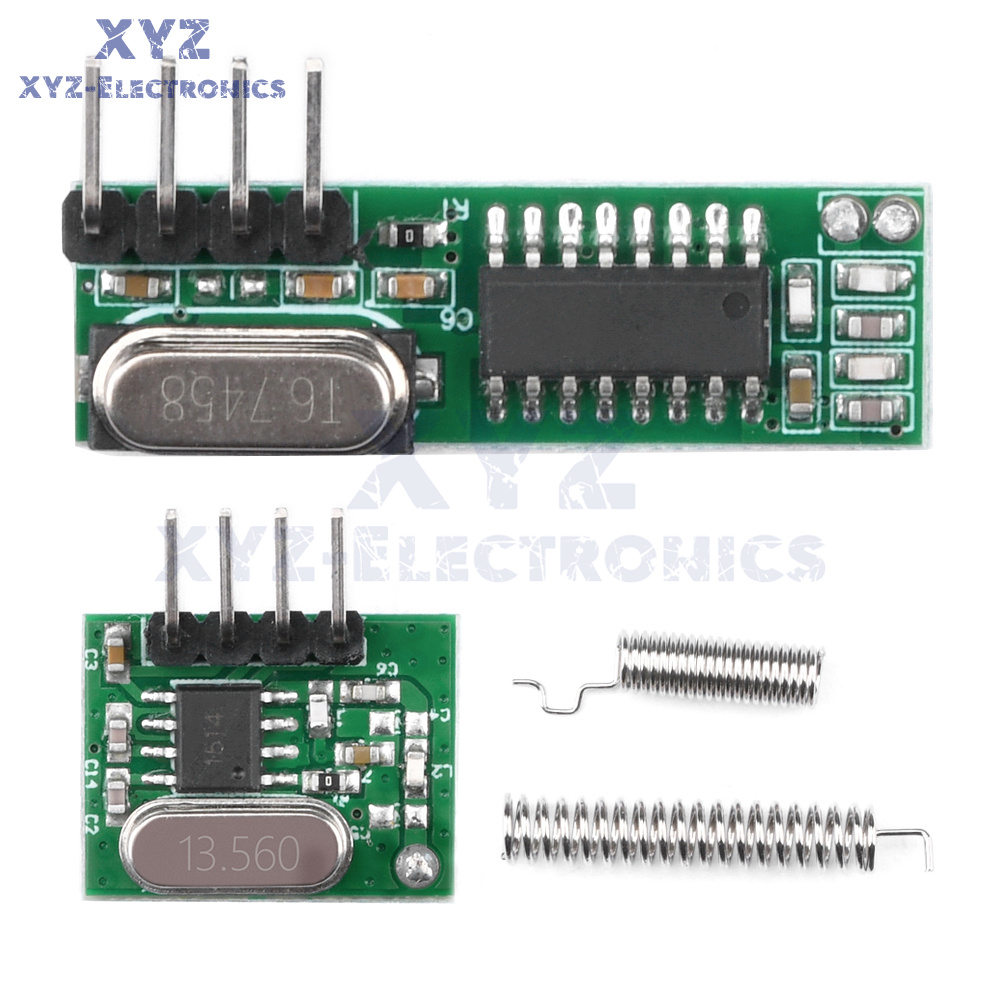

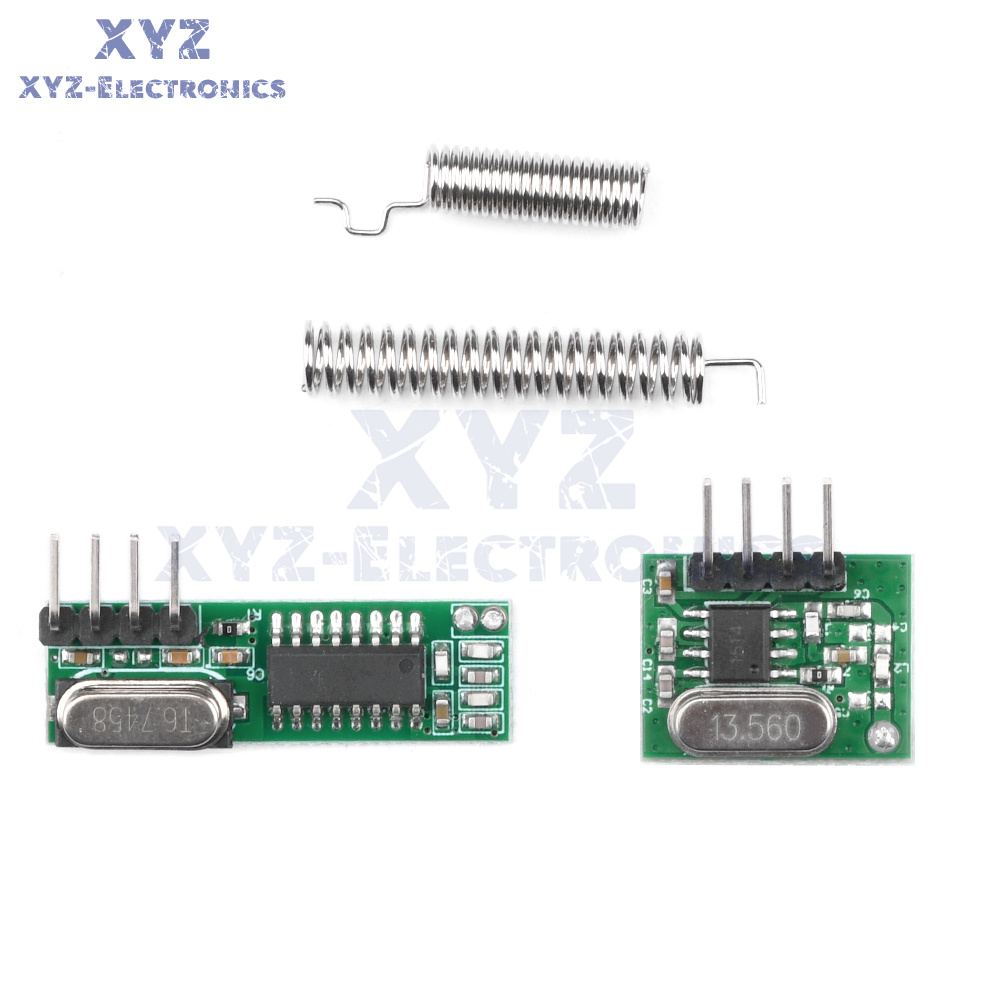

Receiver Module*1
Transmitter module*1
Antenna*2
