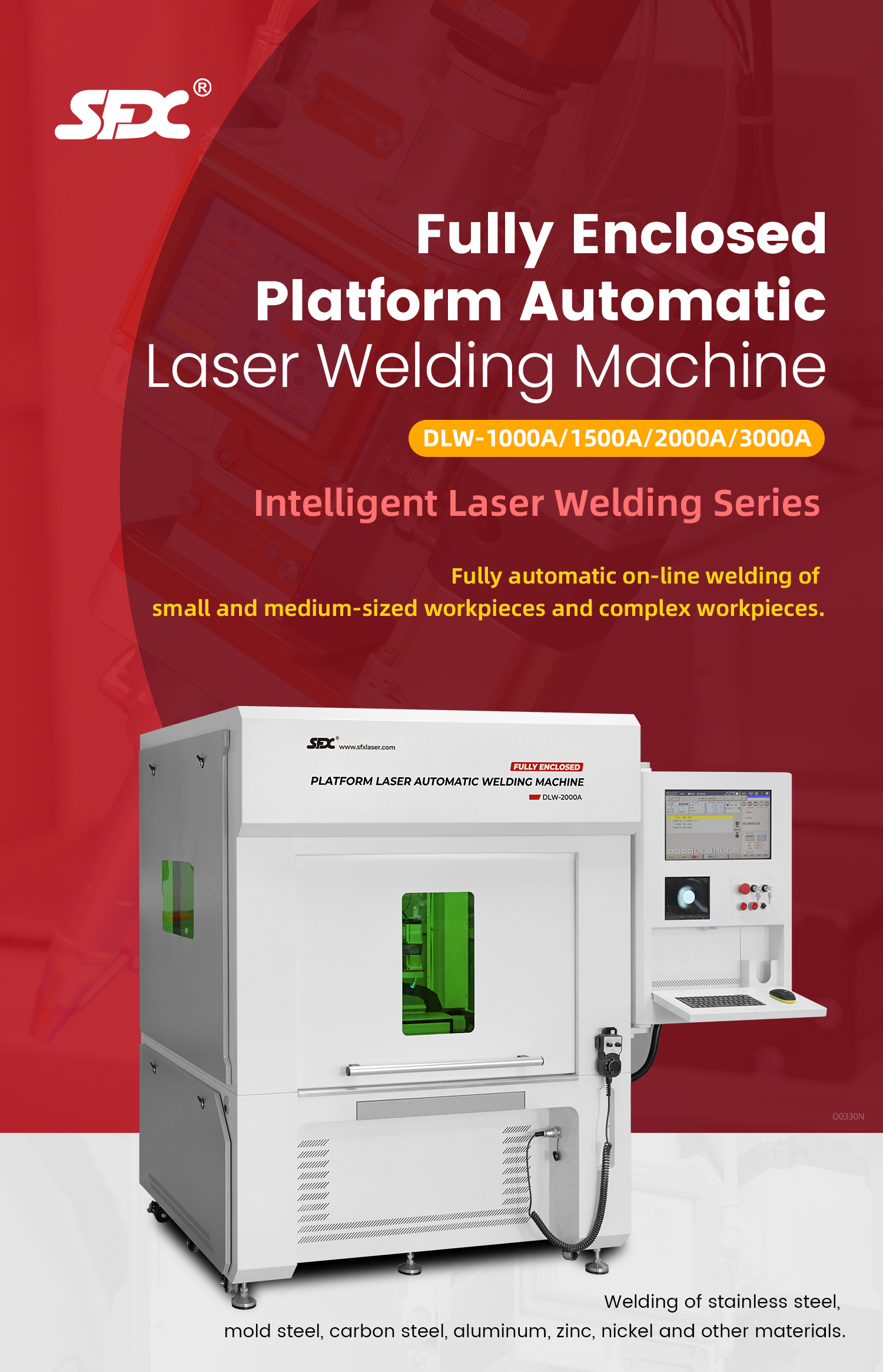

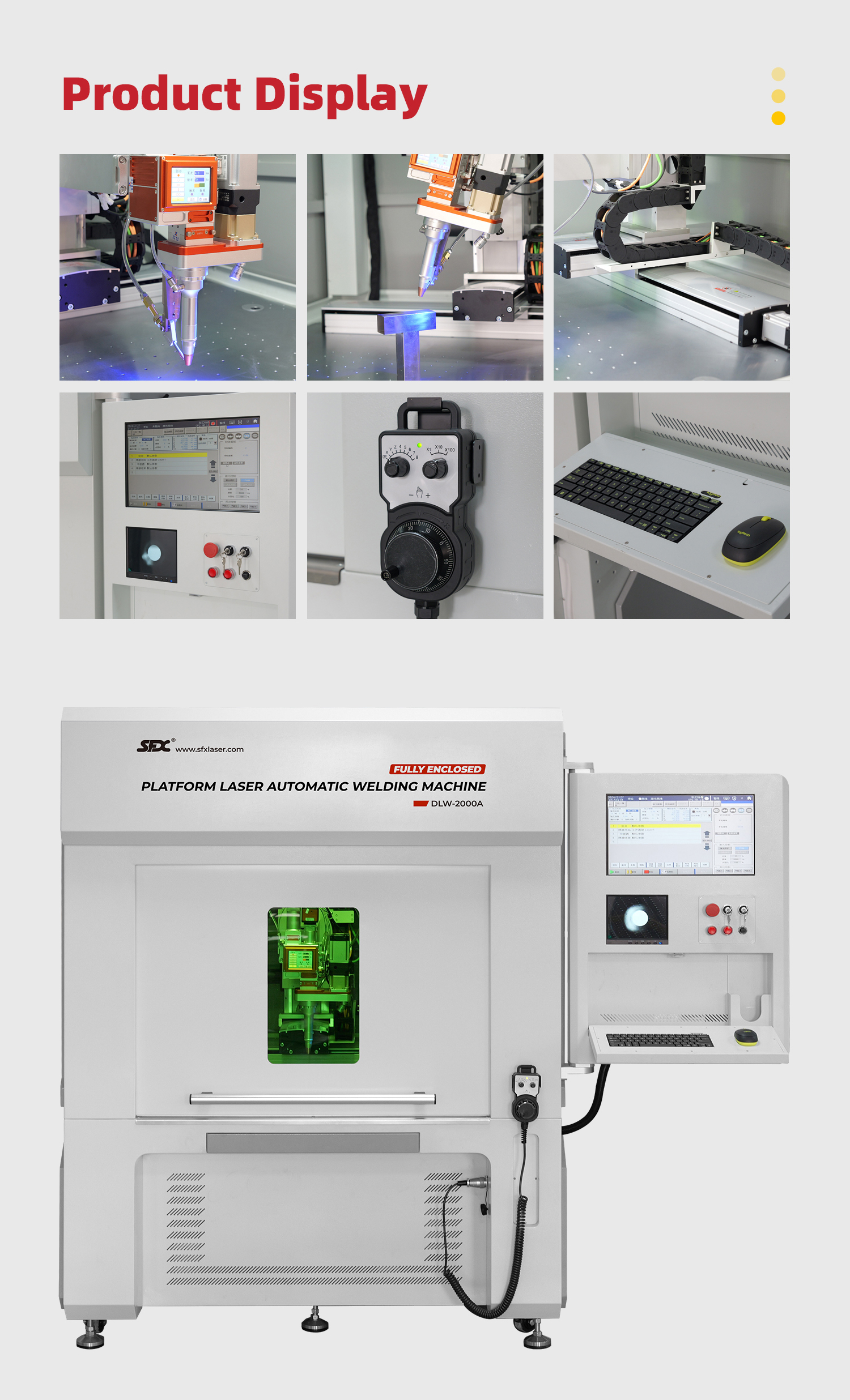

SFX 3000W Fully Enclosed Platform Automatic Laser Welding Machine DLW-3000A with Five-axis Standard Configuration Fast and High Precision

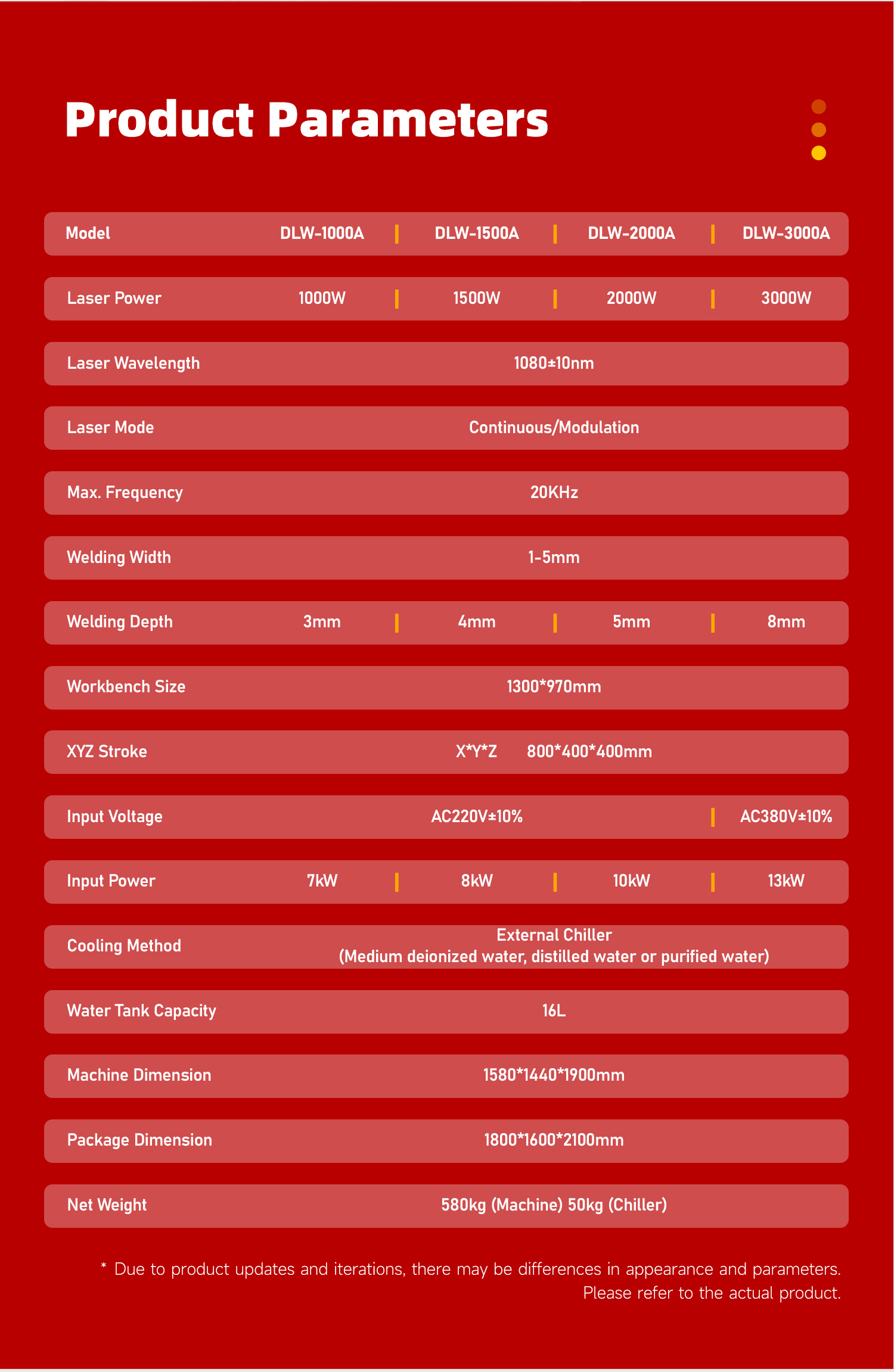

Specifics:
  • Model: DLW-3000A
  • Input Power:13kW
  • Laser Power: 3000watt
  • Laser Wavelength:1080±10nm
  • Max Frequency: 20kHz
  • Welding Depth:8mm
  • XYZ stroke:X*Y*Z 800*400*400mm
  • Cooling Method: External chiller
  • Water Tank Capacity:16L
  • Input power: AC380V±10%
  • Machine dimension:1580*1440*1900mm
  • Allocation: Five-axis

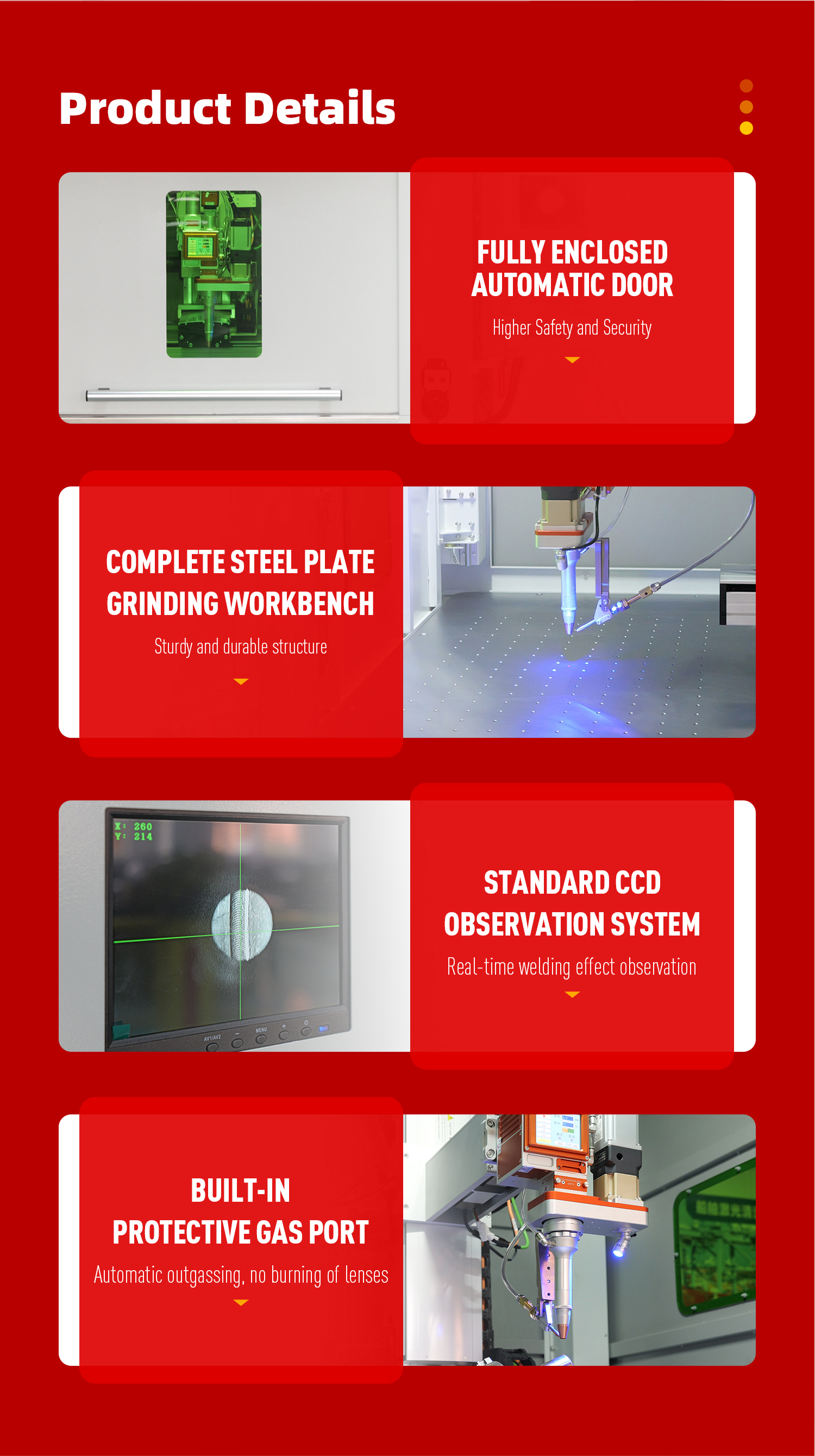

Features and Advantages:

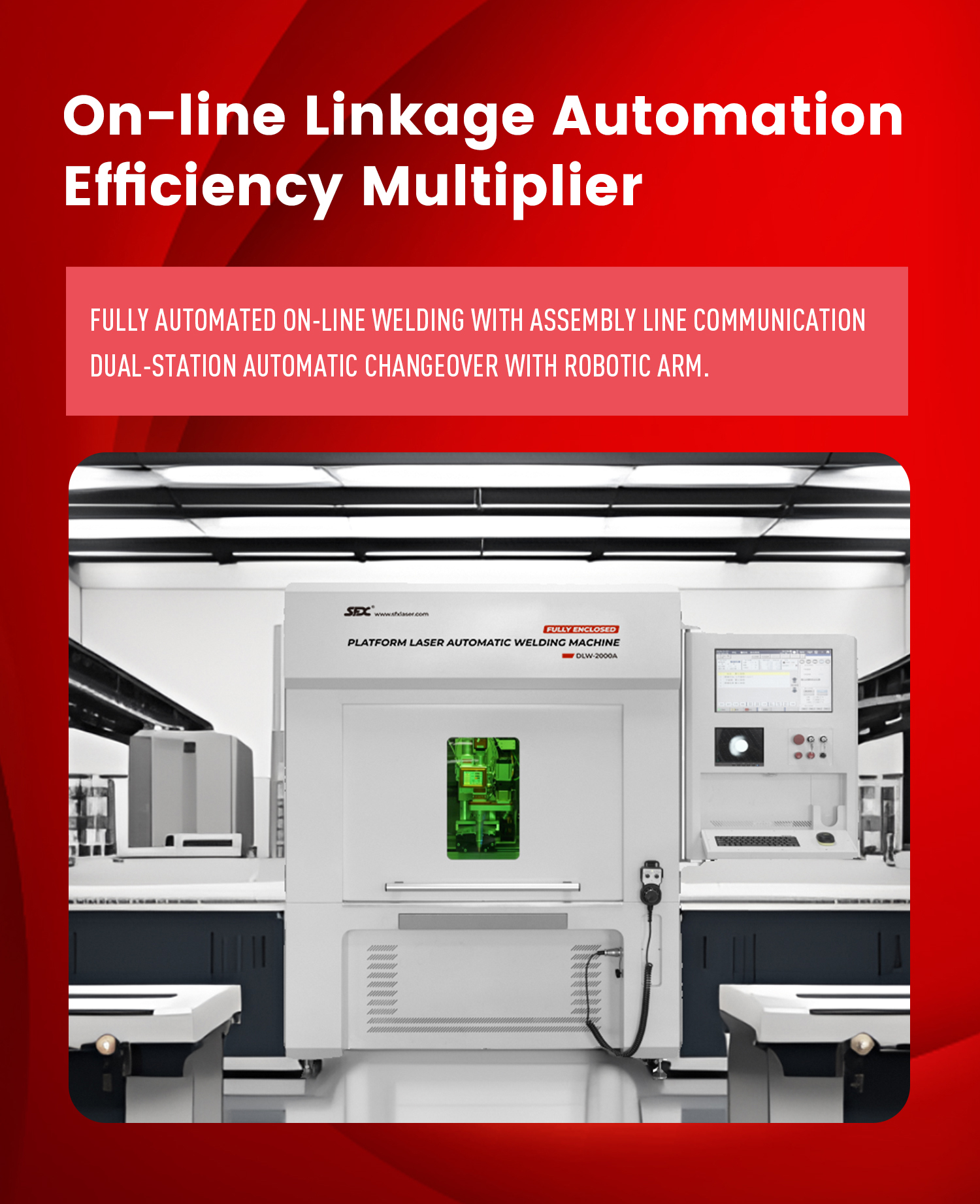

1. Fully automatic online welding of small and medium-sized and complex workpieces. Fully automatic online welding with assembly line communication dual-station automatic changeover with a robotic arm.

2. High-Speed Electronic Filtering Device: Safeguards the operator’s eyes by protecting against potential hazards.

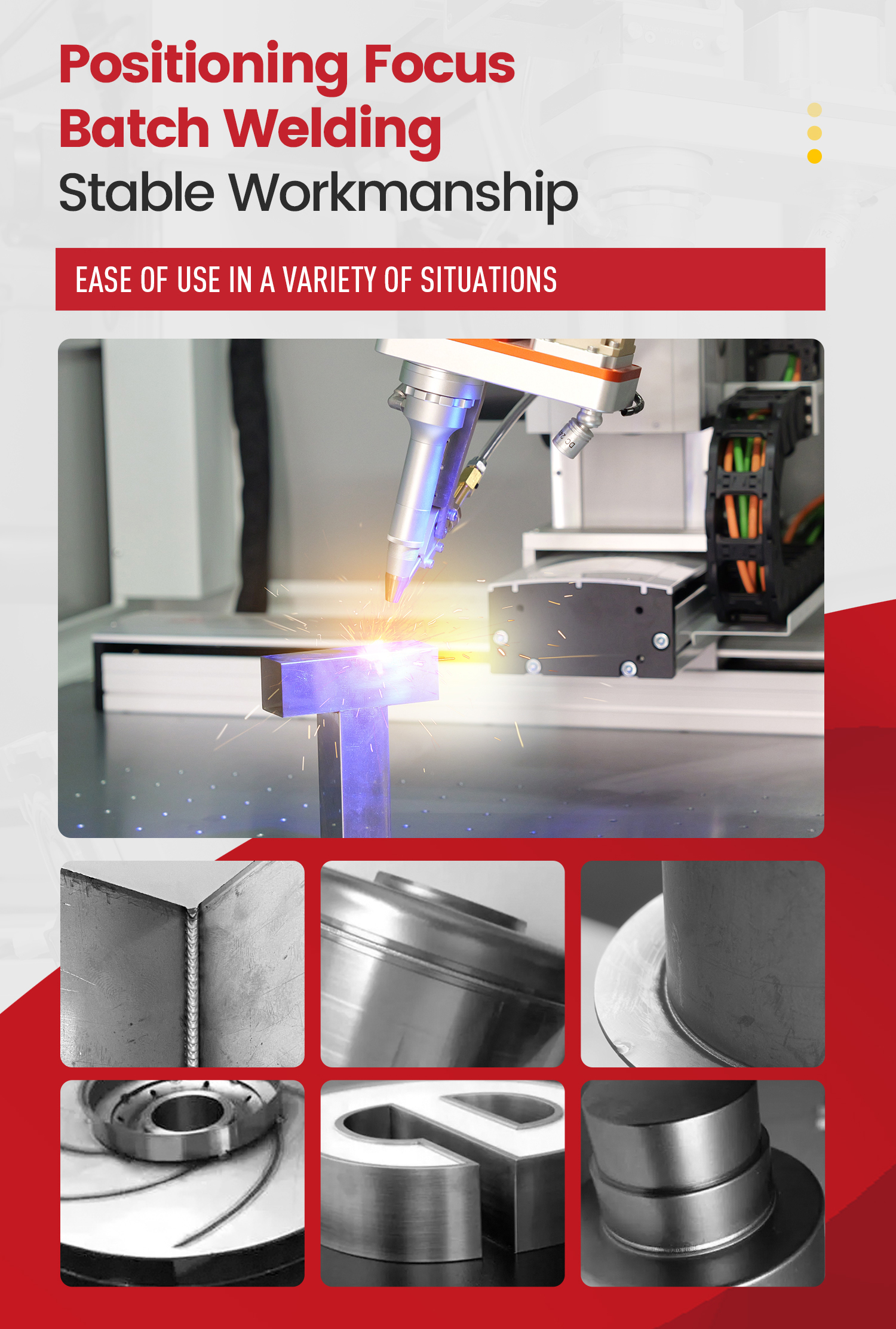

3. Positioning focus batch welding stable workmanship: Easy to use in a variety of situations.

4. Cooling method: External Chiller(Medium deionized water,distilled water or purified water).

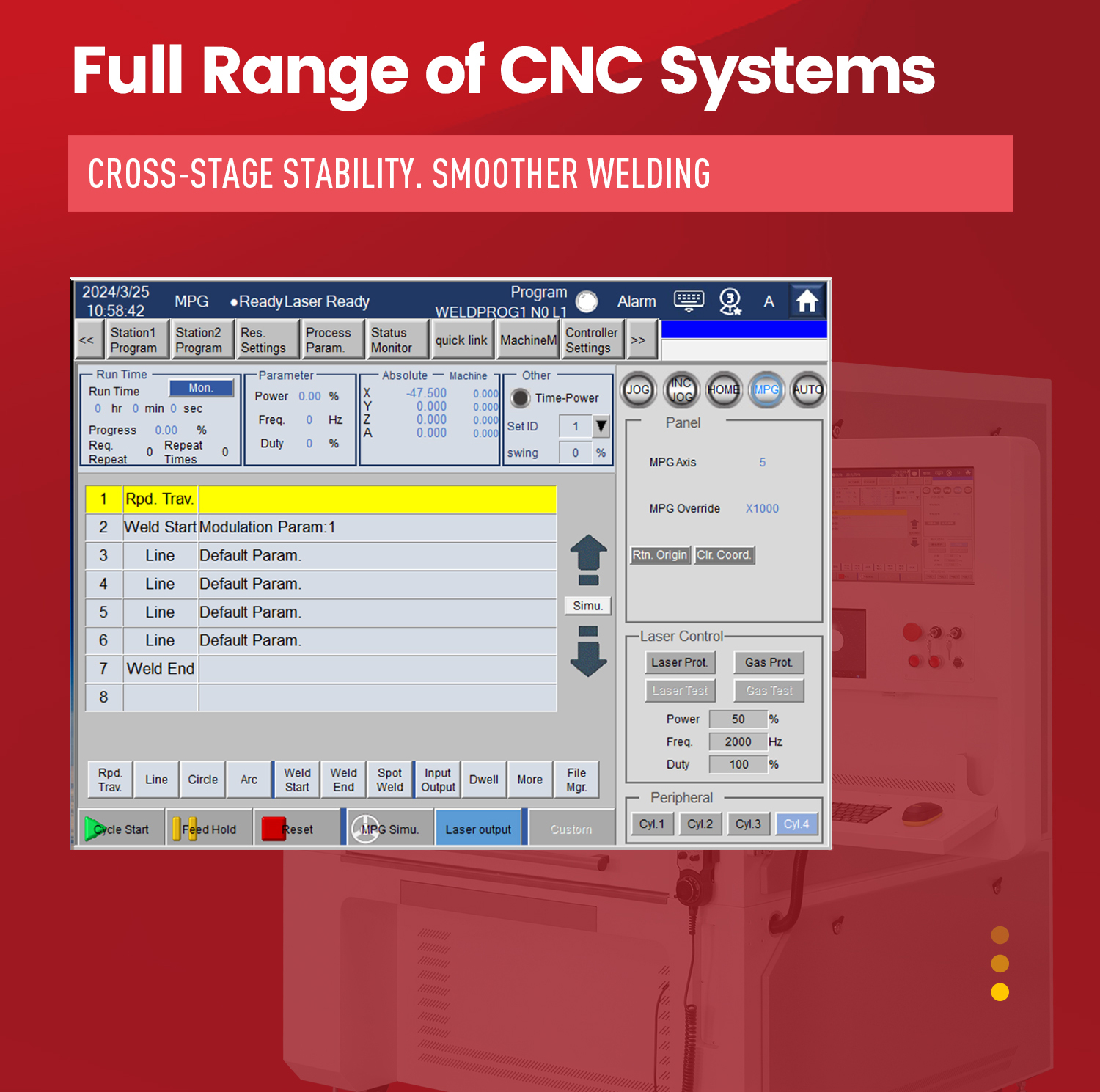

5. Full Range of CNC Systems: Cross-stage stability, smoother welding.

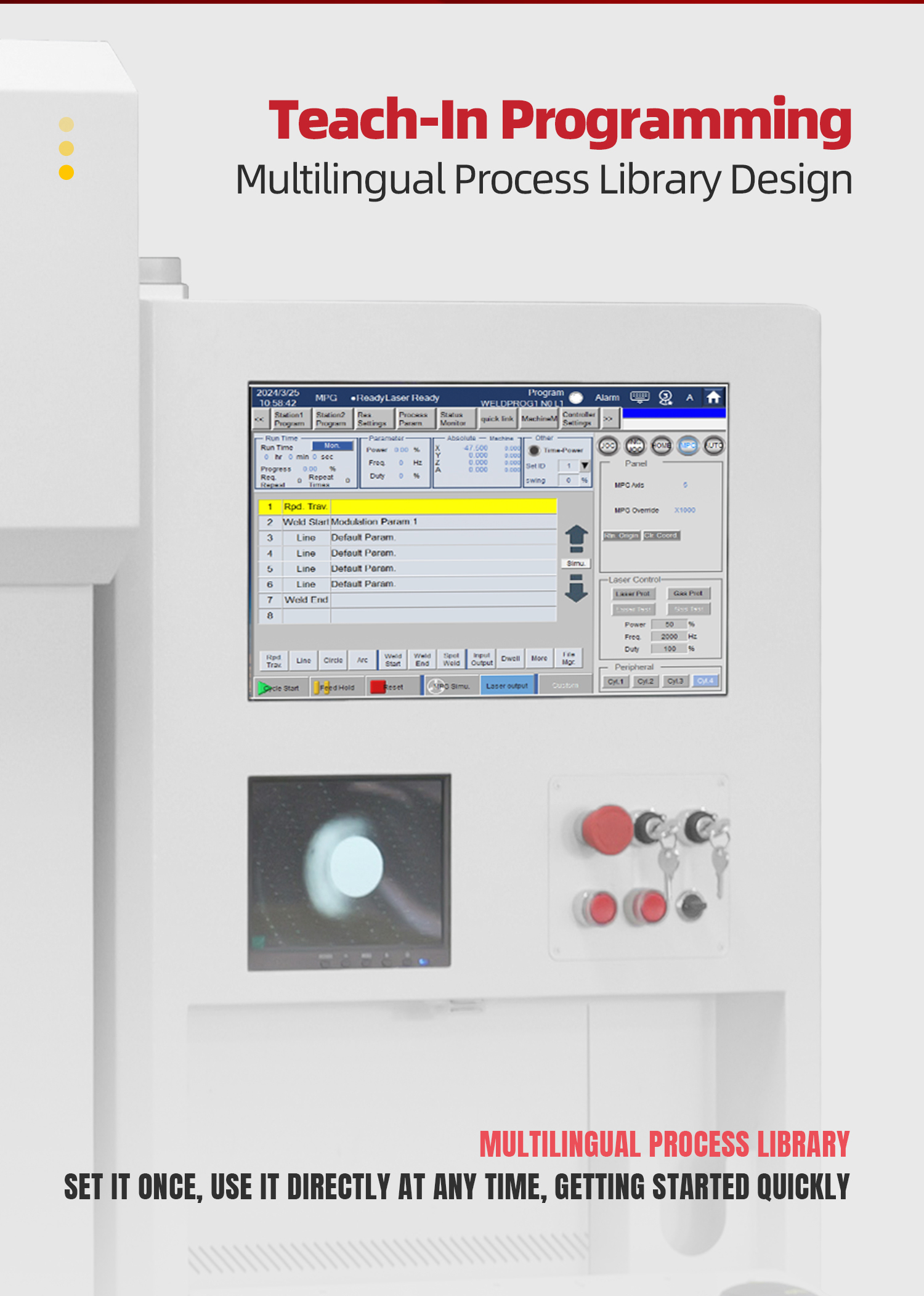

6. Teach-in Programming Multilingual Process Library Design: Multilingual Process Library, set it once, use it directly at any time, getting started quickly.

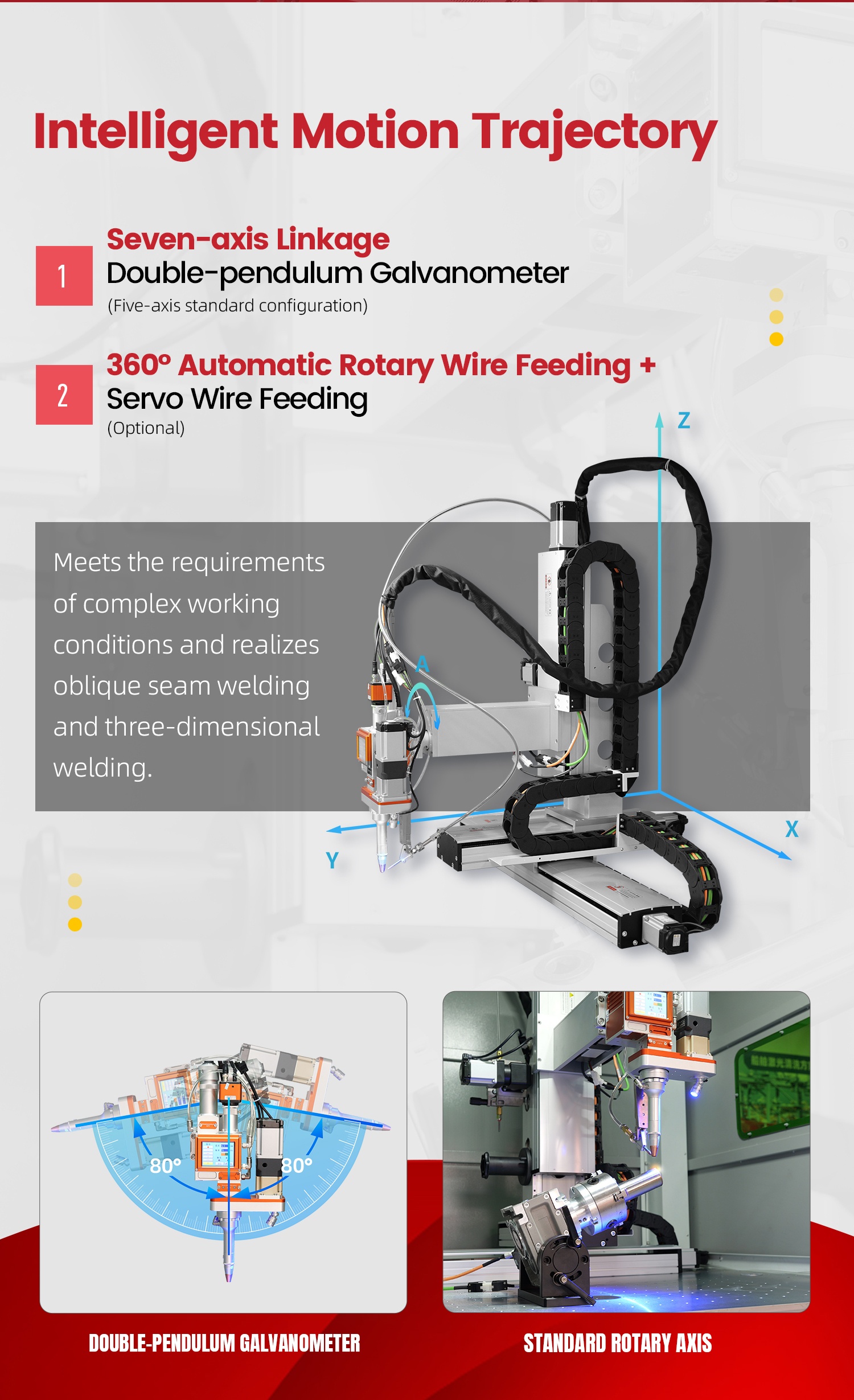

Intelligent Motion Trajectory :

1. Seven -axis Linkage Double-pendulum Galvanometer(Five-axis standard configuration)

2.360° Automatic Rotary Wire Feeding+Servo Wire Feeding(Optional)

Shipping and Warranty:
  1.  The machine will be shipped out by sea about 10 days after the order is placed.
  2. Warranty and lifetime technical support are provided. One-year warranty for laser and two-year warranty for the whole machine.
  3. Lifetime free maintenance, with no worry about after-sales.
