DC 0-300V 0-600V 0.56'' /0.36'' Mini LED Digital Voltmeter Voltage Meter Tester

Details

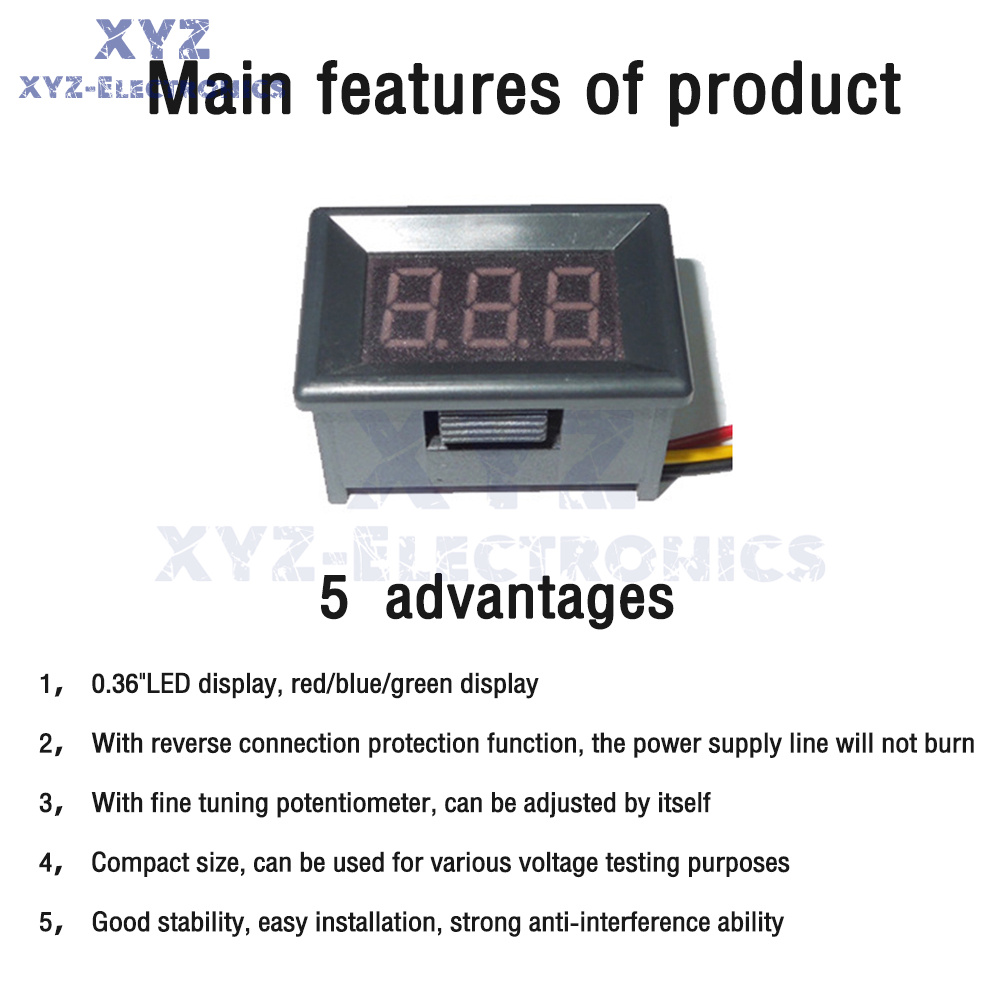

Product features:

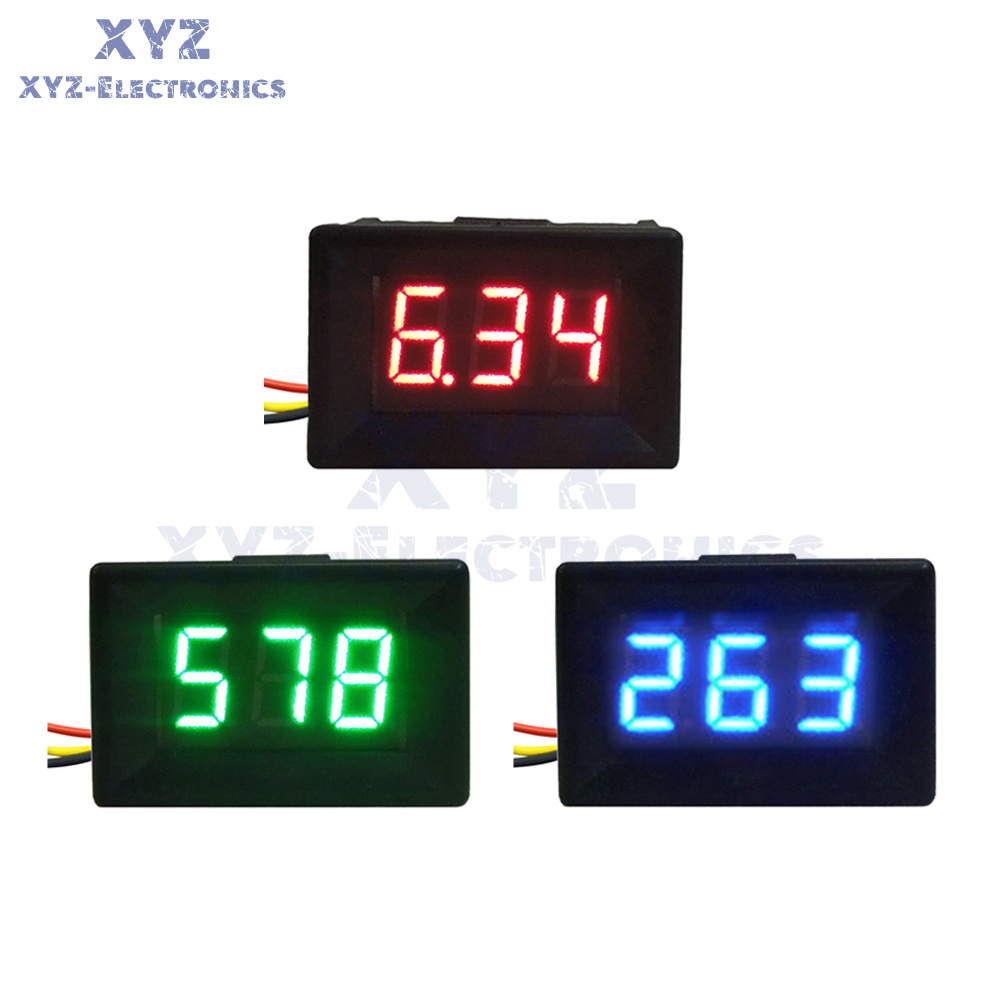

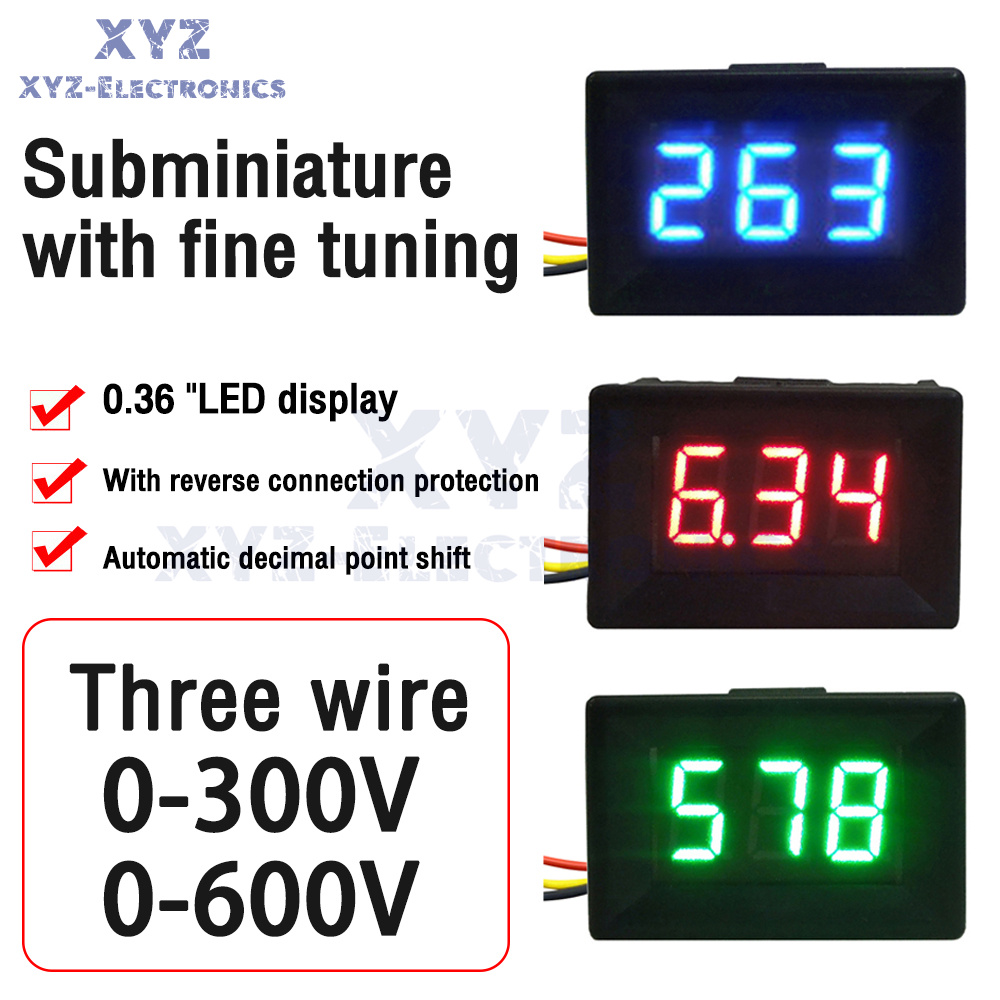

1.0.56 "/0.36 "LED display, red/blue/green display
2. It has a reverse connection protection function, and the power supply line will not burn when connected in the reverse direction
3. With fine adjustment potentiometer, it can be adjusted by itself
Small size, suitable for various voltage testing purposes
5. Good stability, convenient installation, and strong anti-interference ability

0.56 "LED
Product parameters:
Product Name: DC Voltmeter
Display mode: 0.56 "LED, red, blue, green (color selectable)
Measuring range: DC0-600V (optional voltage)
Power supply voltage: DC3.3-30V

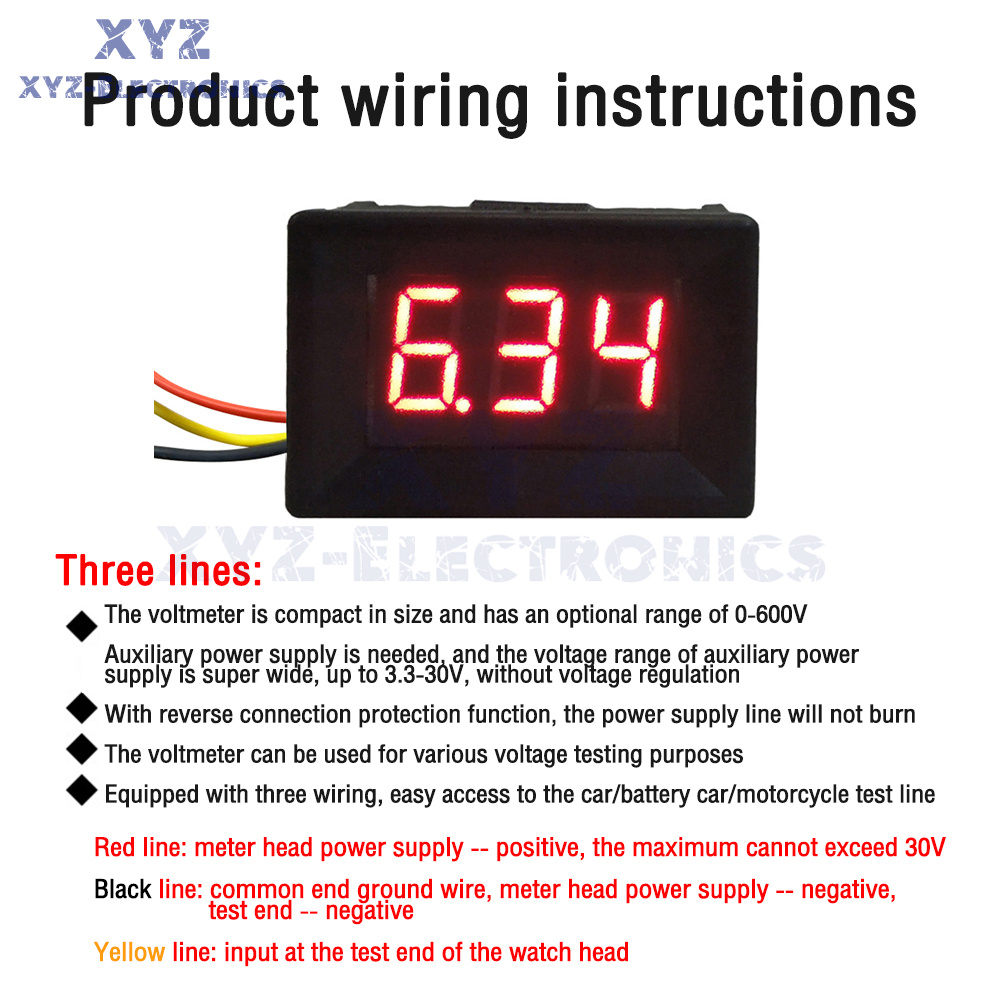

Wire gauge: 3 wires
Working current:<20mA
Measurement rate:>500mS/time 500mS/time
Working temperature: - 10~+50 ℃
Working humidity: 10~80% (no condensation)
Measurement accuracy: 1% (± 2 words)
Resolution: DC0-600V (1V), internal resistance ＞ 2M

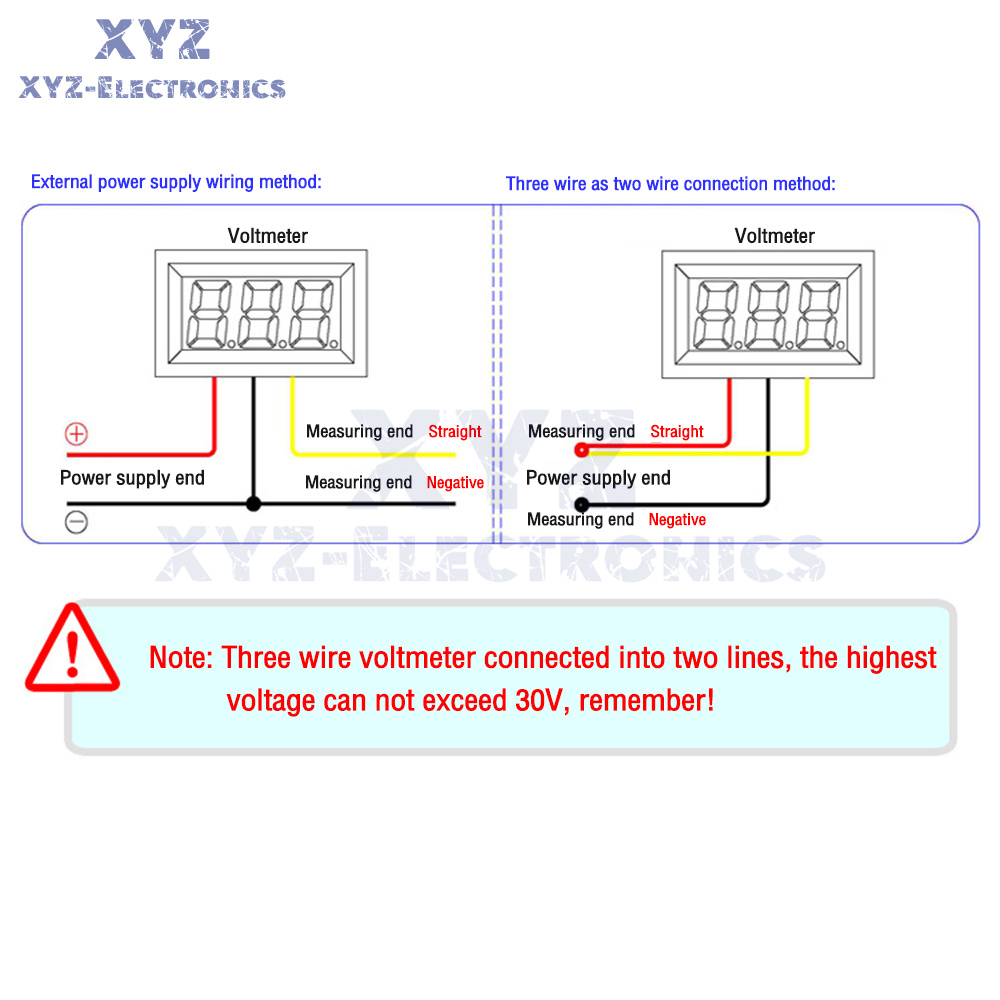

Note: Three-wire voltmeter power supply voltage: The meter power supply voltage is DC3.3-30V. Since the floating voltage may exceed 30V after the 24V battery is fully charged, it is not recommended to directly use a 24V battery for power supply, and it is recommended to leave some margin

0.36 "LED
Product parameters:
Product Name: DC Voltmeter
Display mode: 0.36 "LED, red, blue, green (color selectable)
Measuring range: DC0-300V 0-600V (optional voltage)
Power supply voltage: DC3.3-30V
Wire gauge: 3 wires
Working current:<20mA
Measurement rate: 2500mS/time
Working temperature: - 10~+50 ℃
Working humidity: 10~80% (no condensation)
Measurement accuracy: 1% (± 2 words)
Resolution: DC0-300V (<100V: 0.1V,>100V: 1V), DC0-600V (1V)

Note: The measurement voltage range is DC0-600V, and an additional DC3.3-30V power supply is required


Packaging list:
Voltmeter * 1
