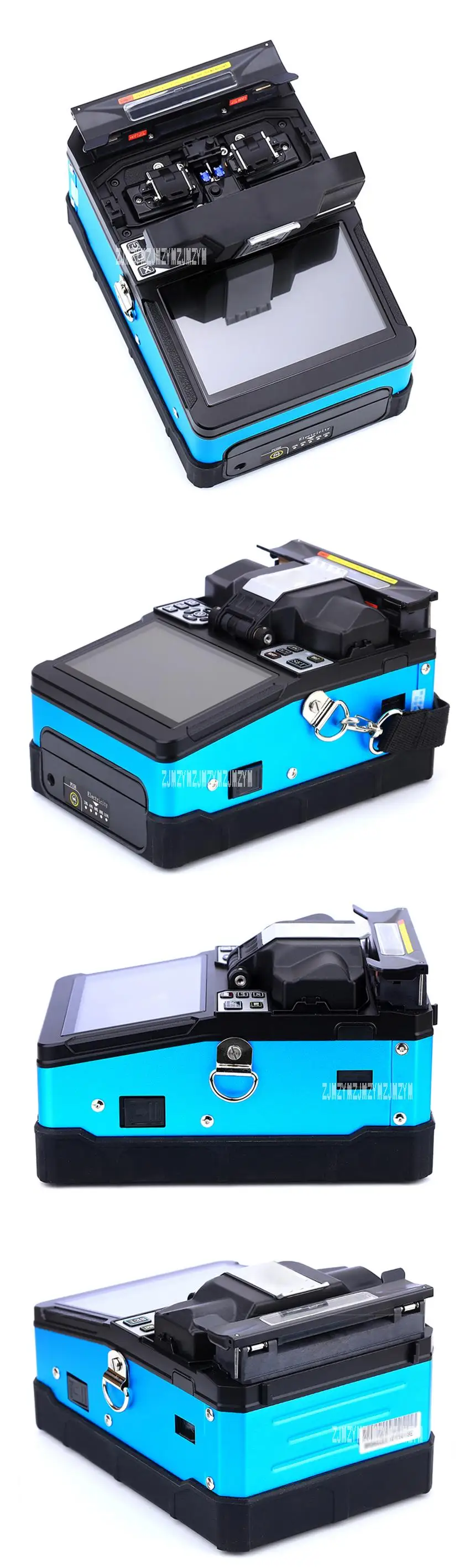

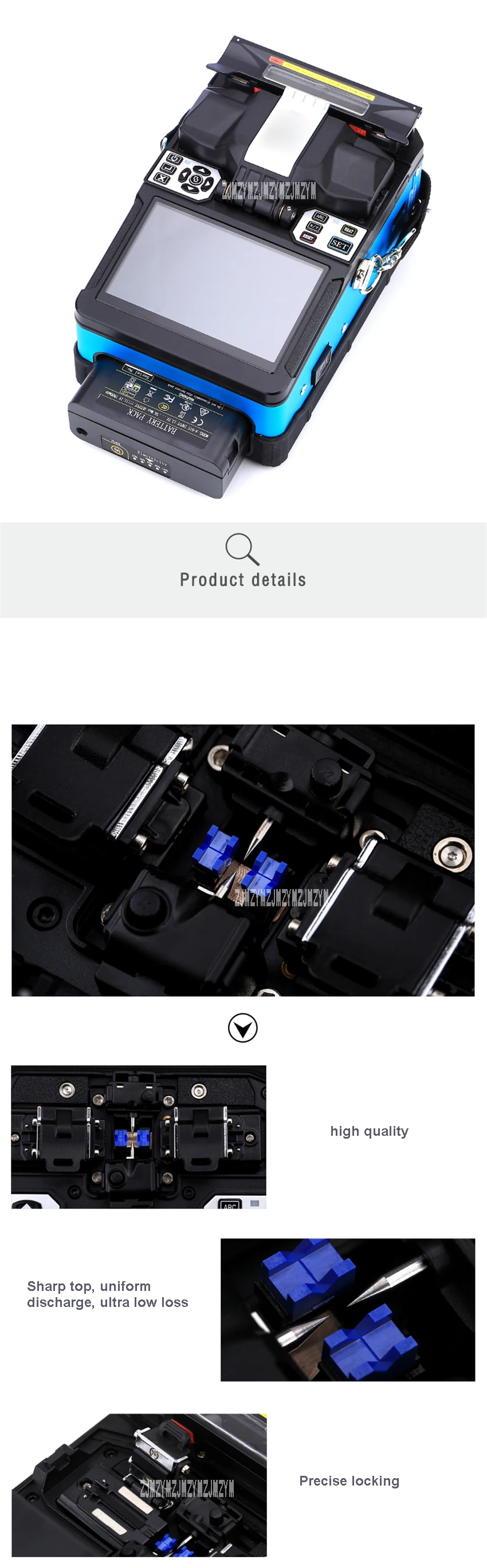

Automatic Intelligent Fiber Optic Splicing Machine High Precision Splicing
Machine Optical Fiber Fusion Splicer 100-240V
Specification:
Applicable fiber: SM (G.652 & G. 657), MM (G. 651), DS (G.653), NZDS (G 655), and custom fiber type
Connection loss: 0.02dB (SM), 0.01 dB (MN), 0. 04dB (DS/NZDS)
Return loss: better than 60dB
Typical connection time: 9 seconds
Typical heating time: 26 seconds (heating time can be set, heating temperature can be adjusted)
Fiber alignment: fine alignment, core alignment, cladding alignment
Fiber diameter: the cladding is directly 80-150 um, and the coating layer is directly 100-1000um.
Cutting length: coating layer below 250μm: 8-16mm; coating layer 250-1000μm: 16m
Tension test: standard 2N (optional)
Fiber clamp: multi-function fixture for bare fiber, pigtail, and leather wire;
Replacement fixtures can be used with Sc and other connectors for various TTX fiber performances
Magnification: 300 times (X-axis or Y-axis)
Heat shrinkable sleeve: 60mm.40m and a series of miniature sleeves
Display: 5.0-inch TFT color LCD display screen, the content can be flipped, convenient for two-way operation

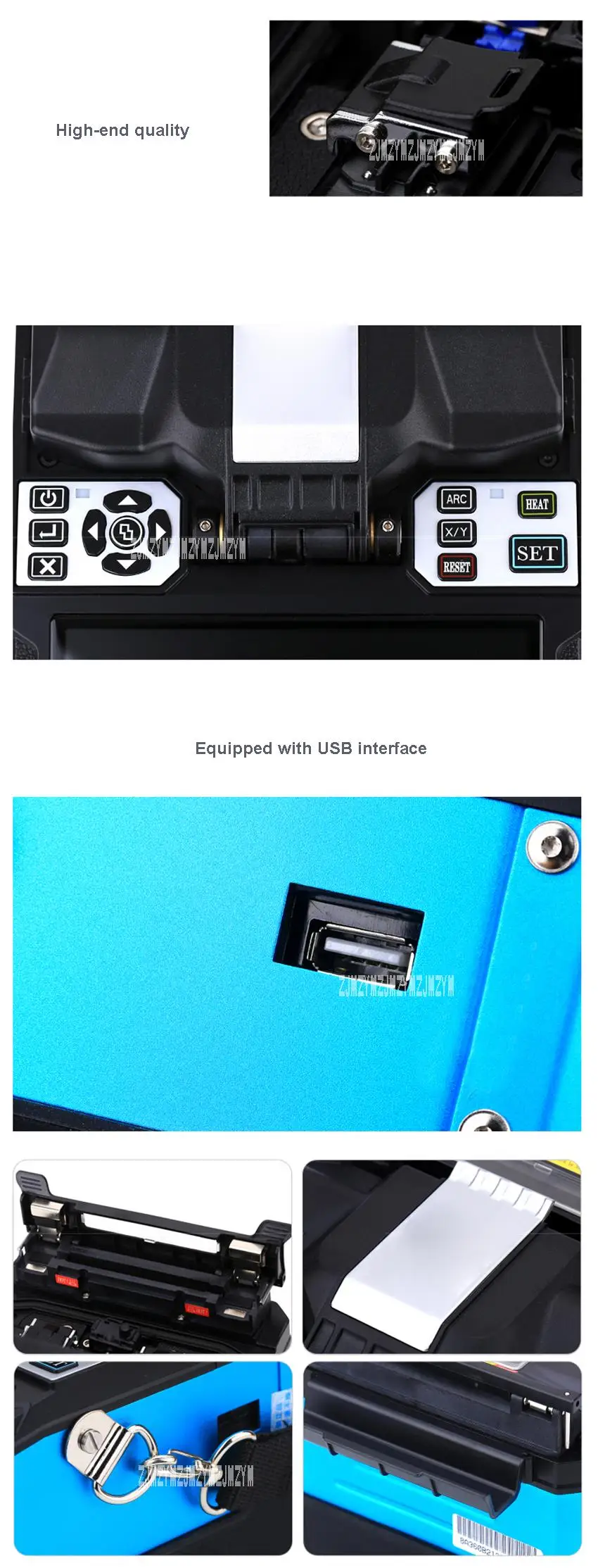

External interface: USB interface for easy data download software update
Splicing mode: 17 groups of usage modes
Heating mode: 9 groups of usage modes
Connection loss storage: 5000 latest connection results in the built-in memory
Built-in battery: continuous welding, heating no less than 200 times
Power supply: Built-in lithium battery 11.8V power supply, charging time is less than or equal to 3.5 hours
External adapter, input AC100-240V50/60Hz, output DC13.5V/4 81A
Power saving function: 15% lithium battery power can be saved in a typical environment
Working environment: temperature: -10~+50 degrees, humidity: <95SRH (no condensation),
Working altitude: 0~5000m, maximum wind speed: 15m/s
Lighting: easy to place fiber at night
Packing size: 43.5*23*36.5cm
Weight: 5.5kg
