4988 Driver Features
--Low RDS (on) output
--Automatic current decay mode detection/selection
--Mixed and slow current decay mode
--Low power dissipation synchronous rectification
--Internal UVLO
--Cross current protection
--3.3 and 5 V compatible logic power supplies
--Thermal shutdown circuit
--Ground short circuit protection
--Load short circuit protection
--Five optional step modes: Full, 1/2, 1/4, 1/8 and 1/16
Product Description：
1. ARM32-bit MCU control board, running faster, the maximum no-load speed reaches 40000mm/min, better algorithm optimization, less vibration when the machine moves at high speed, and more stable performance;
2. X/Y/Z/A four-axis drive, Y-axis dual drive. Support for rotary axis
3. The control board power supply and line number circuit use optocoupler isolation, the entire control board is safer, more stable, and has strong anti-interference ability
4. External 300W/500W spindle

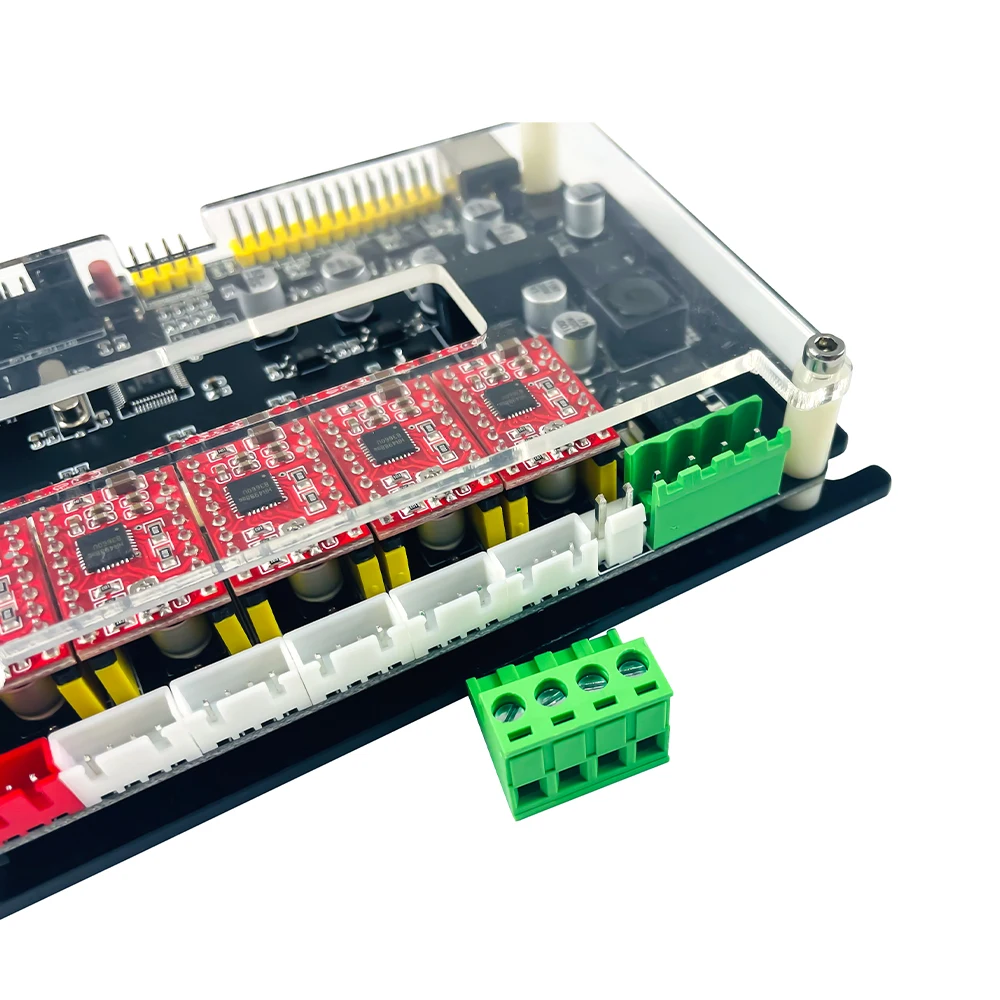

5. Split design, control, drive and expansion boards can be replaced
6. limit switches, 5V/12V/24V constant voltage pins
7. Can be connected to a high-power driver
8. Stepper drive subdivision adjustable
9. Can connect 775 motor/3pin laser 4pin laser/offline controller. Reserve 24V, 12V, 5V power output ports to facilitate the expansion of various functions
10. PWM/TTL software to adjust laser power
11. Support USB flash firmware, firmware upgrade is more convenient
Parameters：
-

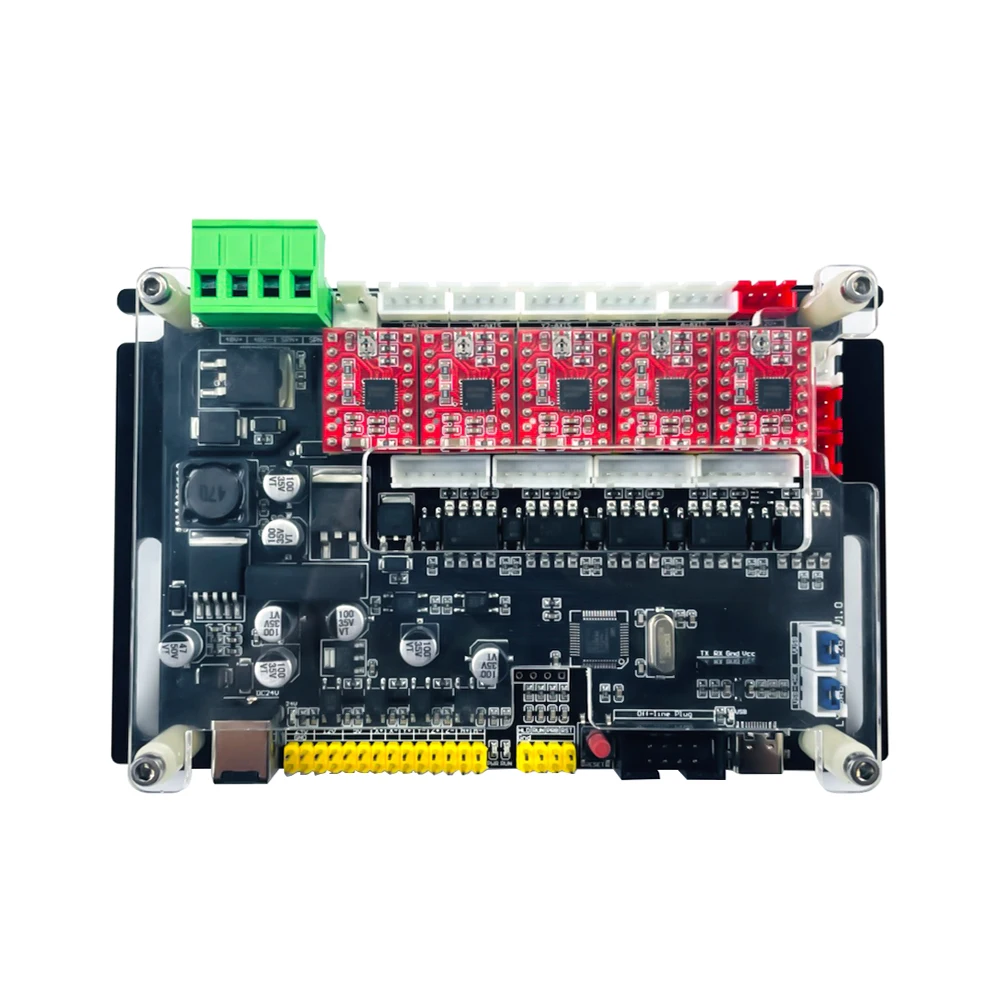

Product Name:4 Axis 3.0 Control Board
-
Product Specifications:4 Axis
-
Package Size:185mm*115mm*55mm
-
Package Weight:300g
-
Product Size:122mm*87mm
-
Product Weight:150g
-
Operating System:Window/Linux/Mac
-
Interface Type:TypeC
-
Supply Voltage:DC24V- 5A
-
Software Support:Candle/LaserGRBL/LightBurn/USG
Packing list:
-
1* 4 axis control board
-
1* Type C USB cable
-
1* 775 motor cable

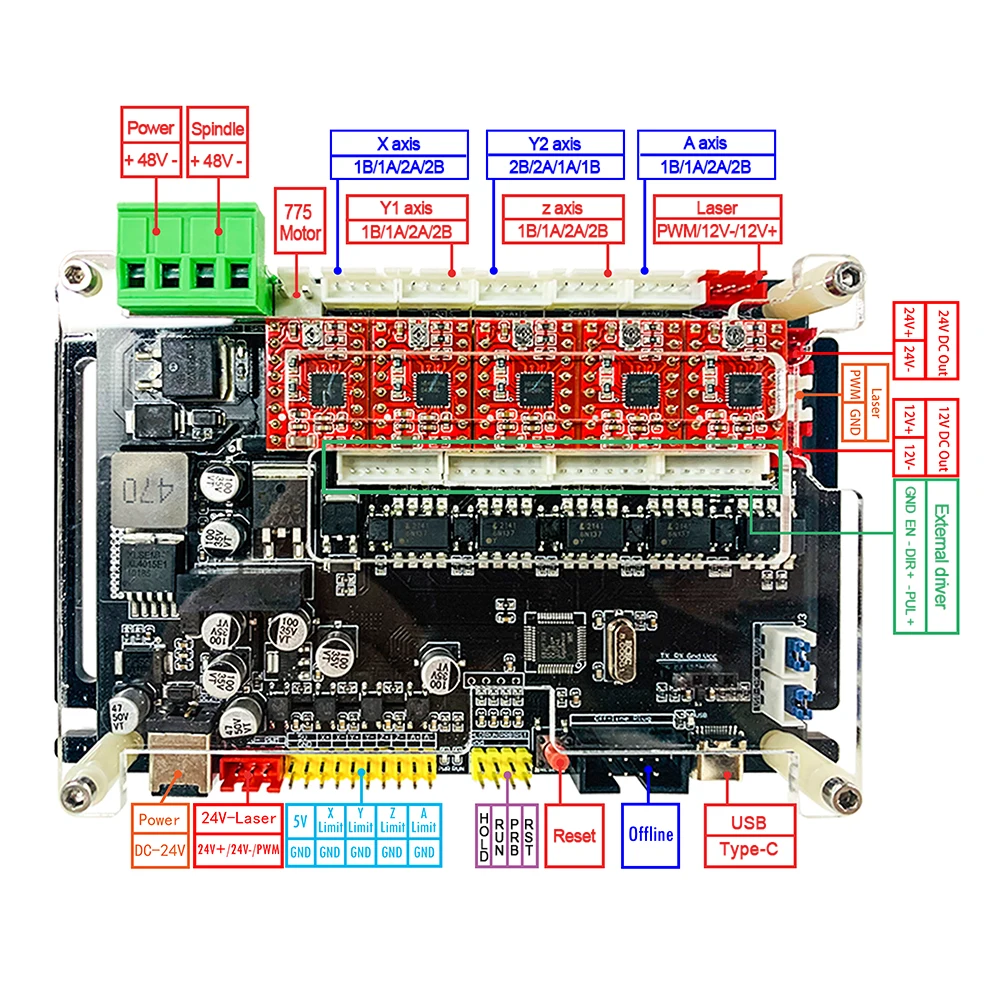

The board adds a 24V laser interface.
-
Connect to 300/500w spindle motor
-
Connect to 775 spindle motor
-
Connect to external drivers （To demonstrate the effect, cables and drivers are not included, only the control board）
