Description
2-in-1 Vented Eaves Protector
Roof illustration 2-in-1 Vented Eaves Protector Roof Felt Support Tray

Example usage of Vented Eaves Protector

Close-up of 2-in-1 Vented Eaves Protector

Close-up of 2-in-1 Vented Eaves Protector

Integrated eaves vent upstand of 2-in-1 Vented Eaves Protector

Vent upstand of Vented Eaves Protector

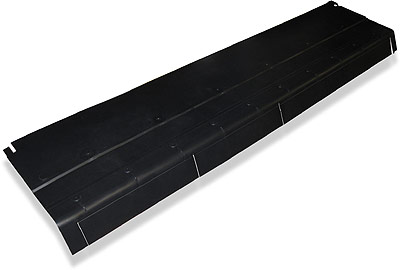

2-in-1 Vented Eaves Protector

Roof felt support and eaves ventilation

Felt support tray with upstand on underside that acts as an integrated 10mm over fascia eaves vent for continuous eaves ventilation. So, there is no need for extra eaves ventilation.

This cost effective combination of tray and integrated vent prevents sagging of overlapping sarking felt and encourages natural airflow in the roof space. Prevents ponding of water and condensation, results in the breakdown of roof membrane, fascia and timber rafters.

Features & Benefits

  • Strong, durable and UV stable
  • 100% Re-processed Polyproylene
  • Combined vent and felt support tray
  • Use from 15° to 70? pitch
  • Fit tray and vent in one go
  • Use will all slate and tile
Technical Information
Measurement Value
Size (length x width x depth) 1000mm x 250mm x 60mm
Material Re-processed Polyproylene
Pitch 15° to 70?
Ventilation Capacity 10,000mm? per metre (equivalent to continuous 10mm opening)
Related Products Over Fascia Vent, Eaves Comb Filler, Felt Support Tray
Fitting and Usage

Using the 2-in-1 Vented Eaves Protector, there is no need for additional vents. The interlocking trays are nailed directly to the top of the fascia board with the short edge hanging over the gutter. The tray features stop beads that make positioning the tray a sinch and nail collars to simplify fixing.
