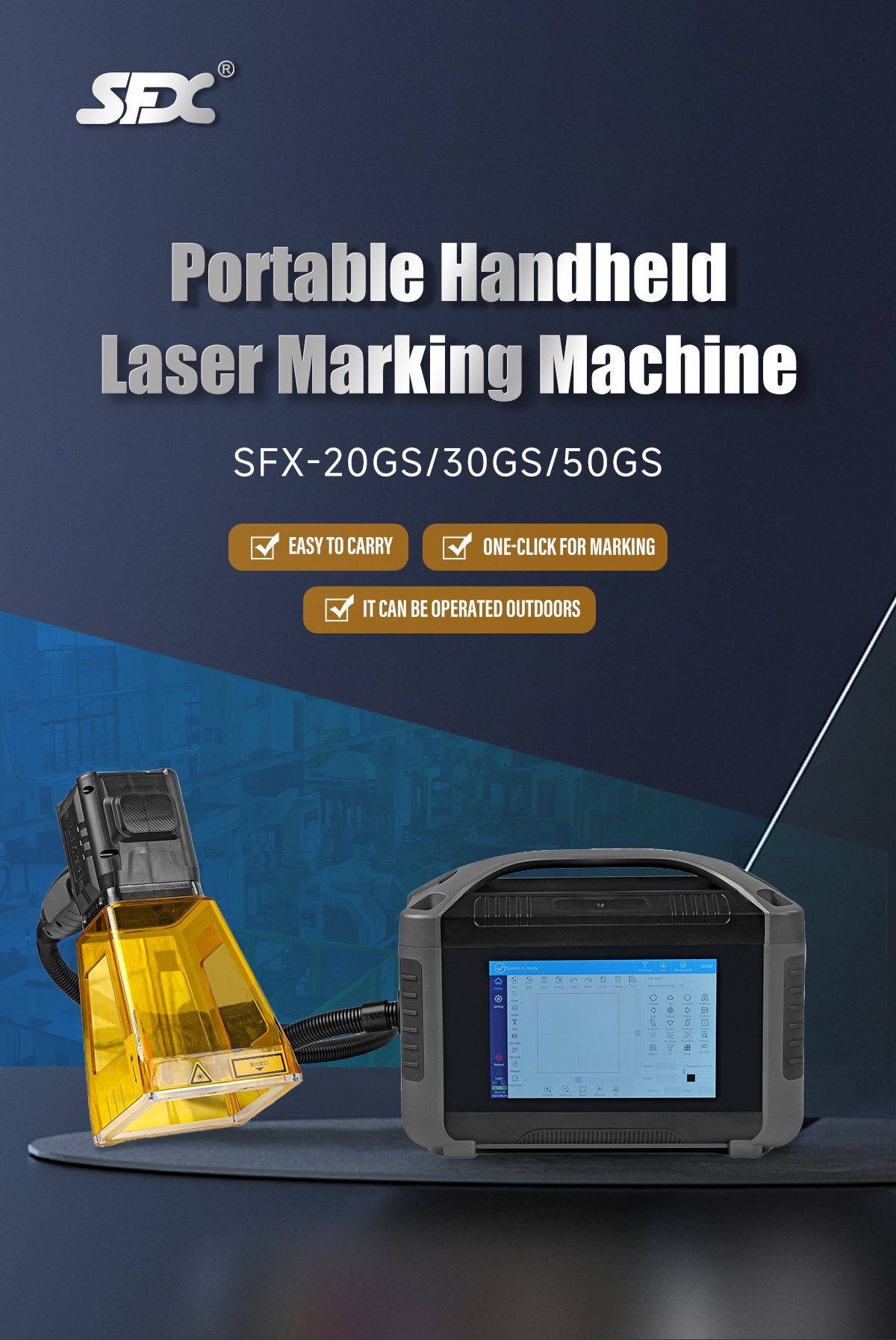

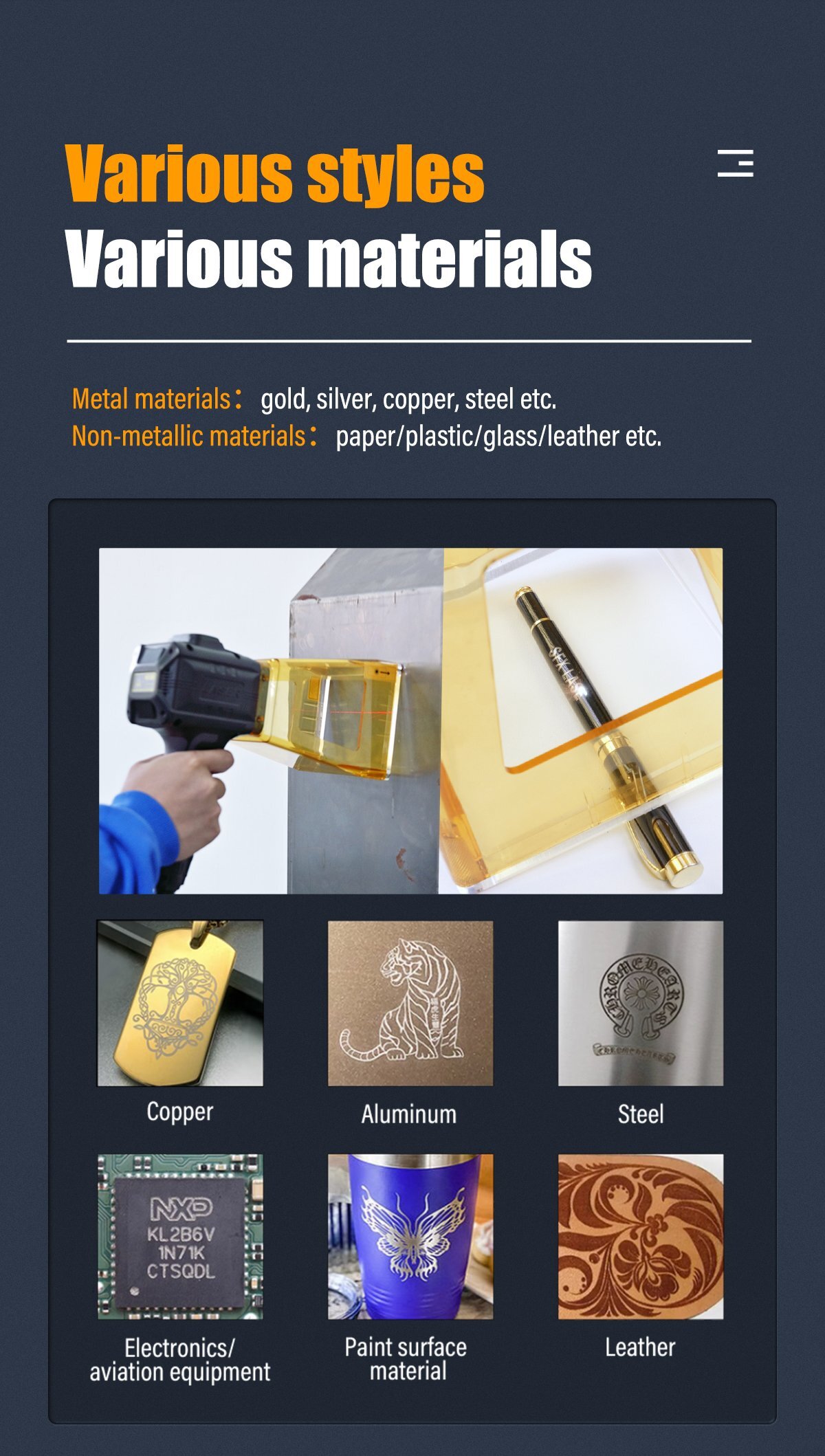

SFX Handheld Fiber Laser Engraver, portable and Lightweight with 50W power, for permanent marking logos, numbers, names, signs, and more with precision and ease on metals plastic leather, etc, plug-in for use
The portable and lightweight SFX 50W handheld laser marking machine has a wide range of applications, which can be used for personalized customization marking such as QR code, bar code, text, nameplate, date, pattern, and so on, the mini laser engraver is great for custom and home DIY/store/business gifts/custom/activity drainage and guest teaching/product identification.
The small size makes it easy to move anywhere for marking, and the handheld can achieve any direction marking.

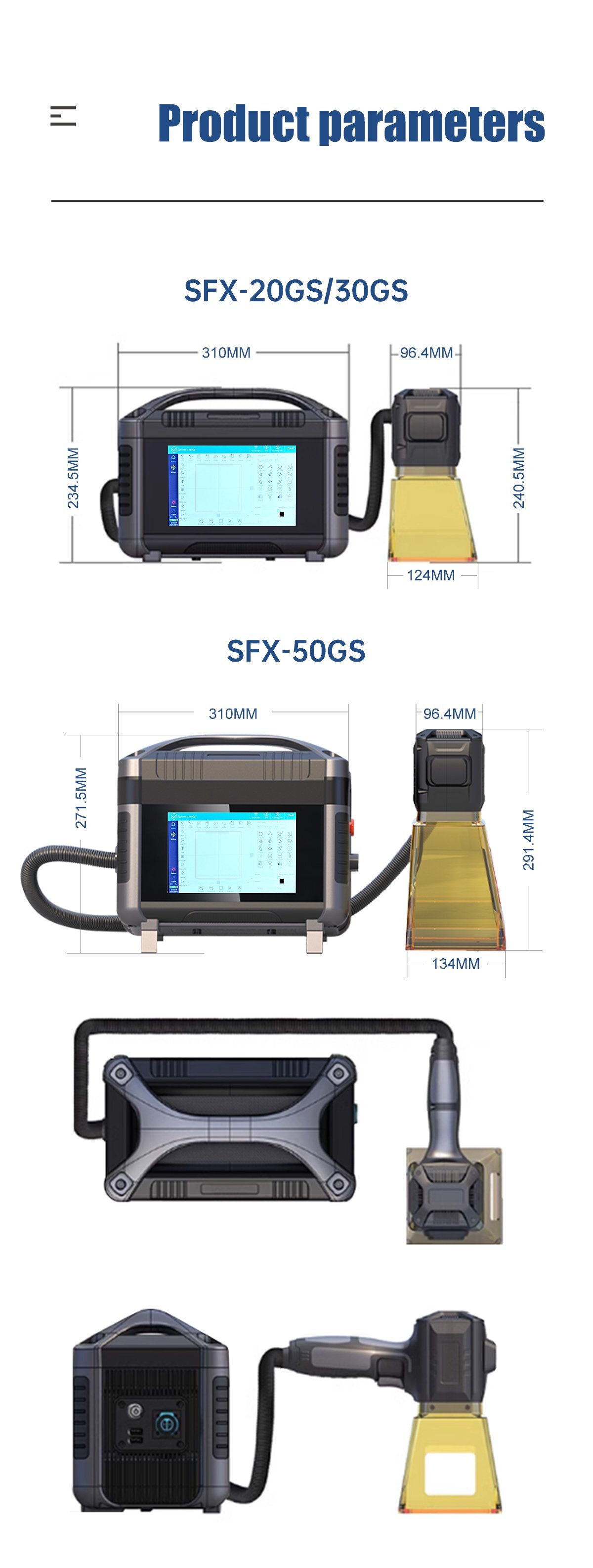

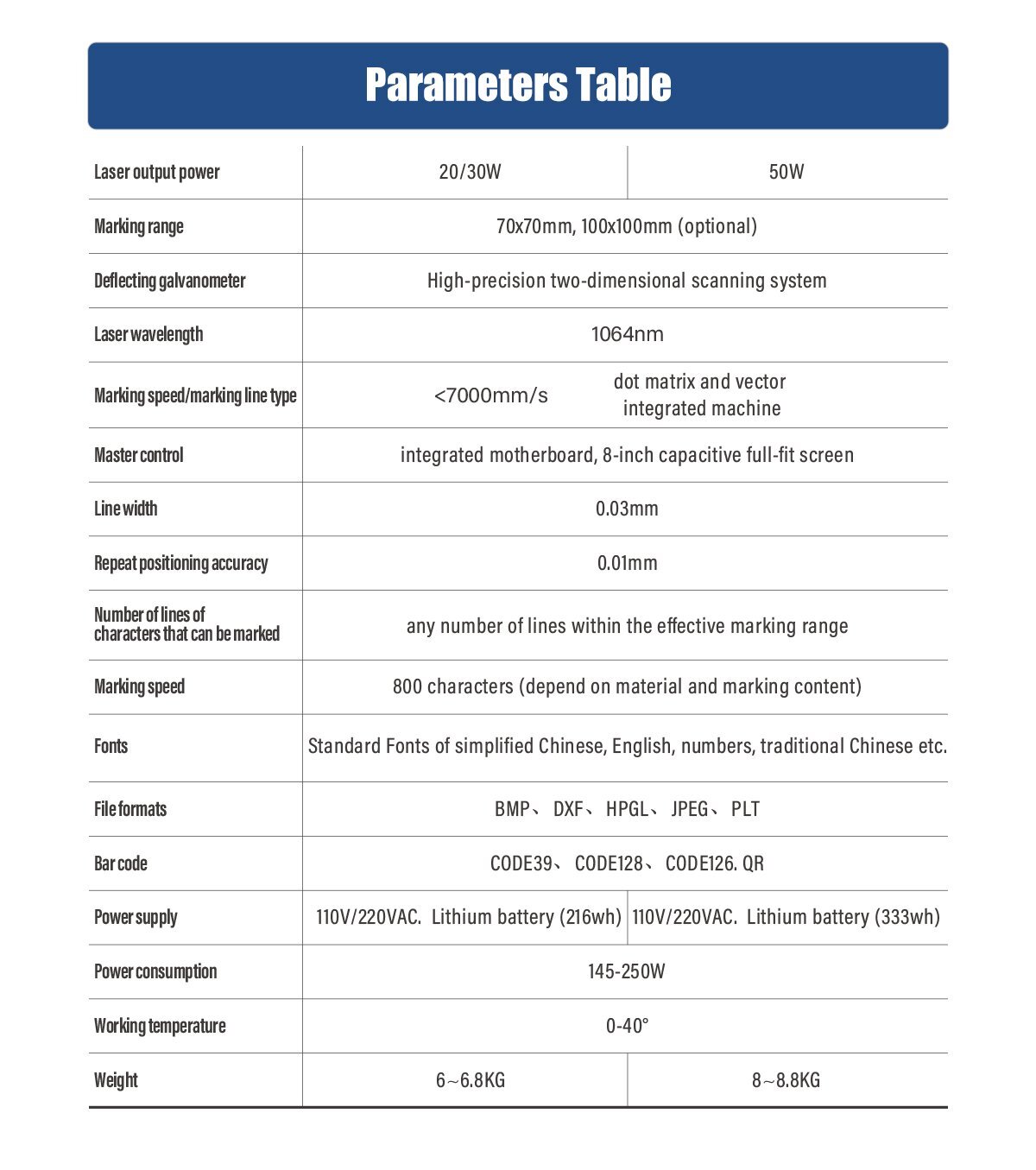

Parameters of the rechargeable portable laser engraver:
Laser output power: 50W
Marking range: 70x70mm, 100x100mm (optional) (PLS leave a message which ranges you want when placing an order.)
Deflecting galvanometer: High-precision two-dimensional scanning system
Laser wavelength: 1064nm
Marking speed/marking line type: <7000mm/s dot matrix and vector integrated machine
Master control: integrated motherboard, 8-inch capacitive full-fit screen
Line width: 0.03mm
Repeat positioning accuracy: 0.01mm
Number of lines of characters that can be marked: any number of lines within the effective marking range
Marking speed: 800 characters (depending on material and marking content)
Fonts: Standard Fonts of simplified Chinese, English, numbers, traditional Chinese, etc.
File formats: BMP、 DXF、 HPGL、 JPEG、 PLT
Bar code: CODE39、 CODE128、 CODE126. QR
Power supply: 110V/220VAC.
Power consumption: 145-250W
Working temperature: 0-40°
Weight: 8-8.8KG

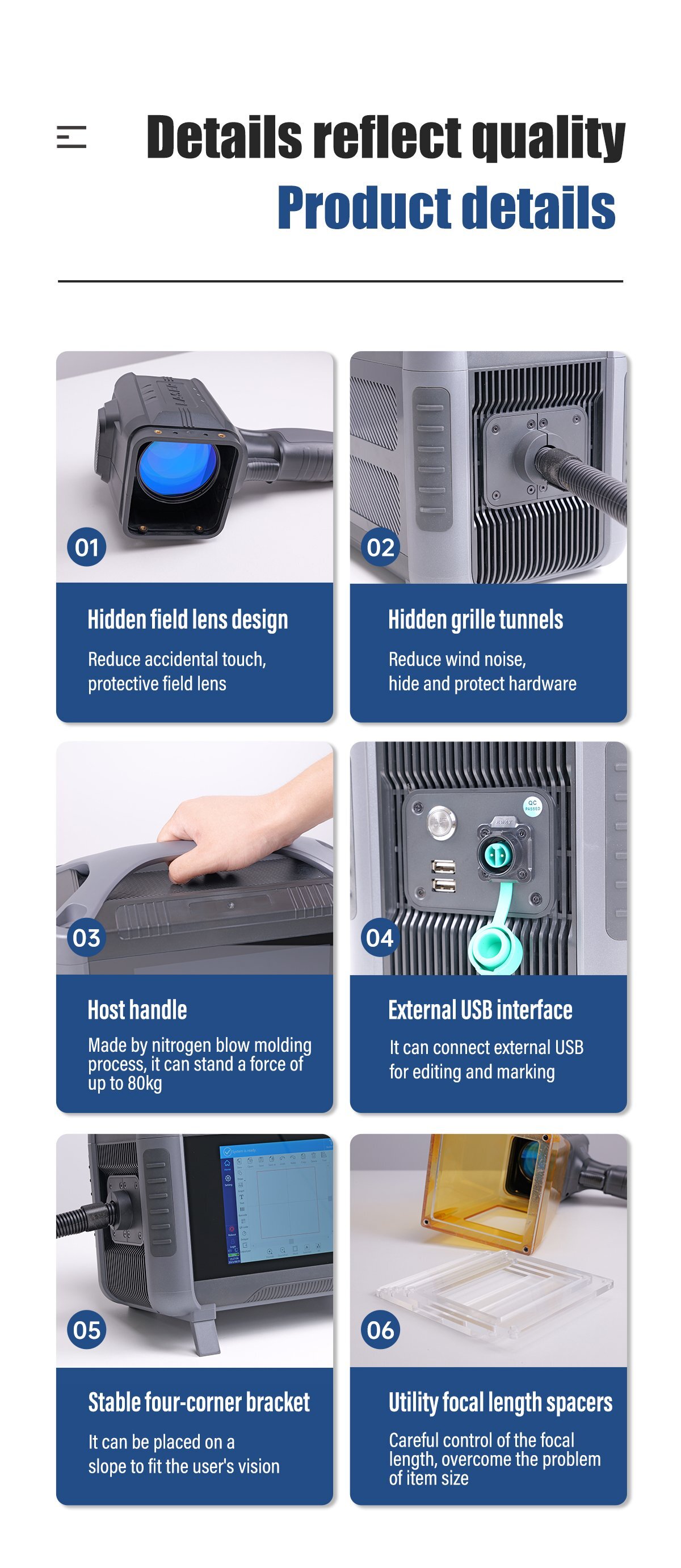

Features of SFX laser 50W handheld laser engraving machine
1. Hidden field lens design: Reduce accidental touches to protect the field lens
2. Hidden grille tunnels: Reduce wind noise, hide and protect hardware
3. Host handle: It is made by the nitrogen blow molding process and can withstand a force of up to 80 kg.
4. External USB interface: It can connect external USB for editing and marking
5. Stable four-corner bracket: It can be placed on a slope to fit the user's vision
6. Utility focal length spacers: The careful control of the focal length helps to overcome the problem of item size.
7. Third-party authoritative certification: Quality assurance and multiple certifications from authoritative organizations
Advantages of SFX 50W handheld laser marker

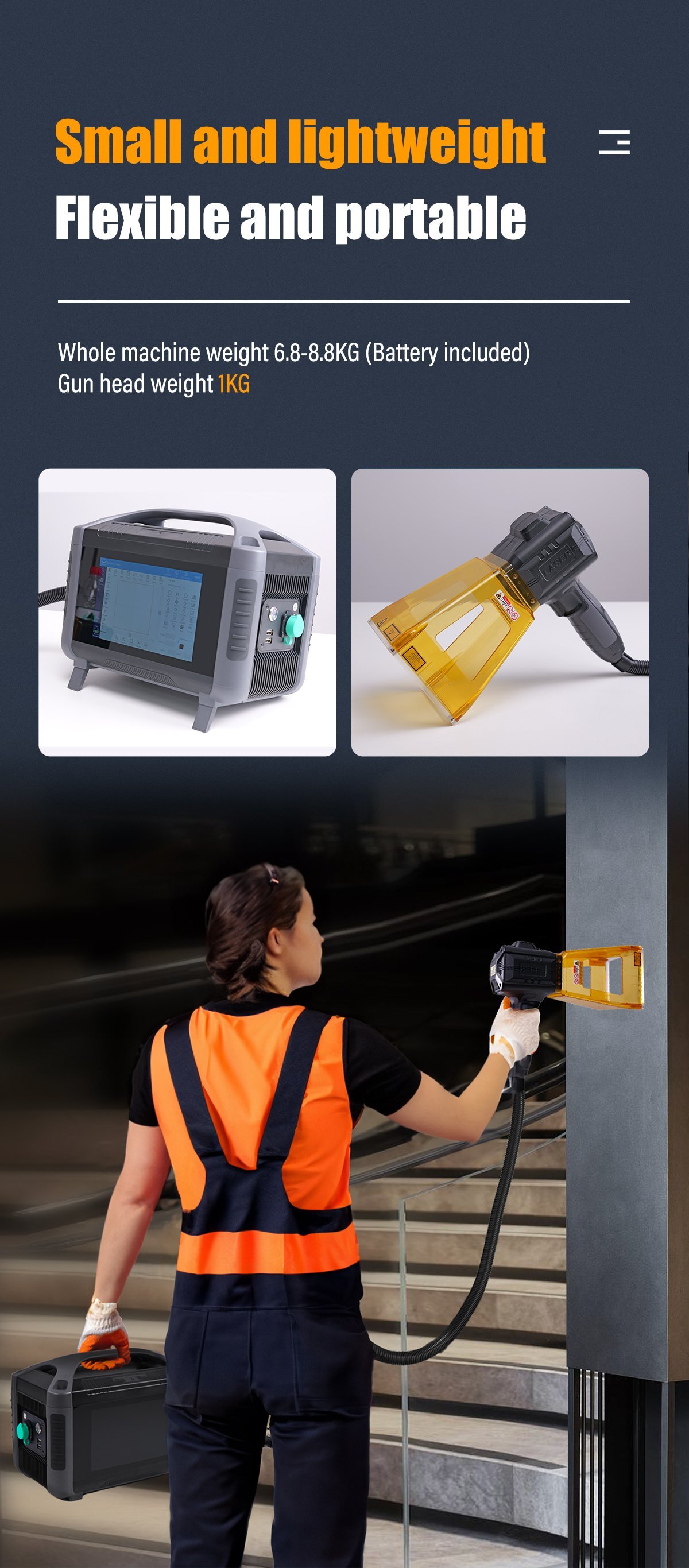

◆ Easy to carry, small, and lightweight: the entire machine weighs 8kg; The gun head weighs 1 kg, which is lightweight and easy to carry anywhere.

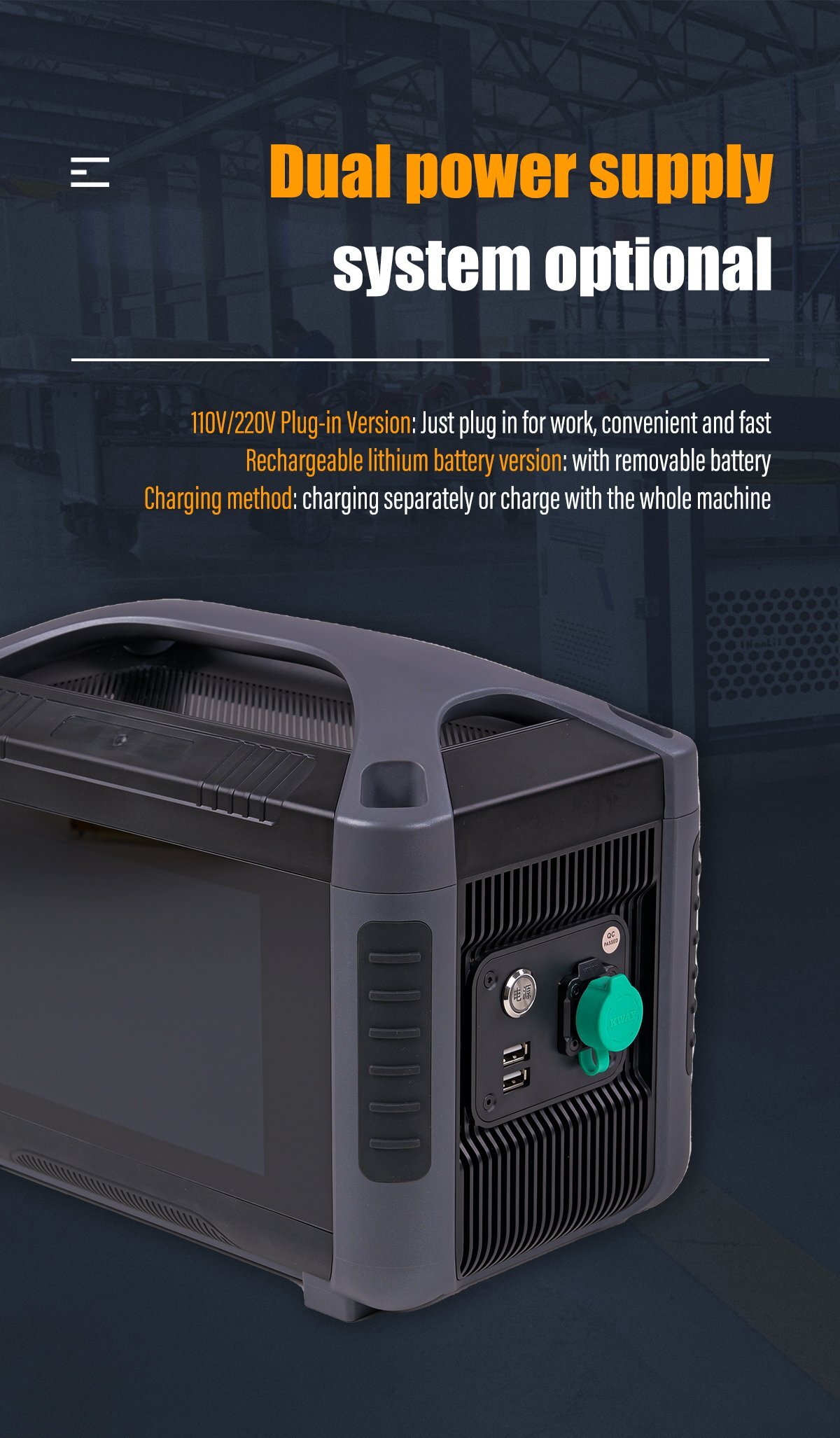

◆ Flexible and portable, can be operated outdoors: there are optional dual power supply systems, The 110V/220V plug-in version is convenient and fast, just plugging it in can start work;

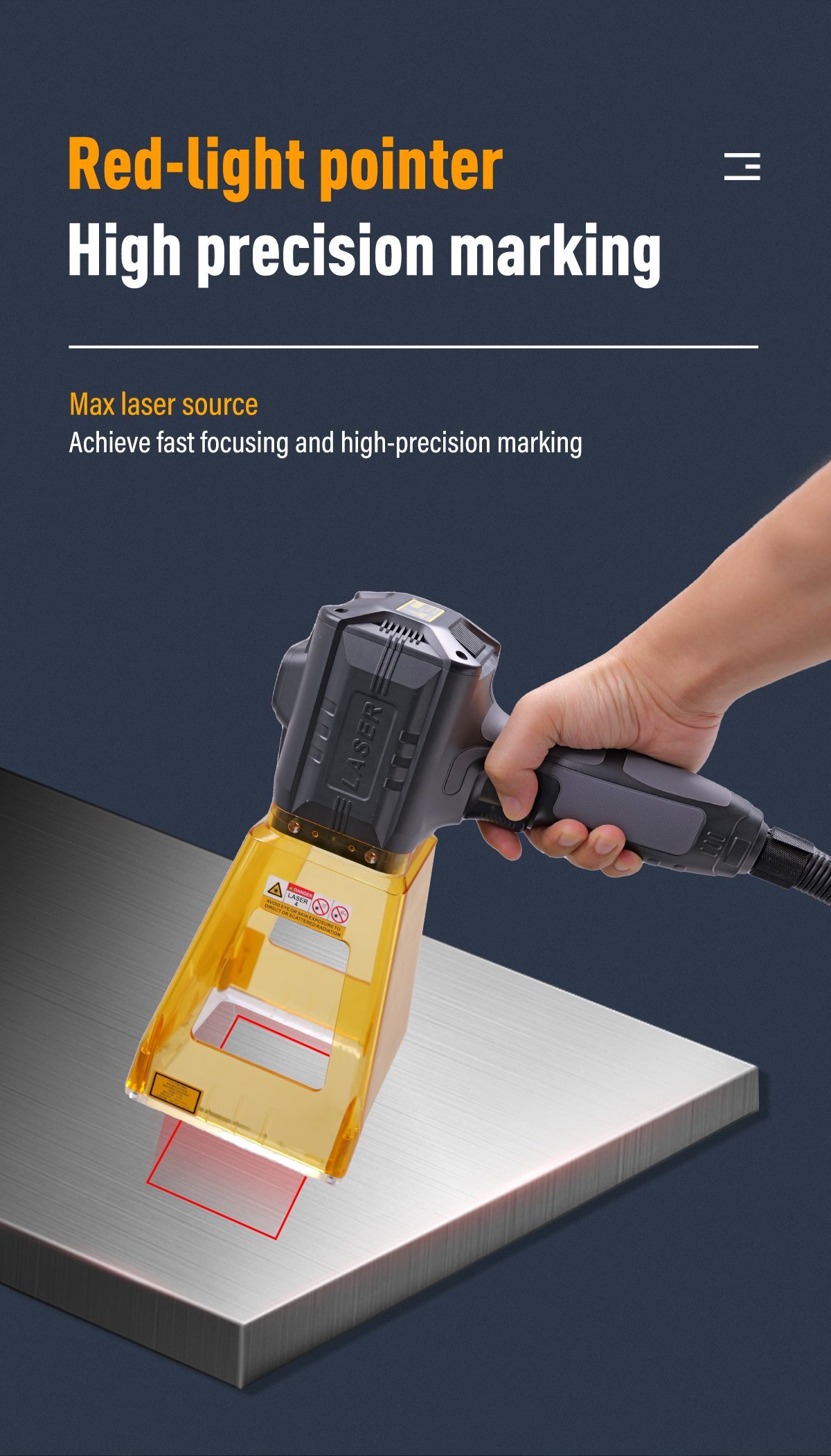

◆ High-precision marking, high-security level, stable performance, and fast response: it uses infrared positioning, MAX laser source, and Linux system, with an 8-core processor, which achieves fast focusing and high-precision marking

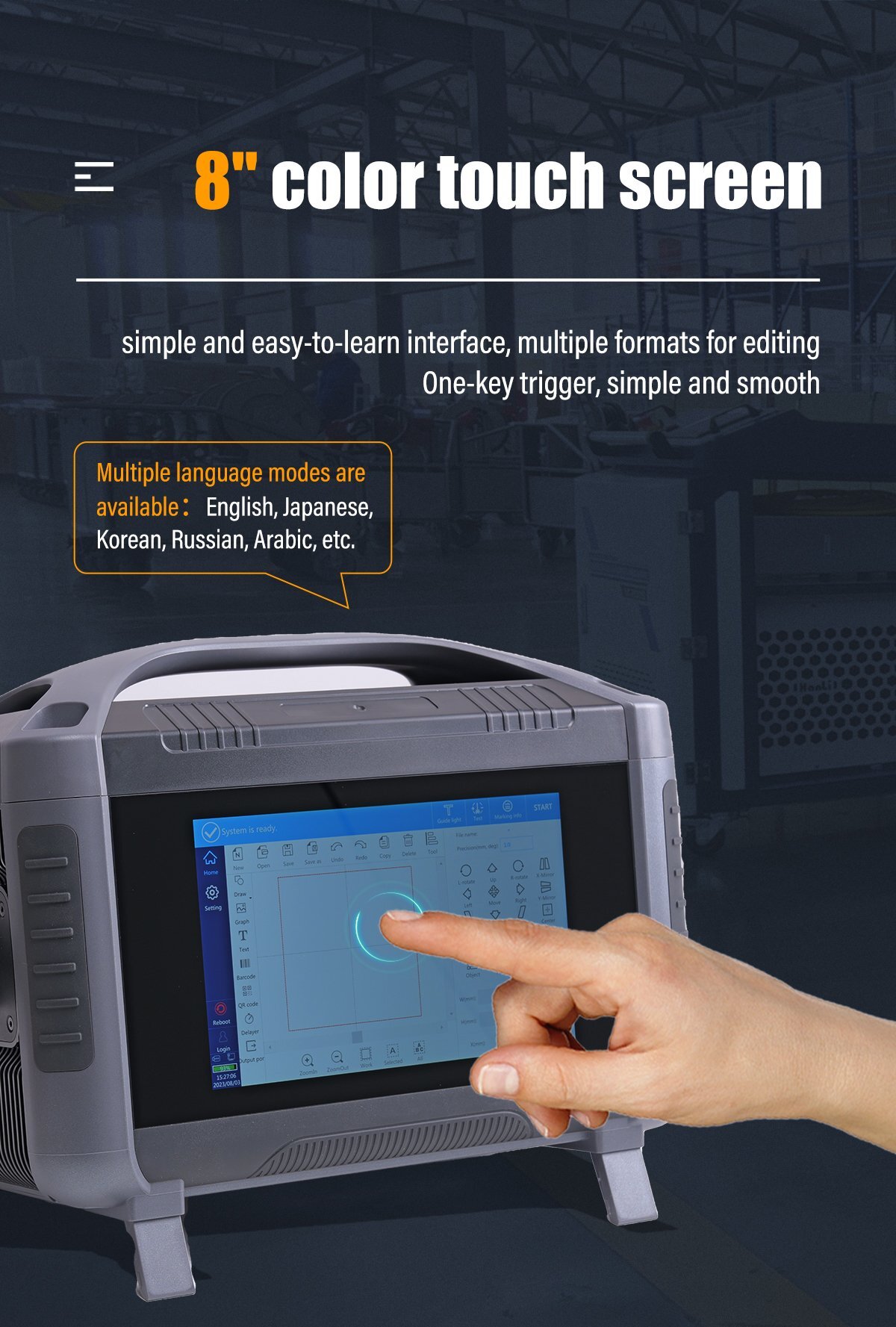

◆ One-click marking, simple to use: One-key trigger, simple and smooth, with an 8-inch color touch screen, the interface is simple and easy to learn, and multiple formats are available for editing
◆ Multiple language modes are available: English, Japanese, Korean, Russian, Arabic, etc.
Shipping& Warranty
Free shipping 5-8days, door-to-door service. No extra fees for USA customers.

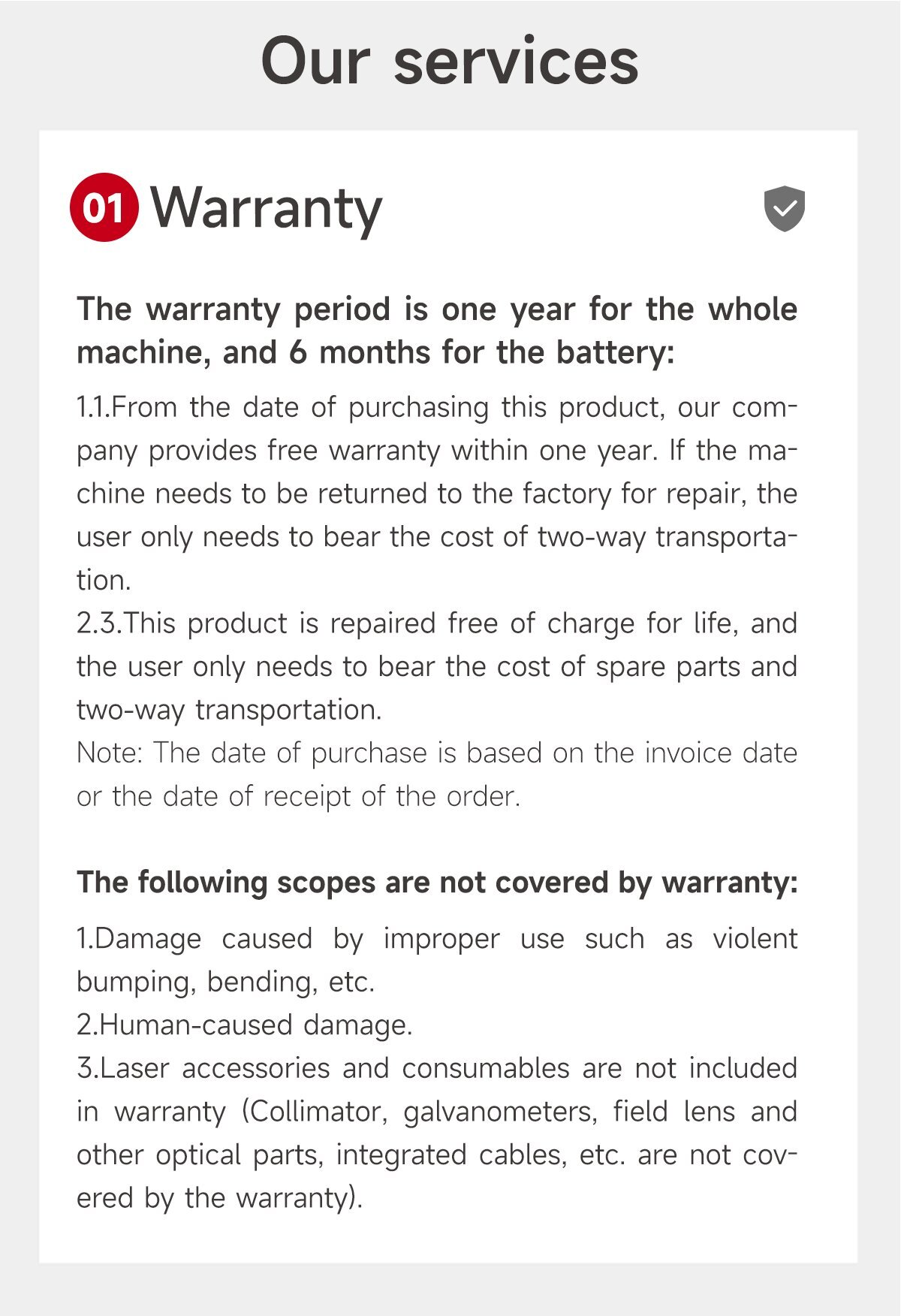

One-year warranty for the whole machine, and 6 month warranty for the battery.
Lifetime technical support, and after-sales service.
