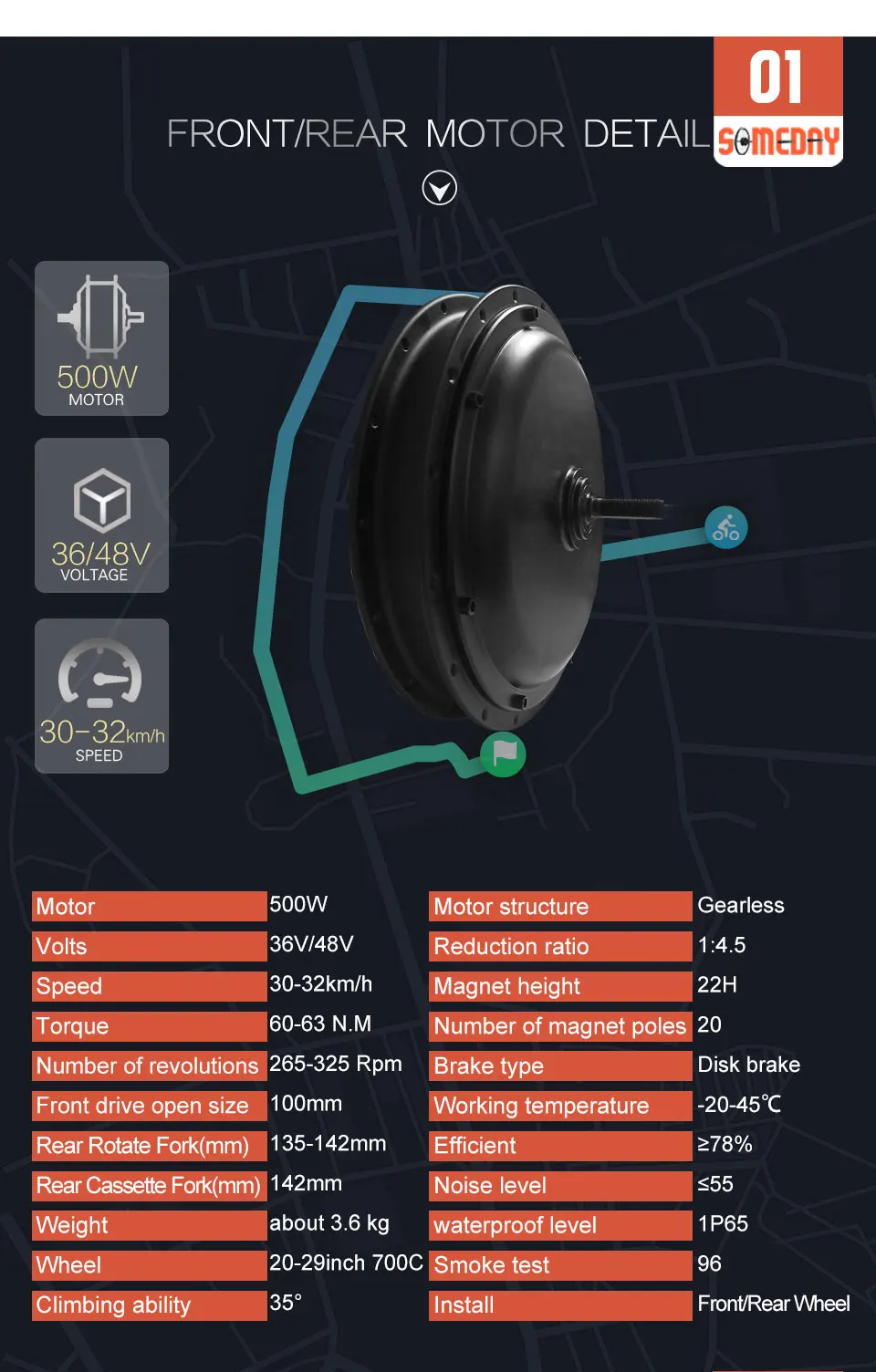

Product Parameters:

Model:36V 48V 500W

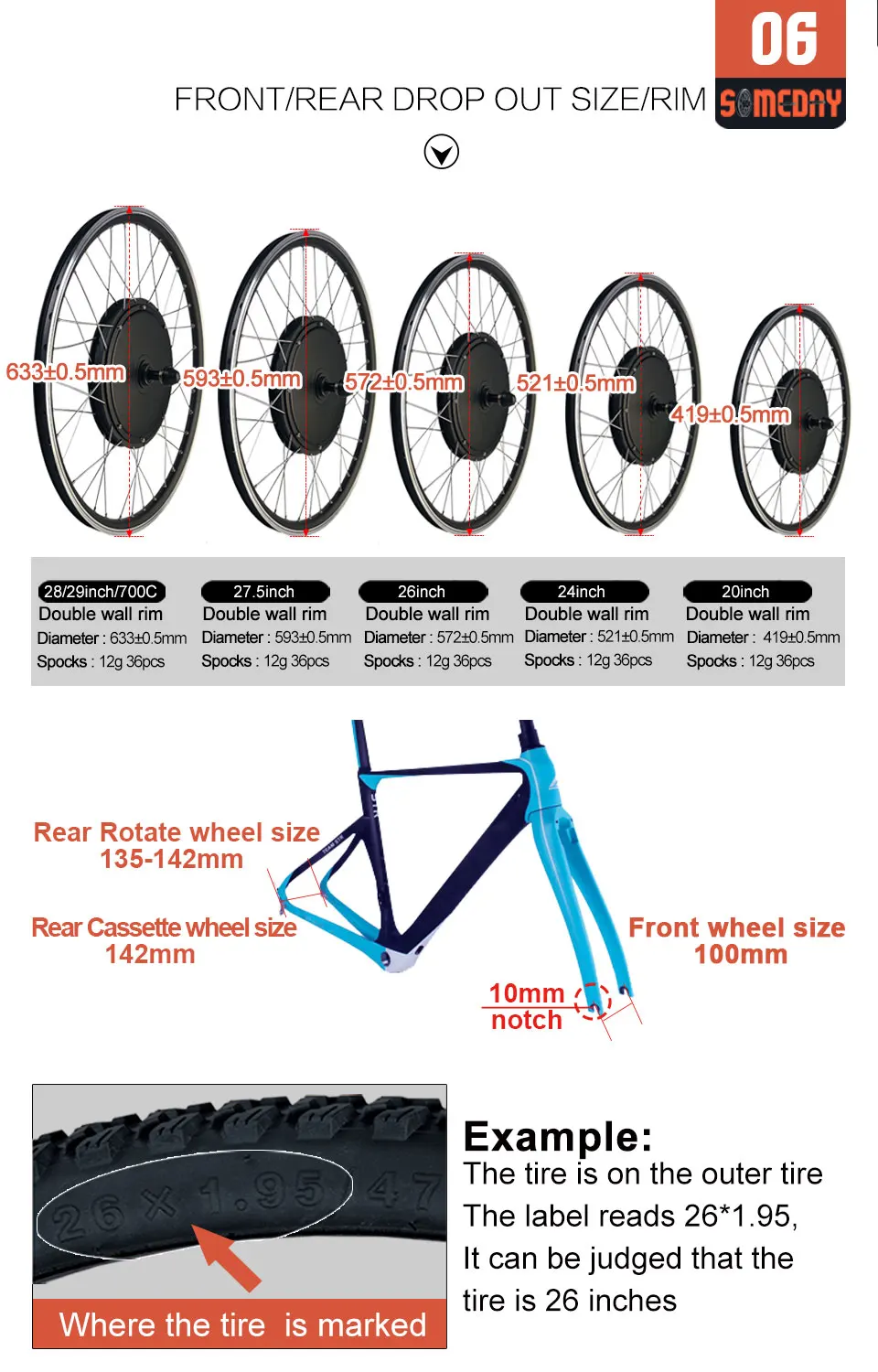

Wheel Diameter (Inch):20"/24"/26"/27.5"/28"/29"/700C---Optional

Max Speed (KM/H):35

Speed (Rpm): 265-325

Torque (N.M): 60-63

Front drive open size (mm): 100

Rear Rotate drive open size (mm):135-142

Rear Cassette drive open size (mm):142

Magnet height (48V):24H

Number of magnet poles:20

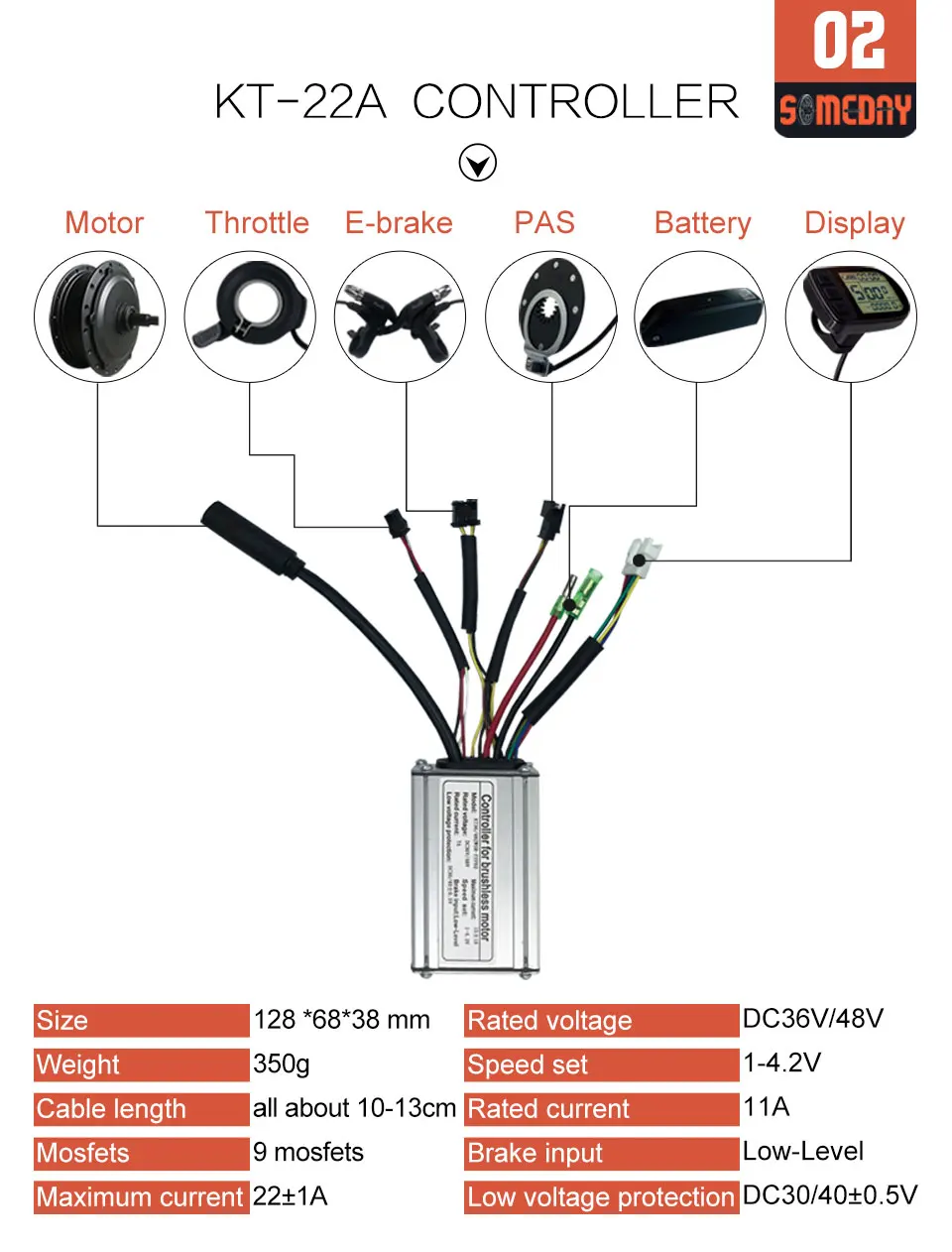

Controller details

Brand :KT（KUNTENG）22A Controller

Color :Silver

Dimension :128 * 68 * 38 mm

Mosfet :9 Mosfets

Maximum current :22±1A

Rated current :11A

Rated voltage :DC36V/48V

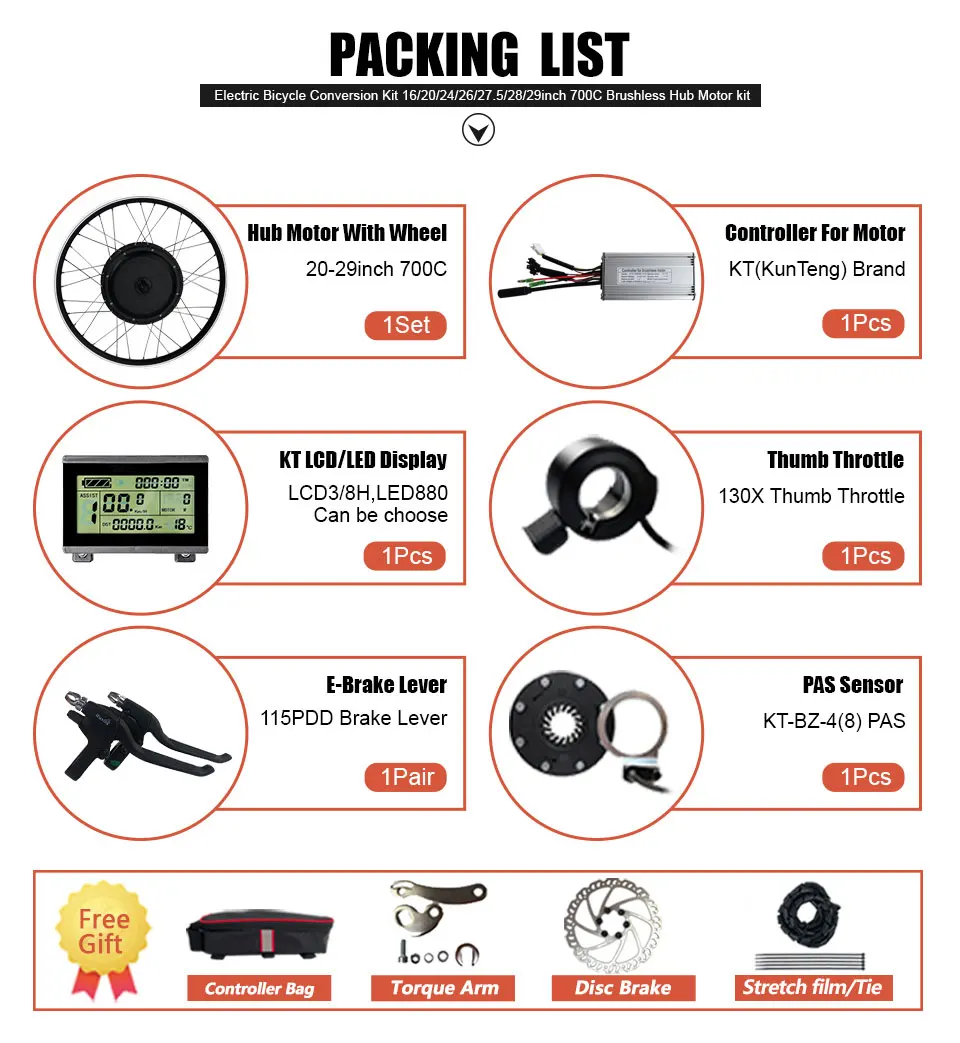

Packing List
Conversion Kit not include Battery

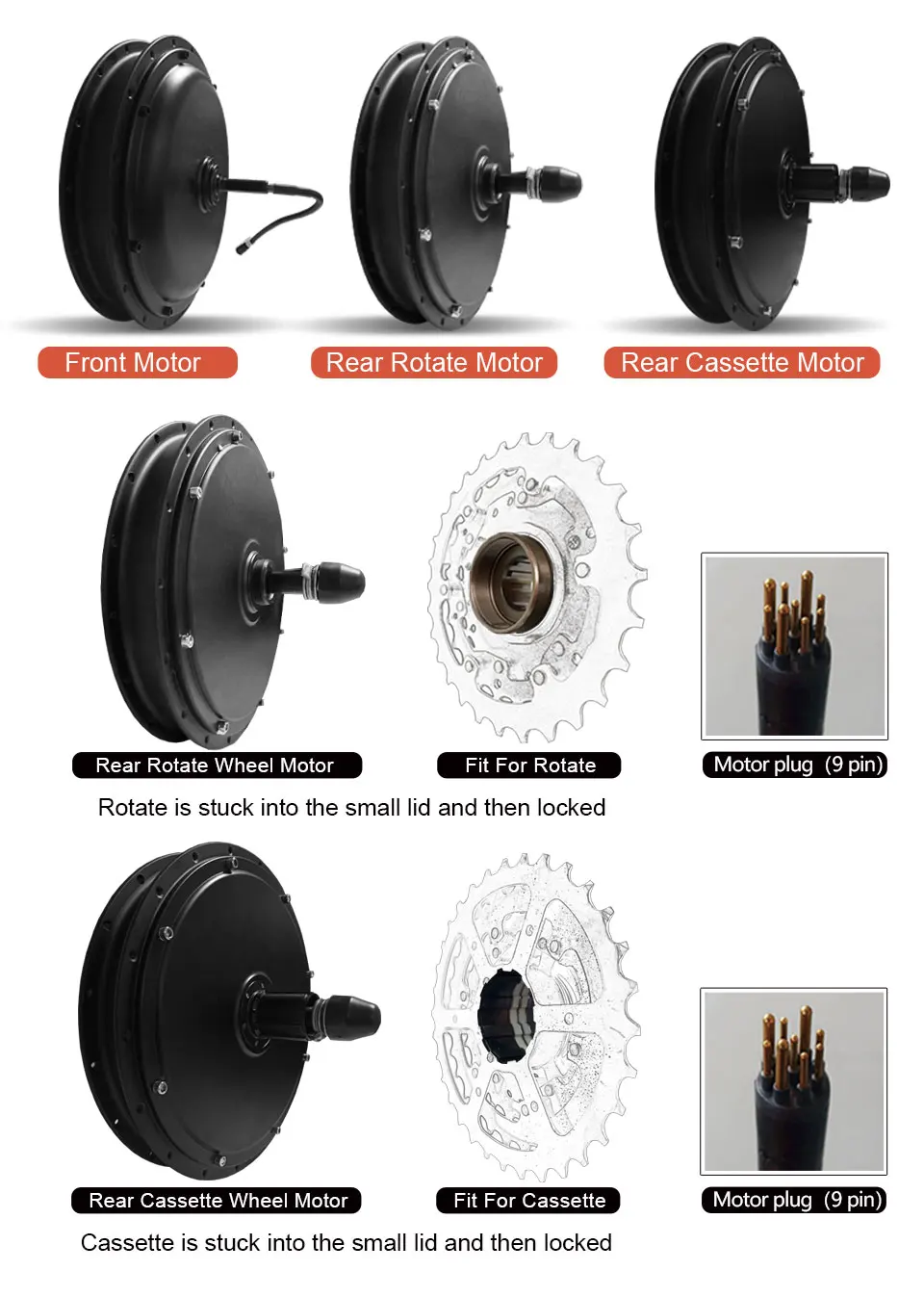

1 PCS * 500W Hub Motor with Rim and Spokes

1 PCS * 500W Motor Controller

1 PCS * Controller Bag(not battery)

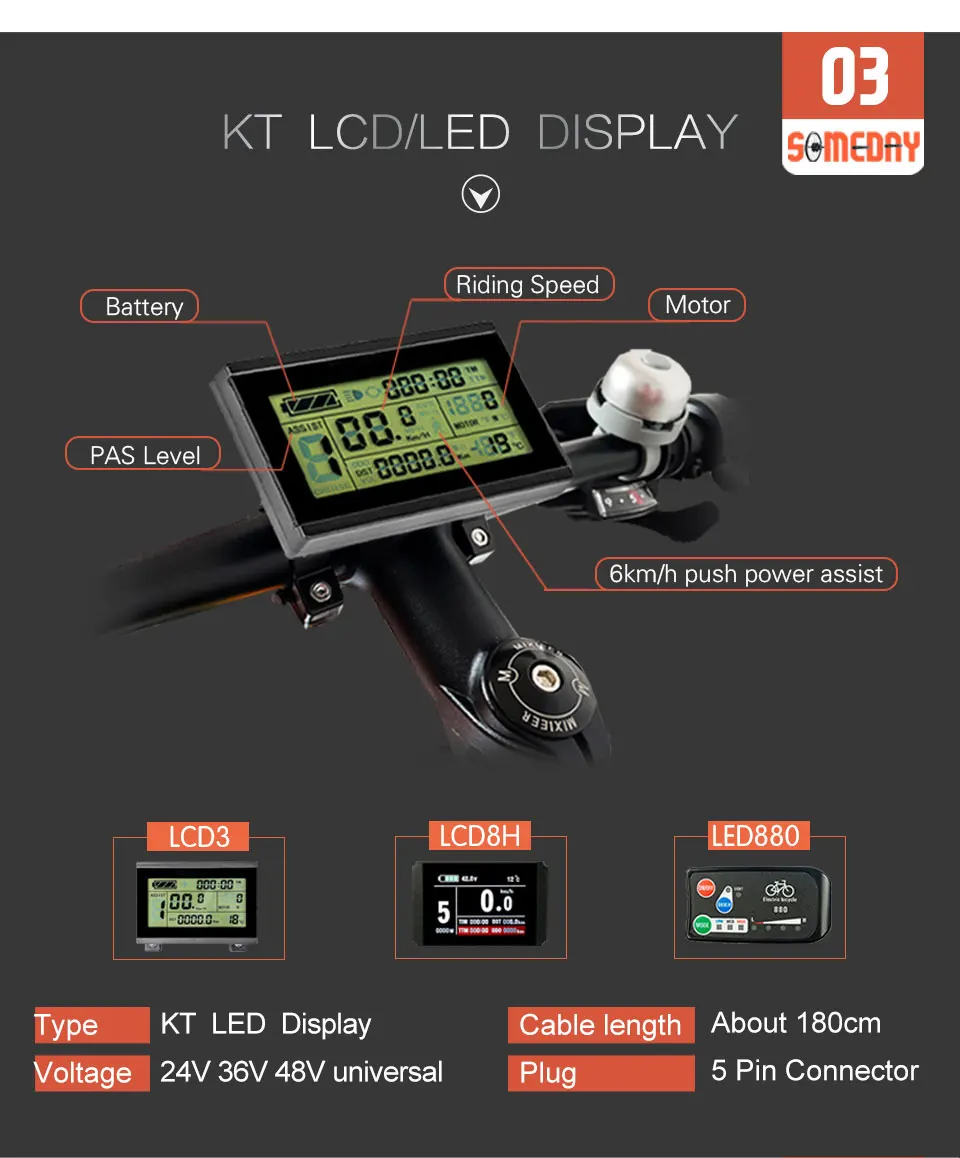

1 PCS * Display(LCD3,LCD8H,LED880 option)

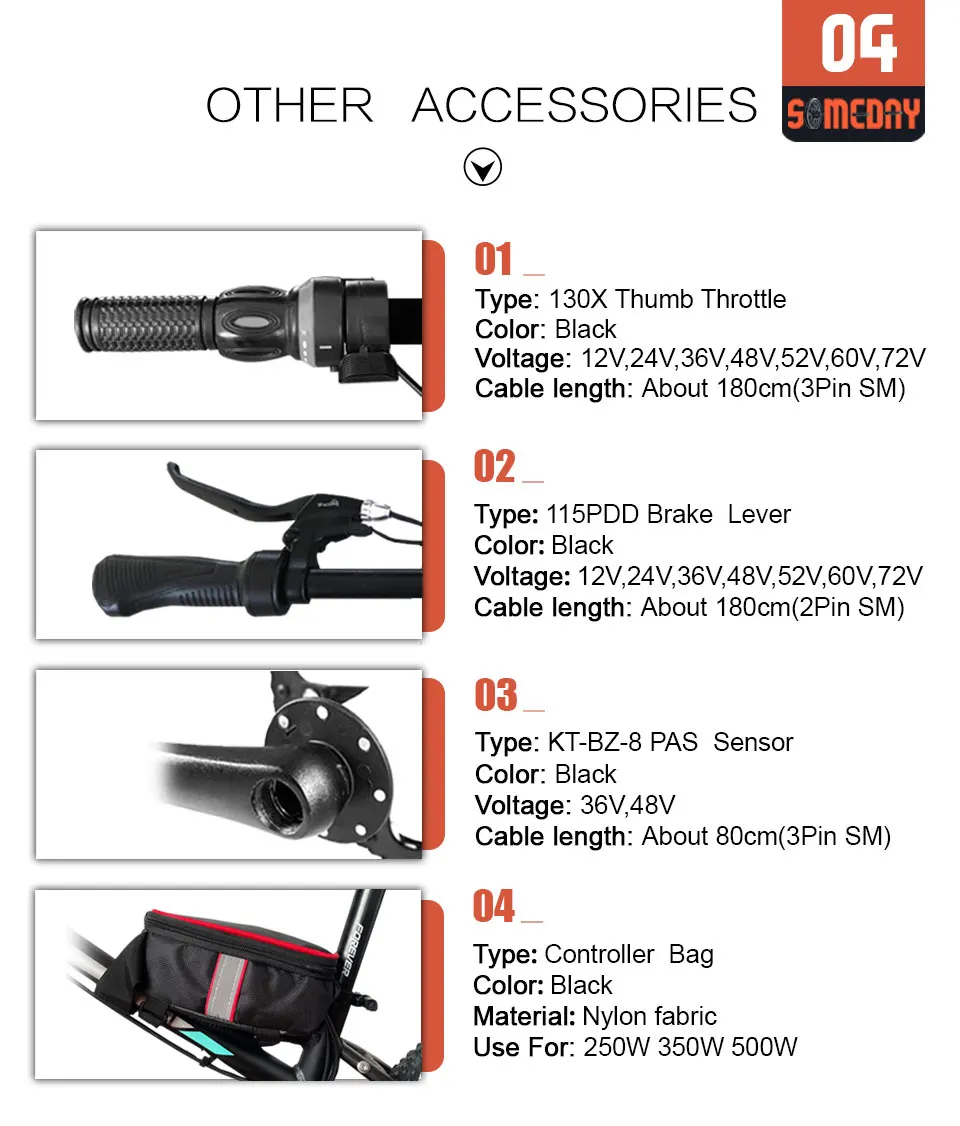

1 PCS * Thumb Throttle ( can change to twist throttle for free if you buy from China)

1 PCS * PAS Sensor

1 Pair * Brake Levers
