Details
2. The product has a memory function, the data will not be lost when the power is turned off
3. 4-bit digital display, display range 0-9999
4. Low level effective, wide voltage work, support DC4-40V
5. With cumulative +1, clear zero, power failure data memory function

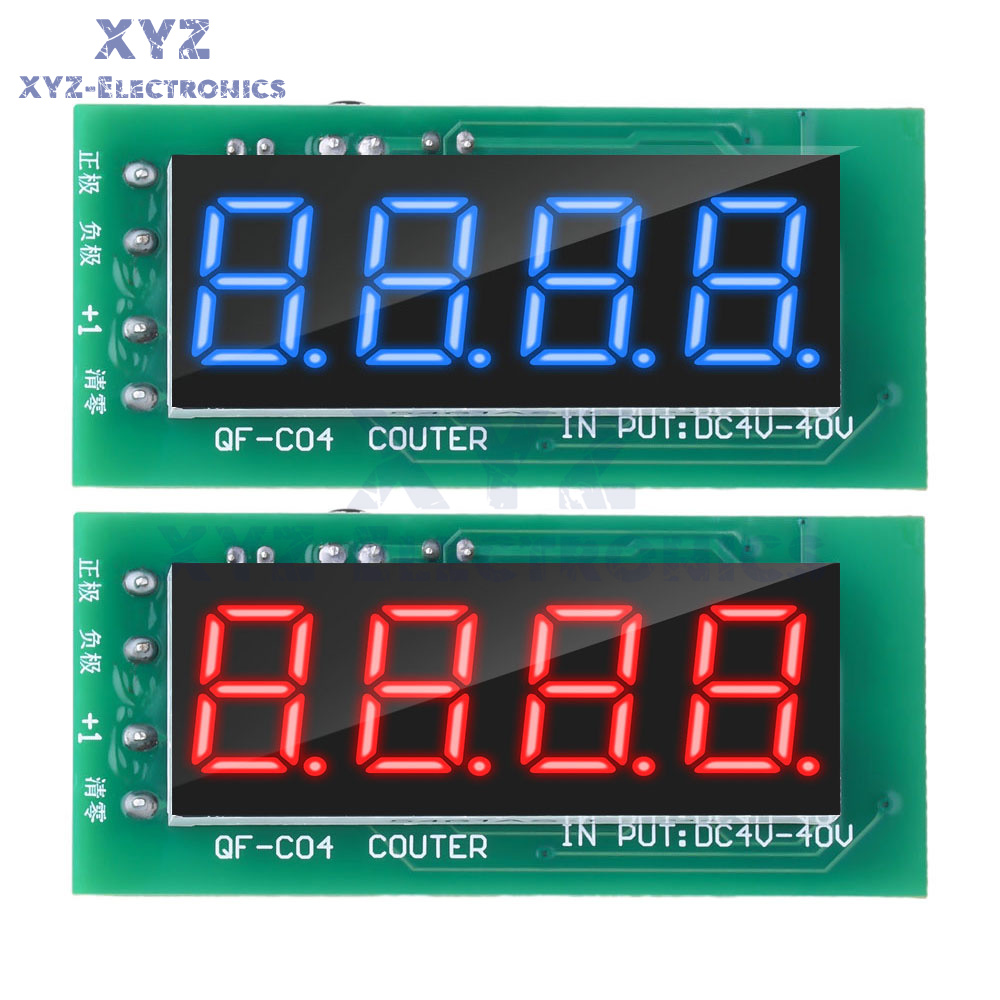

6. Two digital tube colors can be selected: blue and red

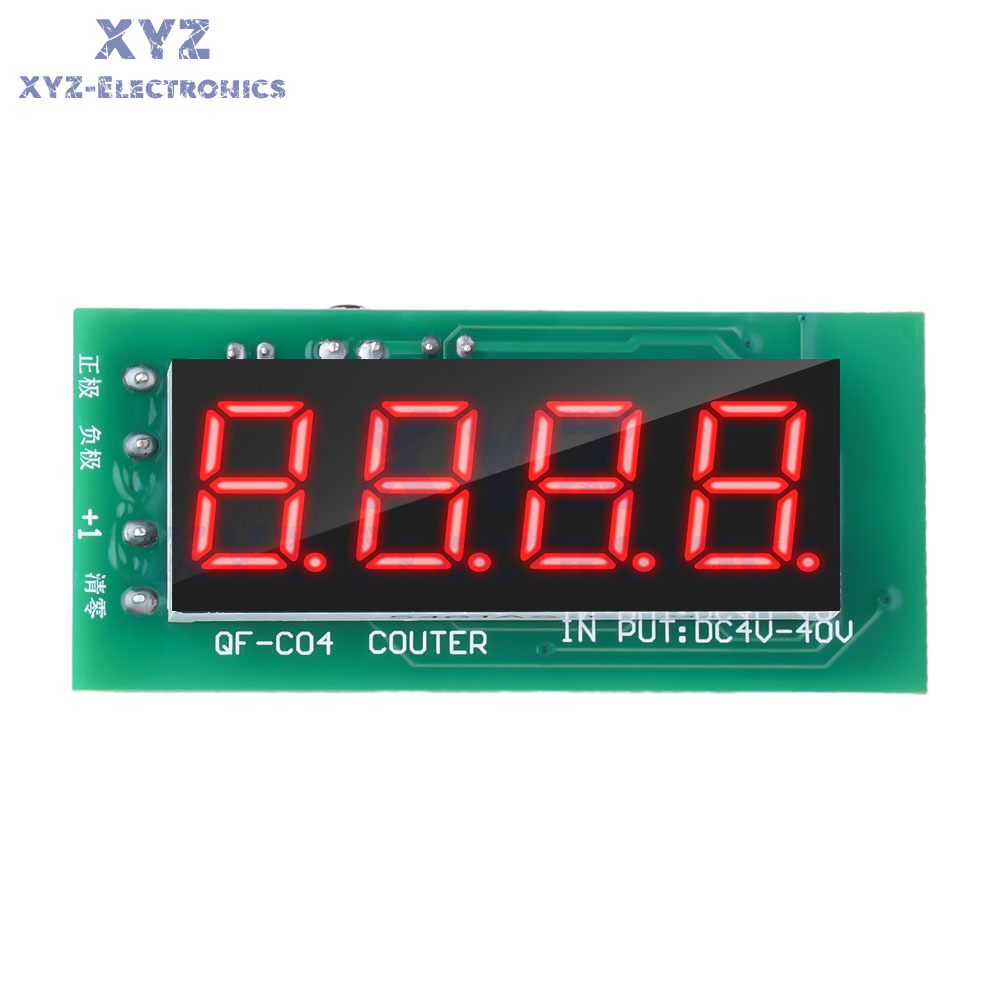

Product Name: Counter Module
Operating voltage: DC4-40V (recommended for use under 5-35V)
Current: 30mA (under 12V)
Input: counting (+1), clear, low level active
Digital tube specifications: 0.56 inches
Digital tube: 4-bit
Digital tube display color: red/blue
Counting range: 0-9999
Counting speed: 0-200Hz (i.e. up to 200 times per second)

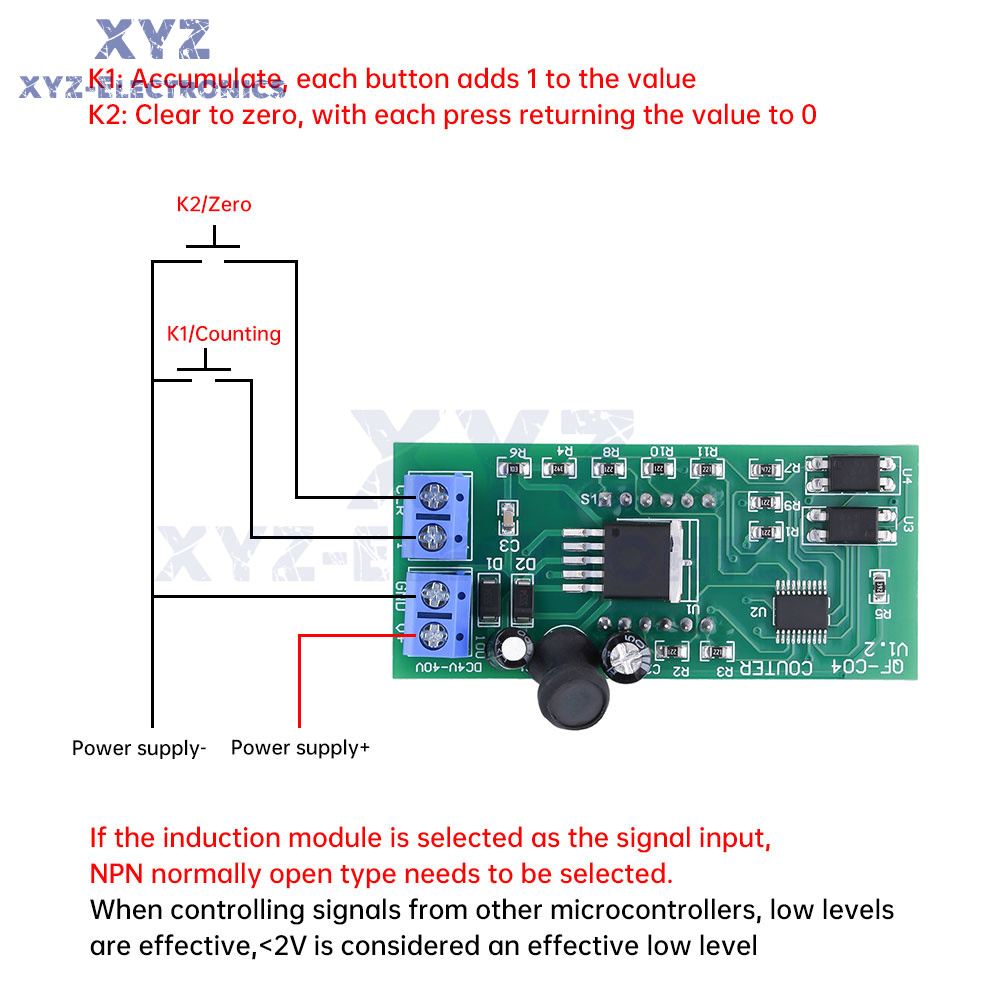

1. The external sensor must be NPN normally open type.
2. The positive pole of the module is connected to the positive pole of the power cord, and the negative pole is connected to the negative pole of the power cord.
1 x Counter Module
