Details
Features:
1.High performance, continuously adjustable output voltage and current;
2.Add digital display function for more convenient use;
3.Easy to operate, ready to use when connected to the line;
4.Made of high-quality materials, with an input voltage of up to 80V;
5.Extremely efficient, up to 95%.
Parameters:

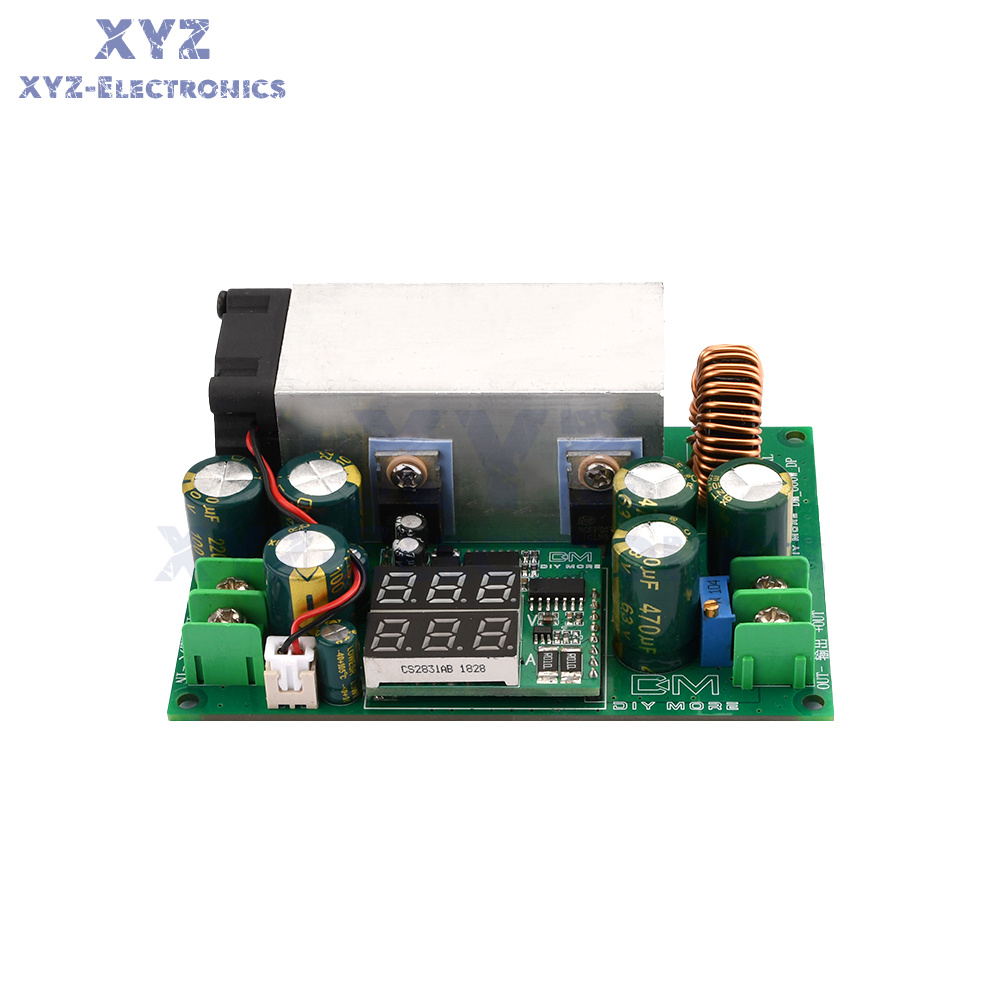

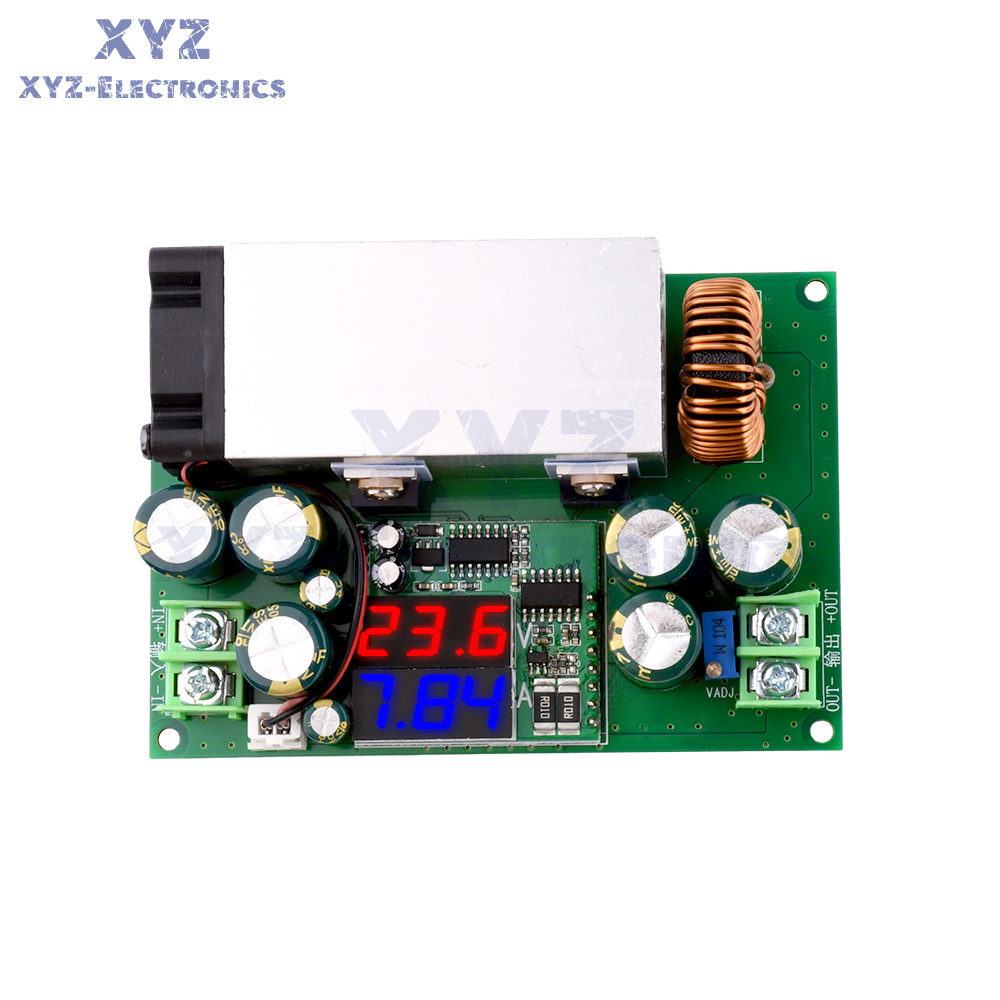

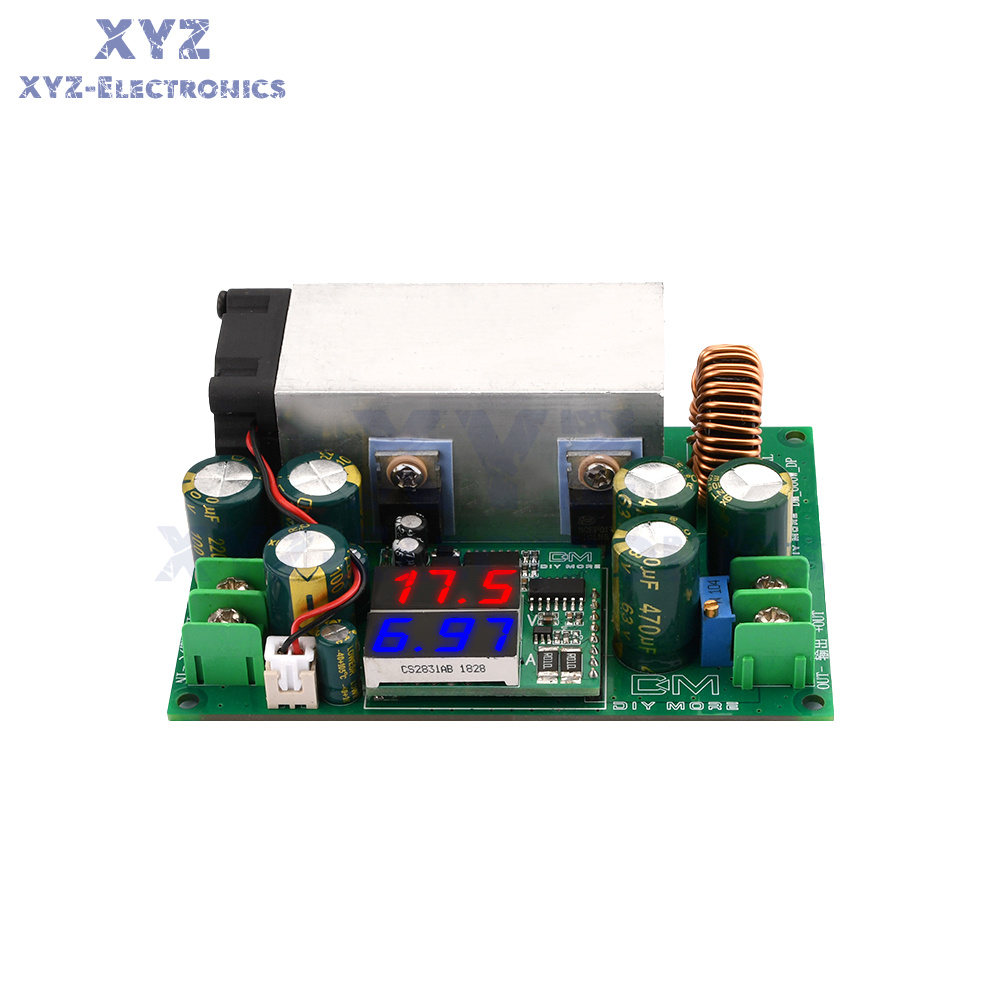

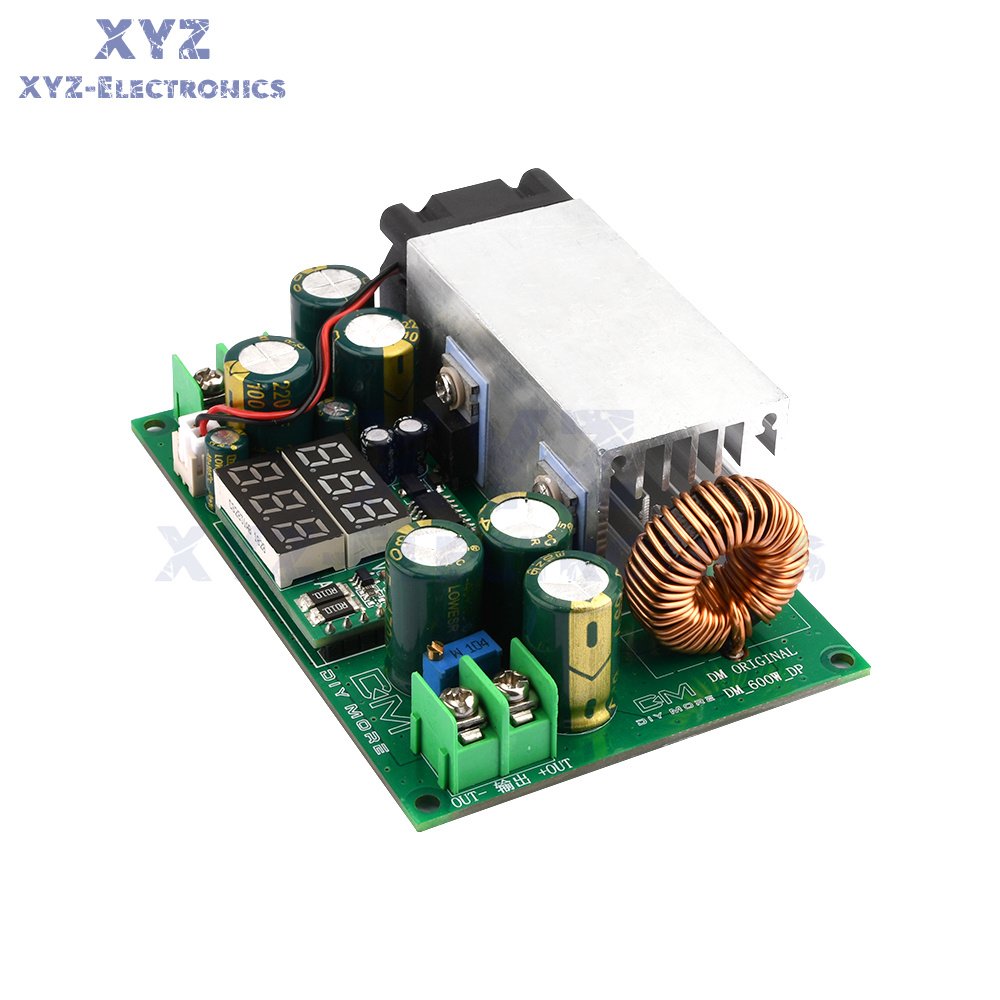

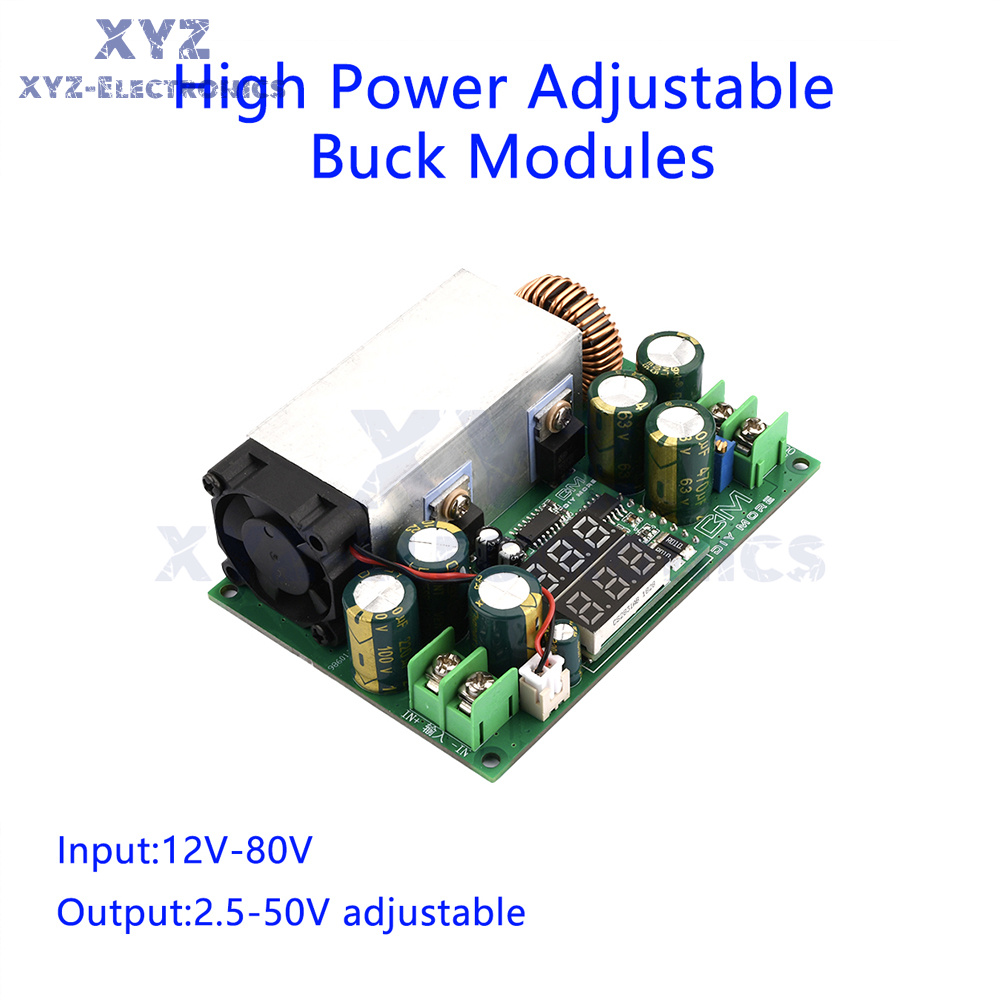

Name: DC-DC adjustable step-down module
Input voltage: DC12-80V cannot be used for 72V batteries
Output voltage: 2.5V-50V adjustable (can only be reduced) (maximum output voltage=input voltage * 0.8)
Output current: 20A (MAX) 25A overcurrent
Maximum power: 600W
Conversion efficiency: ≥ 93%
Protection: overcurrent protection
Size: L100mm * W70mm * H31mm
Working temperature: -40-85 ℃
Storage environment: -20 ℃ -+50 ℃
Relative humidity: 65 ± 20%
Wiring: In high-power situations, the wiring should be as thick as possible.
Voltage conversion overview:
12-80V to 5V
12-80V to 9V
14-80V to 12V
17-80V to 14.8V
19-80V to 16.8V
22-80V to 19V
24-80V to 21V
28-80V to 24V
35-80V to 30V
41-80V to 36V
48-80V to 42V
55-80V to 48V

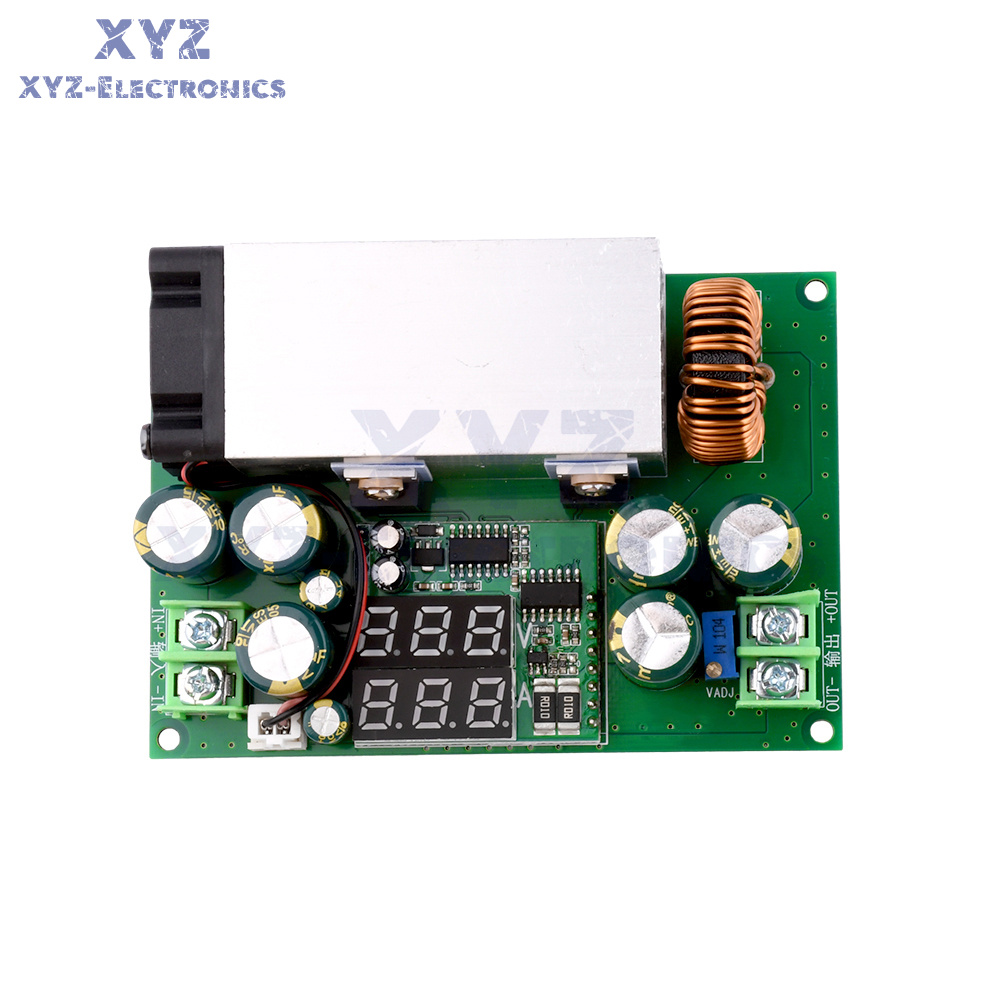

Interface Description:
IN+: Input positive pole
IN -: Input negative pole
OUT+: output positive pole
OUT -: Output negative pole
VADJ: Output voltage regulation, clockwise large and counterclockwise small
Attention: To charge the battery and battery, please add a diode to the output to prevent backflow!
Package include:
1X module
