Automotive Fuel System Fuel Injector Cleaner Tool Set

Feature

• Wide Application

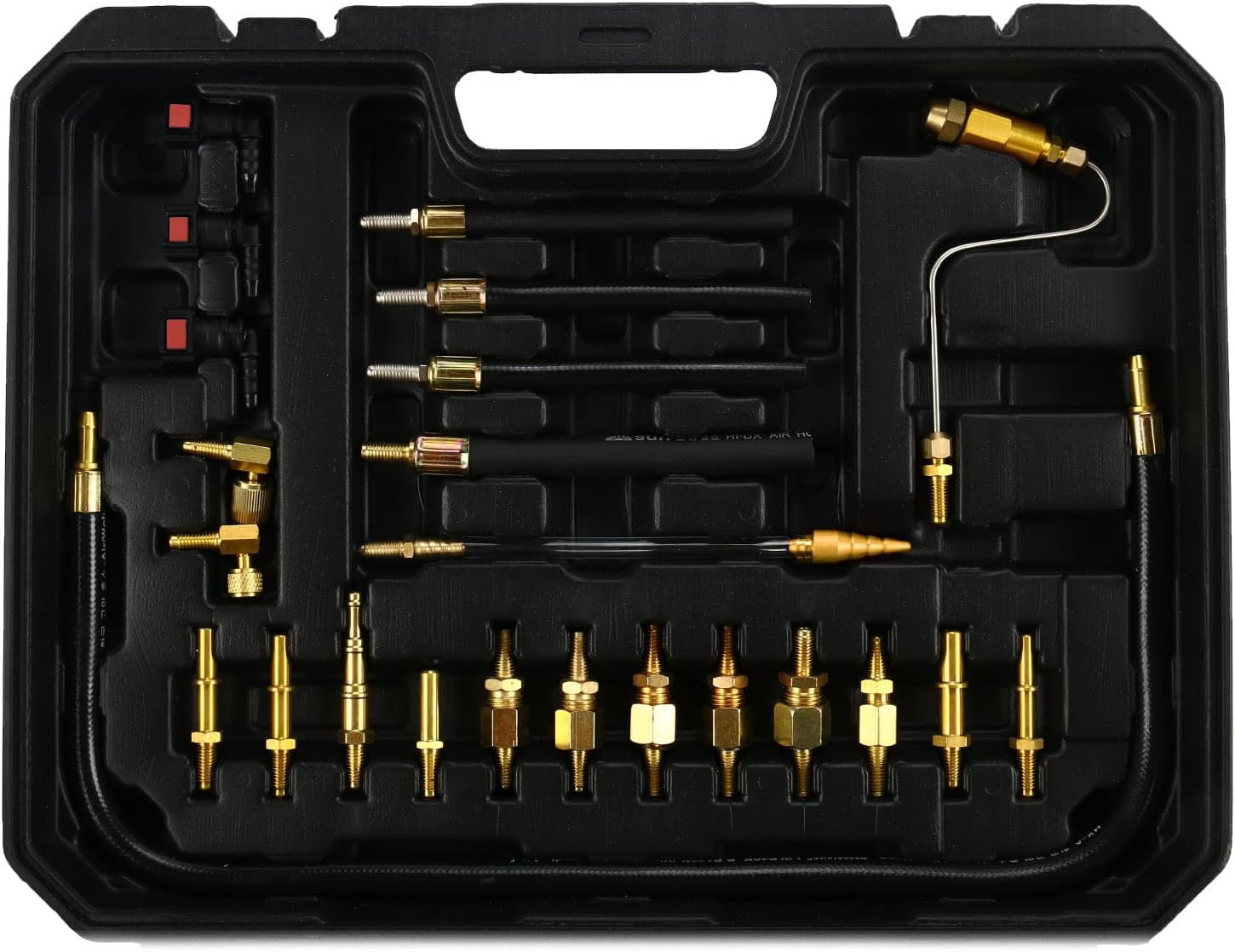

  Includes many different adapters, covering almost all the EU, Asia, USA cars and light trucks(petrol 12V).

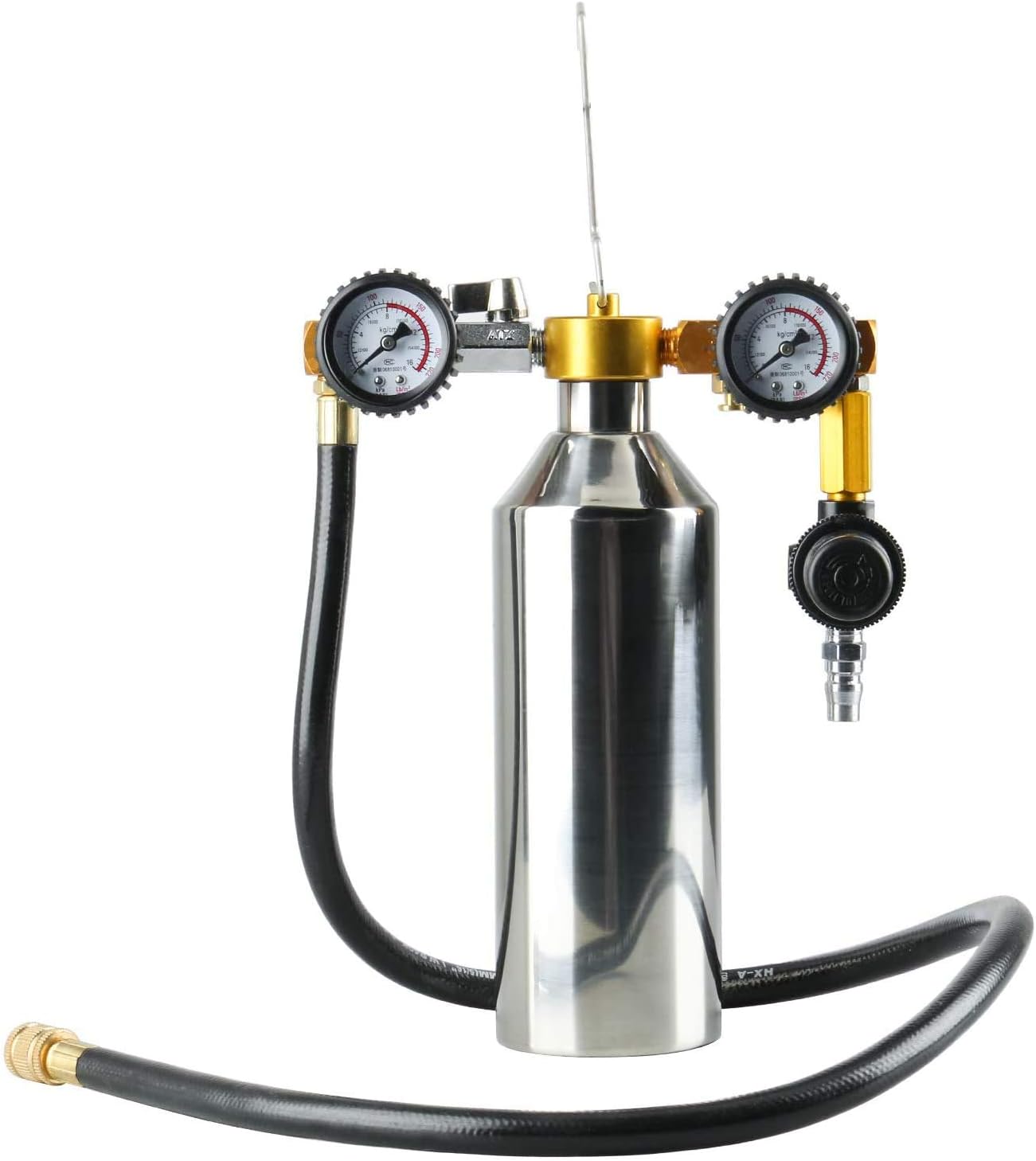

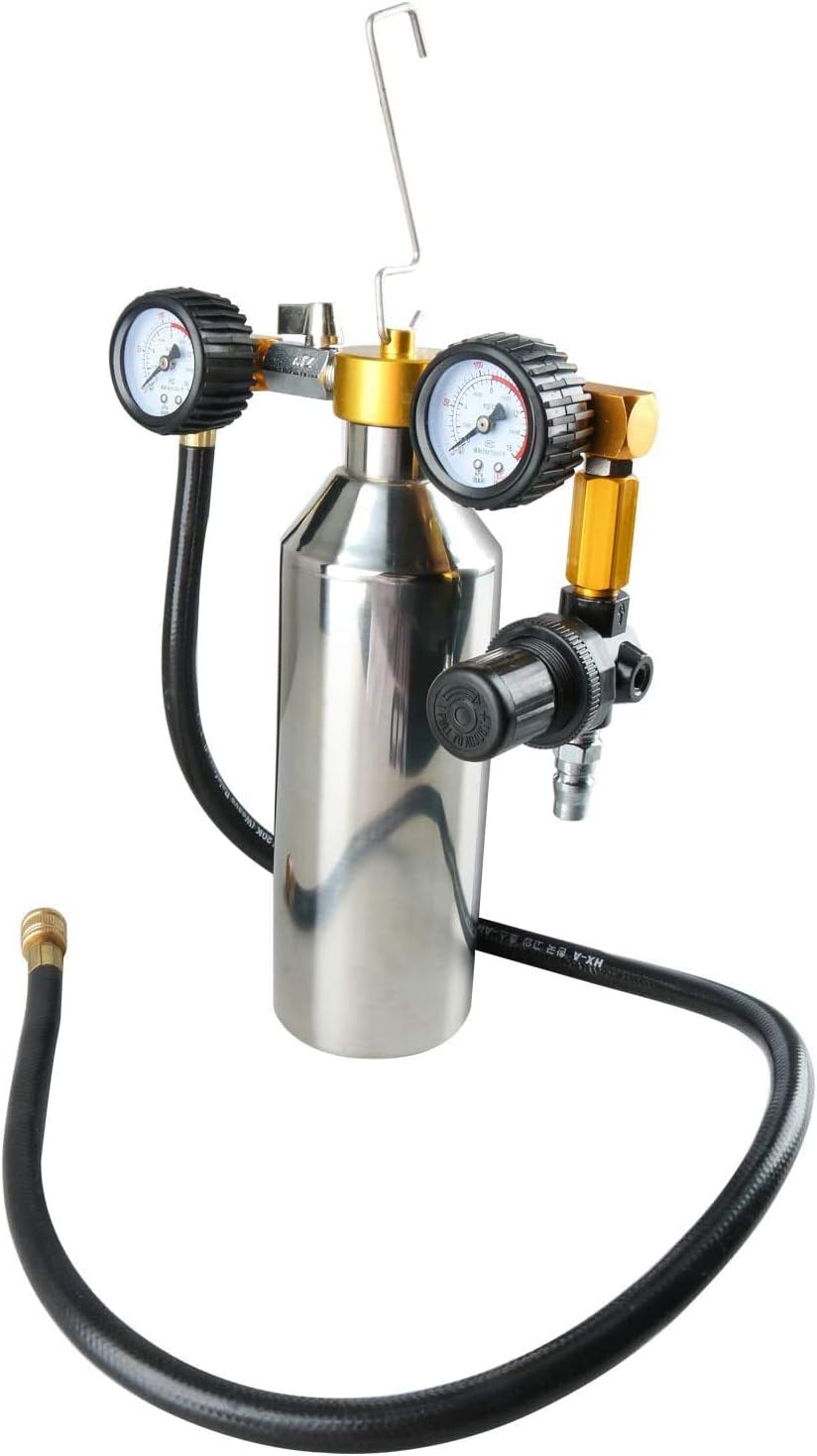

• Multi-Functional Valves

  Multi-functional valves for fluid adding and gas releasing.

  Rotate to add fluid, gas releasing speed controlled with different force level.

  Non-dismantle cleaner has special handling one-way valves to seal up gas and durable pressure regulating valves.

• Easy to Use

  Has anti-corrosion, anti-friction connectors for fast-connection and anti-friction oil tubes for all cleaning fluid

Specification

Operation For EFI Model

1. Find out the fuel return hose, disconnect and plug with suitable adaptor.
2. Find out the fuel inlet hose, disconnect and connect with the outlet hose of the cleaner with proper adaptor.
3. Connect the outlet and return hose of the fuel tank and open the tank cover; if there is no return hose, please move the fuse of fuel pump so that the pump will not work.
4. Charge the cleaning fluid into cleaner tank.
5. Connect air source power to the air port of the cleaner, adjust its pressure to 40-50PSI.
6. Check all connect points to make sure there is no leakage.
7. Start engine to clean fuel system.

Operation For Throttle Model
