Details
1.Made of high quality material, high temperature resistant, not easy to deform, durable.
2. Adopting single-chip computer control system and high-precision temperature control probe, outstanding temperature control performance and precision.

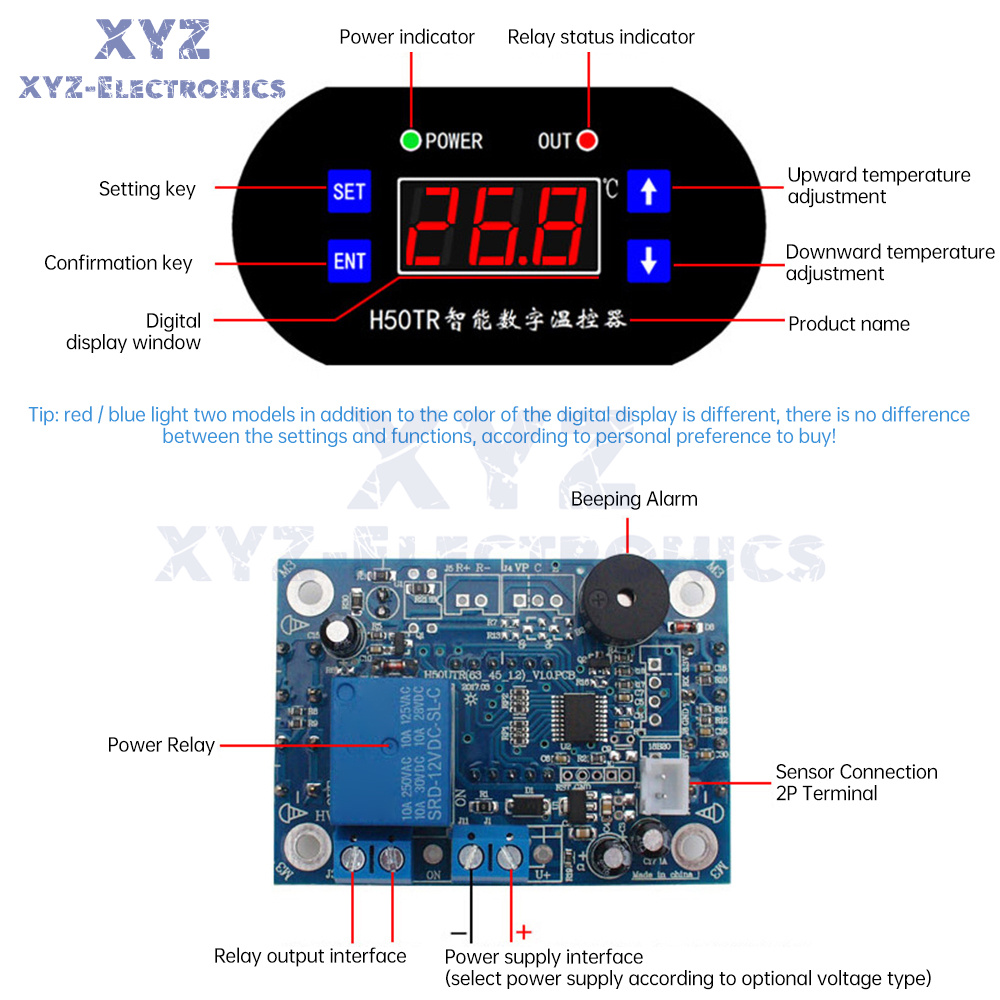

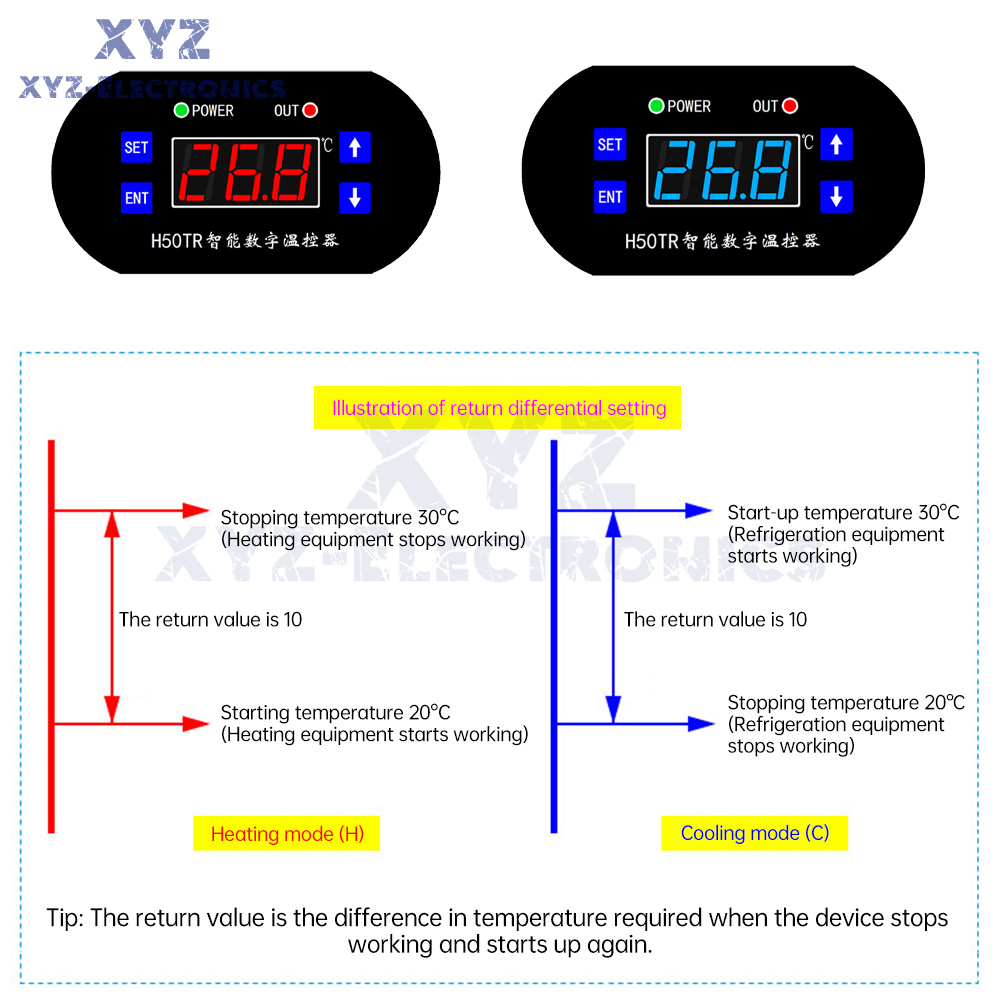

3. Simple control panel, wide temperature control range, adjustable heating and cooling mode, easy to set up.
4. Can be directly installed and used or embedded in industrial control equipment and other panels, convenient and quick.
5. Widely used in incubation field, equipment chassis, air-conditioning system, temperature control protection and other fields.
Temperature measurement range: -55~120℃
Accuracy: 0.1℃
Measurement input: NTC10K L=1m waterproof probe
Input power supply:: DC 12/24V
Output type: relay output (output switch)
Output capacity: 10A

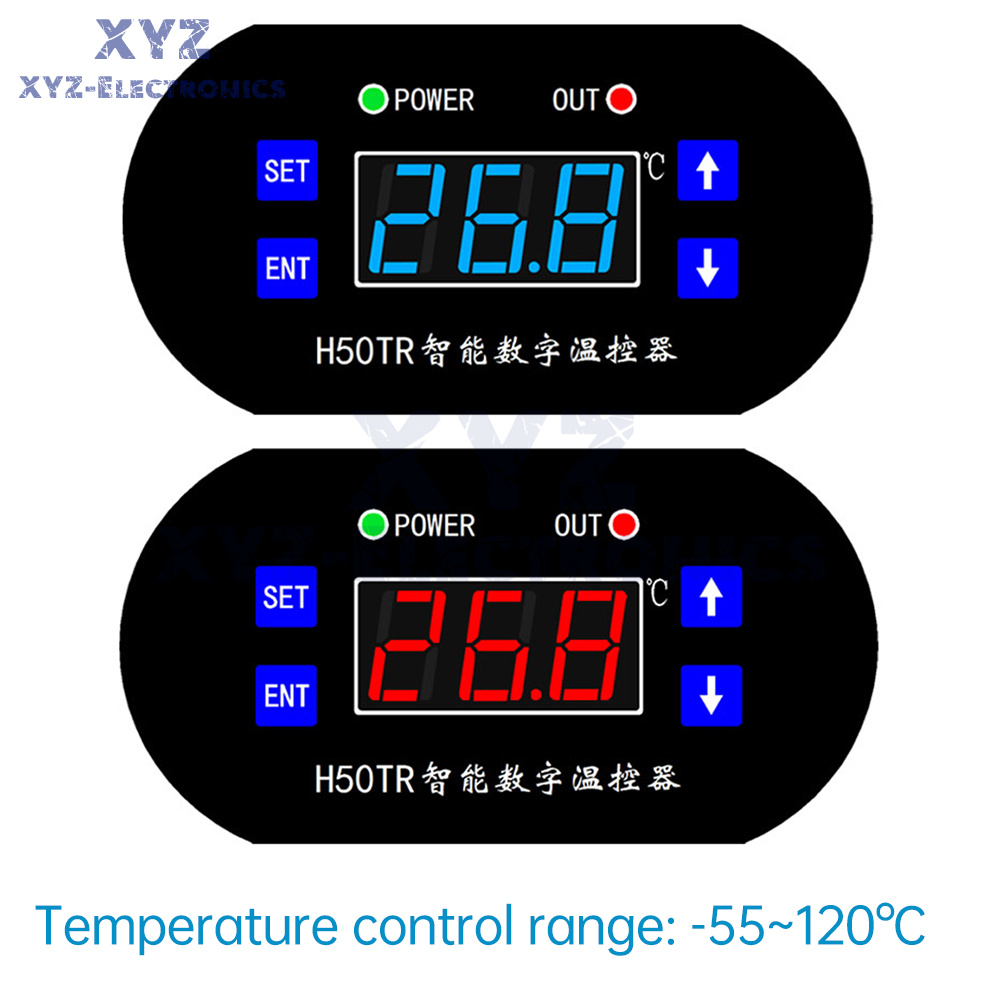

Display colour: red, blue (optional)
Opening size: 63.5*45.5mm
Product size: 100*52mm

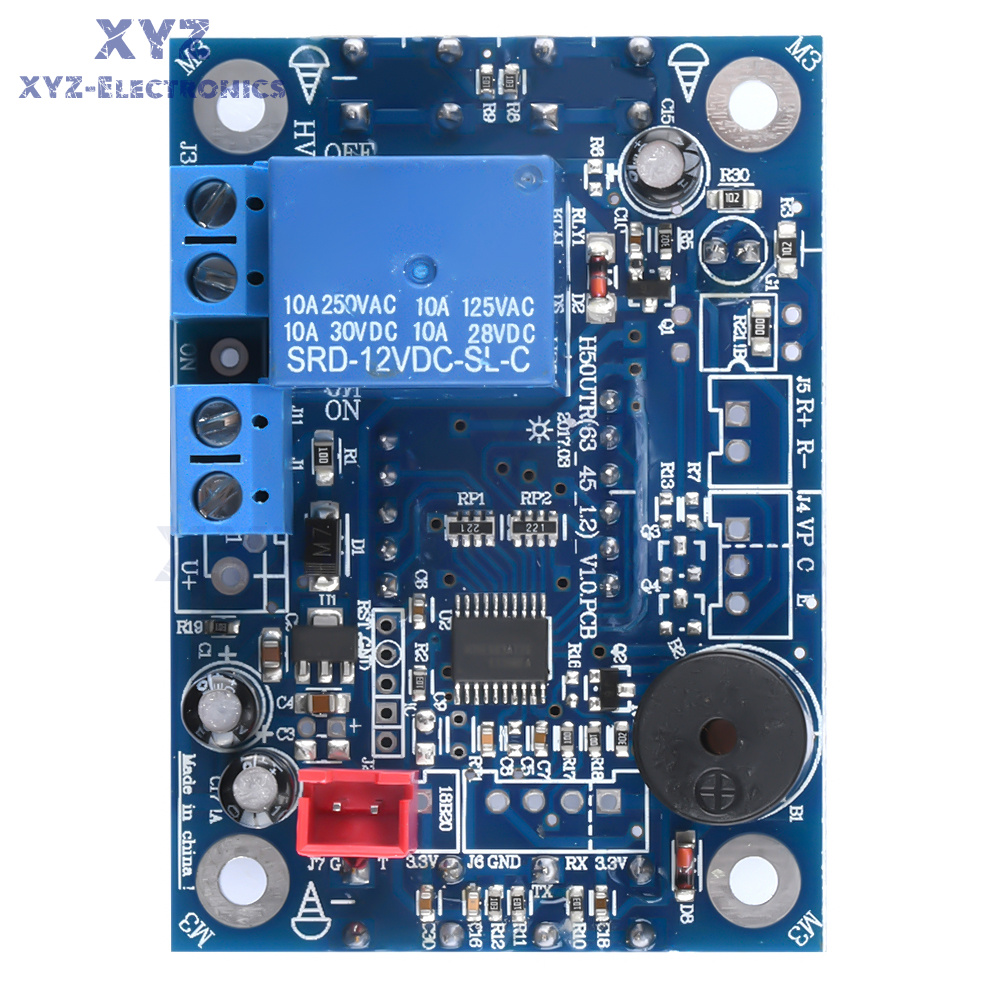

1. Fix the main board and plastic panel with spacer and lock nut.
2. Connect the power supply and load control lines according to the wiring diagram.
3. Make holes on the chassis according to the drawing, and then embed the thermostat into the locking screws and paste the mask.
4. Put the temperature control probe into the place where you need to control the temperature, and set the temperature according to your need.

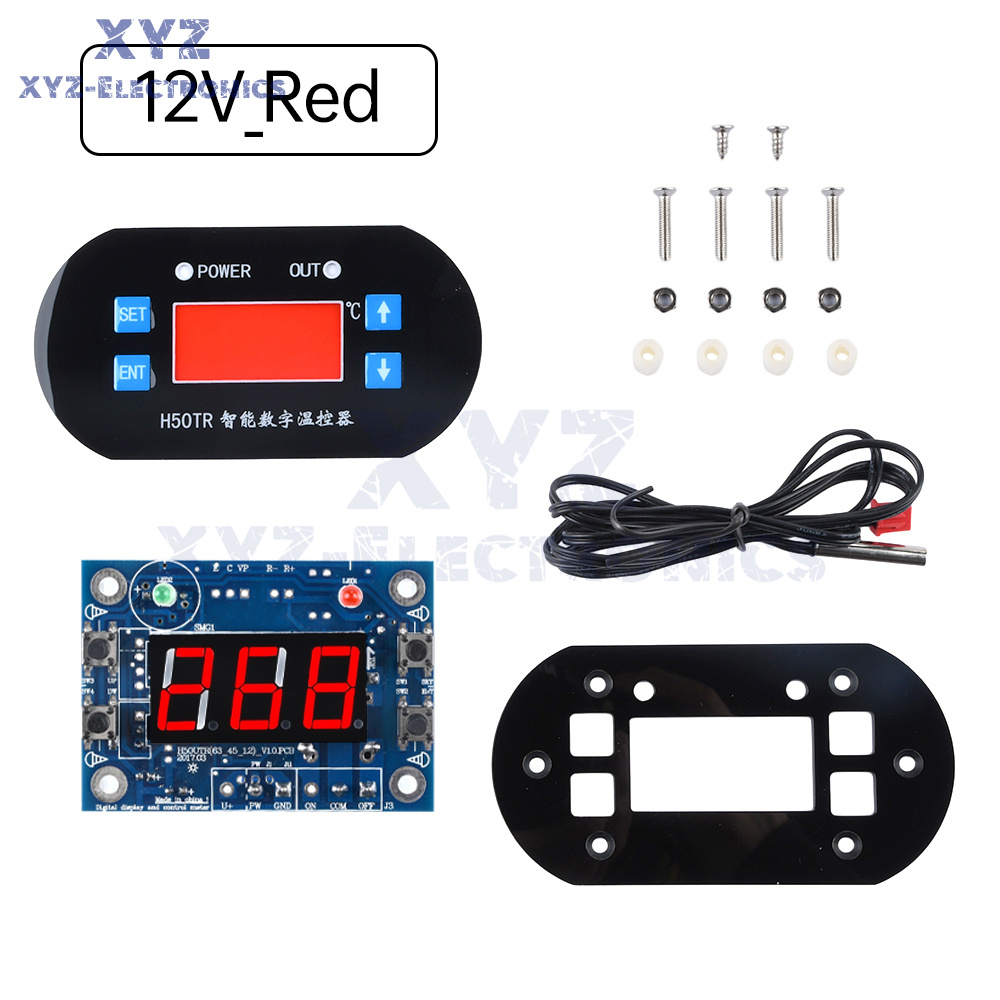

Thermostat module *1
Mask *1
Panel *1
Sensing wire *1
Screw package *1
