Details
2. Using a single integrated circuit, more stable performance.
3. Components are neatly arranged, more delicate and beautiful
4. Products with over-voltage, over-discharge, over-current, charging protection, short circuit protection, etc., more secure and reliable.
5. Wide range of applications, suitable for a variety of industrial DIY occasions
Wiring mode: split port
Over-discharge voltage: 2.4V±0.08V
Over-discharge recovery voltage: 3.0V±0.1V
Over-discharge delay time: 60mS
Continuous working current: 8A/120A overcurrent protection
Overcurrent recovery condition: charging recovery or disconnecting the load
Short-circuit recovery condition: charging recovery or disconnecting the load
Overcharge voltage: 4.28V±0.025V
Overcharge recovery voltage: 4.08V±0.05V
Overcharge delay time: 120mS
Continuous charging current: 3A
Charger voltage: 4.2V (recommended)
Operating power consumption: ≤10uA
Main circuit on-resistance: ≤10mΩ
Temperature range: -40+80°C
Wiring: Split port
Single battery over-discharge voltage: 2.3V±0.08V
Single cell over-discharge recovery voltage: 3.0V±0.1V
Over-discharge delay time: 5MS-15MS
Instantaneous starting current: 150A (universal for more than 95% of motors)
Continuous working current: 10A
Overcurrent recovery condition: charging recovery or disconnecting the load
Short-circuit recovery condition: charging recovery or disconnecting the load
Single battery overcharge voltage: 4.3V±0.025V
Single battery overcharge recovery voltage: 4.15V±0.025V
Overcharge delay time: 700MS-1300MS
Continuous charging current: 3A
Charger voltage: 8.4V (recommended)
Operating power consumption: ≤10uA
Internal resistance of main circuit conduction: ≤10mΩ
Temperature range: -40+80°C

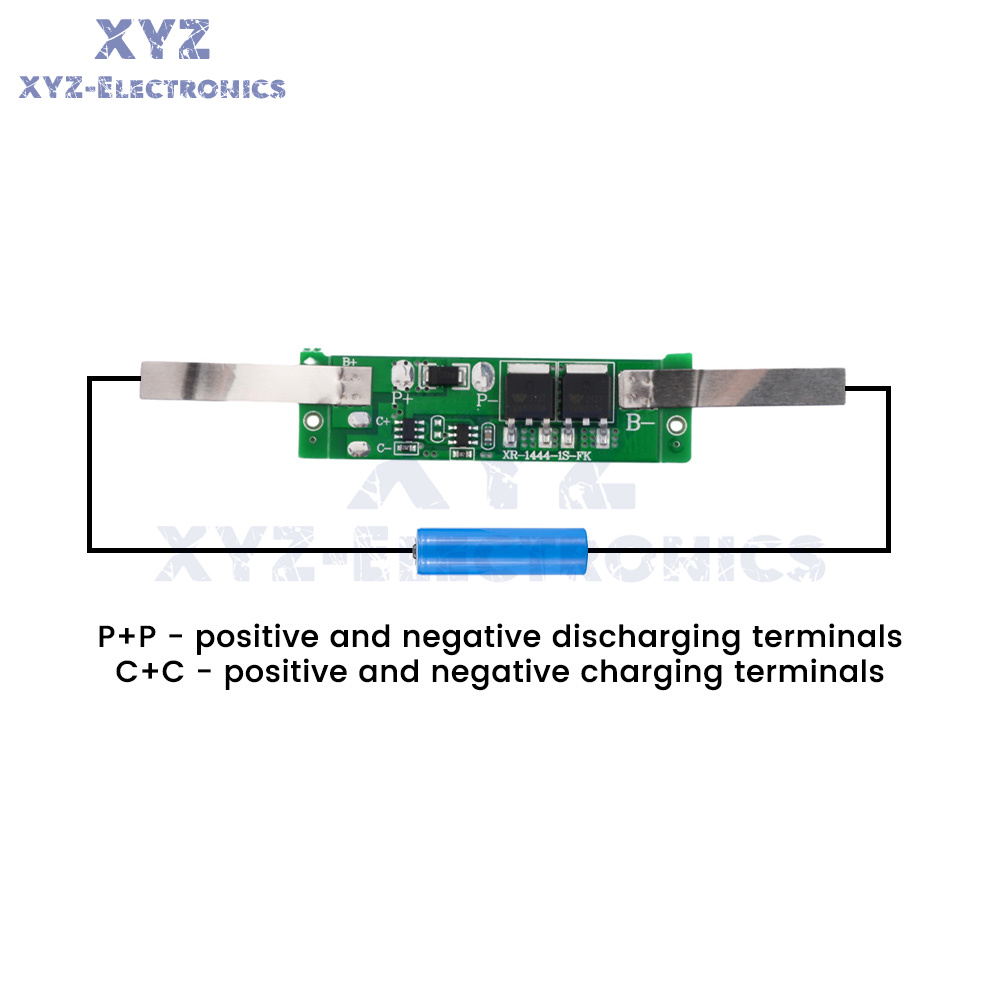

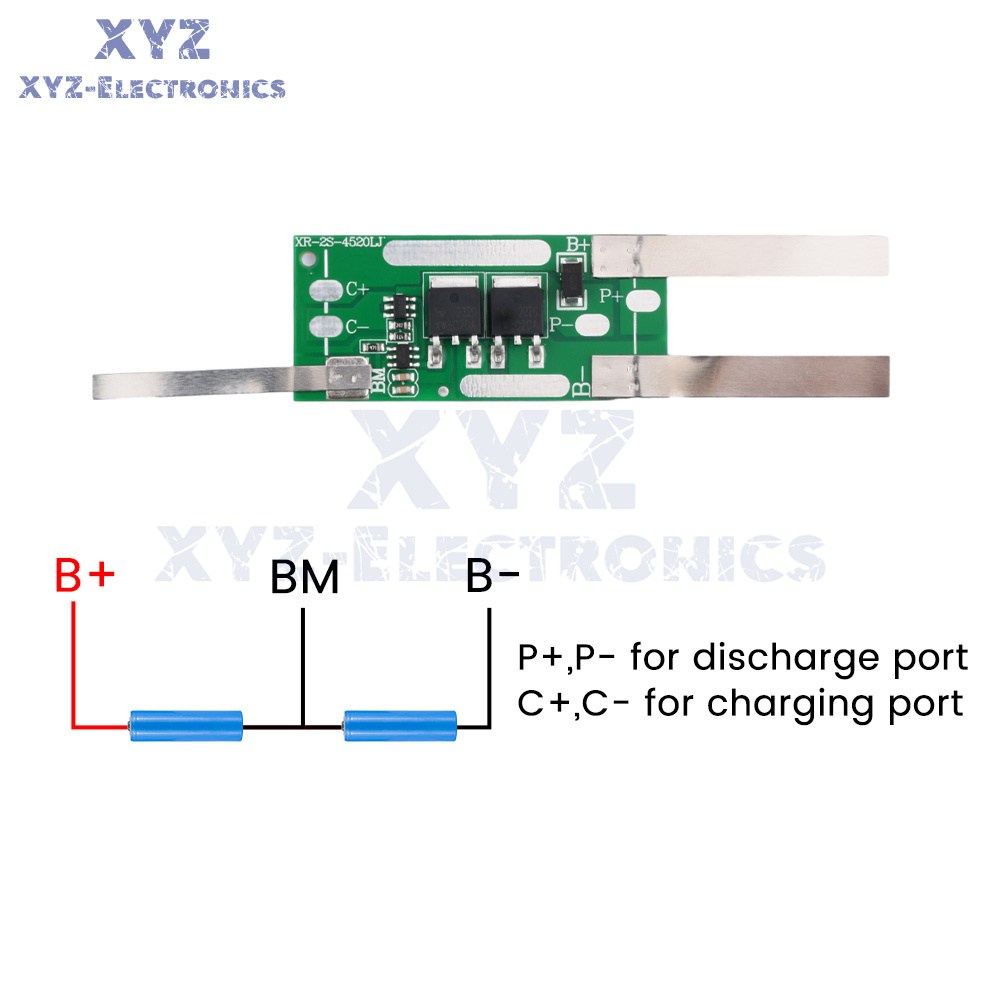

B+ connects to total positive battery
B-connect the total negative battery
P+, P-discharge port
C+, C-charge port

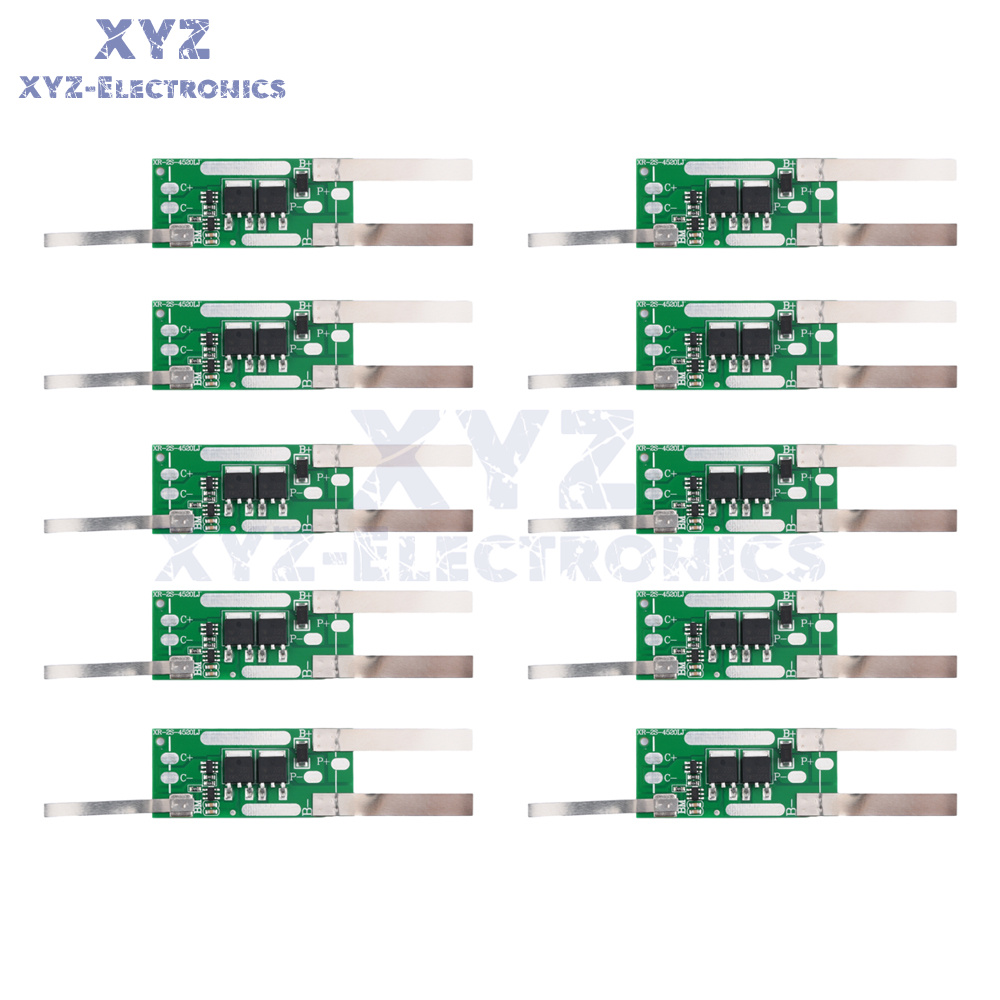

1/2/5/10 x Li-Ion Battery Protection Board
