Overview:
With this universal 4 door car central locking kit, you can convert manual door locks into automatic
door locks. Including all mounting hardware and wiring harnesses, it will solve the problem of your
car have no central locking or existing system is broken and give you a total new feel to locking and
unlocking your vehicle. With a simple and intelligent design keys fobs, all 4 doors can be locked and
unlocked, easy to install and operate.
Features:
1. The car door lock system can provide an easy way to control your car
2. High torque and strong electromotor
3. Waterproof and dustproof,never get stuck
4. Extremely smooth, large push and pull force,anti-stuck
5. 360°degree rotating,easy to install
6. Remotely lock and unlock your car
7. Direction light flashing
8. Electric/pneumatic central door lock optional
9. Central door lock automatically
10. Remote car location
11. Remote trunk release
12. Rising power window
13. Universally for any cars
Specifications:
*Main unit
Voltage: DC 12V Temperature: -20℃ to 70℃
Current consumption: 0.15 to 2.22A
Endurance (up and down): 100,000 times
Pushing&Pulling Force: 3kg

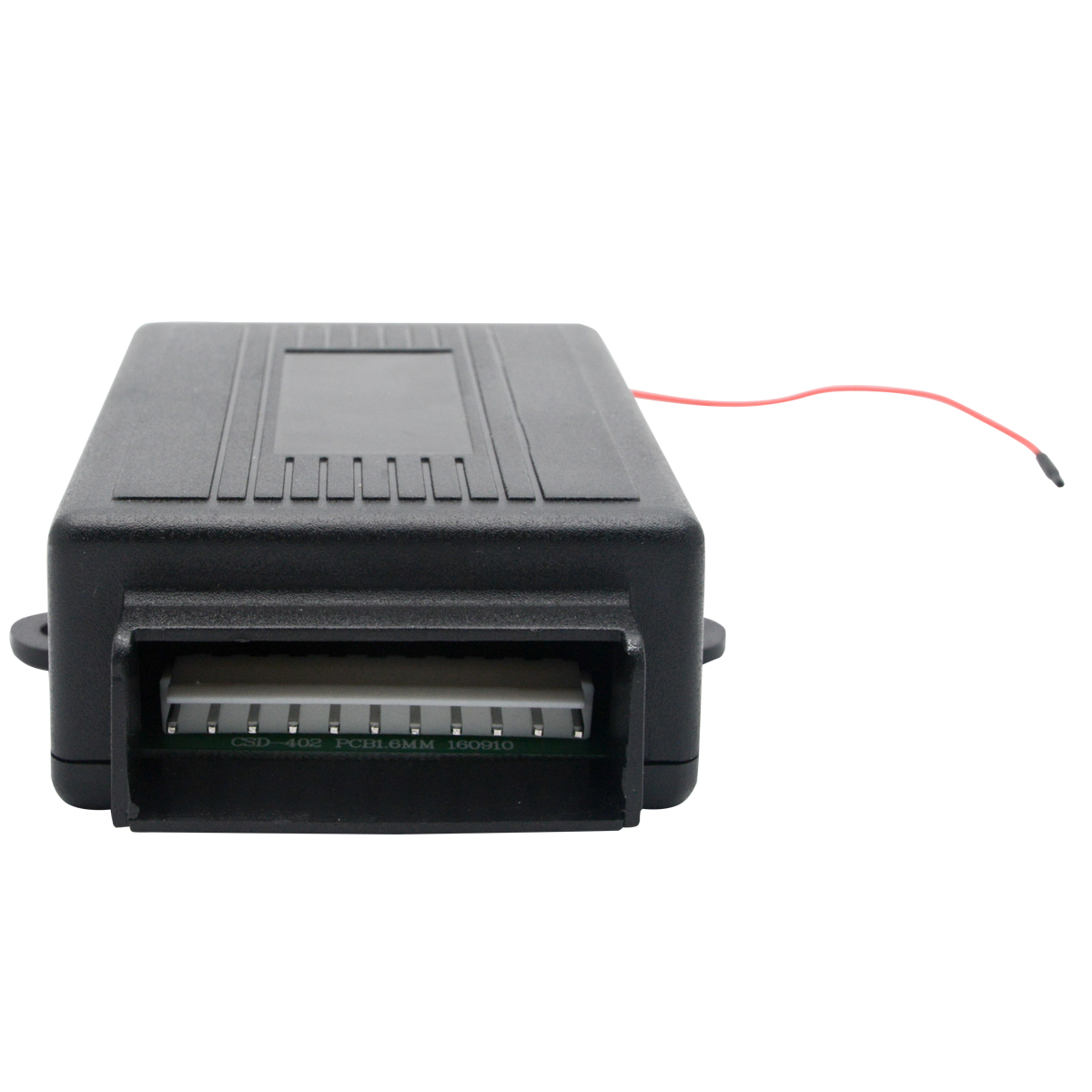

*Control box
Size:90*65*32 mm(L*W*H)
Working voltage: DC10V-16V
Working Current:<15mA
Siren: 108dB
Coding: learning code
Working frequency: 433.92MHZ
Socket interface：VH11P
Working distance：About 60-100 meters
Remote control:
Working voltage: DC 6V
Average static current: 0uA
Working Current:<6mA
Coding: learning code
Working frequency: 433.92MHZ
Working distance：About 60-100 meters

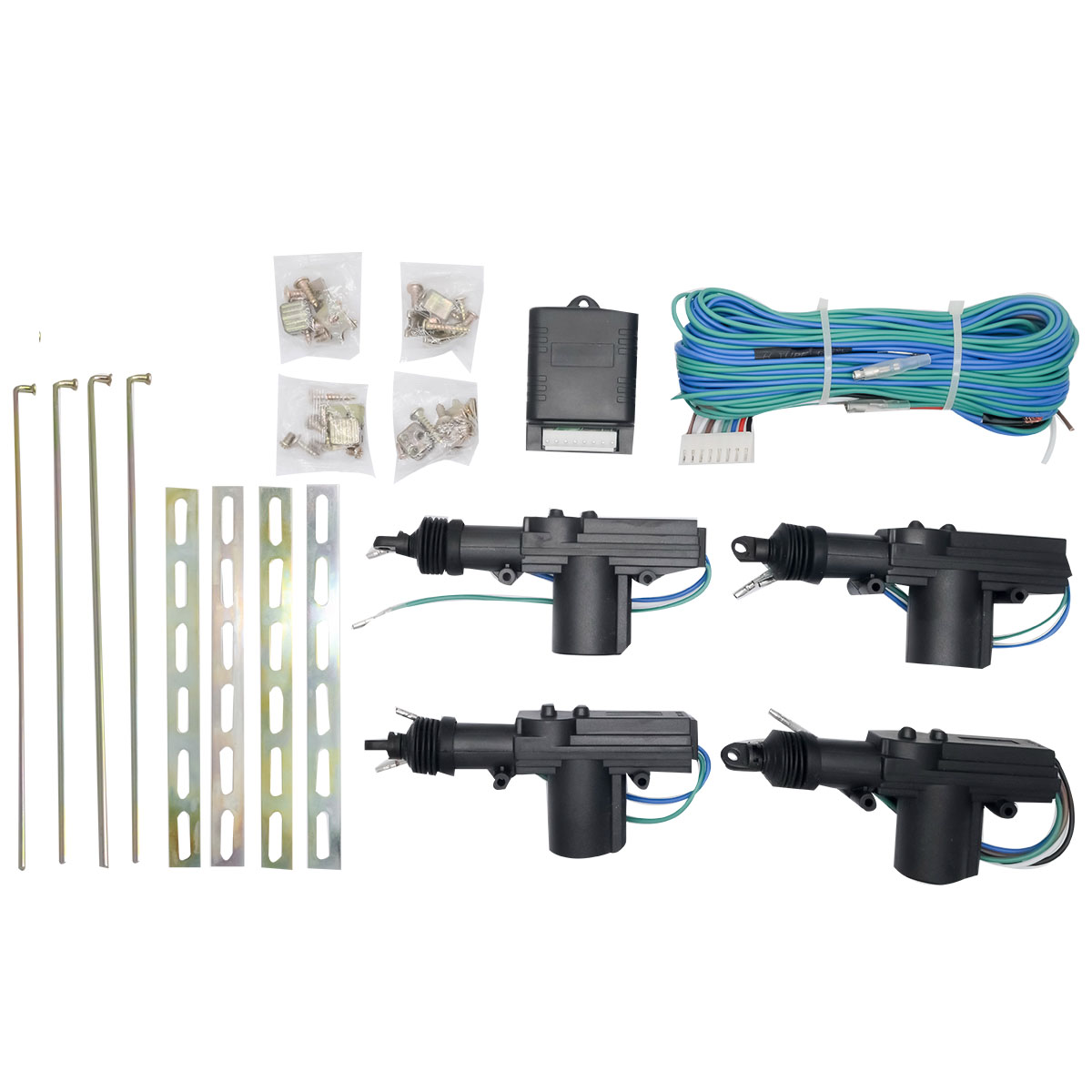

Package include:
1 x Control box
1 X main unit
2 x Remote Controllers
1 x 5-wire Actuators (Master)
3 x 2-wire Actuators (Slave)
4 x Metal Brackets
4 x Metal Rods

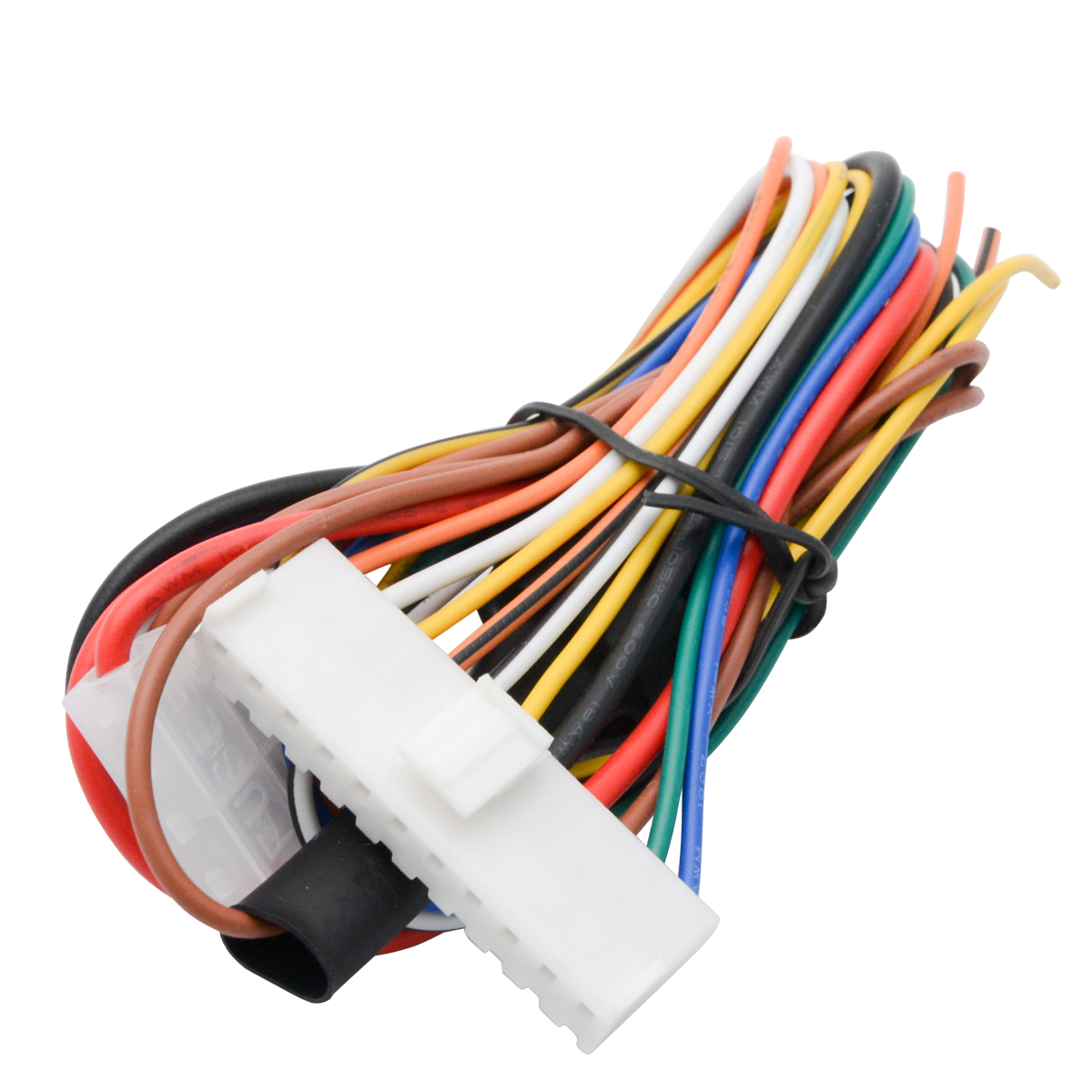

2 x Set of wiring Harness
4 x Set of Other Install Parts(clips, screws etc)
1 x Operation instruction
