Features:
* 5" TFT LCD - monitor.
* high resolution photos: 800 * 480.
* 2 video input White video cable connects to car rearview camera, yellow is connected to a DVD or VCD.
When parking the car, the rearview image appears on the screen automatically.

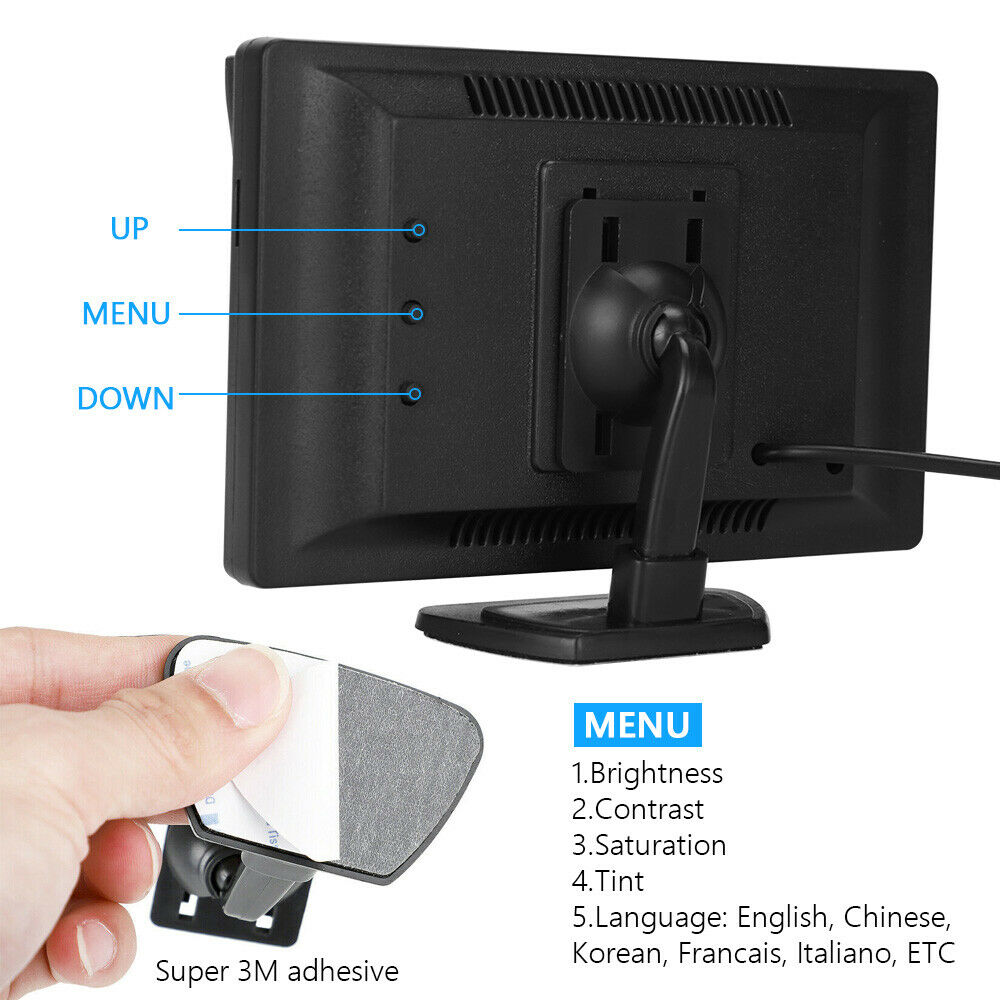

* so, i - menu buttons, Brightness and Contrast / Hue / language is adjustable.
* It supports DVD Rental, VCD, camera and other video - equipment.
* easy installation without affecting any - any part of the machine.
* Easy installation, no damage to any part of the machine, Dual Brackets.
* No audio input and output.
Specifications:
Monitor:

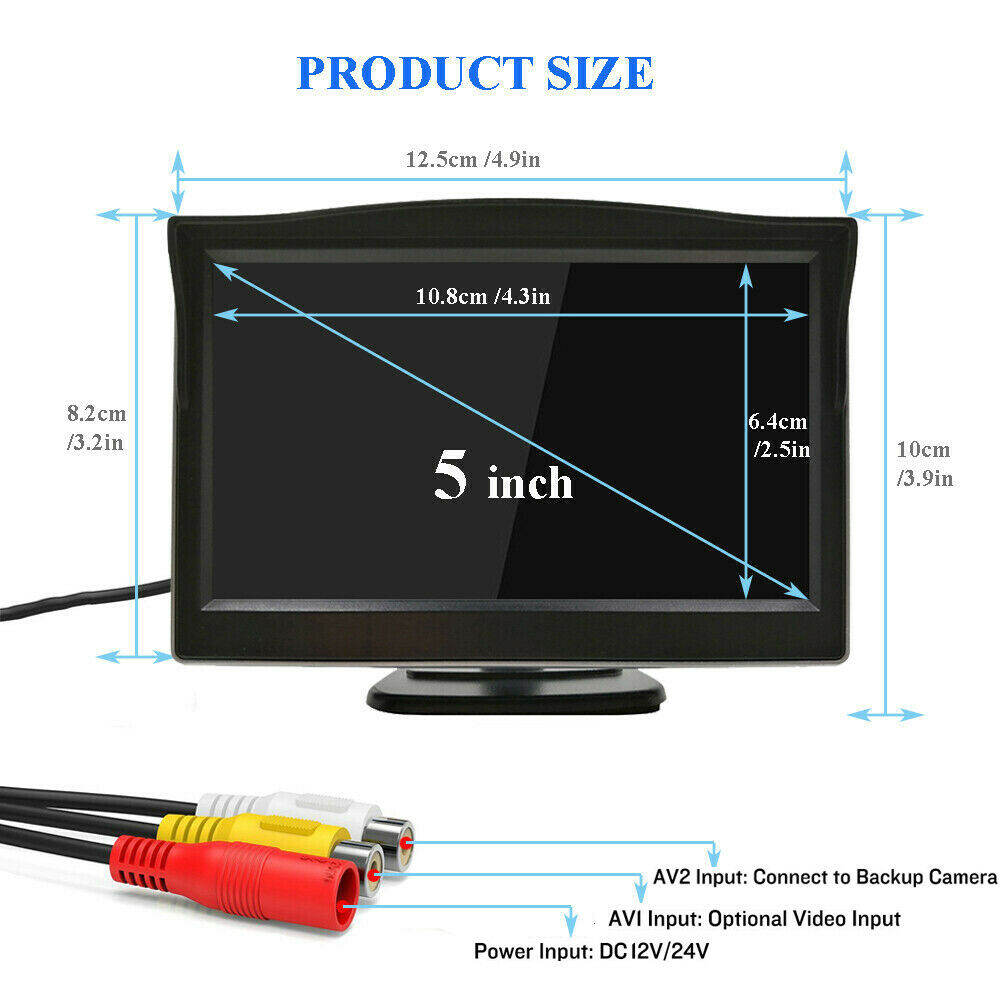

Screen size 5 - inch TFT screen 16: 9
component: color LCD display
number of points: 800w * 480h
CCTV system: PAL / NTSC compatible
Power: DC 12-24V
Rated power consumption: 3W
Operation temperature: - 10 ~ + 50 degrees
Storage temperature: - 20 ~ + 60 ° C

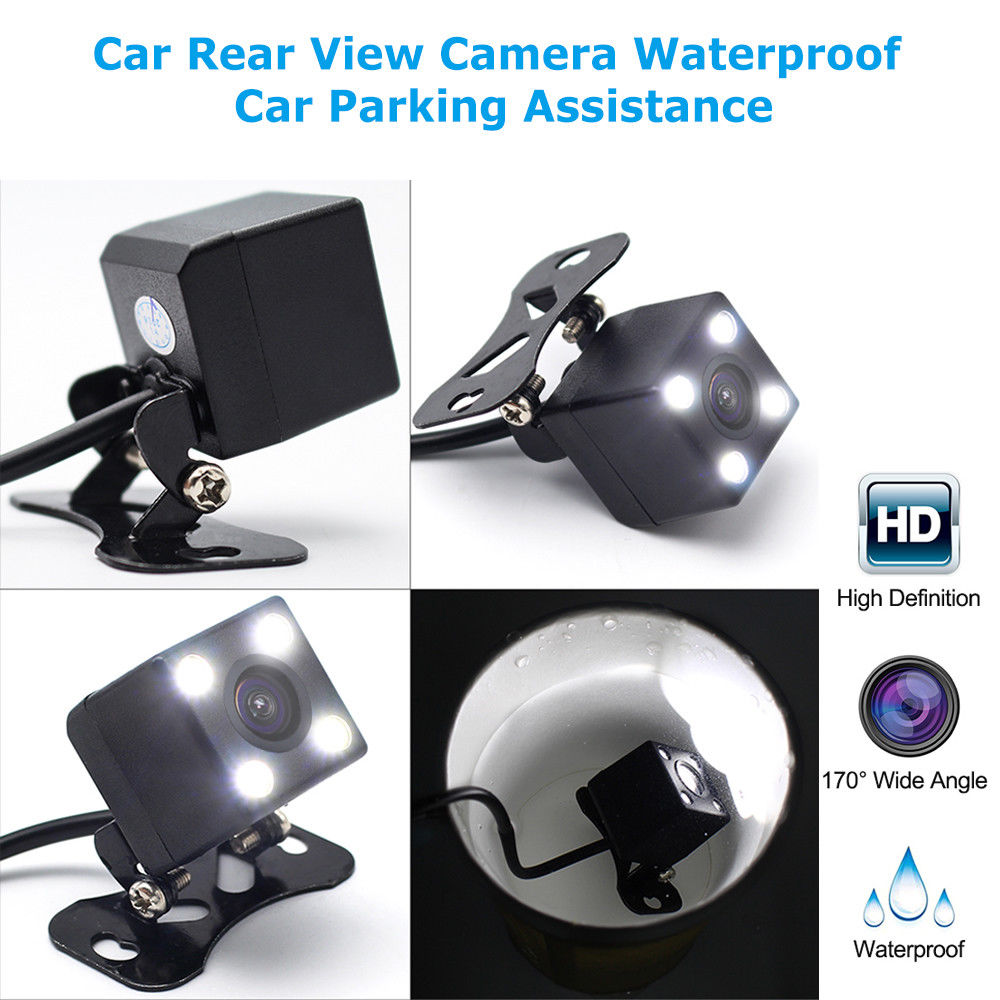

Backup Camera:
* Effective pixels: 880*740
* Image sensors: PC7070
* Lens angle (Deg.): 170 degree
* Minimum illumination: 1.5Lux / F1.2
* S/N ratio: >48dB
* Video output: RCA, 1.0VP - P. 75ohm
* Working voltage: DC12V
* Type: Rear View Camera
* Waterproof level: IP68
* Resolution : 520TV lines
* Connectivity : Wire
* Video format: NTSC, PAL
* S/N Ratio: 48Db
* Operation Temperature: -20°C+80°C RH95%
* Storage Temperature: -30°C+80°C
* Working Power (DCV): 12V
* Current consumption: 90mA Max
How to install :
* Fix the camera to a special design hole in your car.
* Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power.
* Connect the power of the camera to your car reverse lights - red wire to positive and black wire to negative.
Connect the video cable of the camera to the extension cord.
* Connect the extension cord to your car monitor.
* You will see the images when your car is in reverse shift.
=>Take out your stock license plate light at the back of your car
=>Fix the camera to where the stock license plate light was.
=>You will see the images when your car is in reverse shift.
Package including:
1 x 5" TFT LCD Screen Car Monitor

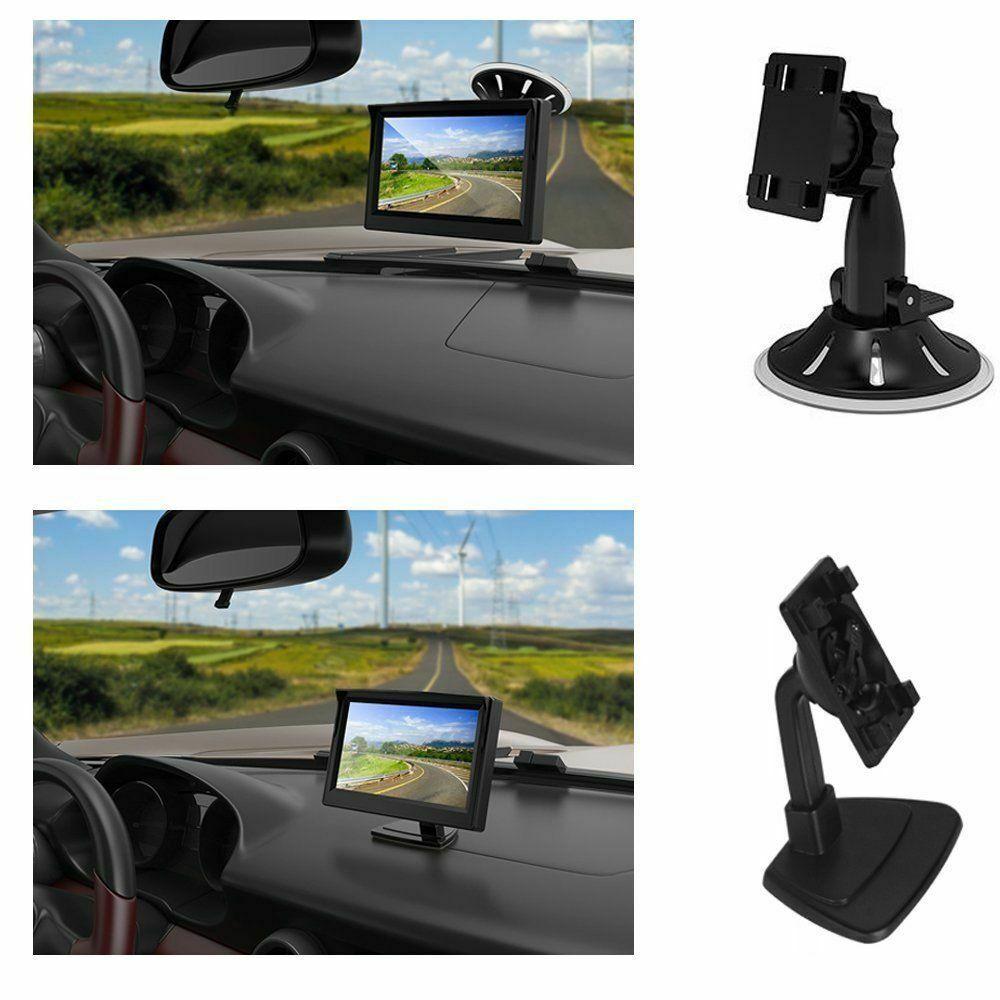

1 x Windscreen Suction Cap
1 x Stand Bracket
1 x Night Vision Waterproof HD Car Rear View Camera
1 x 6m Video Cable
2 x Power Cables
1 x Manual
