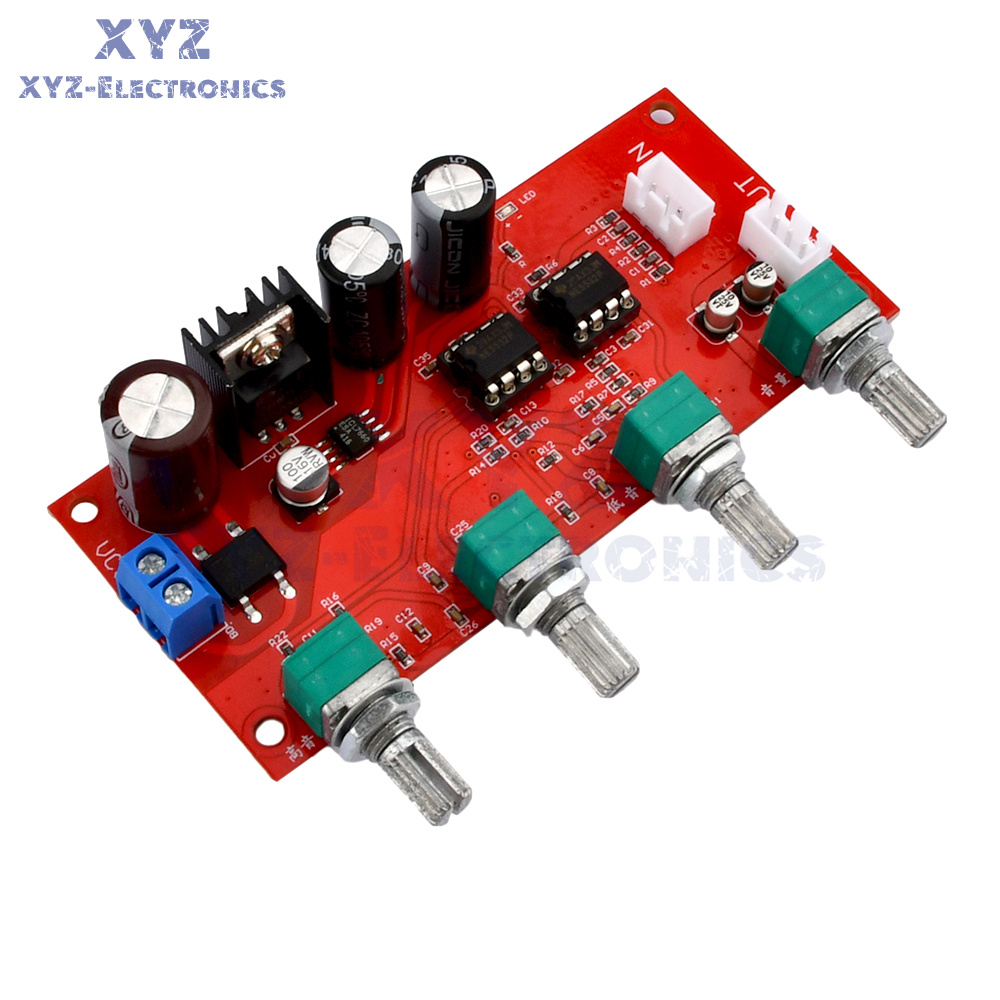

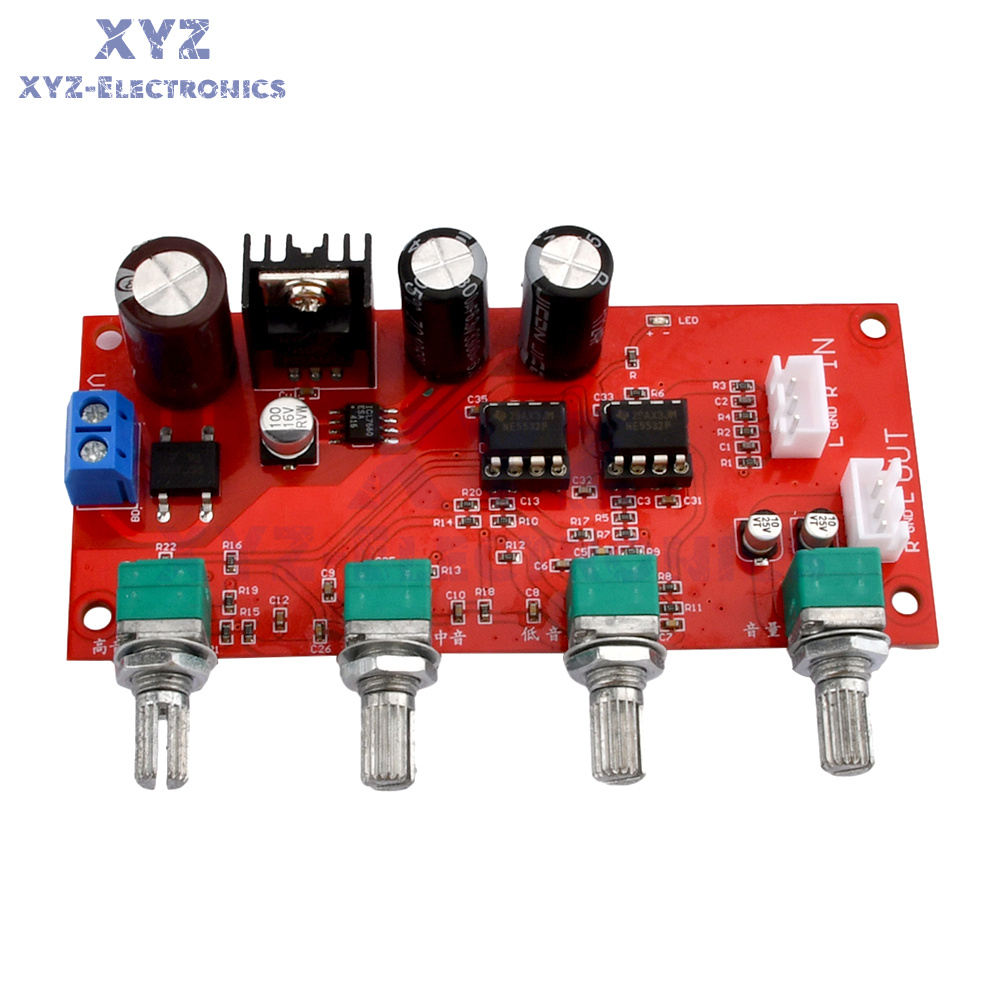

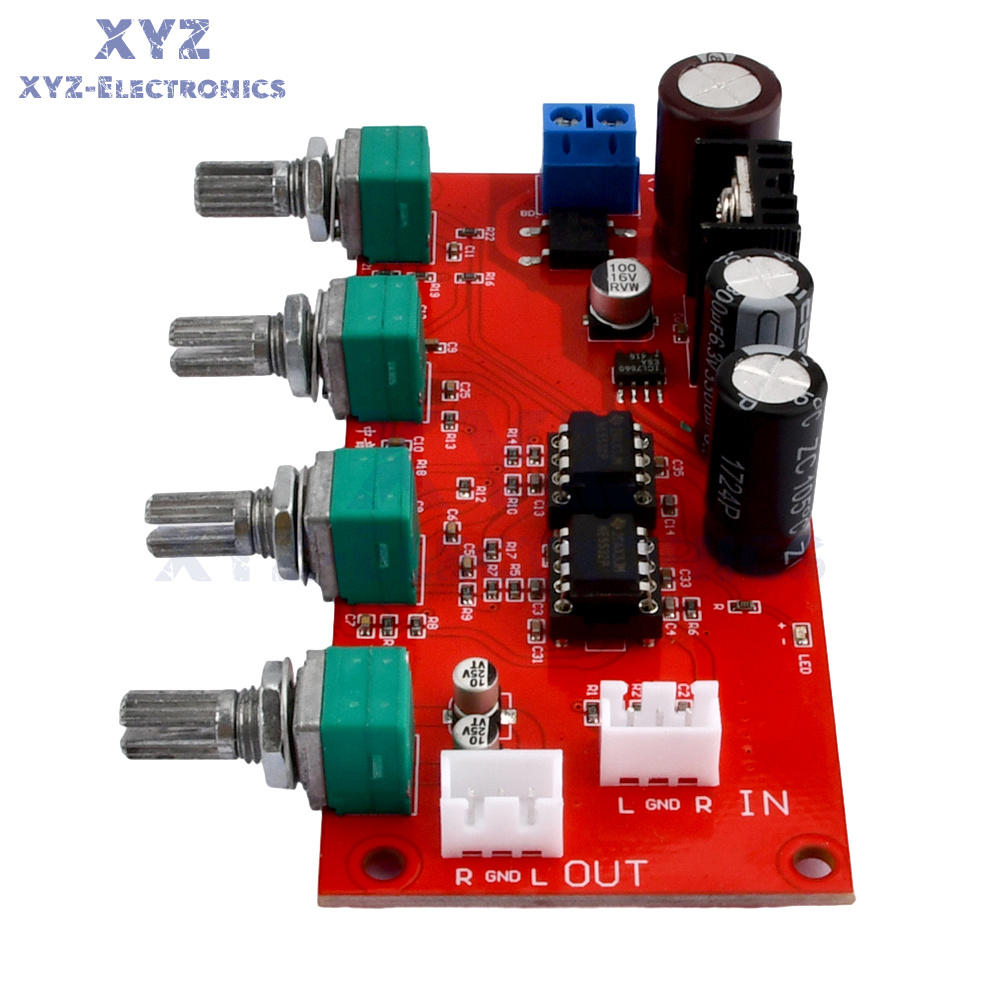

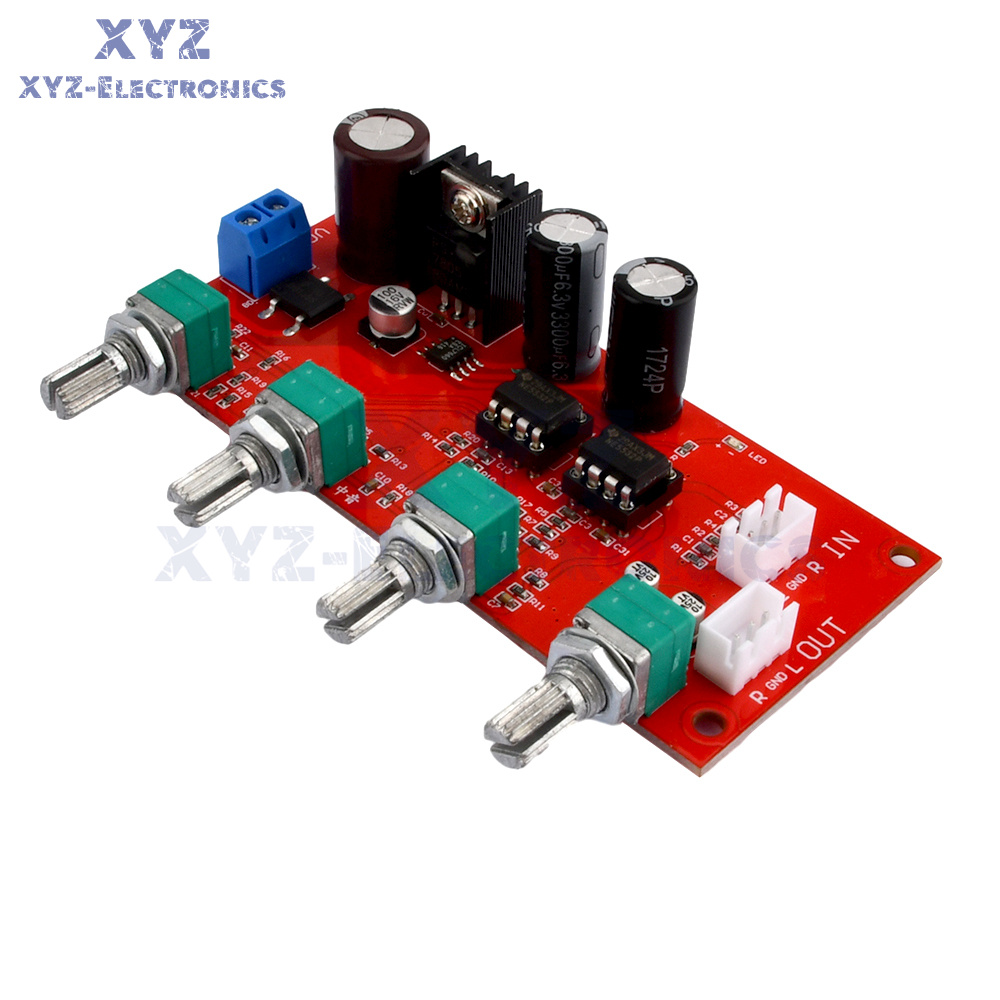

NE5532 Amplifier Board HIFI Stereo Bass Treble Volume Tone Control Preamplifier

Details

Product Feature:
1. SMT process production, small volume design, exquisite and beautiful appearance
2. Single power supply, the tone board adopts a fever level operational amplifier NE5532
3. The separated version of potentiometer is easy to install, and is not limited by the spacing between casings
4. AC/DC dual purpose, more convenient to use
5. Wide application range

Parameters:
Working voltage: AC3V-16V/DC5V-24V
Board size: 100mm * 45mm (excluding the protruding part of potentiometer)
Overall height of the board: about 23mm
Spacing of 4 potentiometer: 25mm (fixed version of potentiometer)

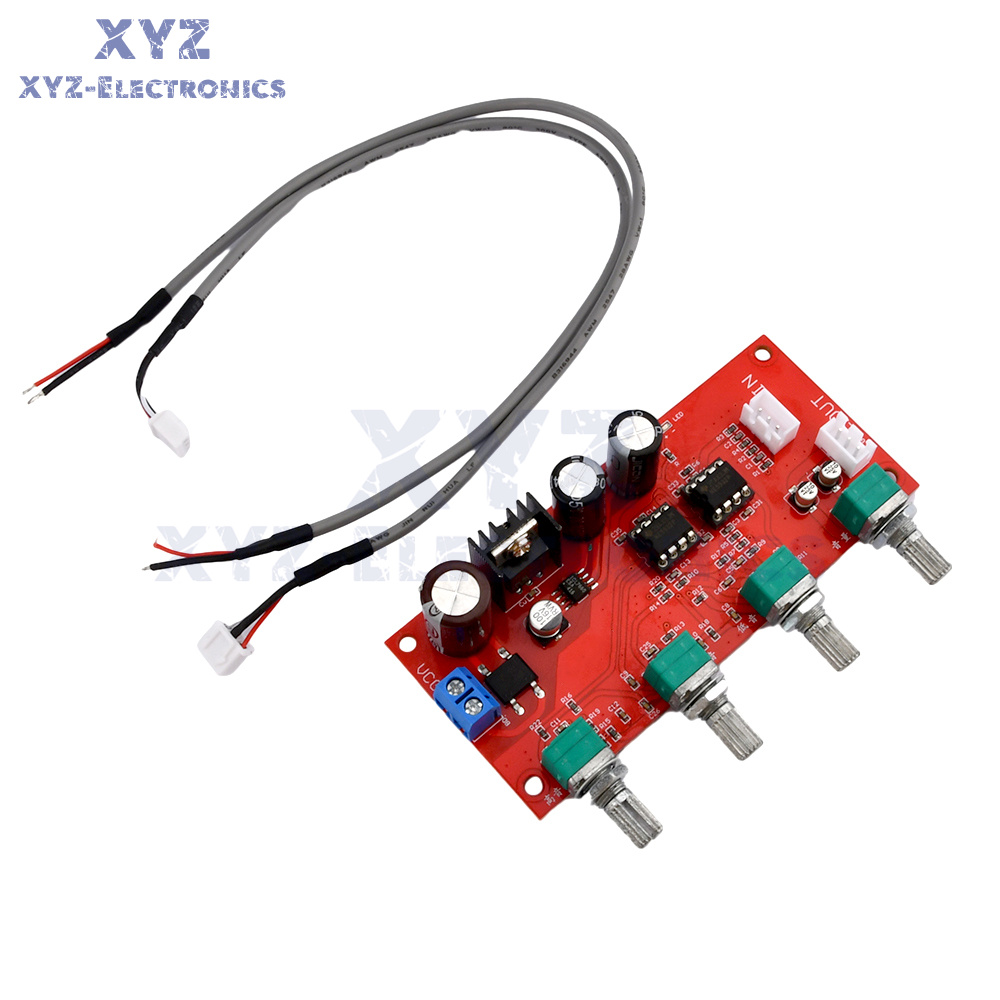

Input/output signal line length 300mm

be careful:

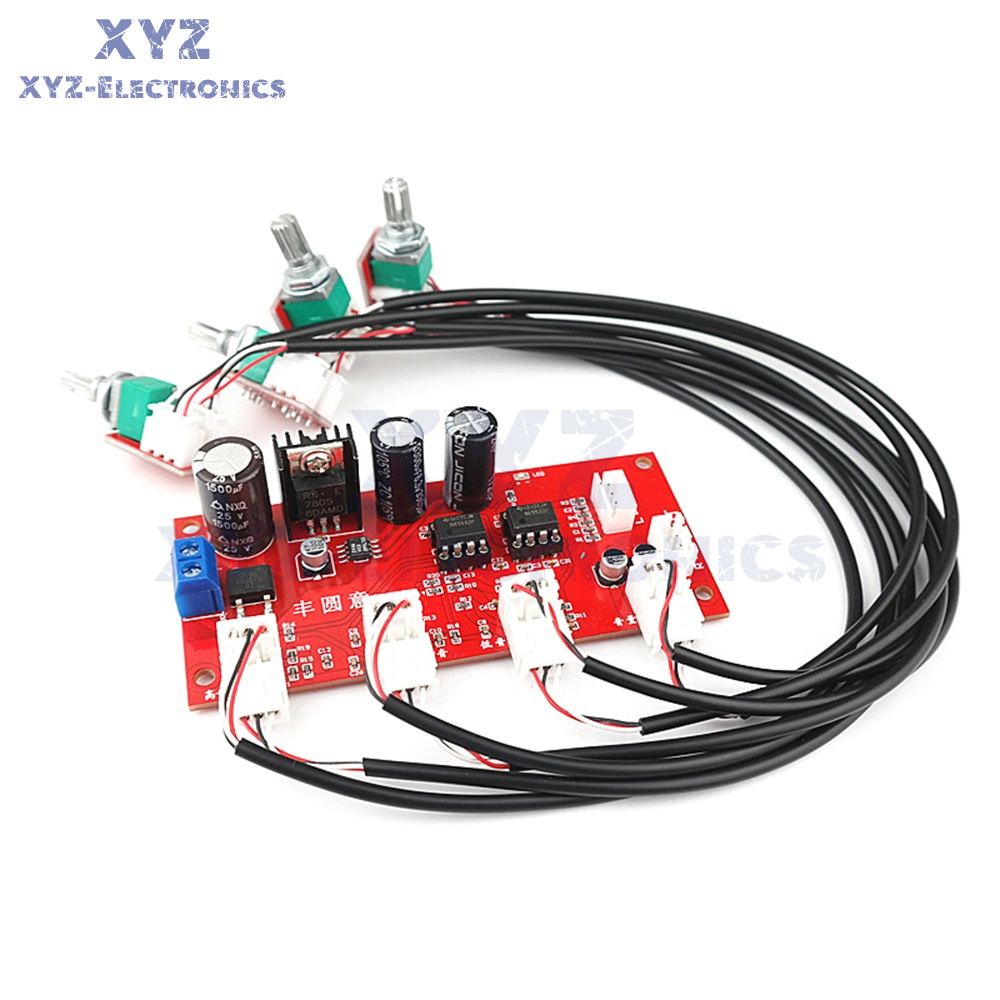

The connecting wires of the separated version of the potentiometer (two connecting wires of the same potentiometer) cannot be replaced at will, otherwise the work will be abnormal.
The four separate versions of potentiometer may be put together when they are shipped. You can break them when you buy them
The operational amplifier is equipped with a gold-plated circular hole socket. If you feel that the operational amplifier is not hot enough, you can replace it with a better operational amplifier chip yourself

Package list
Tone board * 1
Input/output signal line * 2
