Coilovers Kit for BMW 1 Series E82 Coupe 2008-2013 incl. Front camber plates

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

Technical Details

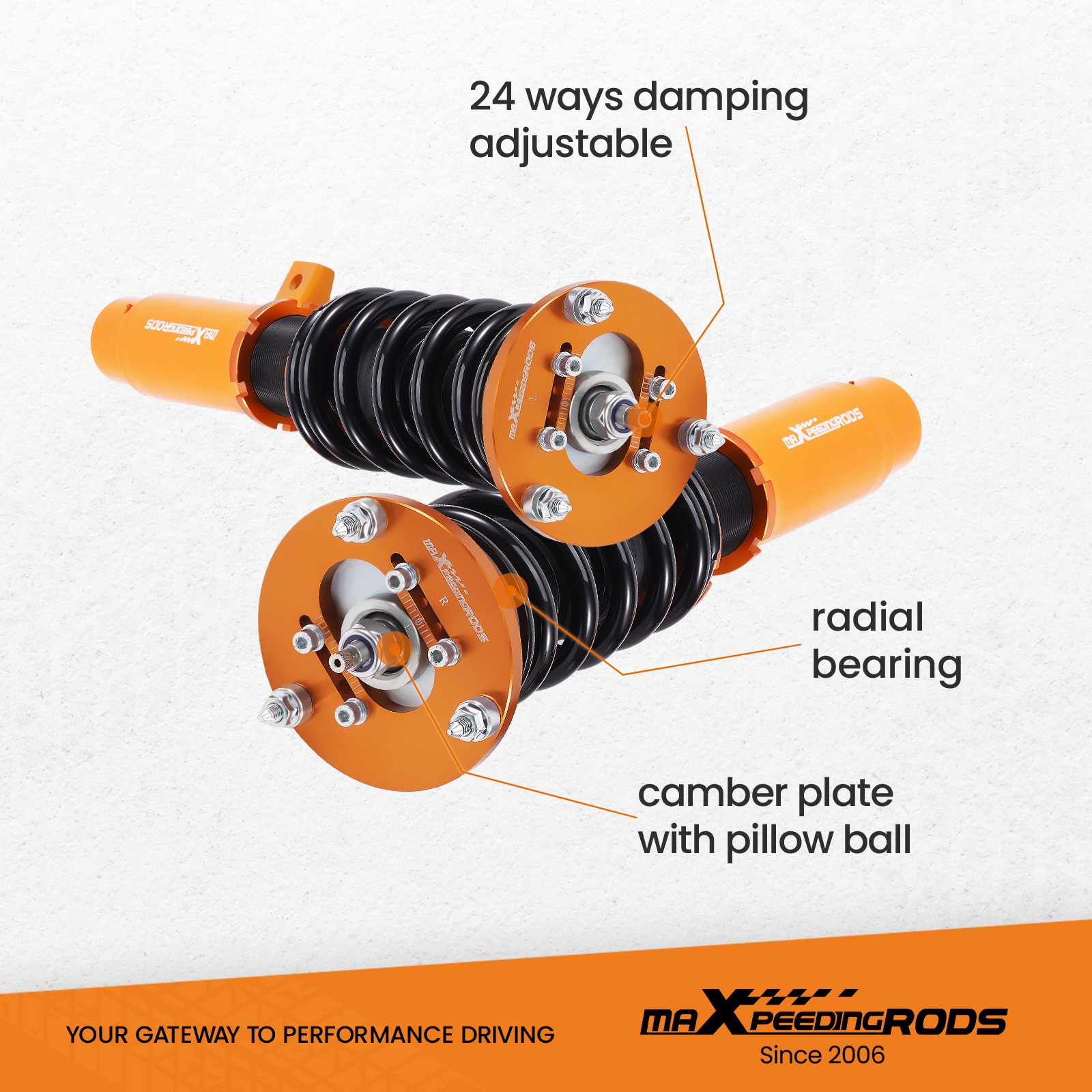

Damping Adjustable

24 levels of adjustable damping force

adjust the Softness/Hardness to your preference

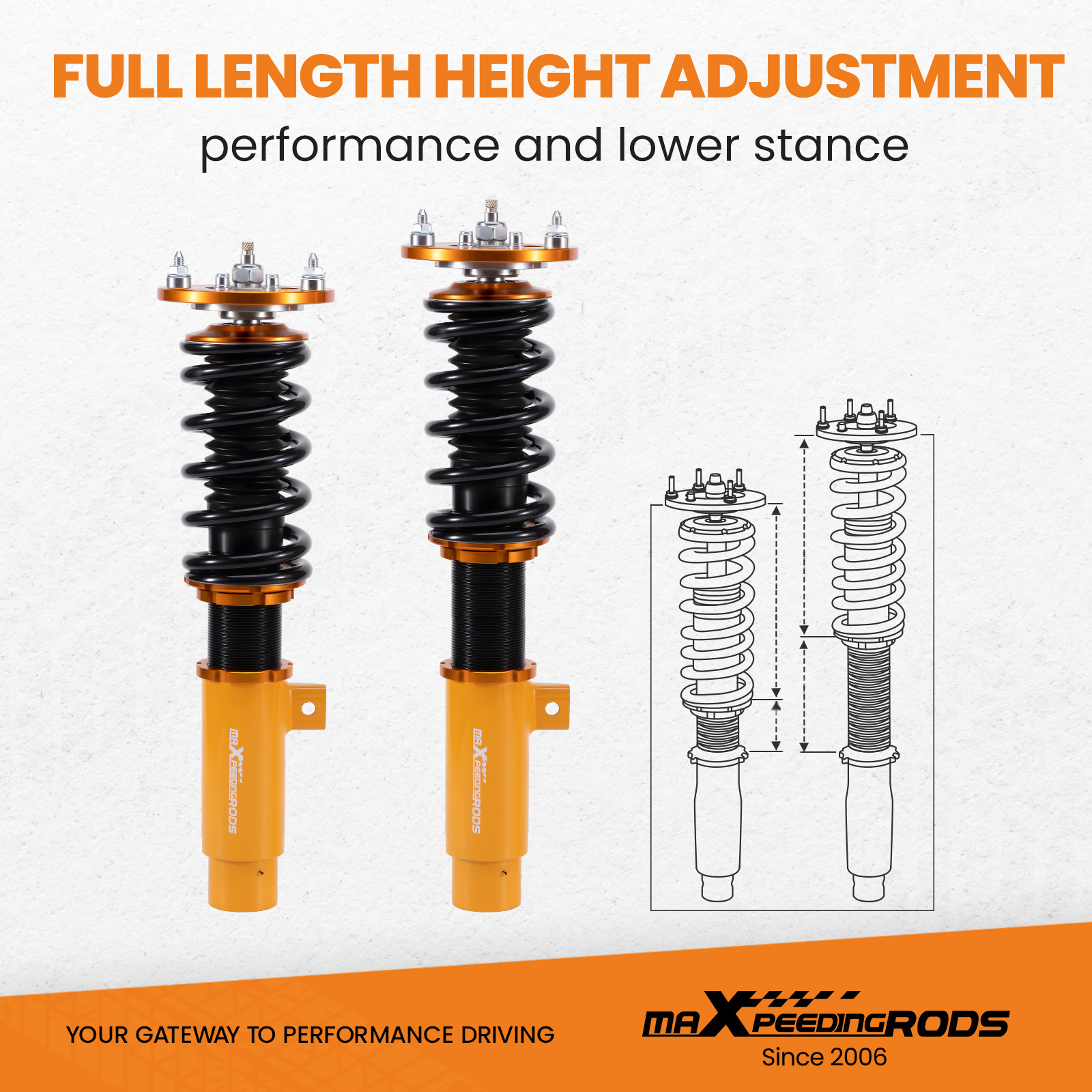

Adjsustable Ride Height

lowering 25-75mm

depending on the vehicle models

Height adjustment via bottom mount to retain full damper travel

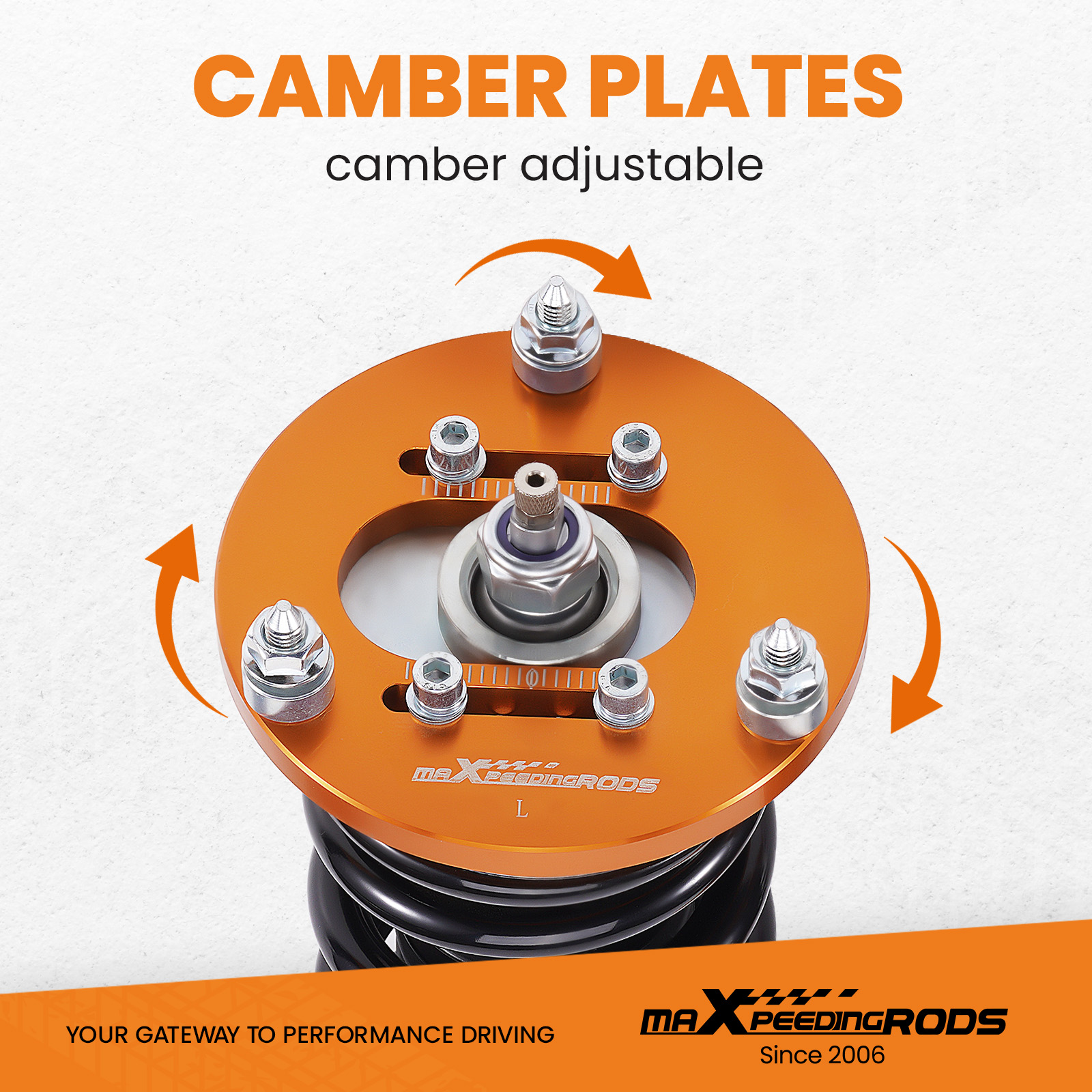

Aluminum Top Mounts

pillow ball bearing camber plate (Front)

Rear top mounts: OE top mount required

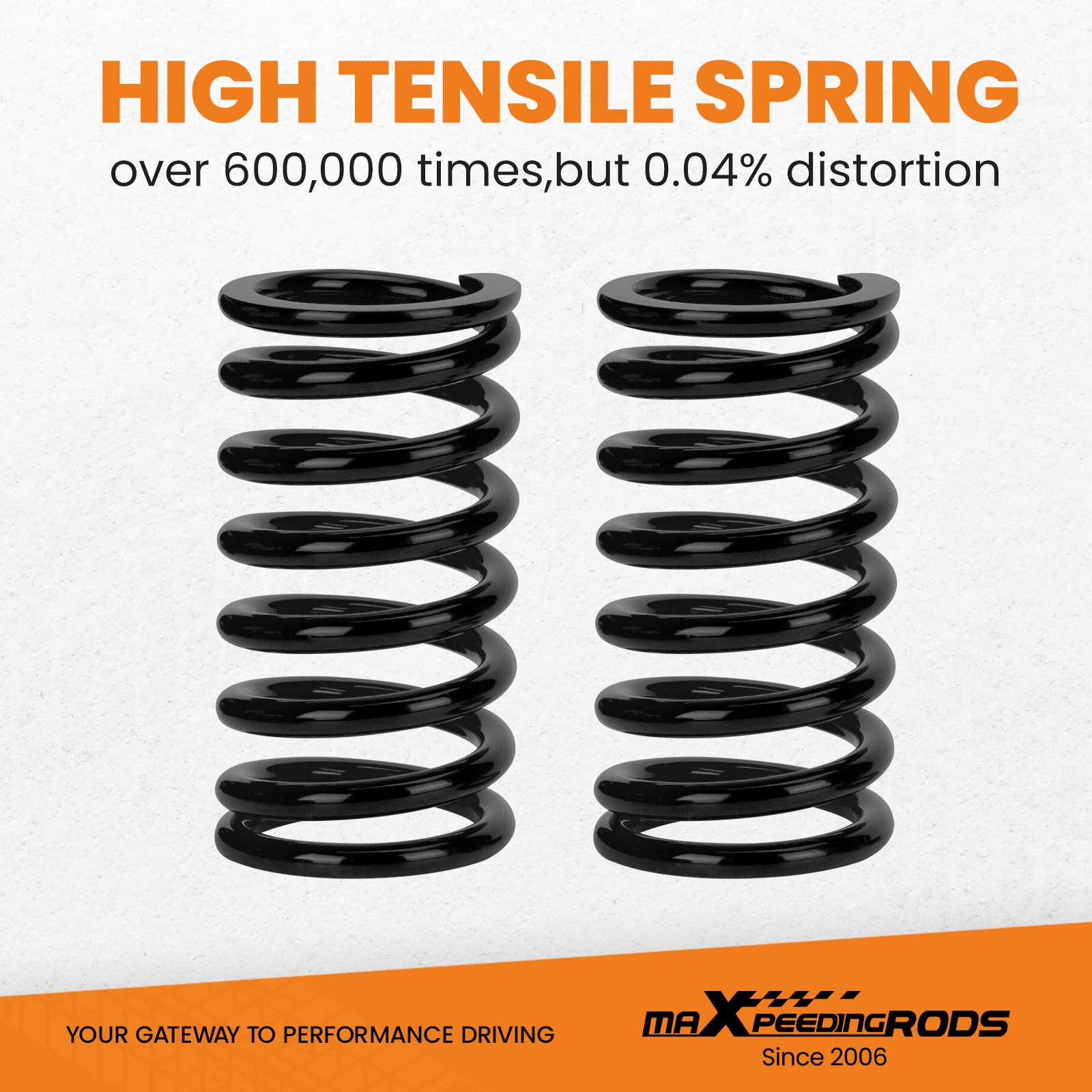

High Tensile Performance Spring

600,000 times continuously test to assure its high tensile strength

Fitment

for BMW 1 Series E82 2008-2013 Coupe

for BMW 1 Series E88 2008-2013 Convertible

118d, 118i, 120i, 120d, 123d, 125i, 128i, 135i

Specifications

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Damping adjustable: Available, 24 levels of rebound damping force
Spring Rate Front: 8 kg/mm (448 lbs/in)
Spring Rate Rear: 12 kg/mm (672 lbs/in)
Front top mounts: pillow ball with camber plate
Rear top mounts: OE top mount required
Camber adjustable: Available, front only
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 62 mm
Spring length Front: 180 mm
Spring length Rear: 230 mm
Spring Preload advised: 7-10 mm

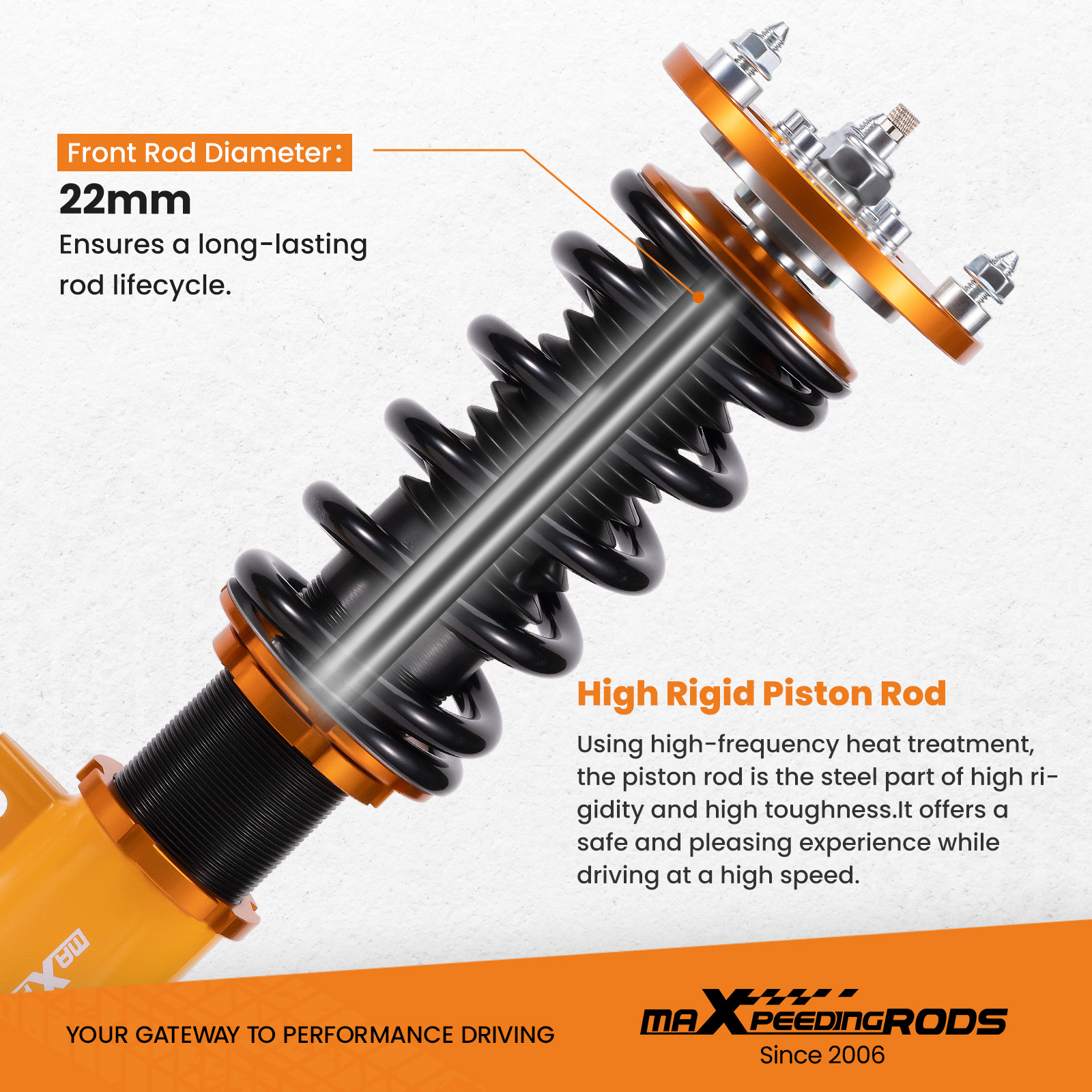

Damping rod diameter Front: Φ 22 mm
Damping rod diameter Rear: Φ 12.5 mm
Twin -tube Diameter Front: 55 mm
Twin -tube Diameter Rear: 50 mm
Damping thread Front: M55×2 mm
Damping thread Rear: M50×1.5 mm
Rod End Thread Front: M14×1.5 mm
Rod End Thread Rear: M12×1.25 mm
Front Coilover Length (Factory Setting): 440 mm / 17.32"
Rear Coilover Length (Factory Setting): 600 mm / 23.62"
Front Collapsed Length: 400 mm / 15.75"
Front Extended Length: 490 mm / 19.29"
Rear Collapsed Length: 540 mm / 21.26"
Rear Extended Length: 650 mm / 25.59"

maXpeedingrods B3 Coilovers

maXpeedingrods B3 based on B2 coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions

►24 ways adjustable damping

►Height adjustment via bottom mount to retain full damper travel

►Pillowball upper mount

►Camber adjustable top mounts

►Aluminium top plates

►Dust boot to protect damper seals

►High Rigidity Spring

►Anodized Shock Body with special surface treatment to improve the durability.
