Details
Features:
1. Multiple specifications are available, paired with the ESP-07/ESP-07S module, and the base plate can DIY itself.
2. Supports multiple sleep modes, with standby power consumption as low as 1.0MW.
3. Built in ultra low power 32-bit micro MCU, with main frequency support of 8O MHz and 160 MHz.
4. Complete 802.11b/g/n Wi Fi SOC module.
5. Support secondary development and use in multiple scenarios.
Parameter:
ESP-07:
Module model: ESP-07
Packaging form: SMD16 patch
Module size: 21.2 * 16 * 3mm ± 0.1 mm
SPI FLASH: 32 Mbit default
Supported interfaces: UART/GPIO/ADC/PwM
Available I0 port: 9
Serial port speed: 4608000bps, supports 300-460800obps, defaults to 115200bps
Spectrum range: 2.4GHz, 2412-2484MHz
Antenna form: ceramic/IPEX, onboard ceramic antenna and IPEX, both cannot be used simultaneously
Transmission power: 802.11b: 16 ± 2dBm; 802.11g: 14 ± 2dBm; 802.11n: 13 ± 2dBm;
Security: WEP/WPA PSK/WPA2 PSK
Power supply range: 3.3V, 3.0-3.6V, current>300mA
Working temperature: -20 ℃~+85 ℃
AT support: built-in intelligent processing, which can be read through AT command commands
Complete 802.11b/g/n Wi Fi SOC module
Built in 1 channel 10 bit high-precision ADC
Support UART/GPIO/PWM interface
Integrated Wi Fi MAC/BB/RF/PA/LNA
Supports multiple sleep modes, with standby power consumption as low as 1.0mW
Serial port speed up to 4Mbps
Smart Config (APP)/AirKiss (WeChat) one click network distribution with support for Android and IOS
Built in ultra low power 32-bit micro MCU, with main frequency support of 8O MHz and 160 MHz, and support for RTOS
Embedded Lwip protocol stack
Support STA/AP/STA+AP working mode
Universal AT commands can be quickly used
Supports local serial port upgrade and remote firmware upgrade (FOTA)
Supports secondary development and integrates Windows and Linux development environments
ESP-07S:
Module model: ESP-07S
Packaging form: SMD22 chip
Module size: 17 * 16 * 3mm ± 0.2 mm
SPI FLASH: 32 Mbit default
Supported interfaces: UART/GPIO/ADC/PwM
Available I0 port: 9
Serial port speed: 4608000bps, supports 300-460800obps, defaults to 115200bps
Spectrum range: 2.4GHz, 2412-2484MHz
Antenna form: external
Transmission power: 802.11b: 16 ± 2dBm; 802.11g: 16 ± 2dBm; 802.11n: 16 ± 2dBm;
Security: WEP/WPA PSK/WPA2 PSK
Power supply range: 3.3V, 3.0-3.6V, current>500mA
Working temperature: -20 ℃~+85 ℃
AT support: built-in intelligent processing, which can be read through AT command commands
Complete 802.11b/g/n Wi Fi SOC module
Built in 1 channel 10 bit high-precision ADC
Support UART/GPIO/ADC/PWM/SPI/I2C interfaces
Supports multiple sleep modes, with deep sleep current as low as 20uA
Integrated Wi Fi MAC/BB/RF/PA/LNA
Supports multiple sleep modes, with standby power consumption as low as 1.0mW
Serial port speed up to 4Mbps
Smart Config (APP)/AirKiss (WeChat) one click network distribution with support for Android and IOS
Embedded Lwip protocol stack
Support STA/AP/STA+AP working mode
Universal AT commands can be quickly used
Supports local serial port upgrade and remote firmware upgrade (FOTA)
Supports secondary development and integrates Windows and Linux development environments
Built in Tensilica L106 ultra low power 32-bit micro MCU, with main frequency support of 80 MHz and 160 MHz, and support for RTOS

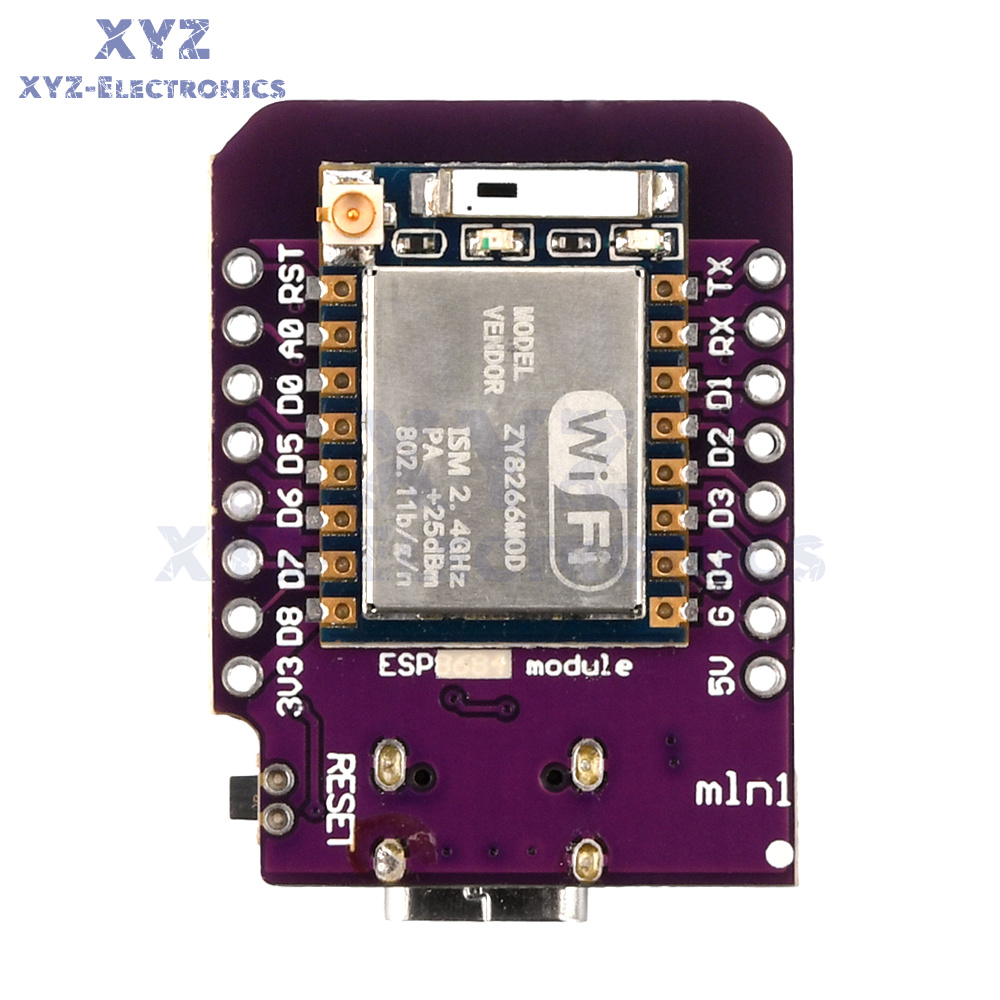

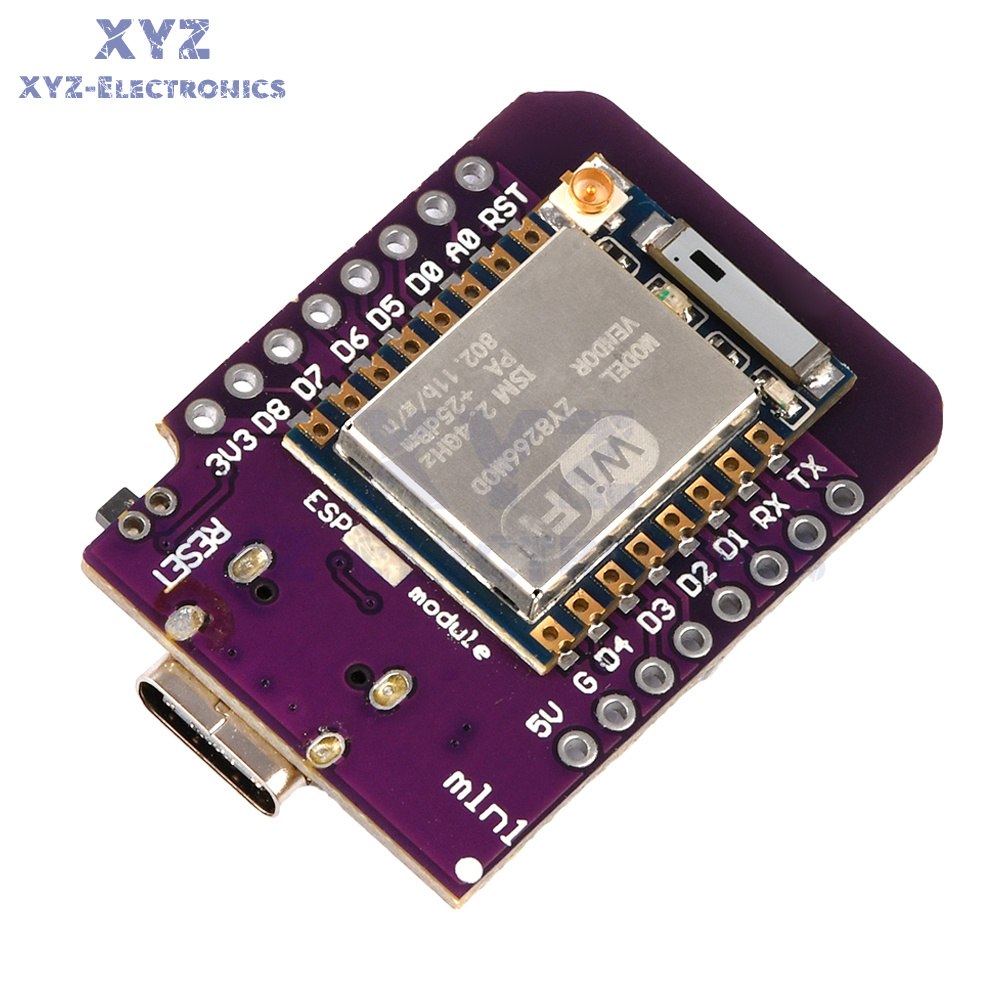

D1 mini base plate:
Color: Purple
Working voltage: 5V
WIFI standard: 802.11 b/g/n
Working mode: STA/AP/STA+AP
Based on ESP-8266EX
11XI/O pin
1XADC pin (input 0-3.3V)
Support OTA launch
Onboard 5V 1A switching power supply (maximum input 24V)
Size: 34mm * 26mm * 5mm

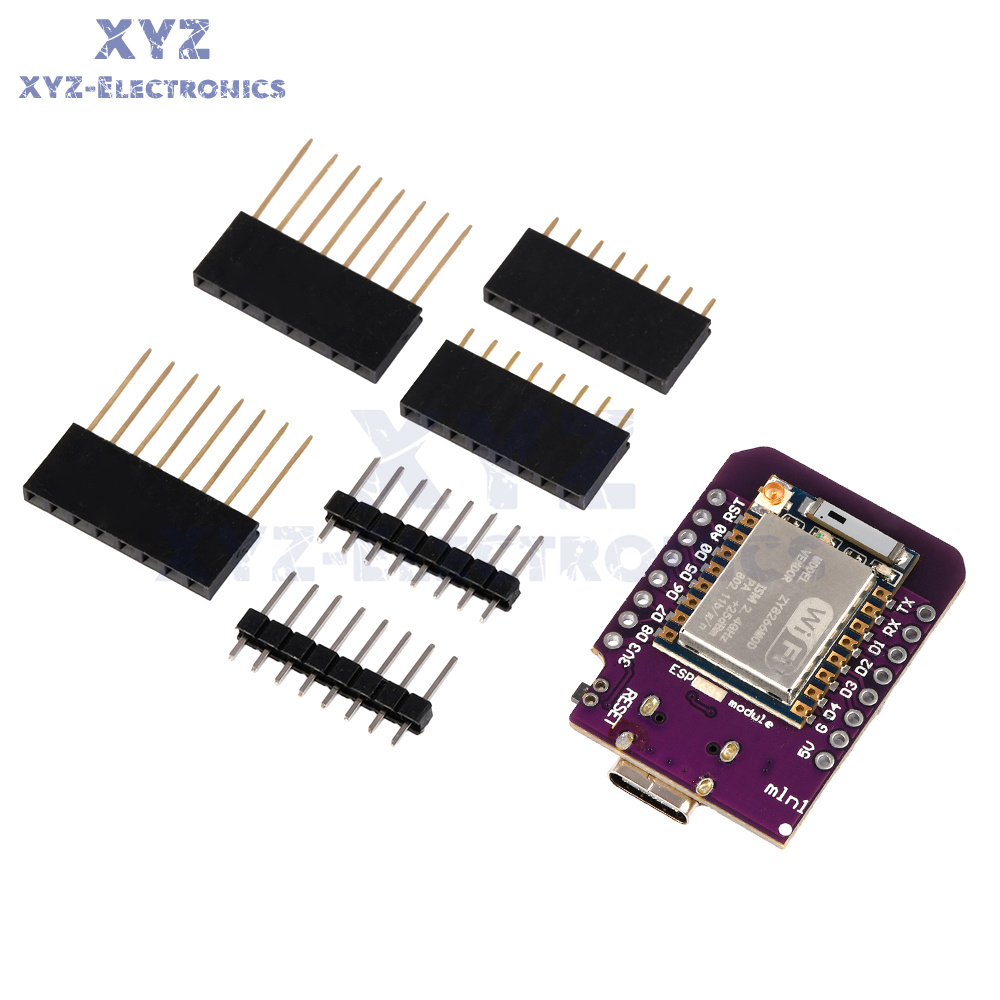

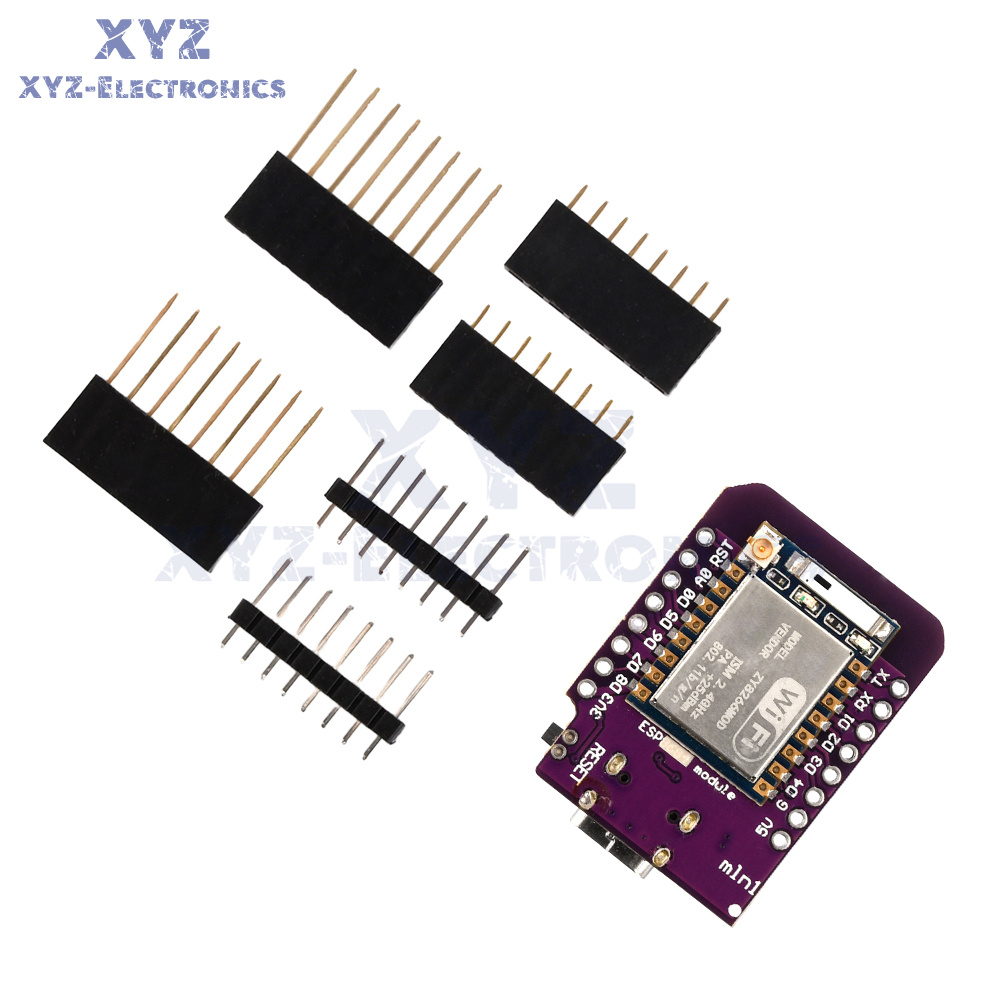

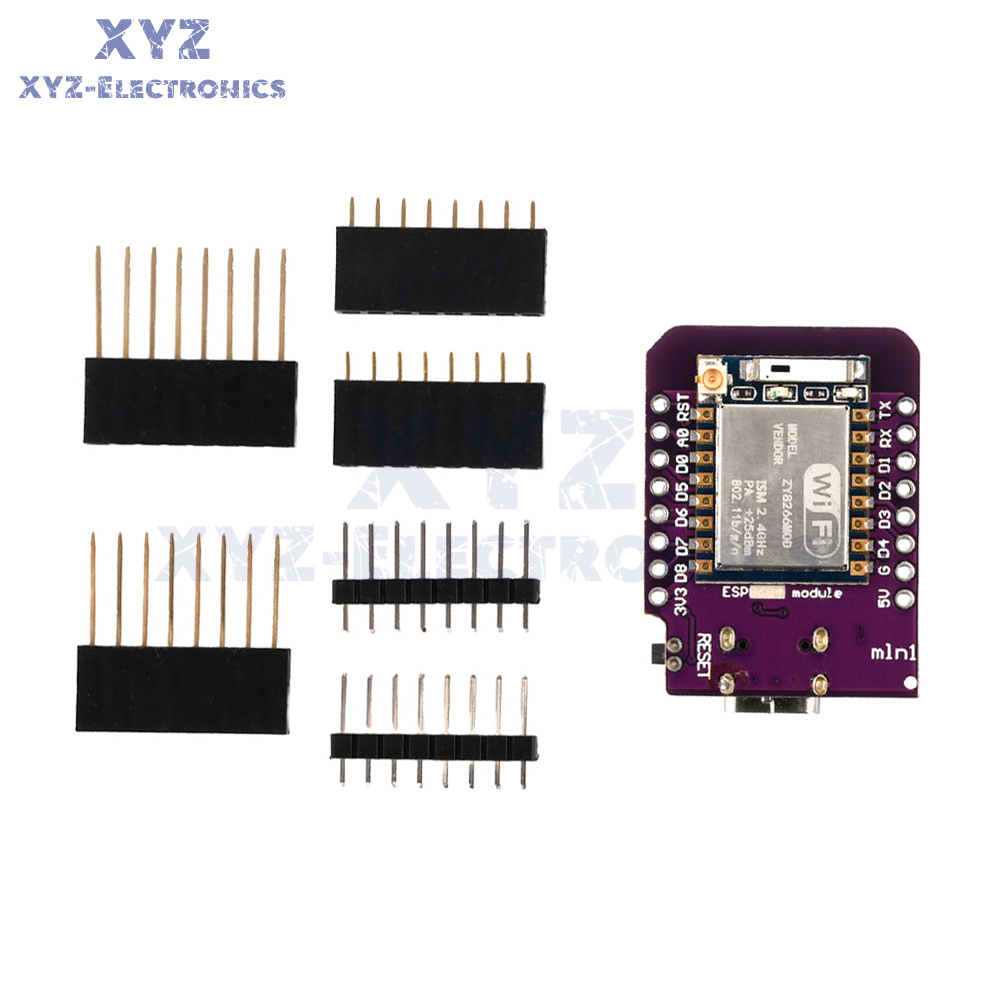

Package include:
1X module

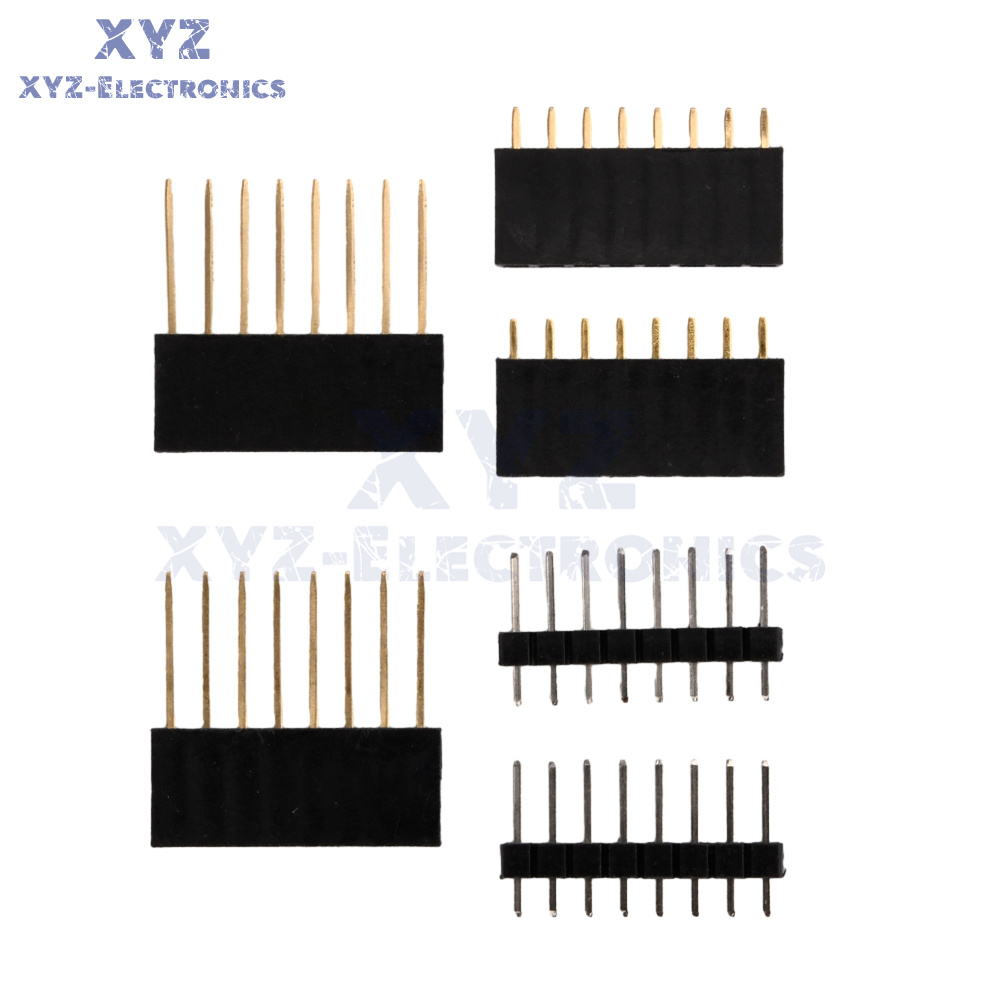

6X row pin
