Details
1. Use of high quality materials, durable
2. Easy to operate, full digital keyboard remote control
3. Precise details, high quality power supply

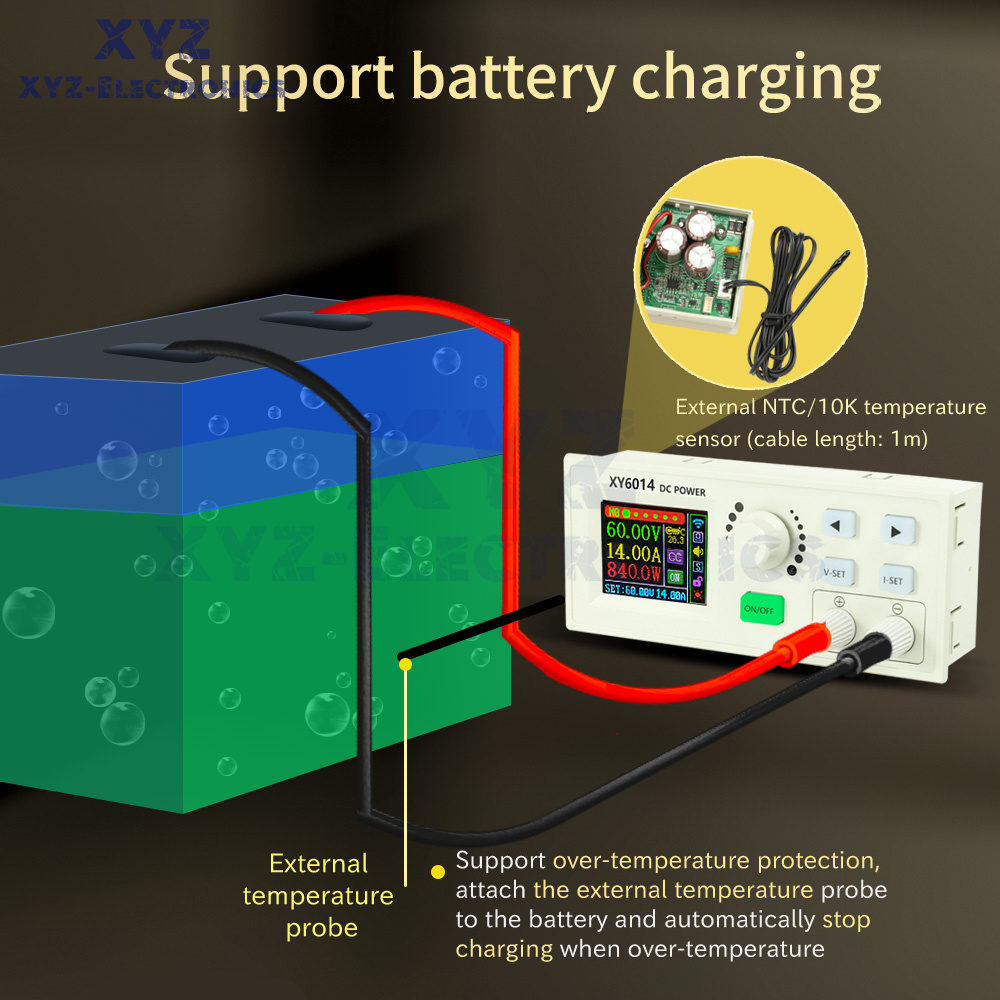

4. Support over-temperature protection, the external temperature probe will be attached to the battery over-temperature automatic stop charging
5. Wide range of use
Input voltage range: 6-70.00V
Output voltage range: 0-60.00V
Output current range: 0-15.50A
Output power range: 0-900W
Input voltage measurement resolution: 0.01V
Output voltage setting measurement resolution: 0.01V
Current setting measurement resolution: 0.01A
Input voltage measurement accuracy: ±(1% + 5 words)
Output voltage setting and measurement accuracy: ±(0. 4% + 1 word)
Output current setting and measurement accuracy: ±(0. 5% + 3 words)
Output ripple typical value: 100mV VPP
Operating temperature range: -10°C- 40°C
Capacity measurement range: 0-99999Ah
Energy measurement range: 0- 9999Wh
Statistical error of capacity and energy: ±2%
Operating time measurement range: 0-1000h
Maximum output voltage: (input voltage + 1.1)-2
Cooling fan on: Current > 2A Power > 50W Temperature > 50°C
Cooling fan on and then off: current <1.5A power <45W temperature <45°C
Over temperature protection: default 110°C
Screen brightness setting: 0- 5 in 6 levels
Display screen: 1.8" colour LCD
This product has no output reversal protection, the battery positive and negative reverse connection will damage the equipment, no anti-backflow function.
Battery charging requires some expertise, non-professionals please do not charge directly to prevent fire and explosion

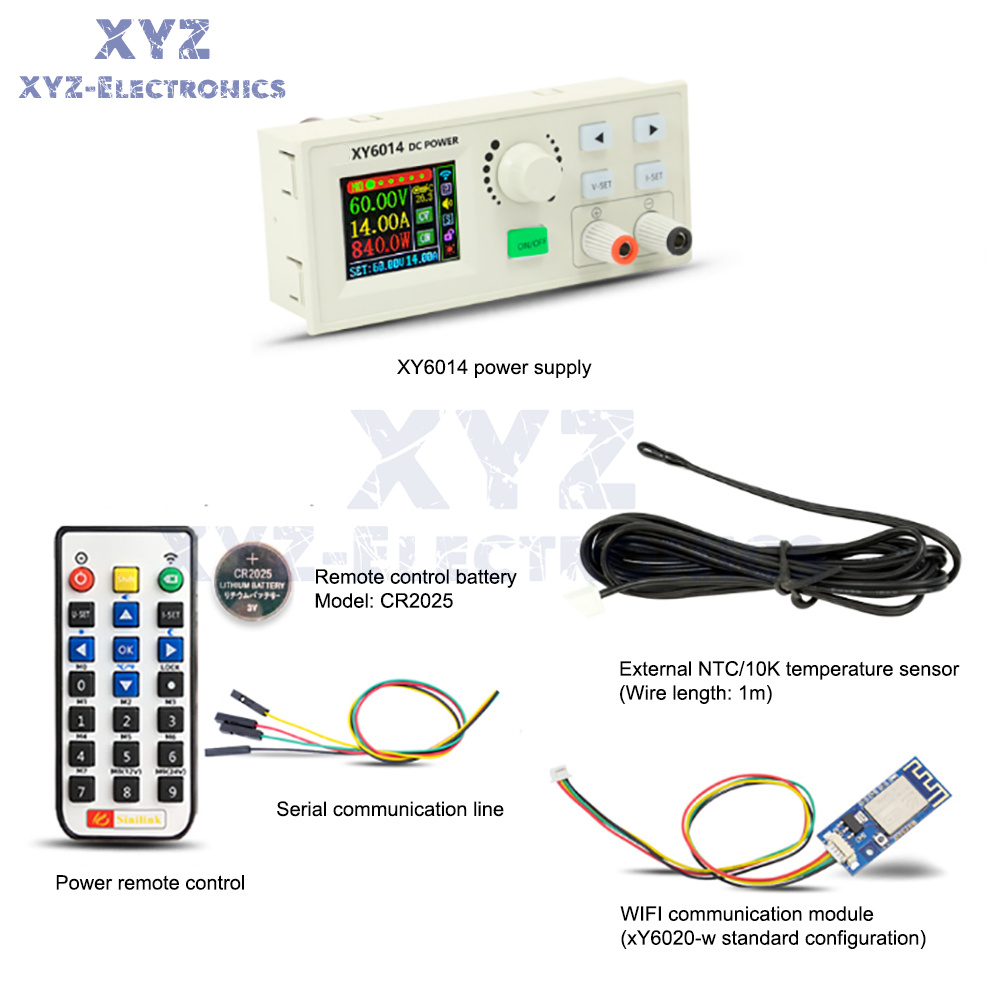

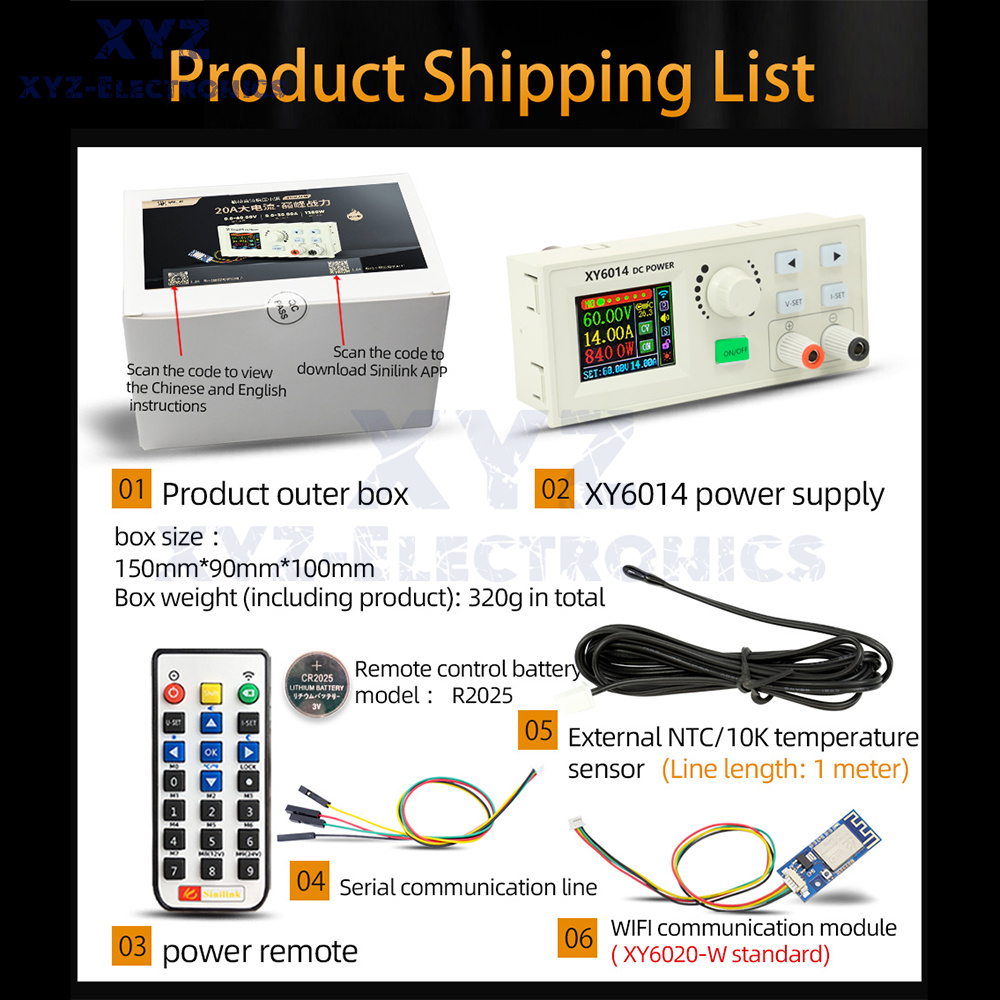

Power supply*1
Remote control*1
1m 10k temperature sensor*1
Serial communication cable*1
wifi communication module*1 (only XY6014-W has it)
