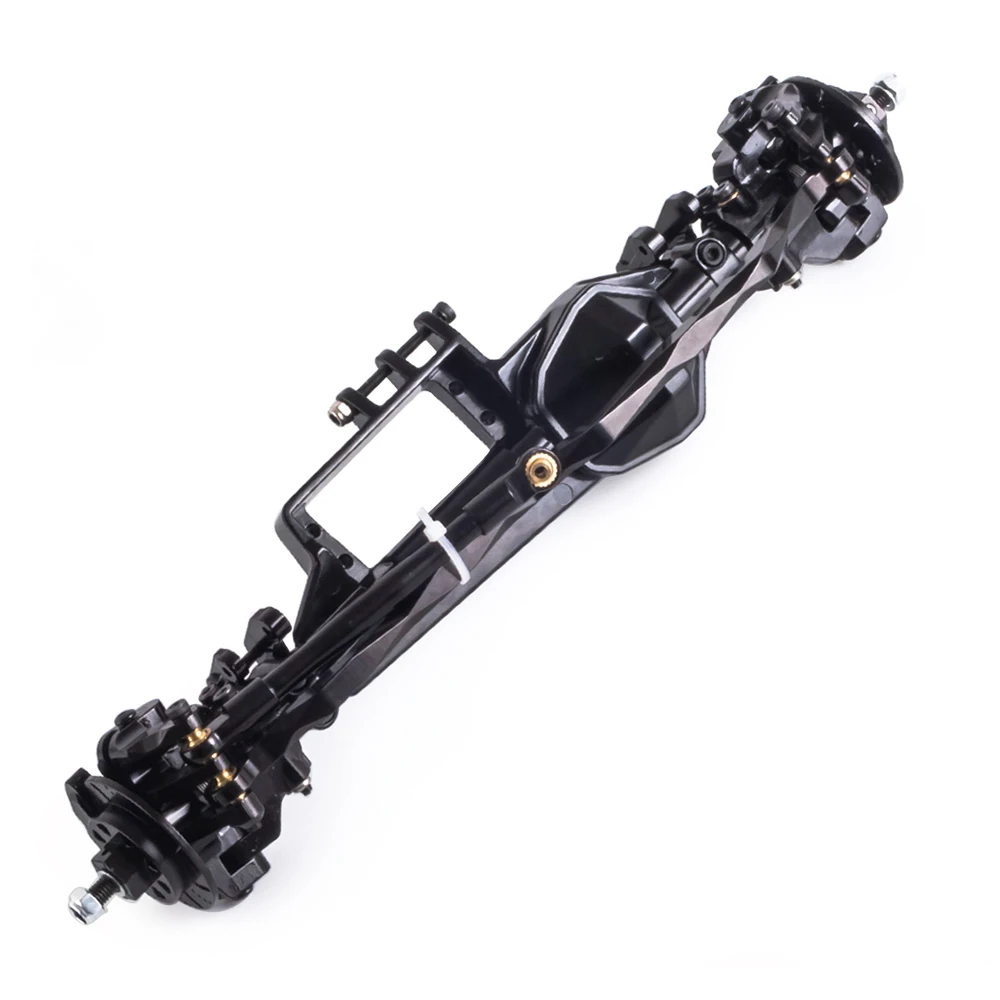

Heavy Duty Metal AR14B Front Rear Axle with 38T/13T Bevel Gear Rotor Caliper for 1/10 RC Rock Bouncer Axial RBX10 Ryft Upgrade
Feature:
Metal front rear axle, compatible with Axial RBX10 Ryft rock bouncer.
Directly replace factory stock plastic parts.
Provide lasting transmission and support.
The heavy duty axle housing can also be used as weights to help lower the center of gravity.

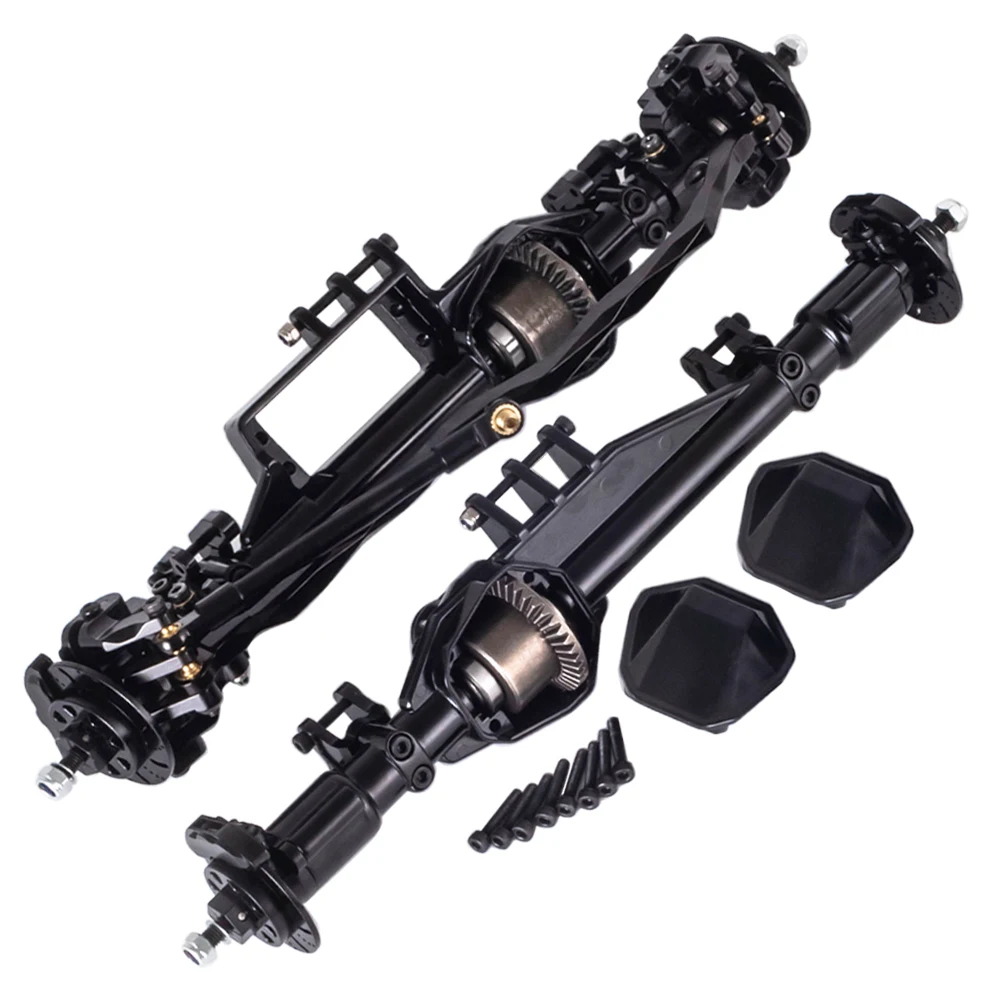

Hardened steel gears.
Hardened steel construction drive shaft.

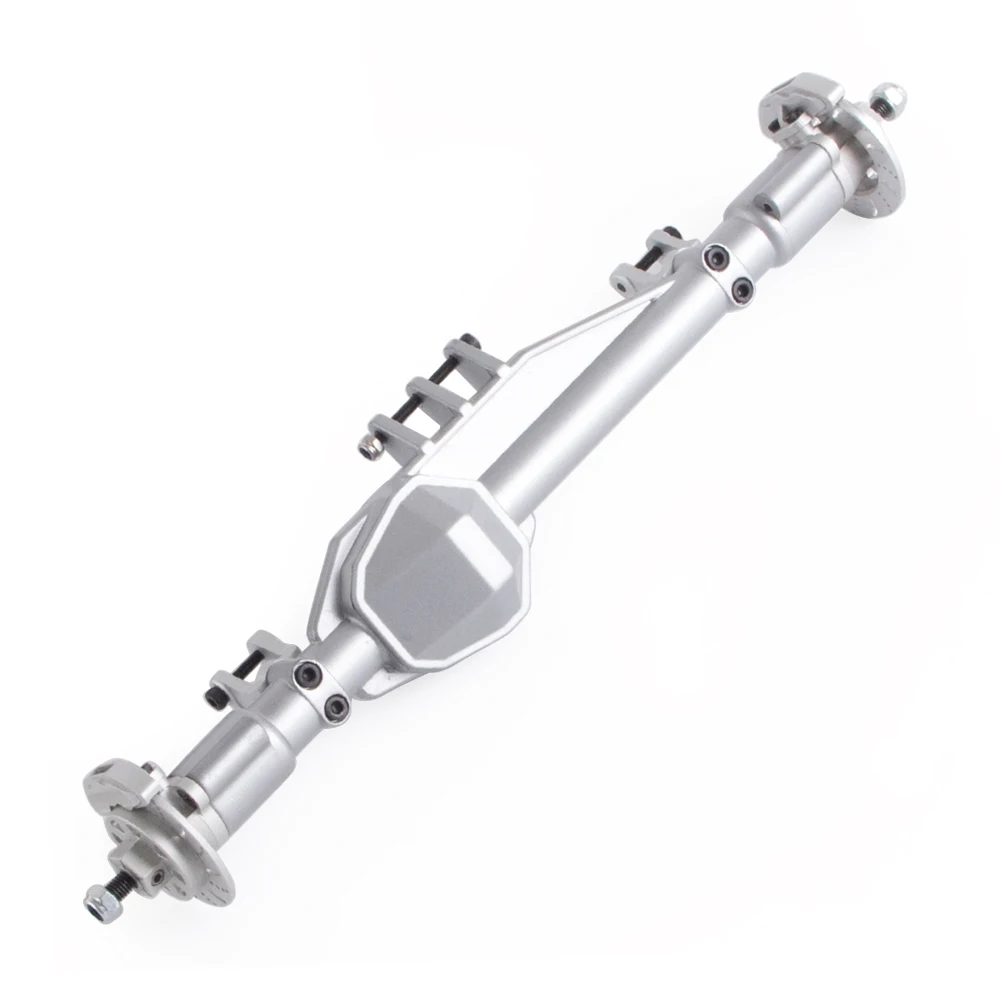

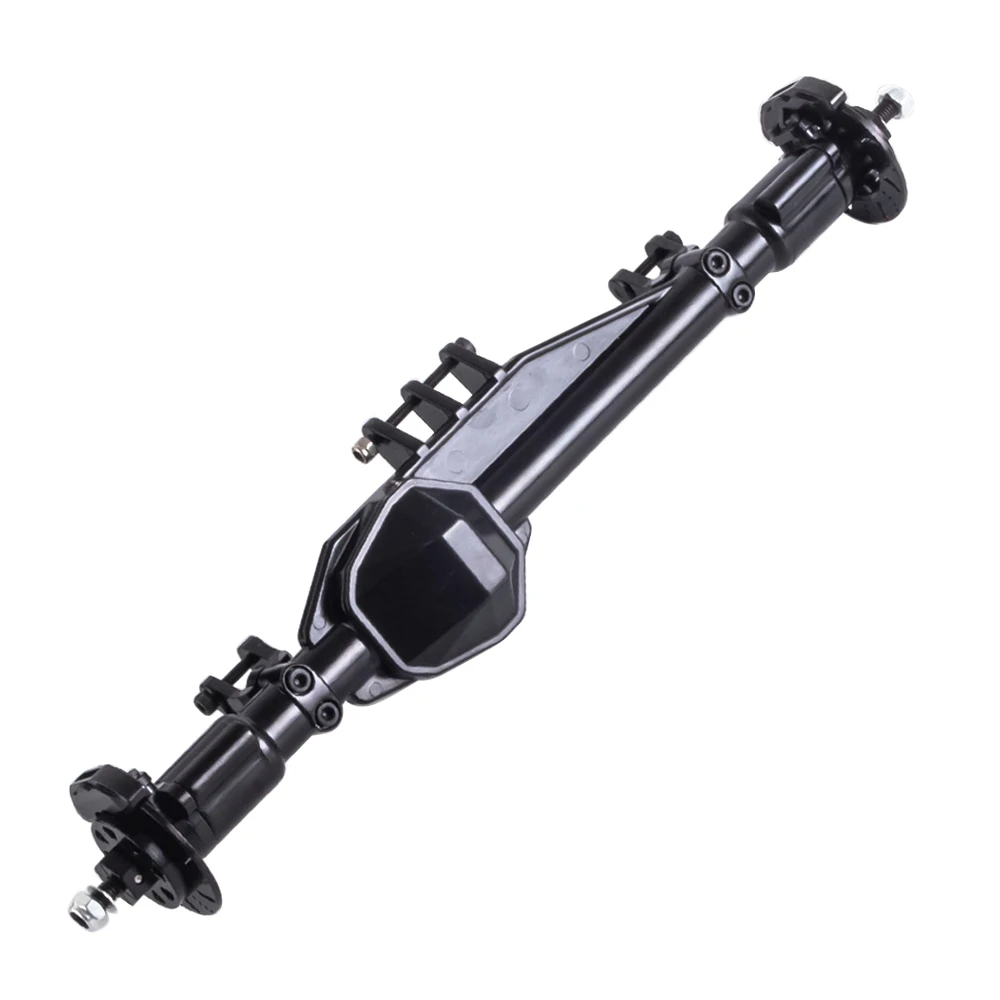

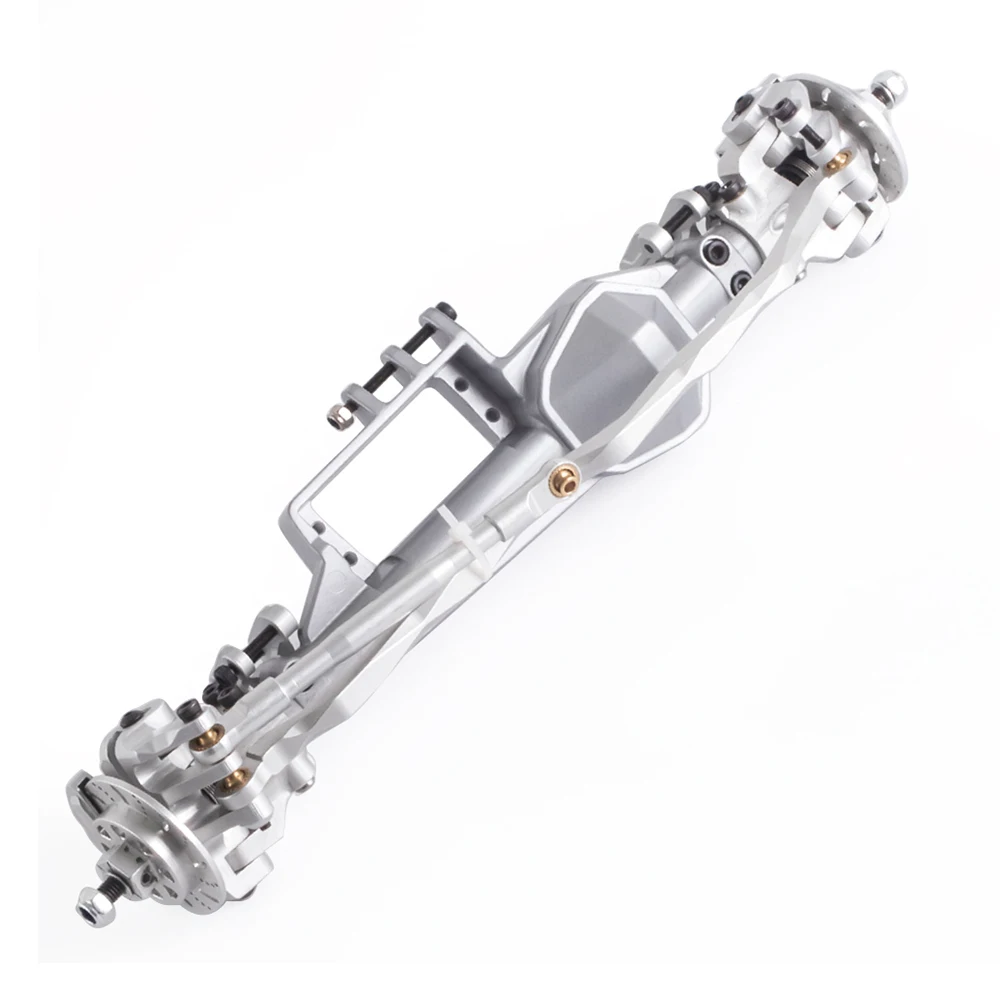

3 colors available.

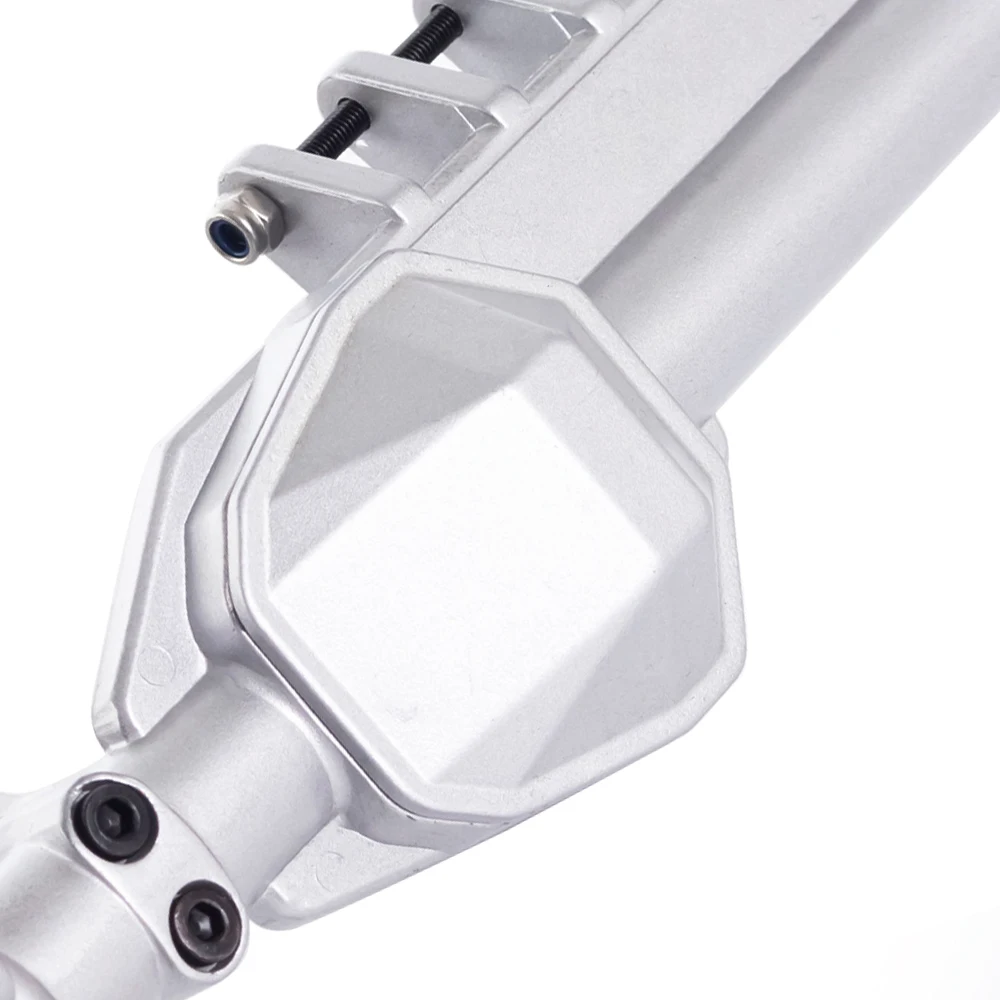

Main axle housing is quality heavy duty alloy, integrally cast.

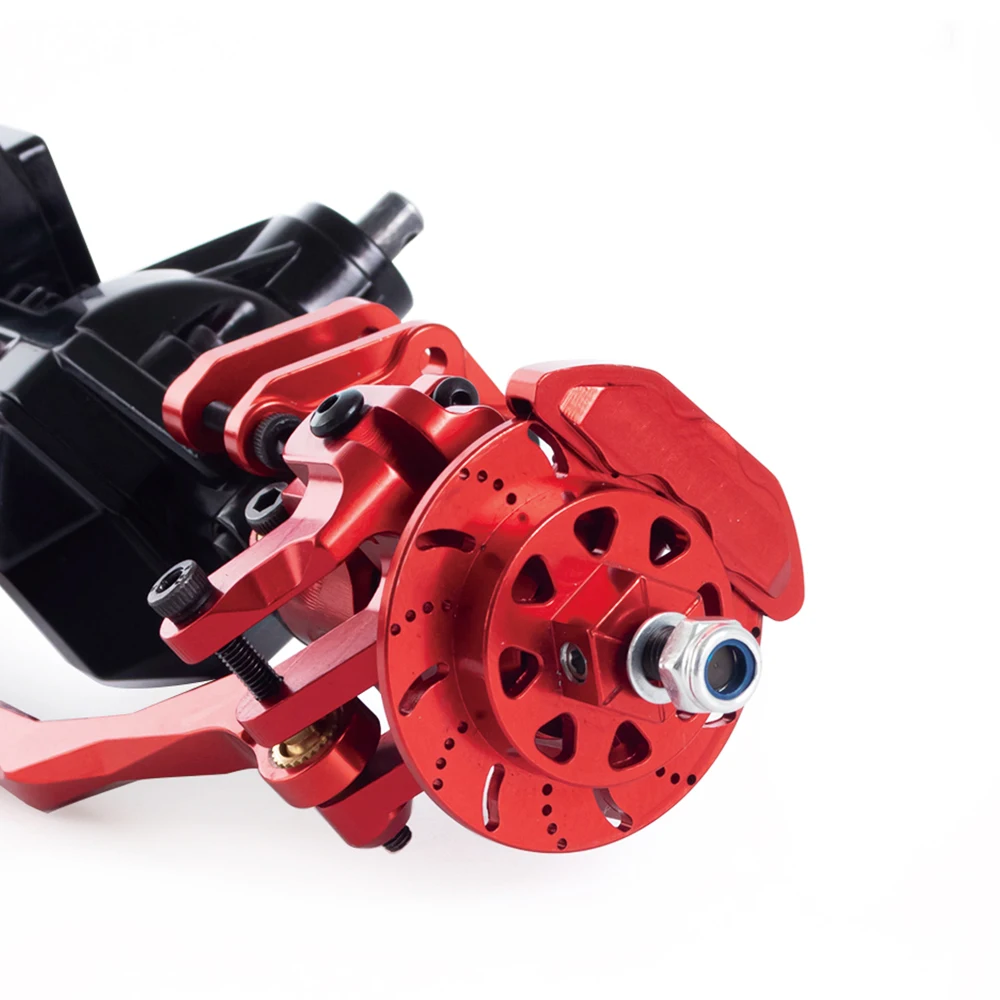

The steering knuckle, steering link and hex rotor caliper at both ends of the axle housing are made of aluminum alloy CNC.

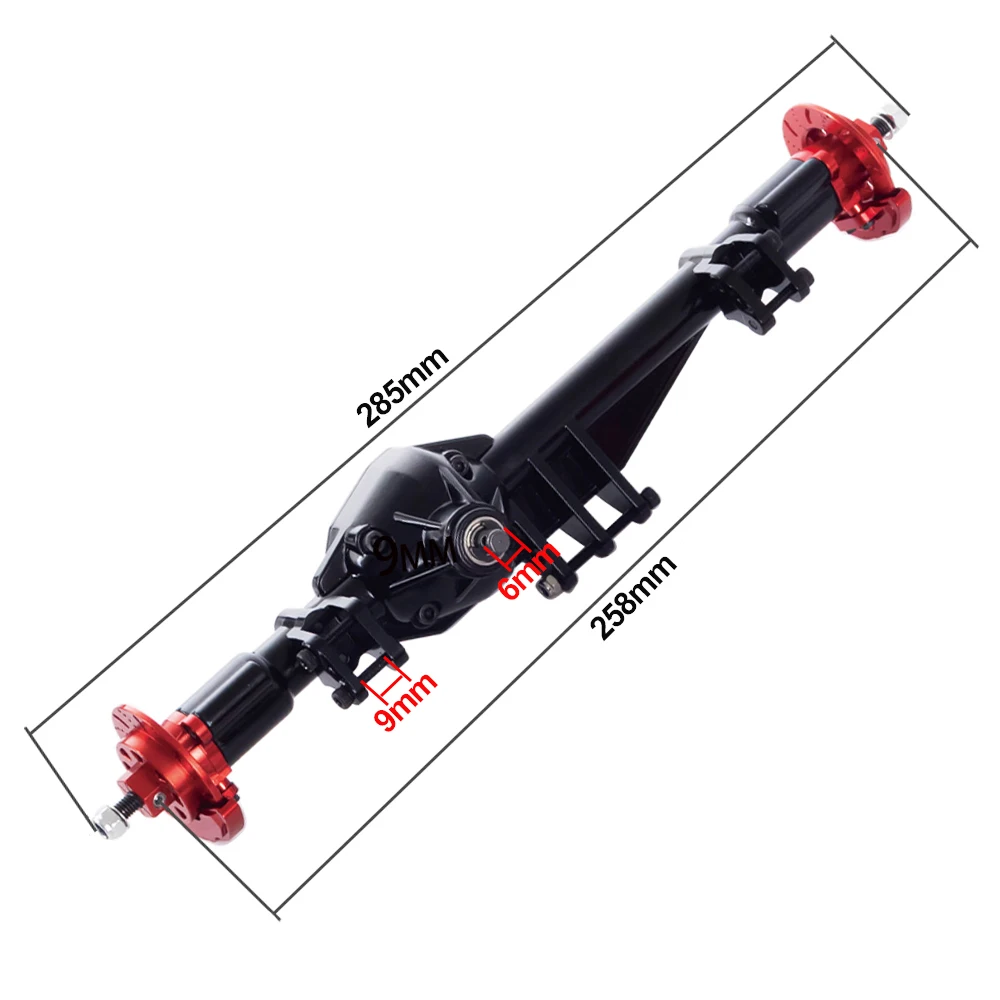

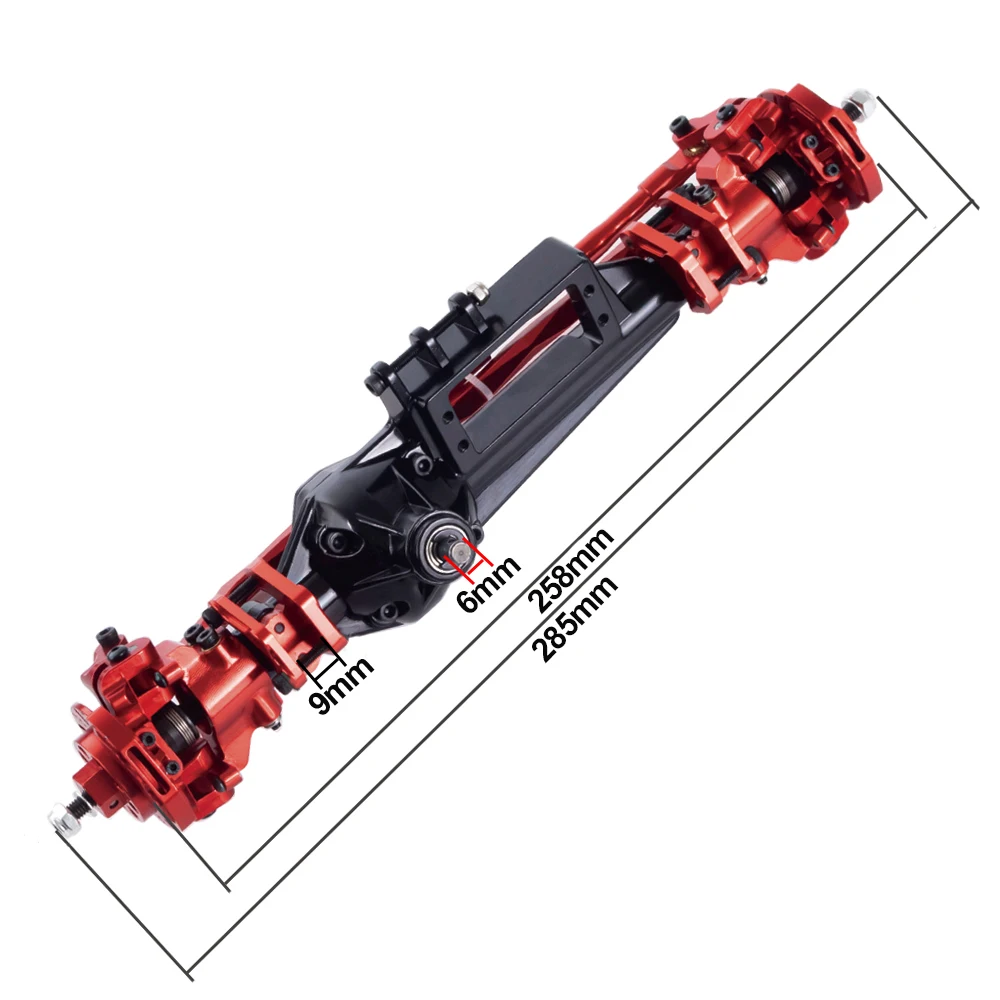

Size:
Total Width: 285mm
Pin to Pin Width: 258mm
5mm Axle Output Shaft
6mm Input Shaft(Bevel Gear)
12mm Standard Hex
Links Mount Width: 9mm
Bevel Gear Set: 38T/13T
Gear Ratio: 2.92:1
Weight:
Front Axle: 650g
Rear Axle: 545g
Package Included:
1 Set * Metal AR14B Axle(front/rear optional)
Note:
There may be some deviation due to manual measurement, please kindly understand.
