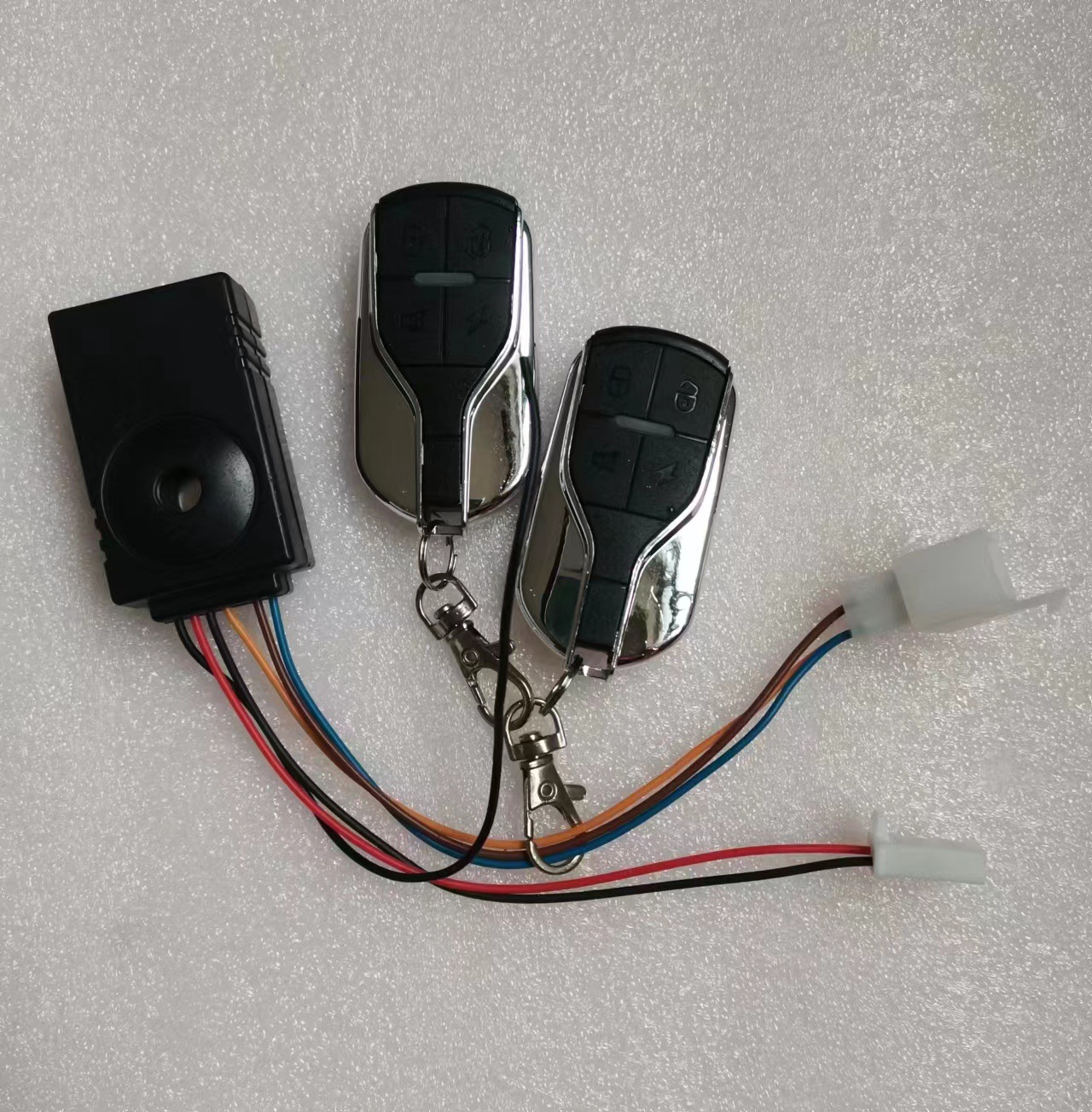

36V 48V 60V 72V ebike alarm system with two switch for electric bicycle/scooter motorcycle tricycle e bike

Note: The actual product received by the buyer shall prevail, because the appearance of different batches of products has color different, but the function is the same, please don't mind.


1.anti-theft alarm line

2.anti-theft power line

Red: positive wire
Black: negative wire


Brown: Motor wire
Blue: Controller signal line
Orange: lock output line
Blue (remote control, no interface, no wiring required)

(connect to controller the same line , it will work)
