Details
1. Simple operation. Sensitive reaction. Reliable operation
2. Automatic light-sensitive daytime off and nighttime on, without the need to manually adjust the
3. Delay circuit function, to prevent accidental opening and closing.

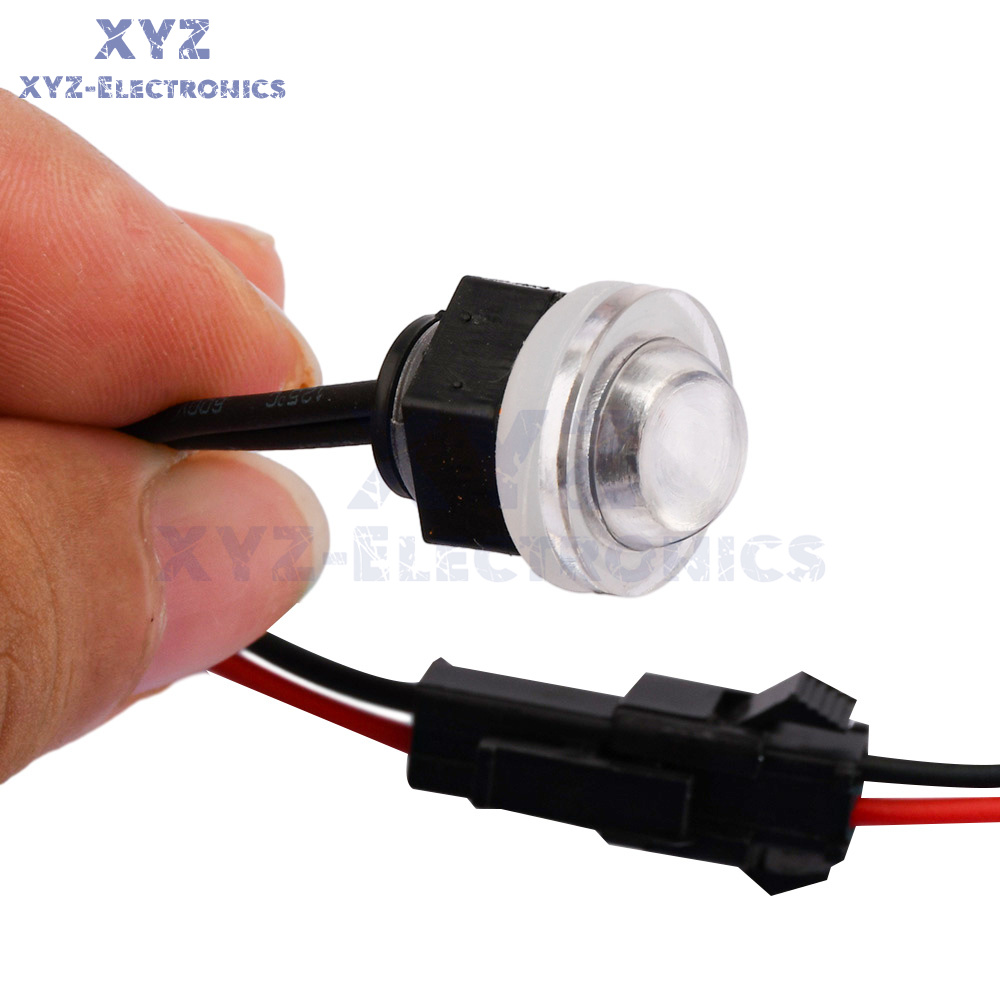

4. Highly sensitive light-sensitive probe, not affected by seasonal weather, reliable and stable operation.
5. Wide range of use: applicable to factories, schools, street lights, corridor lights, advertising light boxes, traffic police license plate lights, monitoring fill light or other need to be closed during the day, open the circuit equipment at night.
Street light control switch is mostly used to control factories, schools, street lights, corridor lights, advertising light boxes, traffic police license plate lights, monitoring fill light or other circuit equipment that need to be turned off during the day and turned on at night, through the light automatically control the power supply on and off, can also be used for lamps to achieve the daybreak automatically extinguished, the night automatically bright, without manual control, avoiding the control of the duty officer caused by the untimely turning on or off the lights. Or turn off the lights.
Circuit is equipped with a delay circuit, with the prevention of occasional lightning or flashlight, car lights and other lights irradiation photoelectric head, fallen leaves briefly block the photoelectric components of the false open and close the anti-jamming ability of the street lamp automatic switch photoelectric conversion device that is, the photoelectric head and the integrated block, electronic components, the implementation of the relay is composed of. Stronger light during the day, the photosensitive element current increases, so that the integrated electrical relay release, street lights do not light, to a certain degree of darkness in the evening, due to the weakening of the light, the photosensitive element produces a low voltage, the relay suction street lights until the next day for breakfast, the light strengthens the integration of triggers automatically act again, the street lights go out.

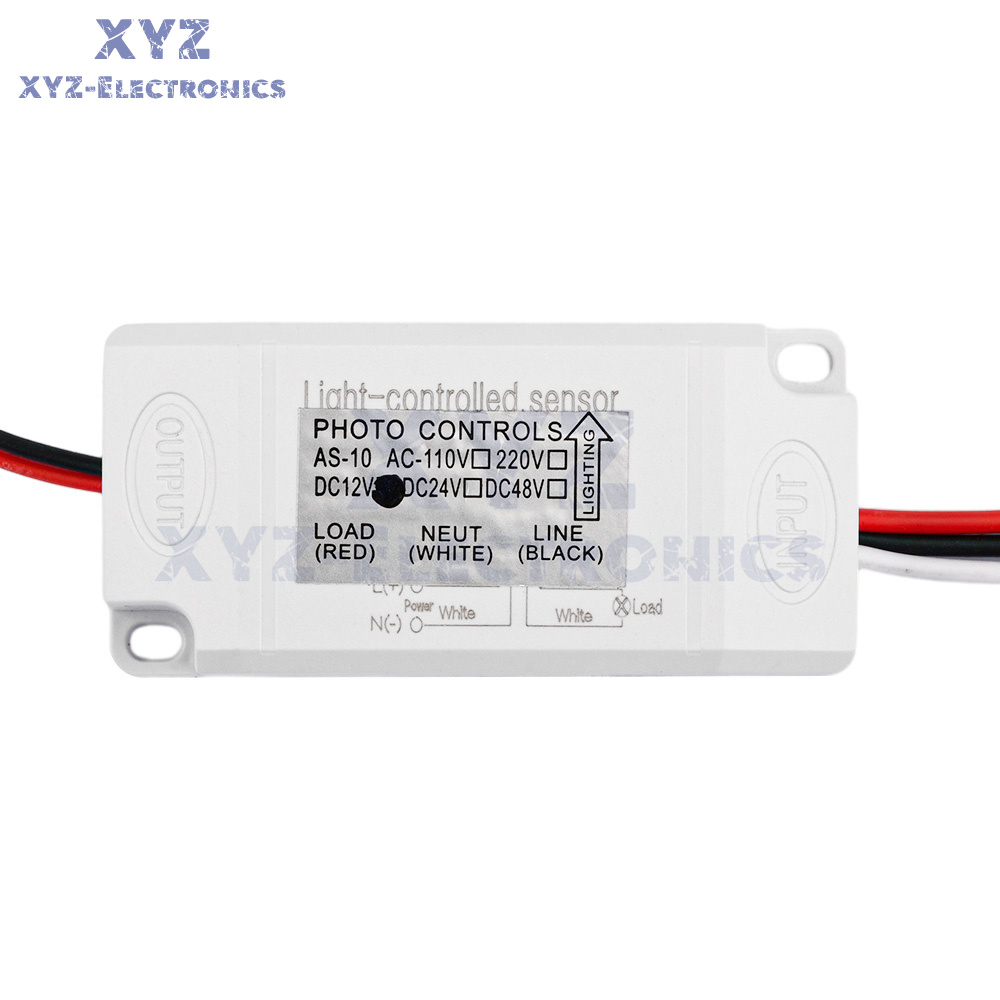

Item No.: CDS-W10
Voltage: DC12V DC24V AC100-260 (optional)
Frequency: 50~60HZ
Ambient temperature：-20~+50℃
Model 1: Normal Model Model 2: Over-surge Model
The power supply is automatically turned on when the luminance is lower than 30 Lux, and is automatically turned off when the luminance is higher than 150 Lux (products with adjustable sensitivity are not included).
Please cover the light-sensitive part of the switch with an opaque object during daytime testing.
1. Do not install the device in a place that is particularly dark during the day or a place that is directly illuminated by a closed light.

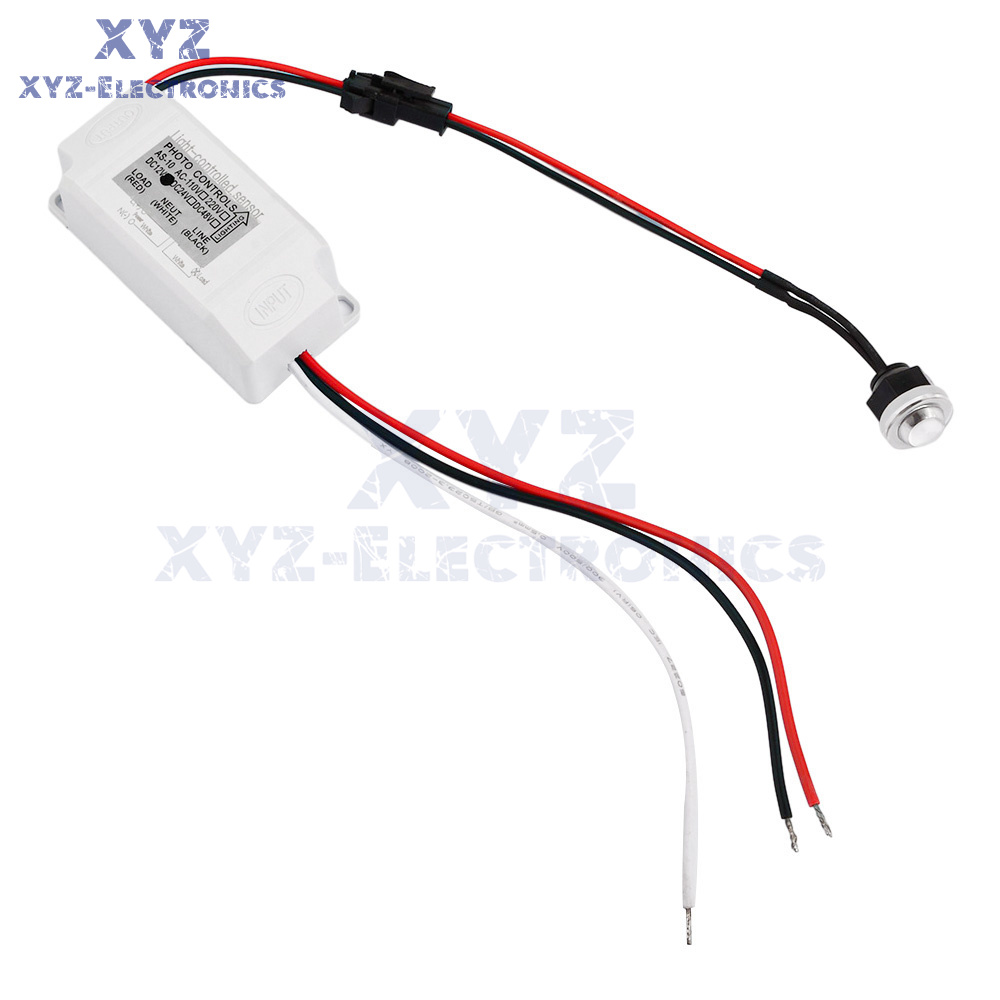

2. The automatic switch should be wired so that the white and black wires are connected to the power supply and the white and red wires are connected to the load.
Black wire-AC input L
White wire-AC input/light source N
Red wire-Light source L
Sensor switch*1
