Notice: Please double-check the OE number before purchase to ensure fitment. You may provide last 8 digits of your VIN to a local authorized dealer on your own to help confirm OE reference number, if available.

Notice: Not for the turbo 076145702S 076145701P.

Not for turbo with electric actuator.

Apllication:

for VW Crafter 30-50 136HP 100Kw 2.5TD CECA BJM / BJL 2006
for VW Crafter 30-50 163HP 120Kw 2.5TD CECB BJM / BJL 2006-

OEM&PART NUMBER:

49377-07400,4937707400, 49377-07401,4937707401, 49377-07402, 4937707402,
49377-07403,4937707403,49377-07404,4937707404,  49377-07405,4937707405,
49377-07406, 4937707406, 49377-07410, 4937707410, 49377-07411,4937707411,
49377-07412, 4937707412,49377-07440, 4937707440,49377-09042,4937709042,
49377-09044, 4937709044, 49T77-07440,49T7707440,49T77-07441,49T7707441,
076145701B, 076145701BV, 076145701BX,076145701E, 076145701EV, 076145701EX,
076145701F, 076145701FV, 076145701FX, 076145701H, 076145701HV, 076145701HX,
076145701L, 076145701LV, 076145701LX, 076145701M, 076145701MV, 076145701MX,
076145701N, 076145701NV, 076145701NX, 076145701R, 076145701RV, 076145701RX,
076145702A, 076145702AV, 076145702AX,

Specification

Turbo Model:TD04L
Engine Code:BJM, BJL
Cooling Type:Oil Cooling
Bearing Type:Journal Bearing/Floating Bearing
Trust Bearing: 270 degree
Horse Power:136 HP/163 HP
Actuator Type: Vaccum
Condition: 100% Brand New

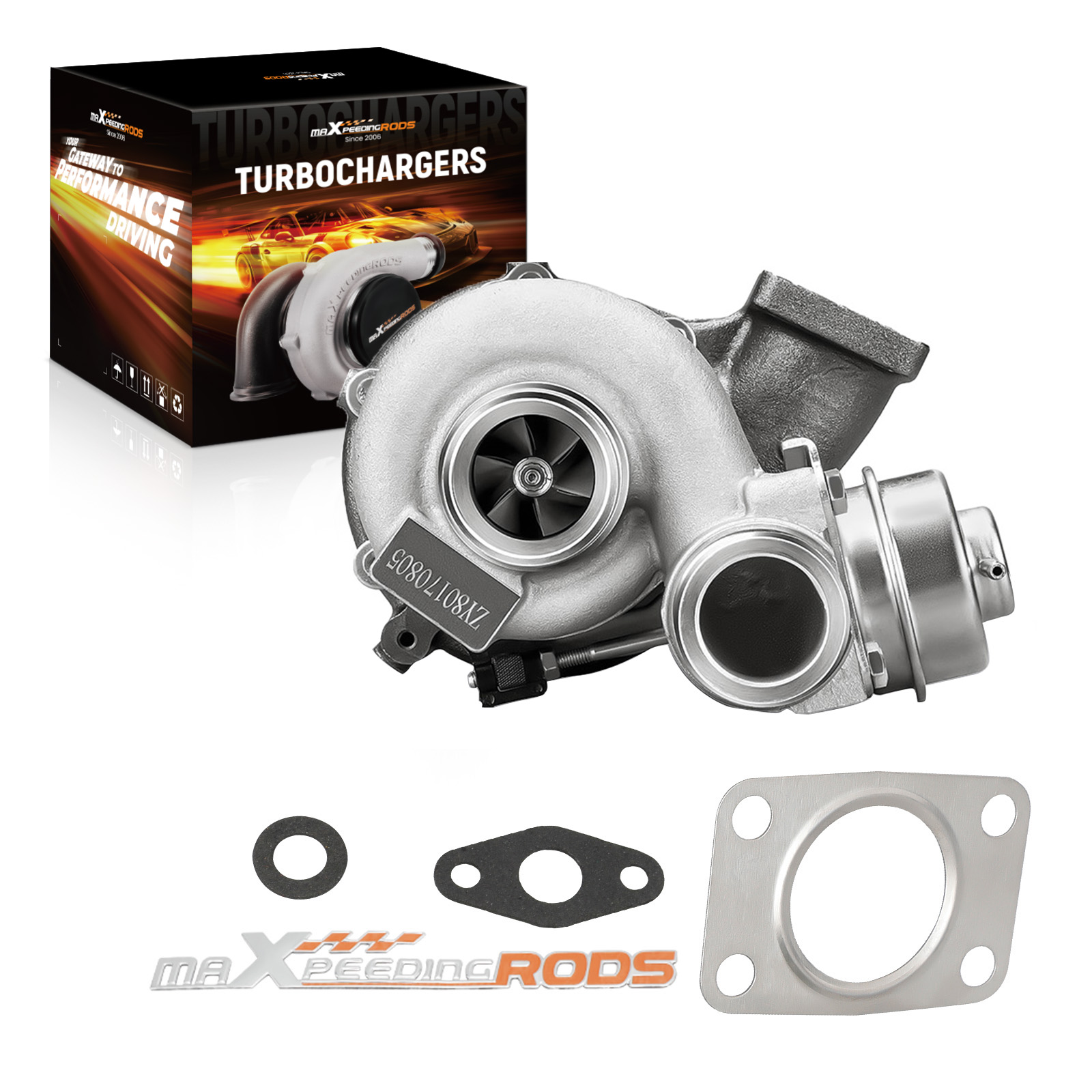

Accessories: You will get what you can see in the pictures exactly
Package Size: 26 x 24  x 23 cm
Package Weight: 8000g

Feature:

* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy -  high  oxidation stability and resistance  up  to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product

1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Product Certification: TÜV ISO 9001 CERTIFIED

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2. G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

Important Notice:

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
