Overview

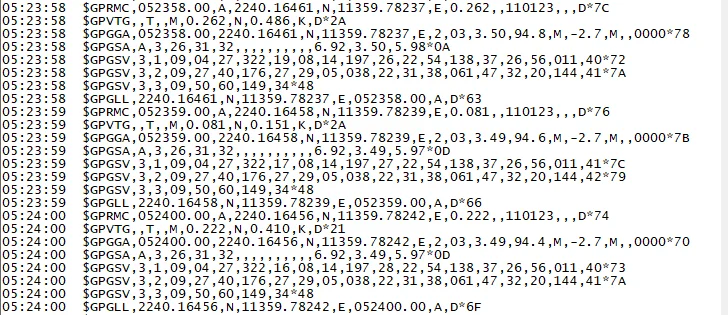

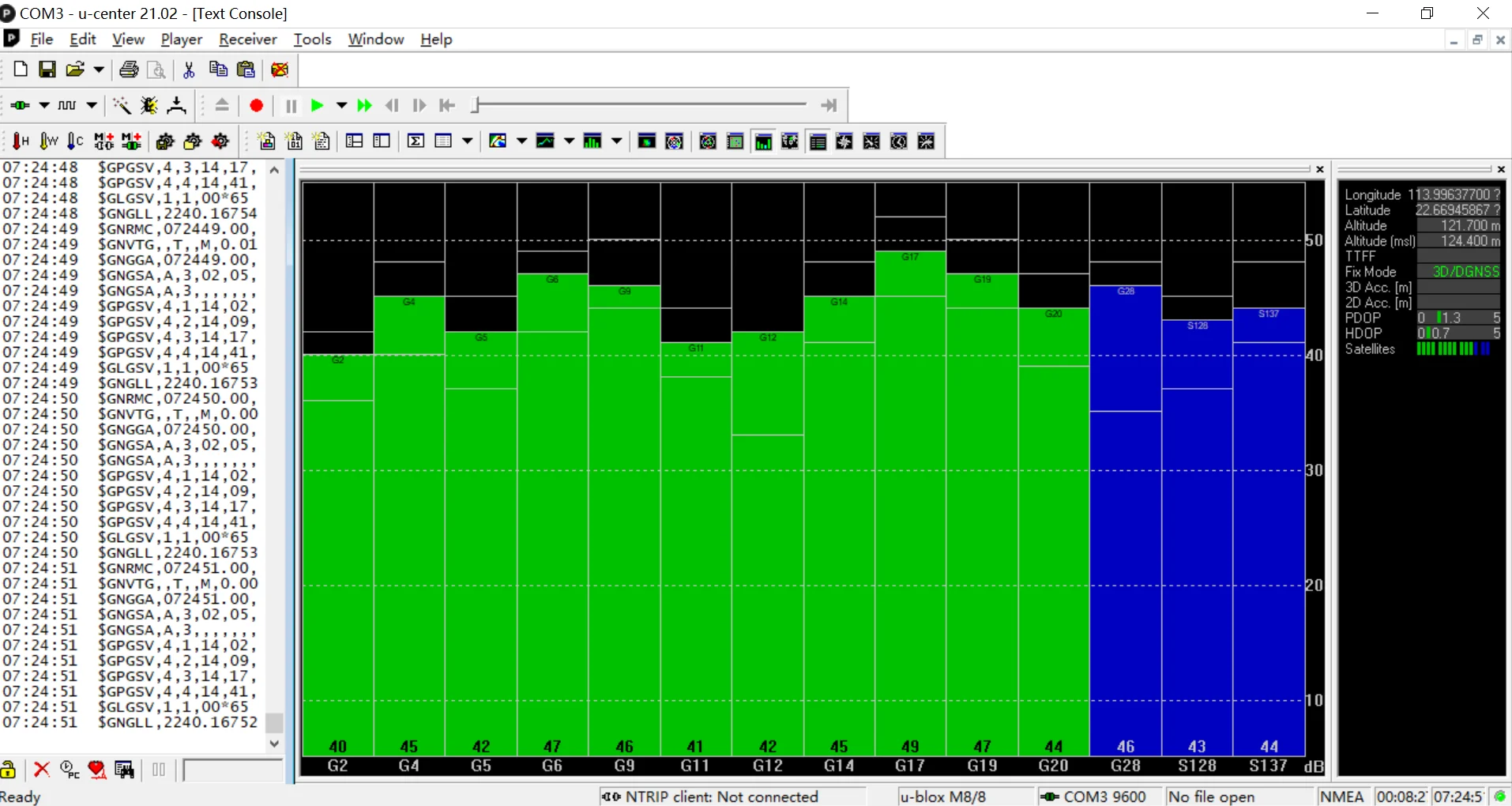

This item is a serial TTL GPS receiver with 1PPS output, the protocol is standard NMEA 0183, and the baud rate is set to 9600 bps. The NMEA messages output by the receiver include NMEA-RMC, GGA, GSA GSV, GLL, VTG. The receiver supports 56 channels to receive GPS/QZSS and WAAS. With the help of WAAS, the positioning accuracy is 2.0 meters for outdoor open areas,and max navigation update rate is 10Hz. It is a low-cost NMEA 0183 solution that can be work with UAV flight controller,Arduino,raspberry pi,etc. ​Note: If you need to change the receiver configuration, such as baud rate and NMEA message output, please fell free to contact us. ​Users can configure various settings through the Windows software U-center. ​The receiver is factory configured with a baud rate of 9600 bps.
