Overview

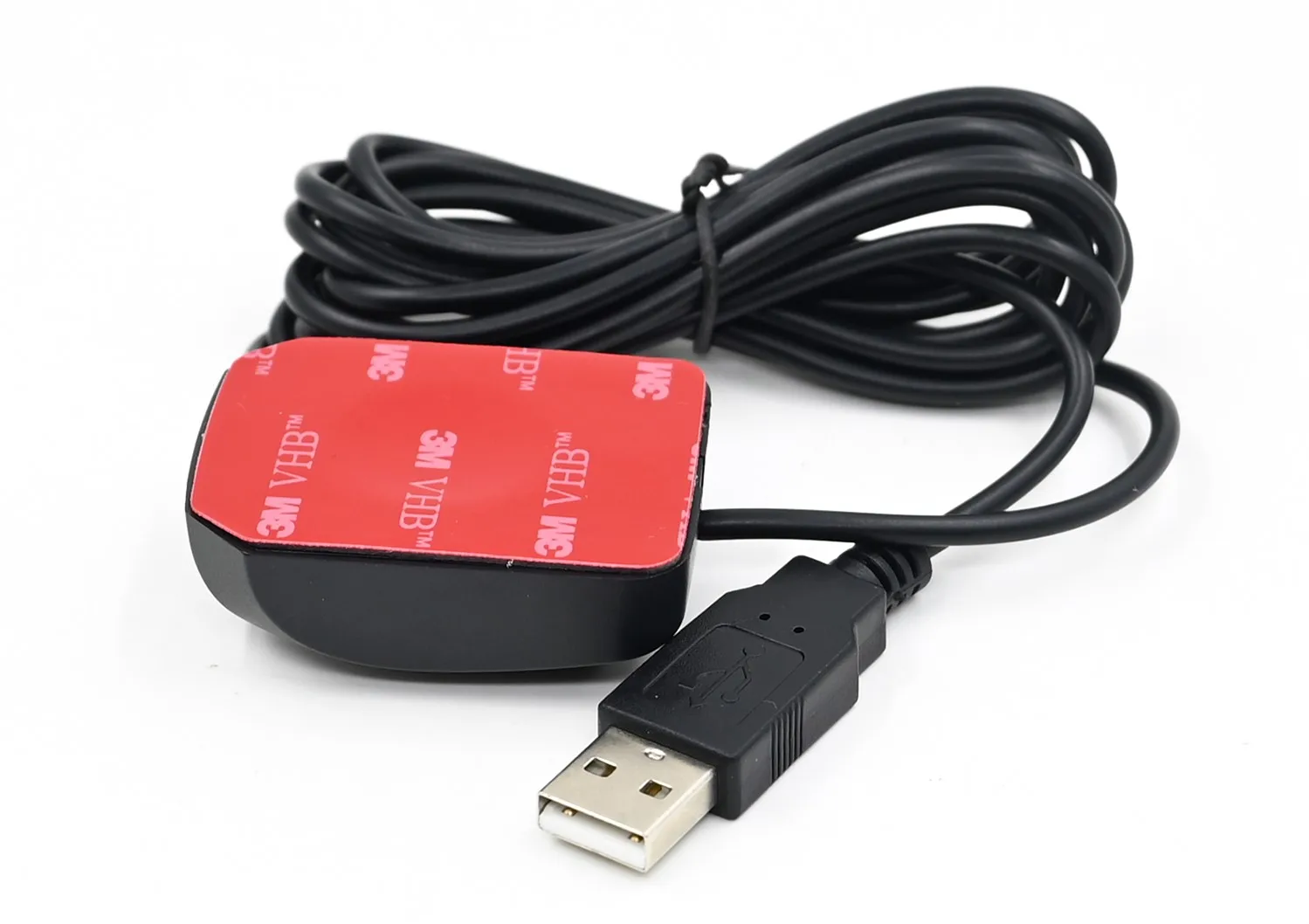

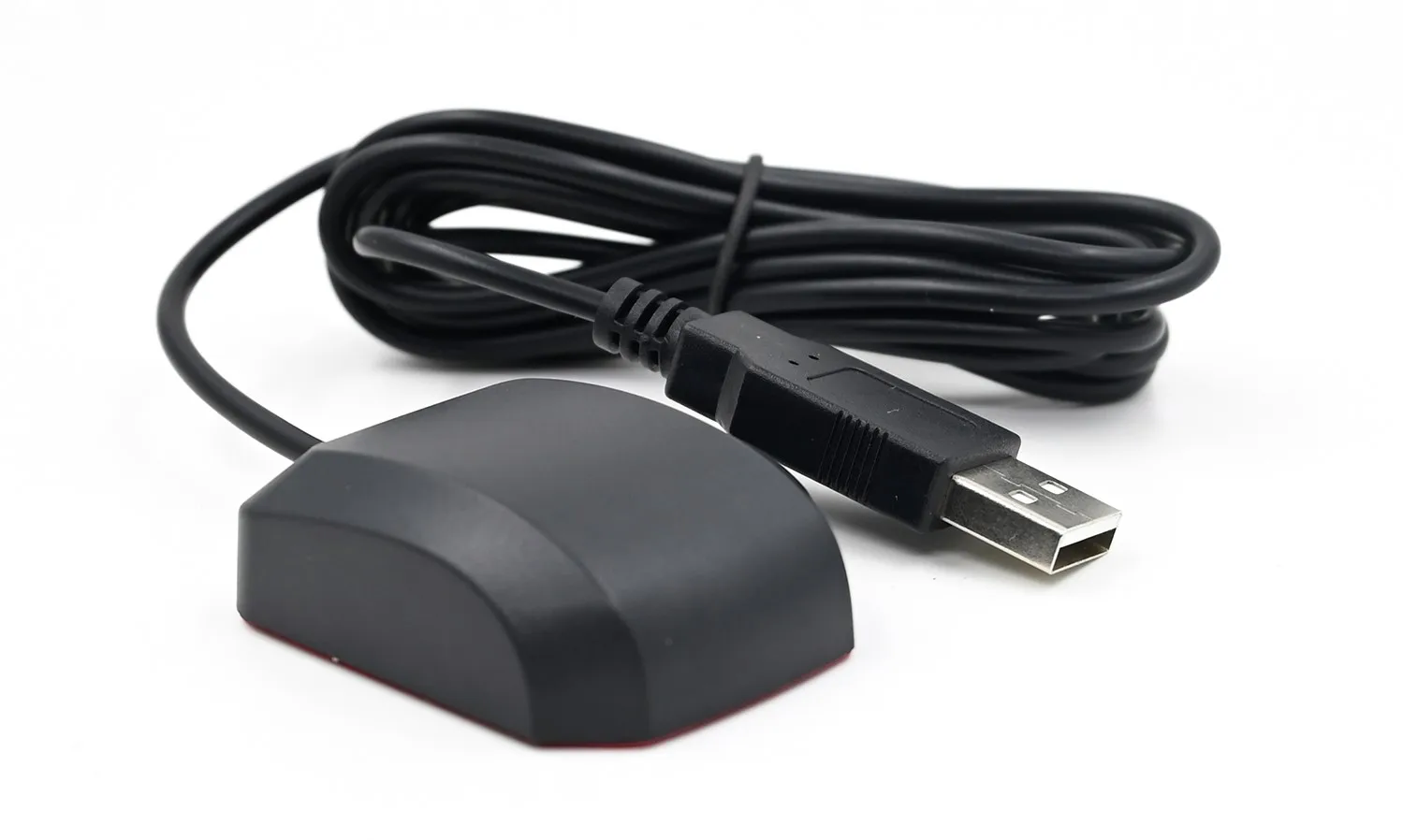

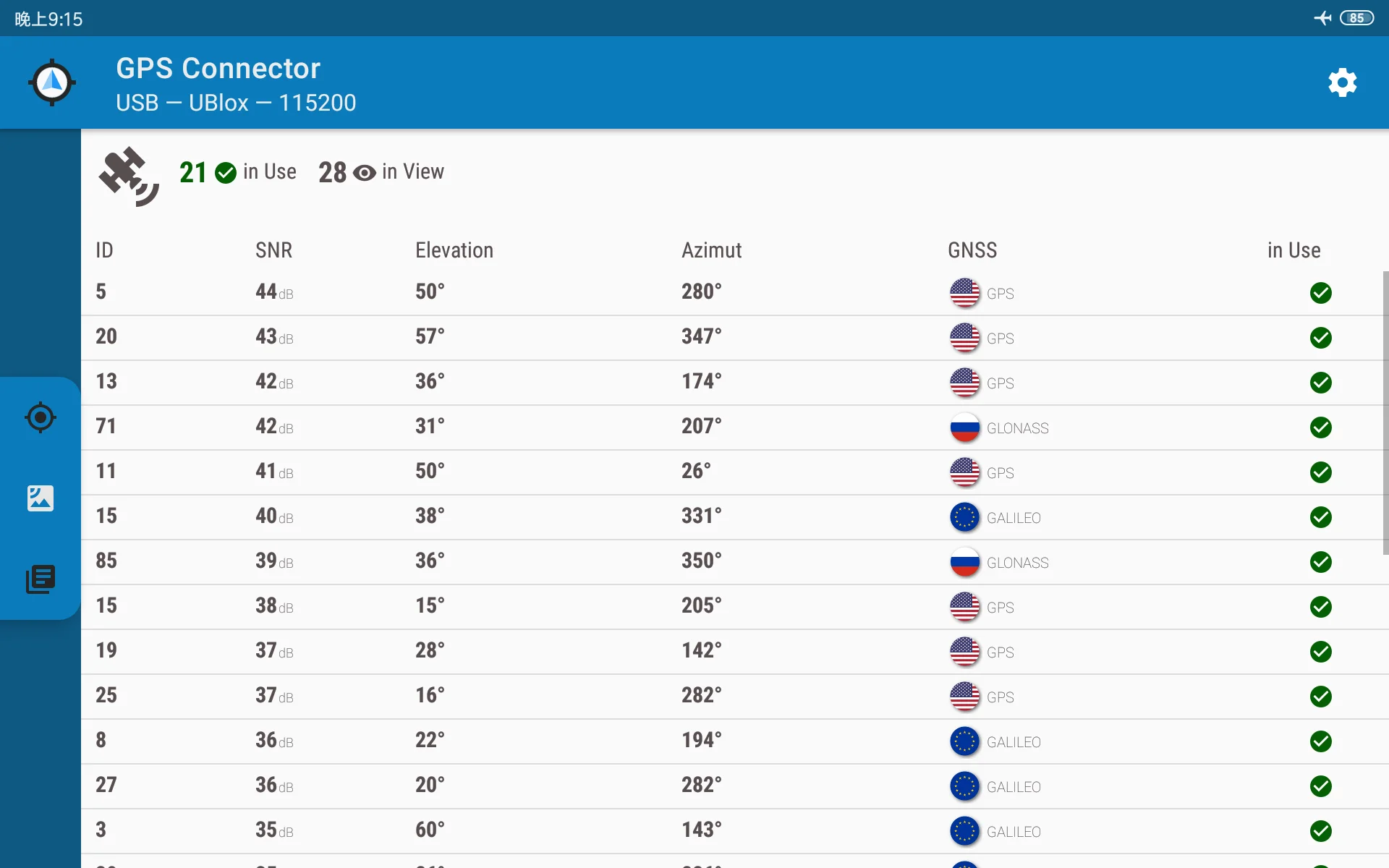

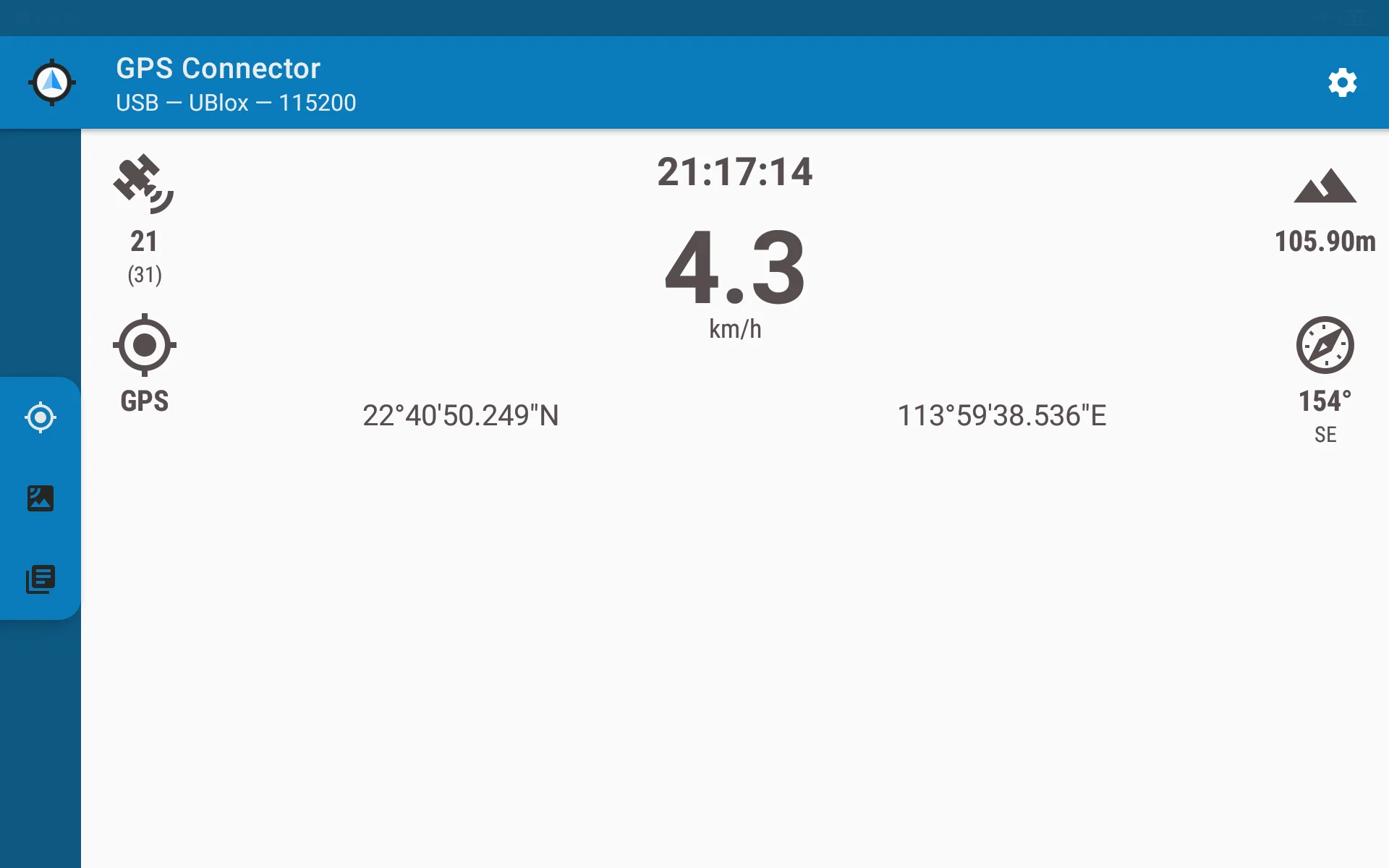

QG158 is a multimode USB GNSS receiver with built-in ubx neo-m8n module (M8030 chip).This product can track GPS and GLONASS satellite signals at the same time(Including auxiliary positioning system QZSS and SBAS), improve positioning accuracy and shorten the time of fix. The accuracy reaches 2.0m cep，and the average cold start time is 26s.It also has built-in small battery to support receiver hot start.It is widely used in PC navigation, car navigation, sea navigation, ranging, automatic driving travel, fleet management, vehicle tracking, etc. It supports Google Earth, and the external GPS receiver cooperates with Google Earth for precise positioning.This product supports Android 4.1 and above systems, download the APP(GPS Connector.APK)for Android systems, and set mock location.Get more accurate positioning for your Android smart device！ ​Highlights: ​■ Product main chip: neo-M8(UBX M8030) ​■ GPS+GLONASS+QZSS+SBAS ​■ Built-in LNA signal amplifier ​■ High sensitivity ceramic antenna ​■ 1-10Hz positioning update rate

Specification

Chipset：M8030-KT ​Support GNSS：GPS GLONASS Galileo BDS SBAS QZSS ​Default Configuration： GPS+GLONASS+QZSS+SBAS ​Channels：72 Searching Channel ​Horizontal Accuracy：2.0m CEP 2D RMS SBAS Enable (Typical Open Sky) ​Time Precision：1us synchronized to GPS time ​Speed Accuracy：0.05m/sec 95% (SA off) ​Tracking：-167dBm ​Reacquisition：-161dBm ​Cold start：-148dBm ​TTFF：26s ​Hot Start：1s ​Support Rate：4800bps-921600bps，Automatic baud rate ​Interface：USB ​Data Protocol：NMEA0183 ​NMEA Message：GGA, GLL, GSA, GSV, RMC, VTG, TXT ​Update Rate：Max 10HZ,Default 1HZ ​Altitude：＜50000m ​Velocity：＜515m/s ​Acceleration：＜4G ​Voltage：DC3.3V-5.5V,Typical:5.0V ​Current：30mA/5V ​Dimension：L49mm*W38mm*H16mm ​Weight：65g ​Cable Length：2 meters ​Connector：USB 2.0 Male ​Fixed Way：3M stick ​Operating Temp：-45℃-+85℃ ​Storage Temp：-45℃-+105℃ ​Waterproof Level：IP67
