Details
High resolution 128x128, 65k colors, clearly displays color images
Supports 4 spi wires or 3 spi wires interface, configured through the onboard resistor
Specifications:
Driver: SSD1351
Interface: 4-wire spi, 3-wire spi
Screen color: rgb, 65k colors
Resolution: 128x128
Viewing angle:> 160 °
Operating voltage: 3.3 v / 5 v
Dimension: 44.5x37 (mm)

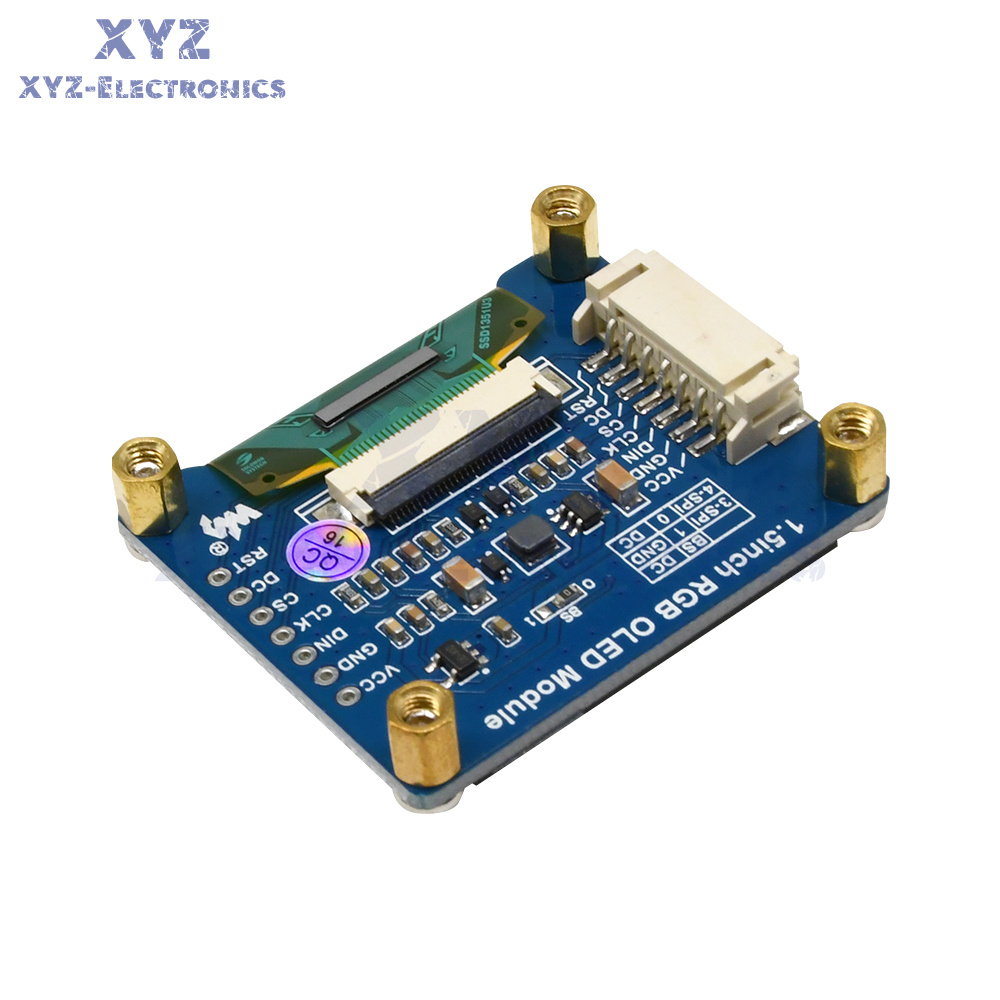

Interface:
Description of the port
Vcc power (3.3 input 5 v input)
GND Terra
Data entry NOISE
CLK Data Entry Clock
Selection of cs chip, low active
Dc 4-wire spi: data / command selection (high for data, low for command)
3-wire spi: connects to gnd, keeps low
Rst reset, low active
There are two movement interfaces available for this oled rgb module: 4-wire spi (standard) and 3-wire spi:
BS DC
4 wires spi 0 dc
3-wire spi 1 connects to gnd

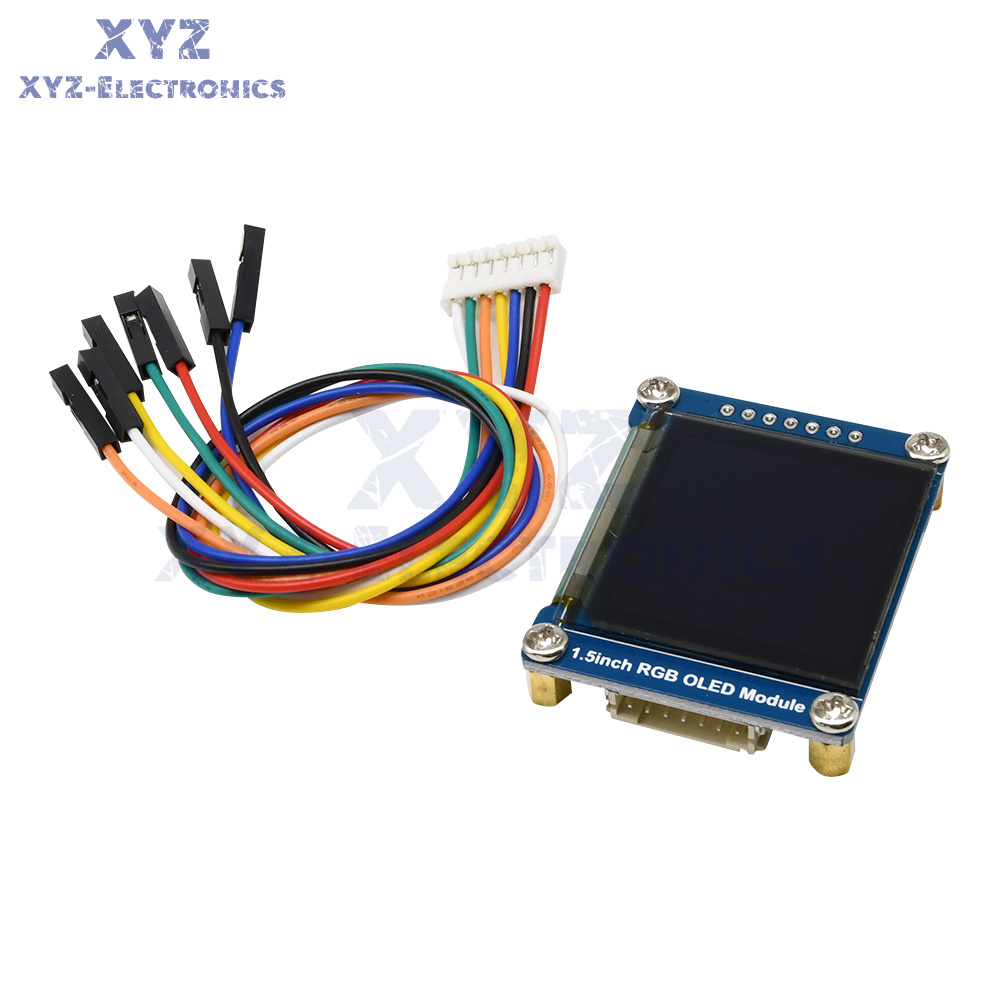

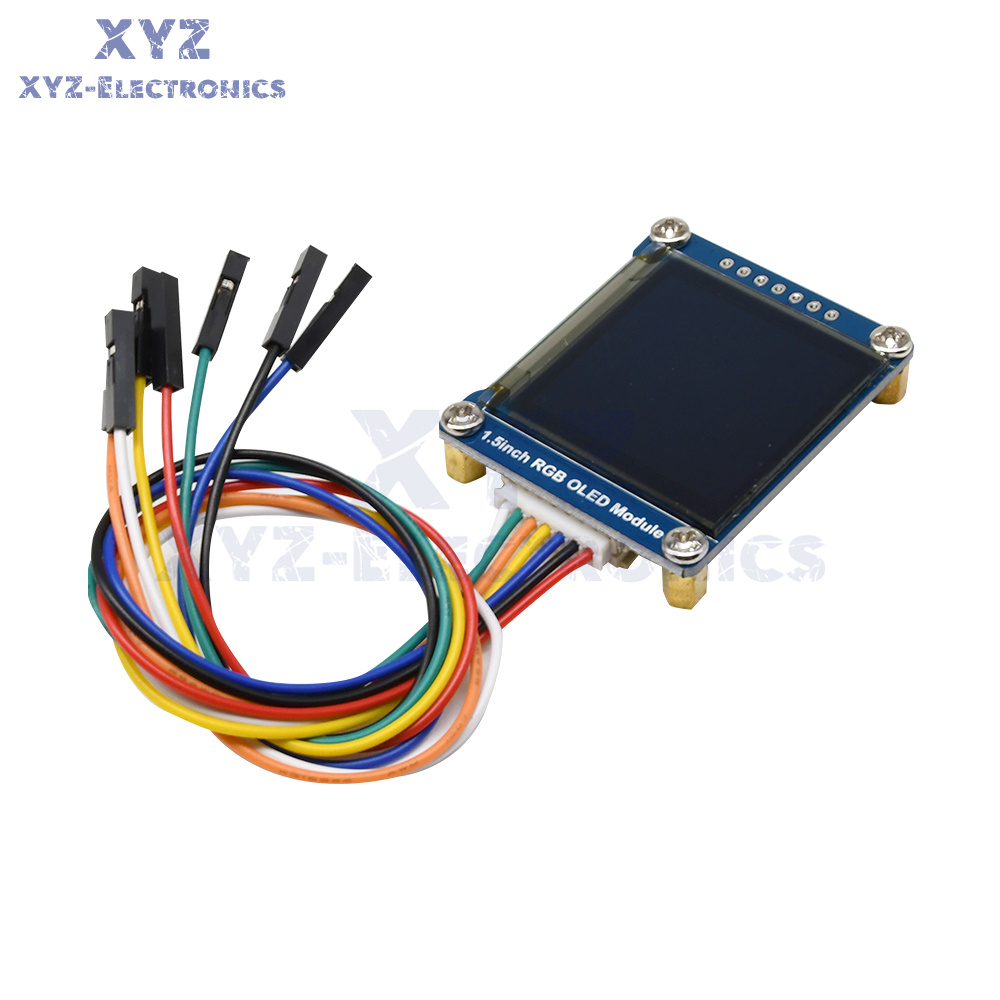

package includes:

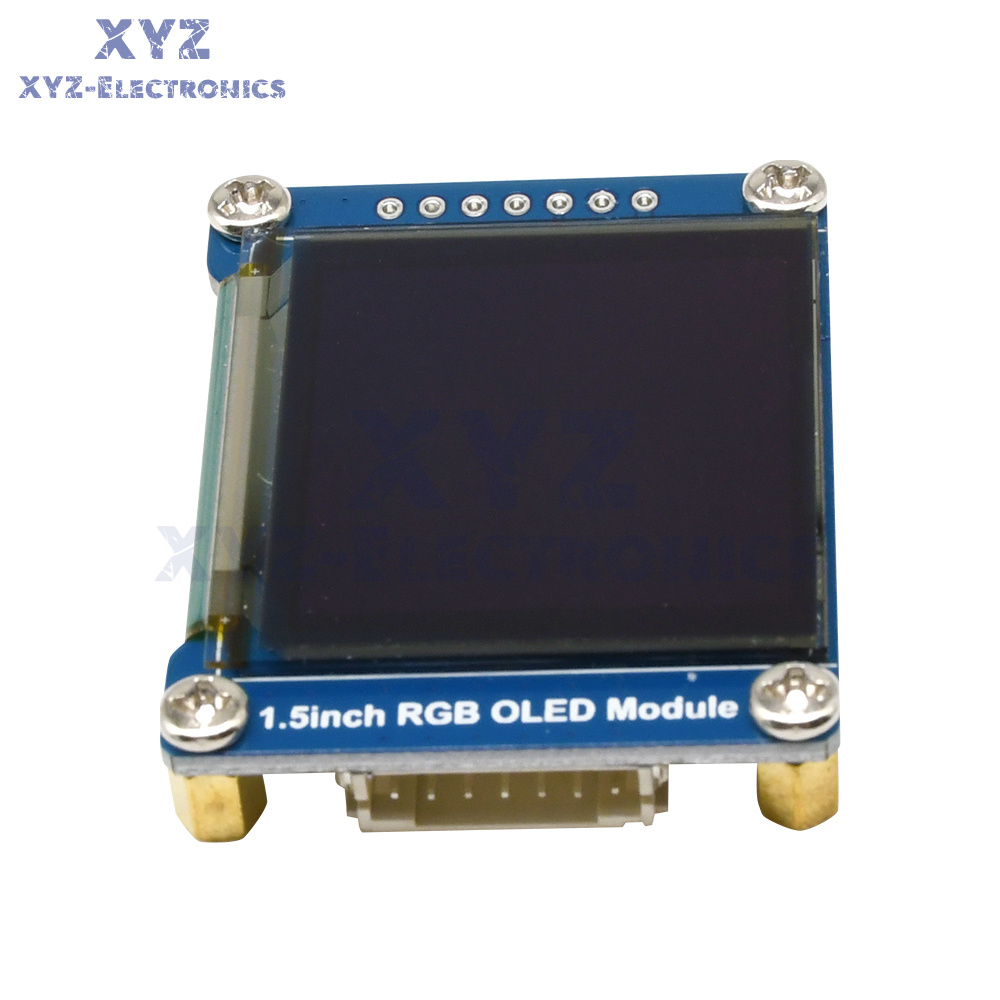

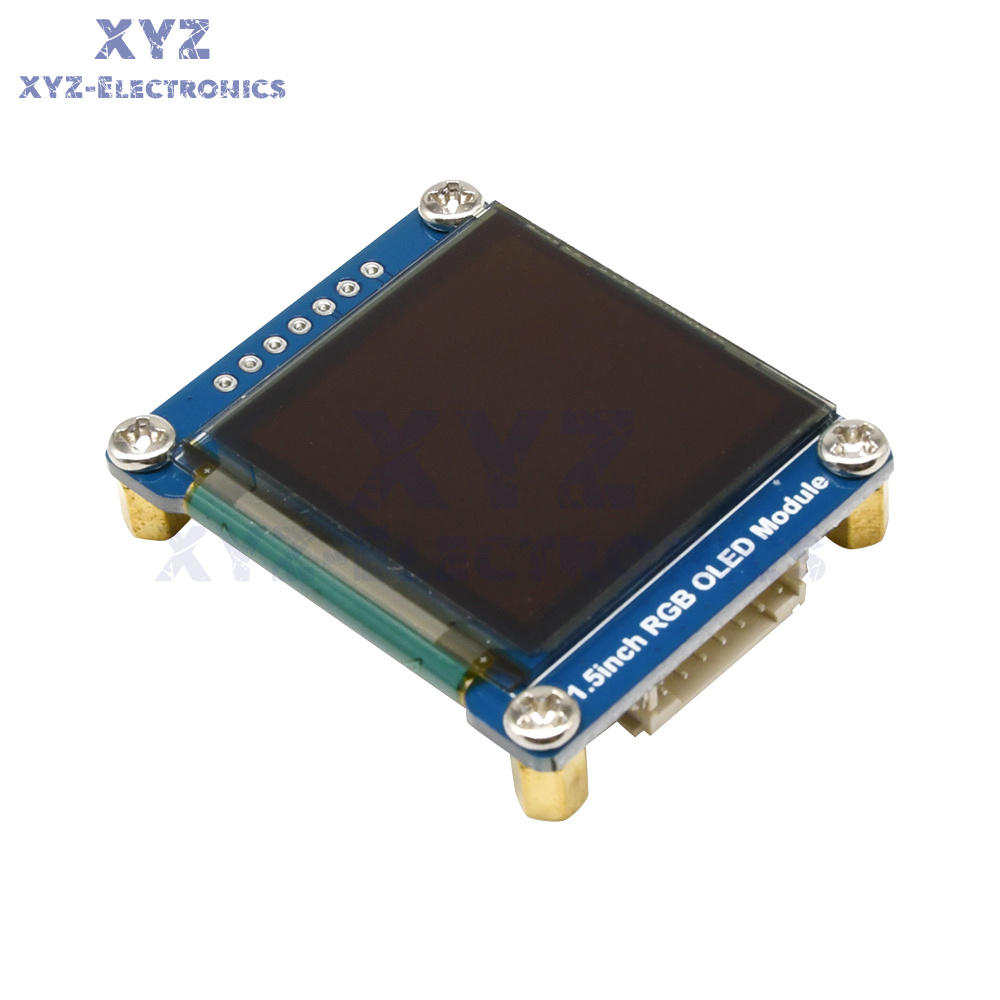

1 x 1.5 inch oled display module

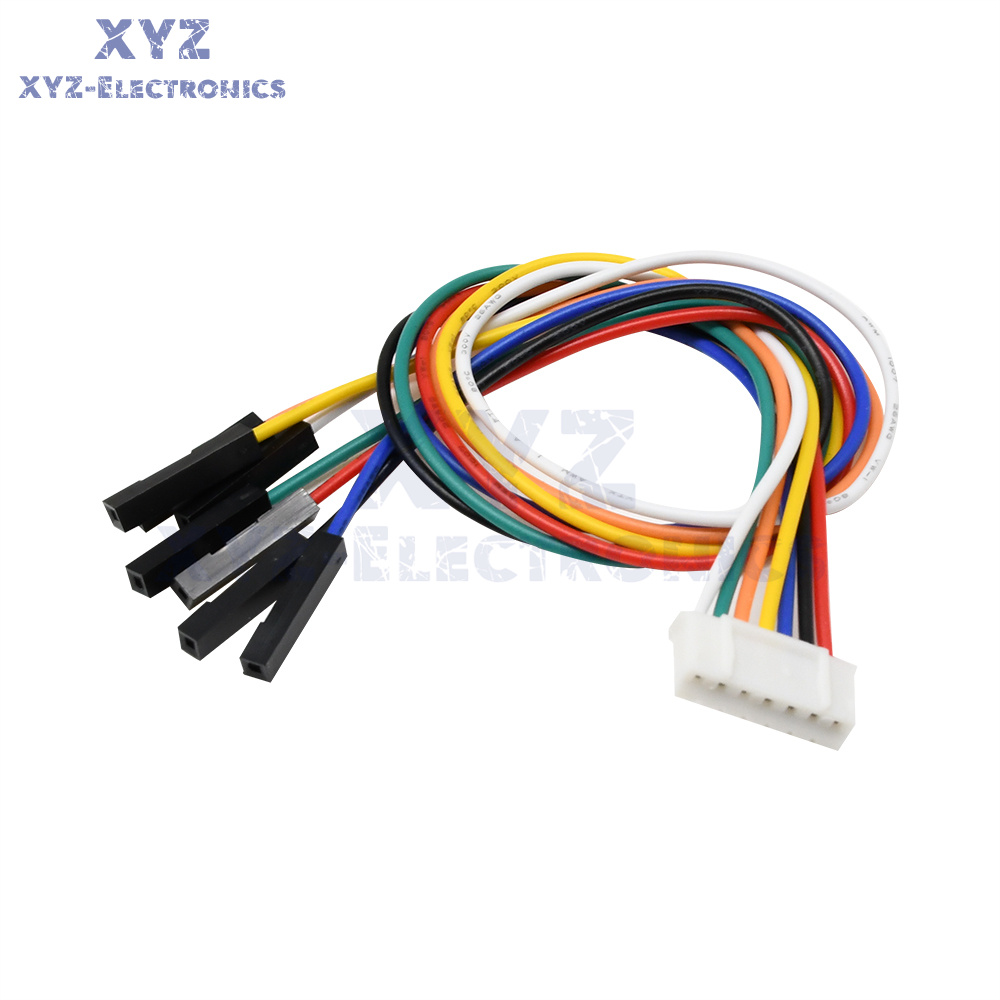

1 x 7 p dupond ph2.0 cable
