Description:
1.Working voltage: 1.8V-4.5V
2.Suitable for ternary lithium(Li-ion), lithium iron phosphate (LiFePO4), lithium titanate(LTO).

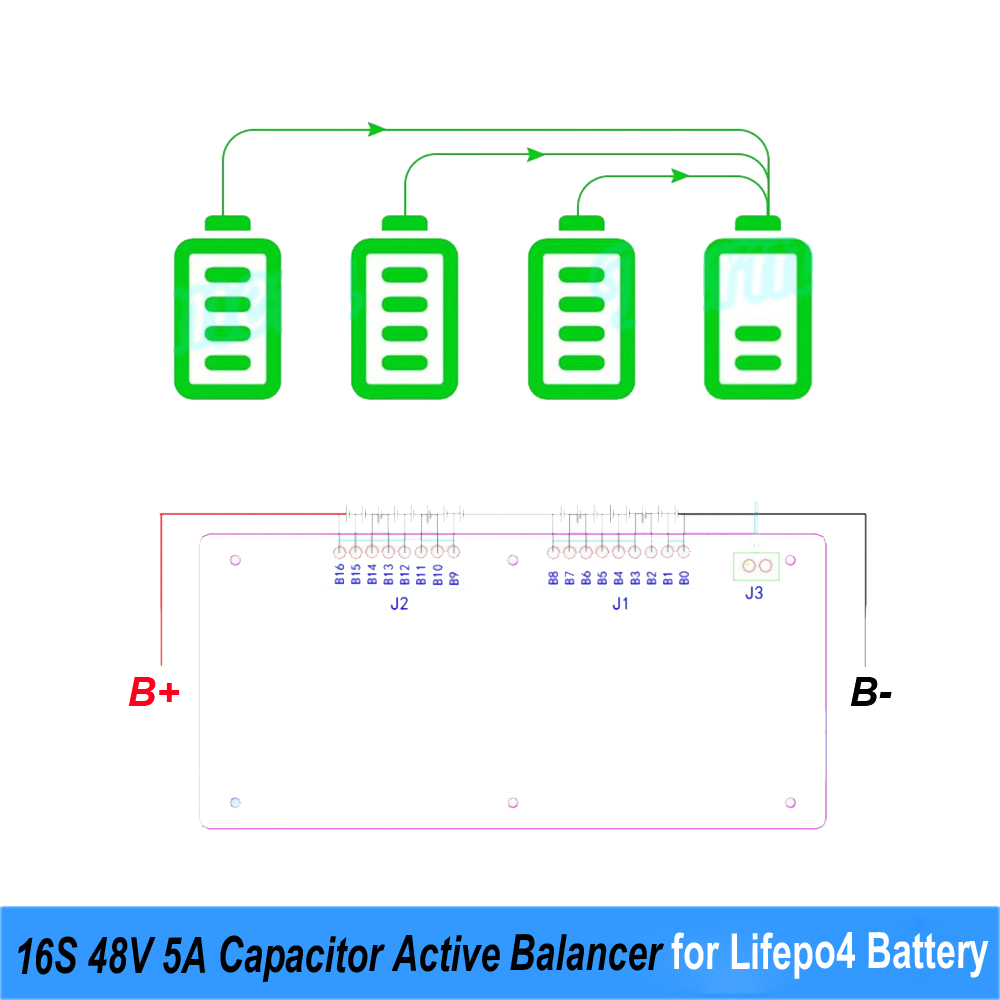

3.The whole battery participates in the active equalization of energy transfer at the same time.
4.0.1V differential voltage 1A equalizing current. The differential voltage is bigger that equalizing current is bigger. The maximum allowable working current is 5A.

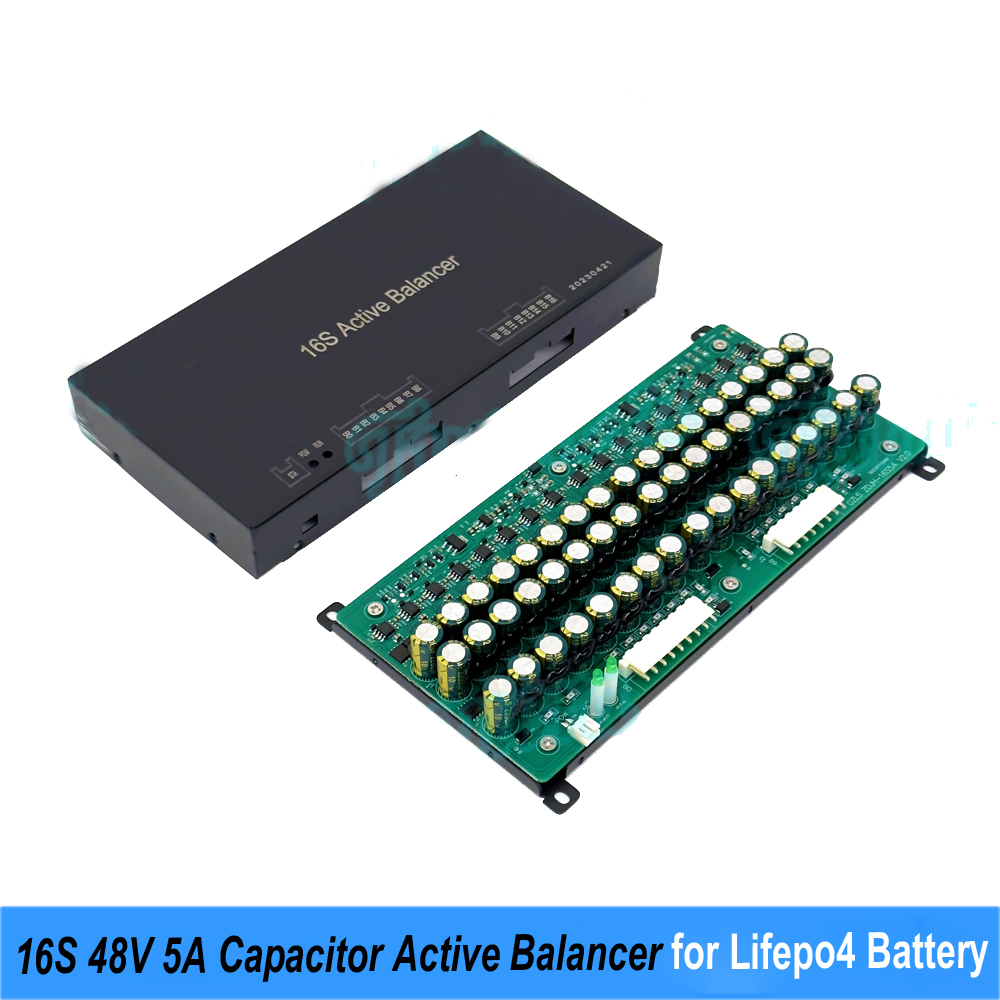

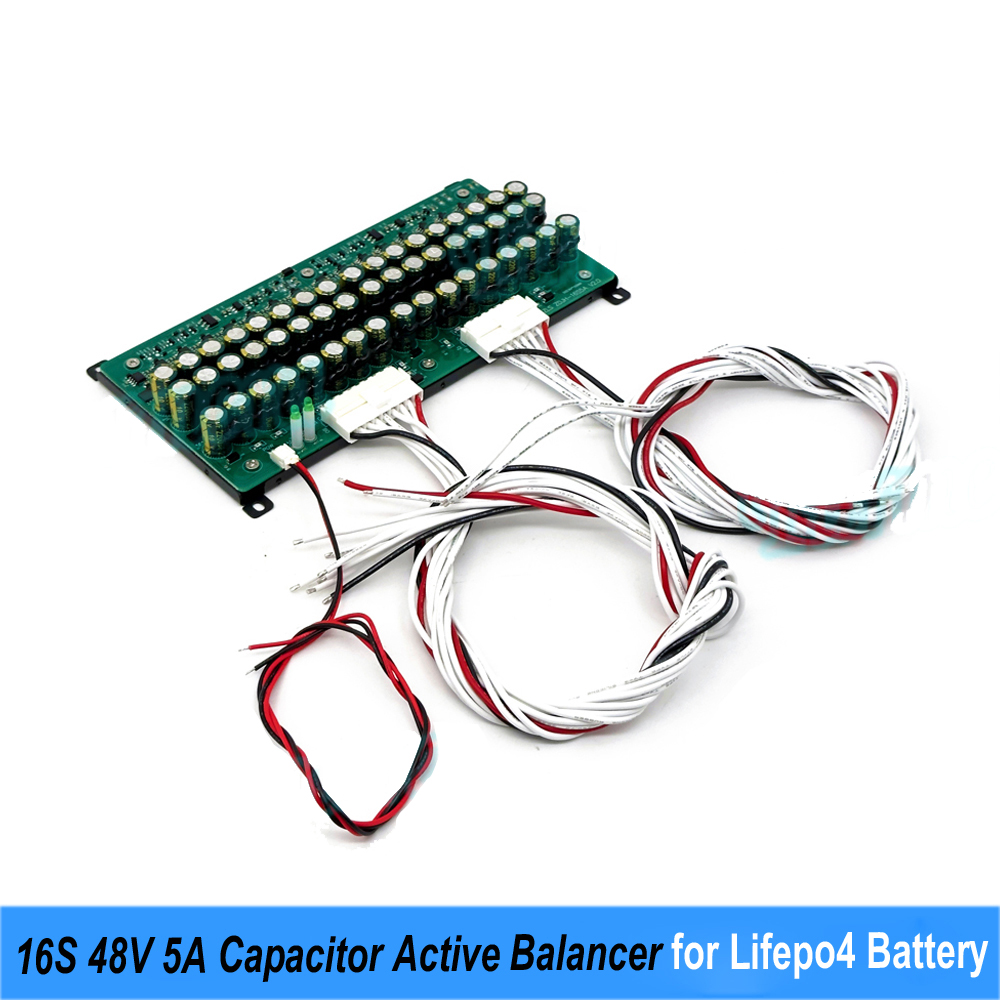

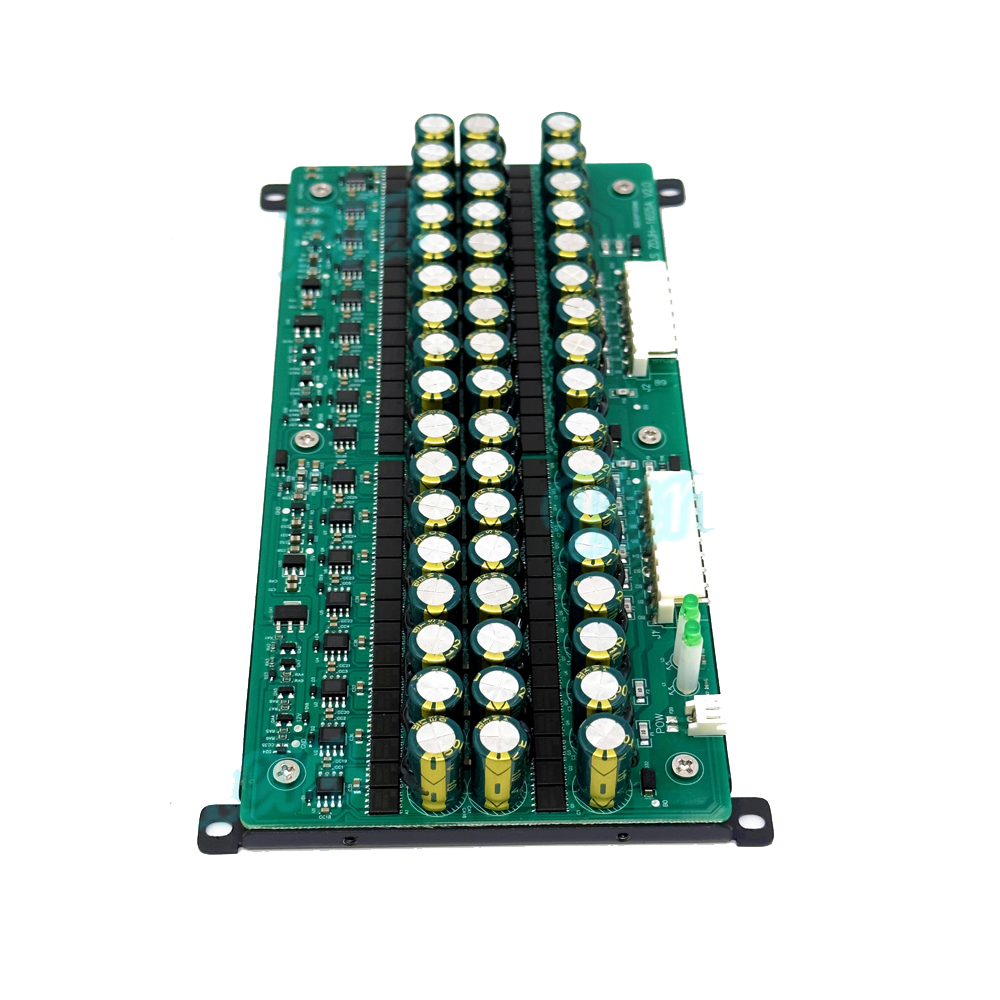

5.Working principle: Flycap-capacitor transfer charge transporter, Balancer board is connected to the battery to start the balance work, using the original brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB.
6.Balance current 0-5A, the more balanced the battery current is Small, reserved for manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!
7.The quiescent current is about 15mA, and the battery capacity is recommended to be used between 30-320AH/Per Balancer.
8.With under-voltage sleep protection, only detecting the B1 battery voltage, the equalizer will automatically stop entering the sleep state when the B1 voltage 9.NCM/LFP<2.7V or LTO<1.8V, and the standby power consumption is less than 0.1mA.

Package includes:

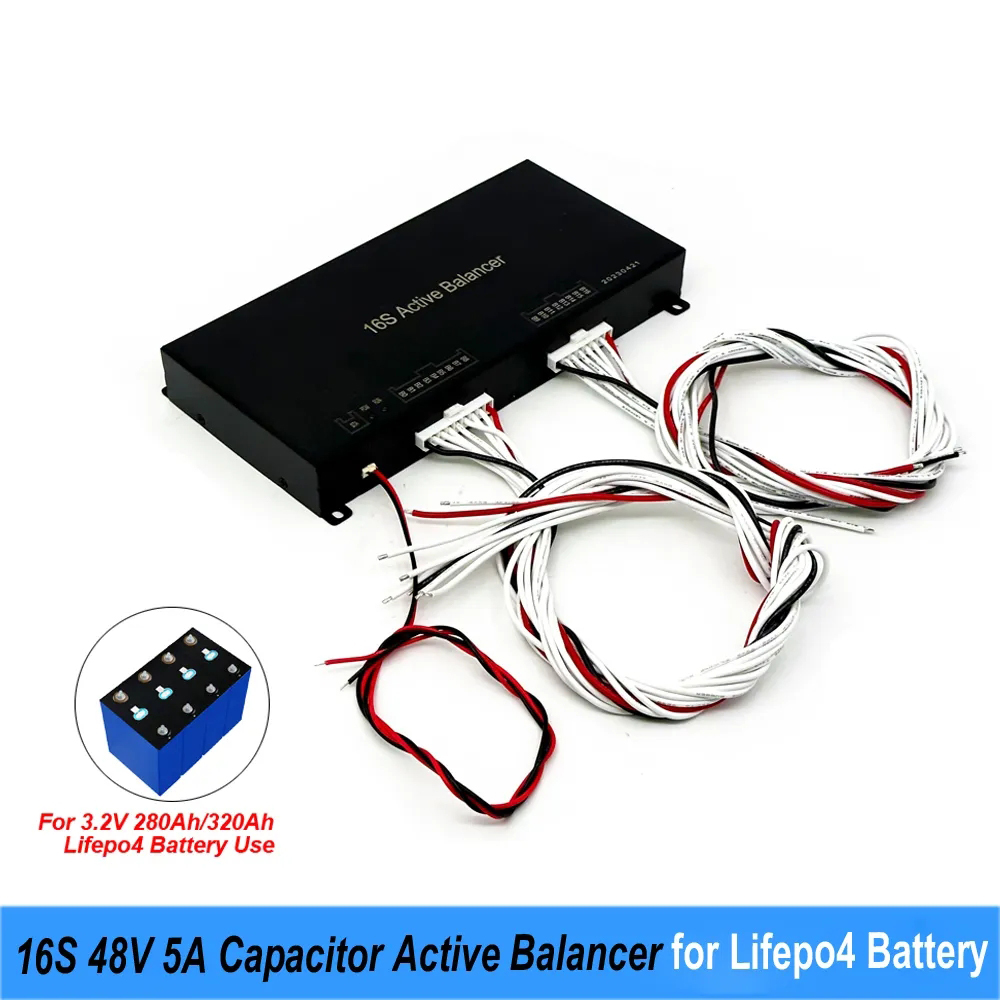

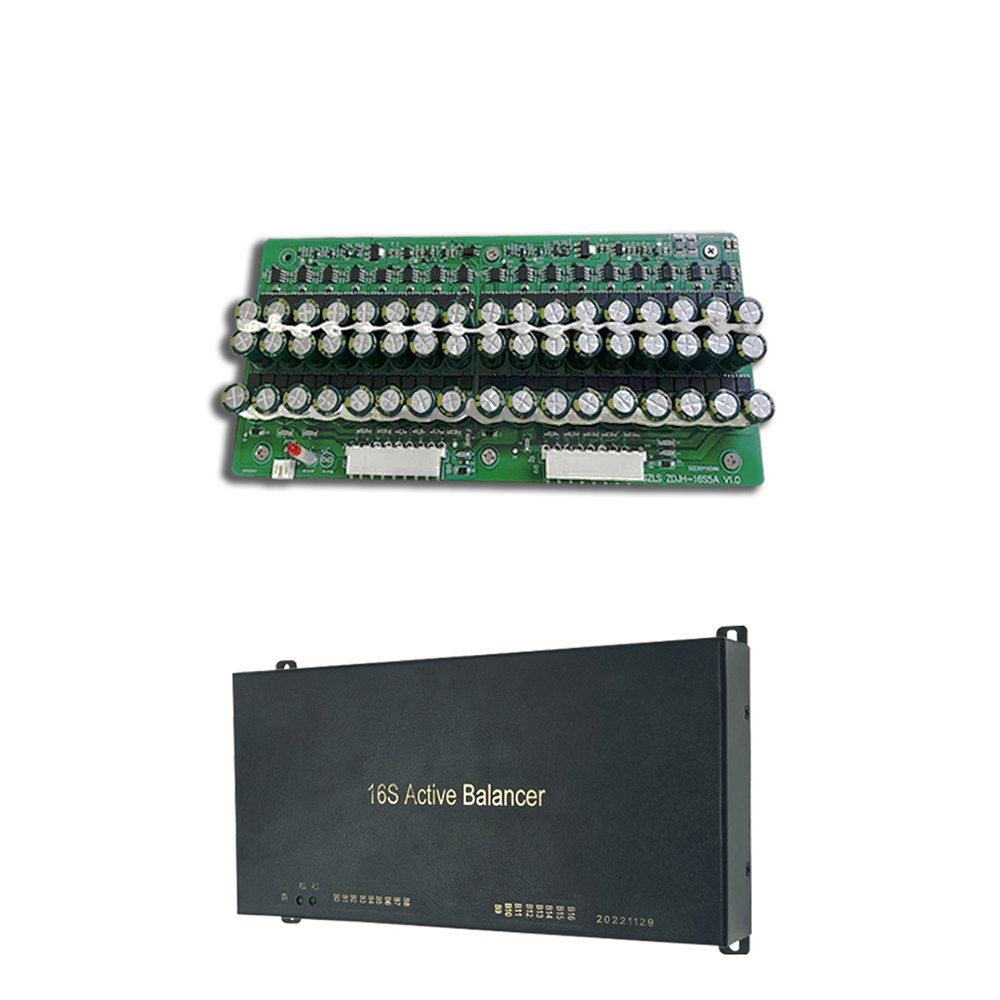

1*16S 48V active caretaker
