Features:
Output: 5W
Frequency Range: 136.00-174.00 MHz/400.00-520.00MHz.
Channel Step: 2.5/5/6.25/10/12.5/25KHz.
Double Launch Key Dual Band Dual Watch.
High & Low Power Switchover.
Battery Saving.
VOX Function.
Wide/Narrow Band Selection.
Auto-Back Light.
Dual Band Standby.
Time-out Timer (TOT).
50 CTCSS and 104 DCS Codes.
Voice Prompt.
ANI Code.
PC or Manual Program.
DTMF Code.
PTT-ID.
ATUO Keypad Lock.
Busy Channel Lock Function.
Dual Band, Dual Display and Dual Standby.
Emergency Alarm.
Priory Scanning Function.
Relay Forwarding Confirmed (1750Hz).
Low Battery Warning.
U/V Cross Band Dual Watch.
Double PTT Buttons.
Color: Black.
Specifications:
Frequency Range 65-108MHz(FM Receive only)
136-174MHZ and 400-520MHZ (TX/RX)
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain DualBand antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V
Mode of operation Simple or semi-duplex
Antenna : SMA -Female
Dimension(W x H x D) 132 x 60 x 35 mm (not included antenna)
Weight 238g(including battery, antenna)
Power adapter Input: AC100-240V, 50-60Hz;
Output: DC10V/500mA;
Transmitter
Output power: 5W
Modulation Mode: 16kΦF3E / 11kΦF3E
Maximum deviation 5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation7μW
Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion ≤10%

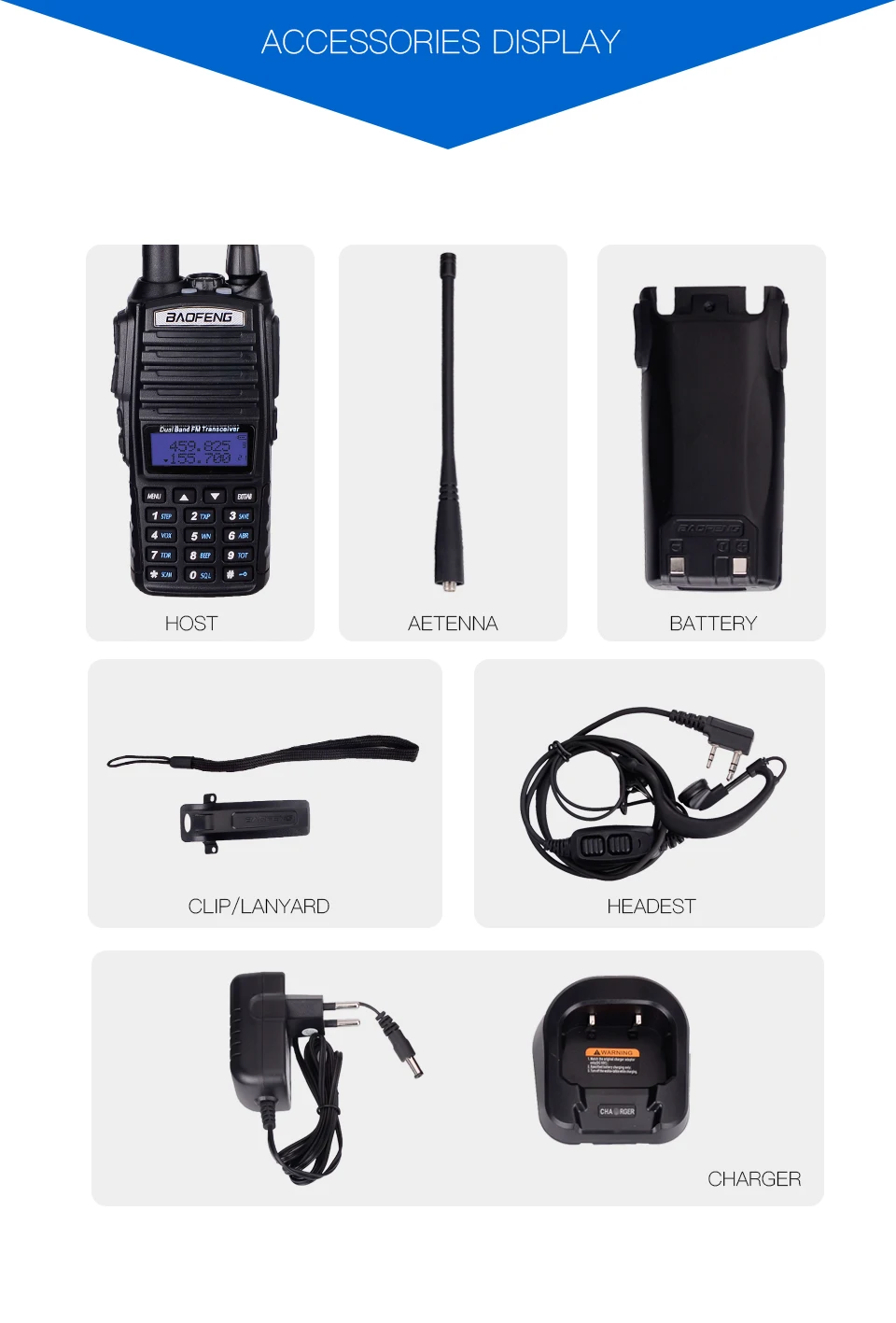

Package included:
1 x BAOFENG UV-82.
1 x 7.4V Li-ion Battery Pack.
1 x Antenna
1 x Earphone
1 x Belt Clip.
1 x Hand Strap.
1 x AC Adapter.
1 x Desktop Charger (100V~240V).
1 x User Manual.
