Operation instruction：
Our Lead-free titanium alloy soldering pot passed by SGS, built-in advanced microcomputer digital control and display system, make it more safe, more steady and more accurate. It’s a good tool for electronic fields.

Features:
1. With big power heater, only within 25minutes to reach 450℃ from room temperature, (Different items with a little different heating time.)
2. With advanced microcomputer digital control and double displays. make it more accurate heating and fast temperature returning capability.
3. The boiler made of titanium alloy, can resist high temperature, cauterization and abrasion, largely prolong the life.
4. With temperature setting and locking function, will not be affected by wrong operation.
5. The setting value will be saved for long time, and can not be affected by power on or off. With auto sleeping function, prolong the machine’s life.
6. With malfunction alarm.

Specification:
Voltage：110V or 220V
Environment temperature: -10℃-60℃
Temperature stability: ±2℃
Pot material: stainless steel

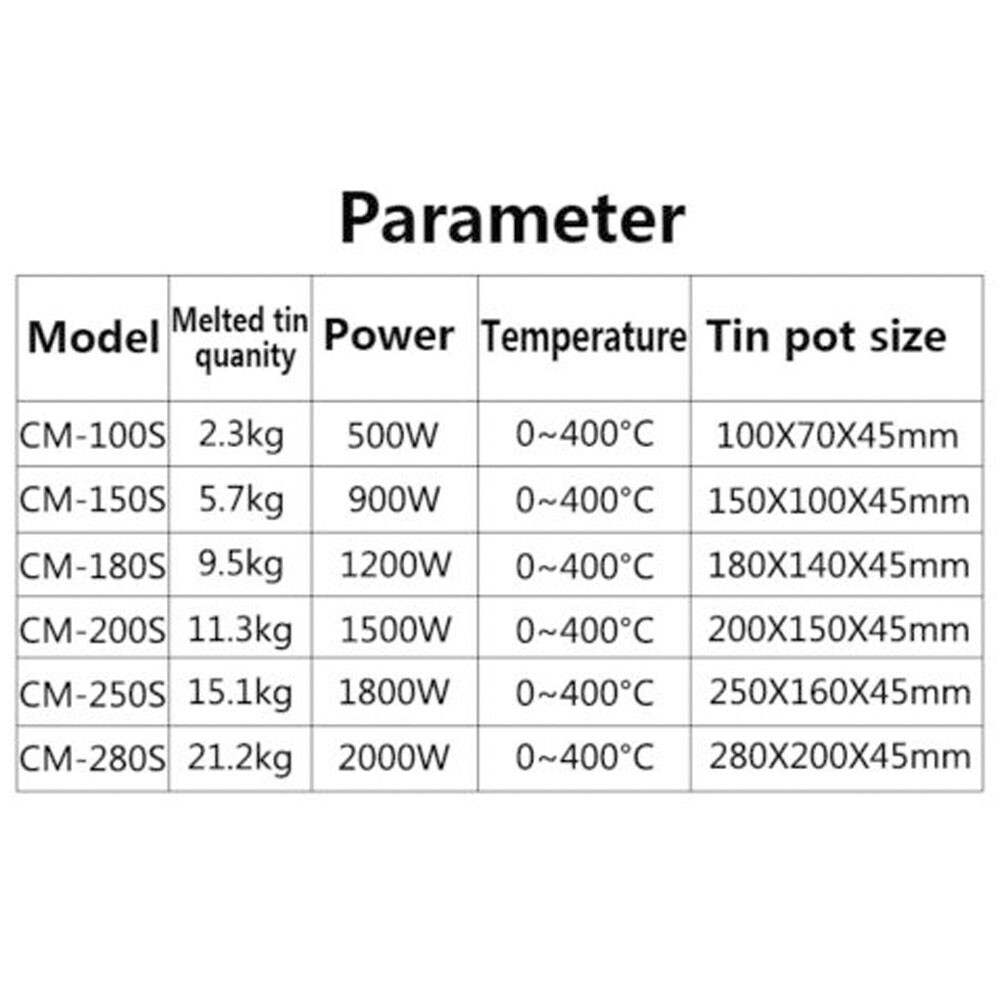

Model Melted tin quanity Power Temperature Tin pot size Product Size Weight
CM-100S 2.3kg >500W 0~400℃ 100*70*45mm 327*175*120mm 3.4kg
CM-150S 5.7kg 900W 150*100*45mm 397*205*120mm 4.5kg
CM-180S 9.5kg 1200W 180*140*45mm 446*245*120mm 5.5kg
CM-200S 11.3kg 1500W 200*150*45mm 446*245*120mm 5.8kg
CM-250S 15.1kg 1800W 250*160*45mm 536*285*120mm 8kg
CM-280S 21.2kg 2000W 280*200*45mm 536*285*120mm 8.7kg

Package included:
1 Set of Solder machine
