Details
features
Laser scattering principle realizes accurate measurement
Zero false alarm rate
Real-time response and support continuous acquisition
Minimum resolution particle size 0.3μm
Brand-new patented structure, six-sided all-round shield, stronger anti-interference performance
The direction of the air inlet and outlet is optional, the application area is wide, and the user does not need to open the air duct
Ultra-thin design, only 12mm, suitable for portable devices
Overview

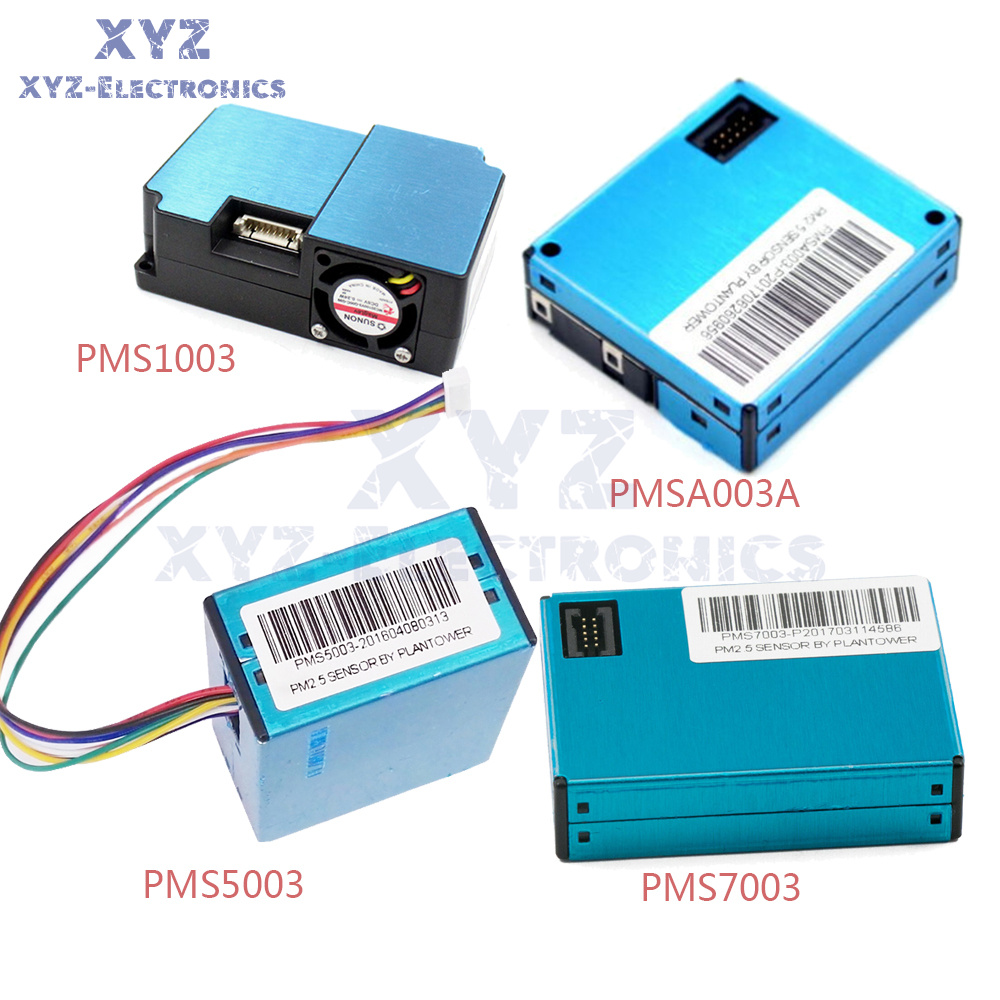

PMS7003 is a digital universal particle concentration sensor based on the principle of laser scattering, which can continuously collect
Collect and calculate the number of suspended particles of different sizes in the air per unit volume, that is, the particle concentration distribution, and then
It is converted into mass concentration and output in the form of a universal digital interface. The sensor can be embedded in different
Instrumentation or environmental improvement equipment related to the concentration of suspended particles in the medium, providing you with timely and accurate concentration numbers
To.

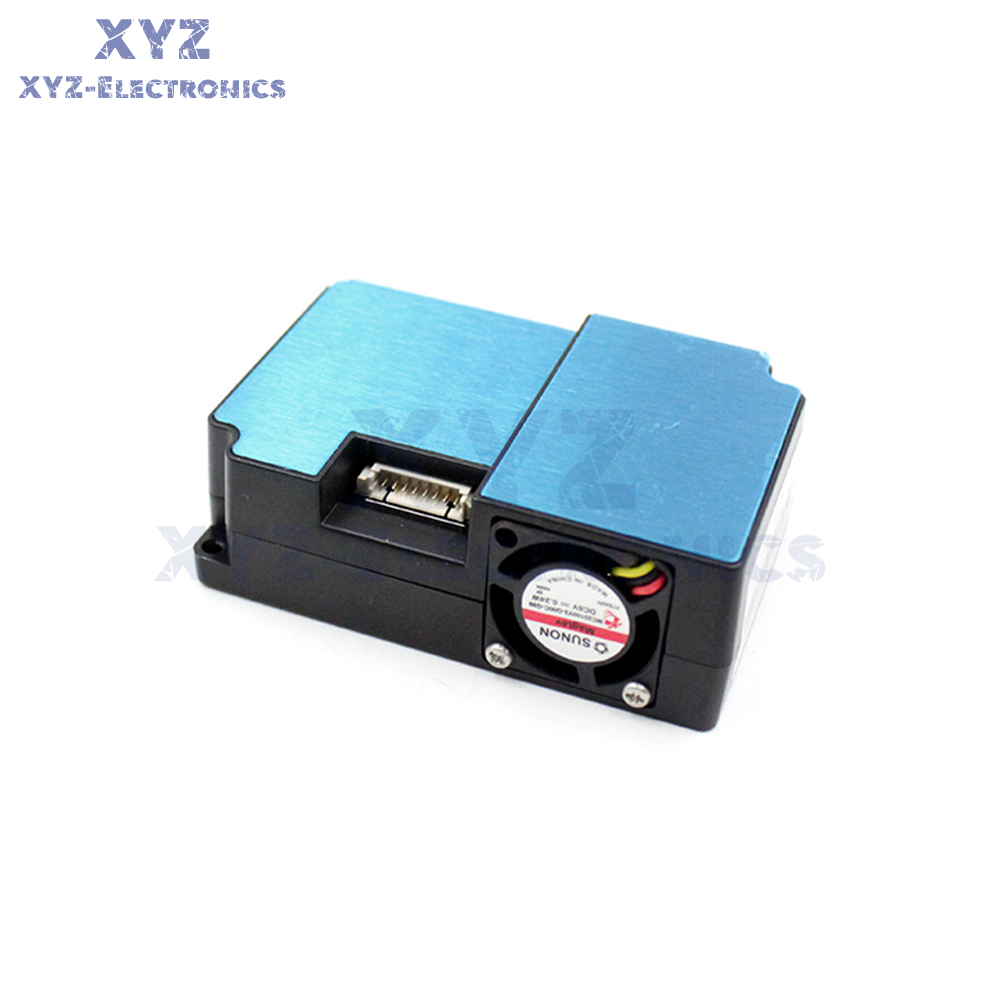

PMS1003
Description:
PM 2.5 sensor
Working principle: laser scattering method
Measuring diameter: 0.3-1.0um 1.0-2.5um 2.5-10um
Unit of measurement: ug / m3
Measurement accuracy: ug / m3
Response time: <10s
Working current: 5V200ma @ working state 5V2ma @ standby state
Data interface: serial port (3.3 VTTL level)
PMS5003
Main properties
Zero false alarm rate
Real-time answer
Correct data
Minimum distinguishable particle diameter: 0.3 micrometers
High anti-interference performance due to the patented structure of six sides of shielding
Optional direction of air inlet and outlet in order to adapt the different design
Overview
PMS5003 is a kind of digital and universal particle concentration sensor, which can be used to measure the number of suspended particles in the air, i.e. the concentration of particles, and output them in the form of digital interface. This sensor can be inserted into variable instruments related to the concentration of suspended particles in the air or other environmental enhancement equipments to get correct concentration data in time.
Working principle
Laser scattering principle is for such sensor, i.e. produce scattering by using laser to beam exposure particles in the air, then collect scattering light in a certain degree, and finally get the curve of scattered light change with time. In the end, equivalent particle diameter and the number of particles with different diameters per unit volume can be calculated by microprocessor based on MIE theory.
