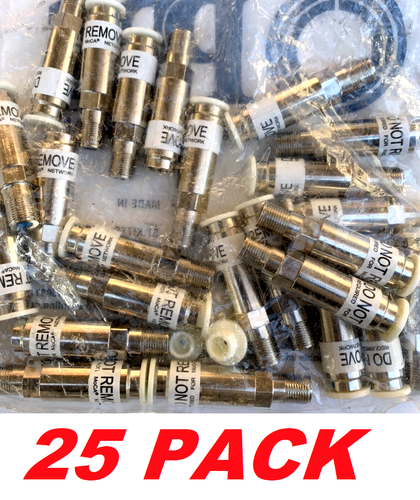

PPC Belden Moca Poe Filters SNLP-1GSH / SNLP-1G Cable TV Coax Filter

Includes: 25 PACK

The PPC MoCA SNLP-1G filter is optimized to protect your network and subscriber experience: it can withstand minor and major surges, keeping content flowing and service calls down.

As in-home networking services continue to grow, you need strong protection to give your subscriber the best multi-room DVR experience. Physically isolating the home through the installation of a low-pass filter at the point-of-entry is necessary to avoid interference from near-by MoCA users, such as a neighbor. This patented technology prevents interference between homes that use MoCA, and acts as a reflector to minimize MoCA signal loss in the home.

Features:

Prevents interference between subscriber homes that use MoCA Technology

Supports a 1 GHz passband

Compliant to MoCA Specifications

Enhances MoCA signal level within the subscriber’s home

Designed for ease-of-installation

Filters are bi-directional eliminating installation errors

Specifications:

Bandwidth: 5 MHz to 1525 MHz

Impedance: 75 Ohms (nominal)

Return Loss: 5-1002 MHz -14 dB min

Insertion Loss: 5-1002 MHz -2.5 dB max, 1125-1525 MHz -35 dB min

Group Delay: 5 ns

Surge Withstand: 6 kV B3 Ring Wave

RFI Shielding: -140 dB

Operating Temperature: -40° F to +140° F (-40° C to +60° C)

Female Contact Retention Force: 200 grams

Physical Dimensions: 0.50 x 1.94
