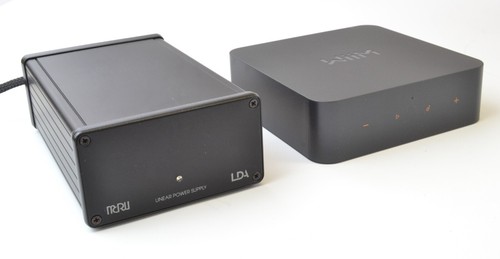

This is our multi award winning power supply design for the new WiiM Pro streamer, we do not sell the streamer just a power supply for it.

The WiiM requires 5V DC via a USB-C connector, the power supply is plug and play it has the correct connector fitted already.

MCRU have available one of their award winning fully regulated linear power supply's for this streamer. Our power supply's are designed and built in the UK by Longdog Audio, owned and run by respected UK audiophile Nick Gorham, the power supply's have won 2 Hi-Fi Choice 5 star awards for sound quality and will improve the performance of any equipment connected to them.

The PSU can be supplied in silver or black and is supplied with a basic power cord to suit your country.

The design rationale behind these power supplies is below. Available with 120/230/240V input (you do not need to specify this as we can configure it based on your country).

All our power supplies are plug and play, simply attach to the DAC using the supplied micro USB connector and attach the supplied power cord, plug into the mains and enjoy.

The design thoughts behind the 2 box PSU are below.

When thinking of regulation, it's worth remembering the Roman god Janus. Who was the god of gateways, and was a two faced god looking in both directions. Likewise a good voltage regulator is required to look in both directions at once. From one direction you have the mains supply, with the ever increasing noise, distortion and random variation that exists on our household mains supply. In the other direction you have the device you are supplying power to. The load will be asking constantly varying current, and the job of the regulator will be to ignore the varying load and to supply a rock steady voltage that ignores the changing load.

To ask a single regulator to perform both tasks means that it can not do either as well as it could. We don't ask our regulators to be two faced, we split the two functions into two separate regulators and put them both where they can do the best job.

The first regulator is close to the mains supply, its job is to take the incoming mains and convert it into a low(ish) noise DC supply, and to isolate the mess that is our household power lines from what follows. In most power supplies on the market, the output of the first stage would be directly connected to the load device, and that would certainly be an improvement over the supplies that most manufactures provide. But we can do better by adding the other face of Janus to the system.

The second regulator is supplied with a clean low noise supply, and its job is to handle the changing demands of the load. To do that, it needs to be as close to the load as possible. So we remove the second regulator from the main box, and place it close to the load, both electrically and physically, that removes it from the noise and interference of the mains supply, and allows it to spend its time looking towards the load. Typical commercial voltage regulator chips are general purpose devices, but are not quiet enough for the task on hand, so the second regulator uses a bespoke regulator based on a low noise multi stage filtered voltage reference, a low noise error amplifier and a high current low resistance mosfet. To allow it to handle the changing load it also needs to supply current on demand, so all the remaining space in the second regulator is filled with low impedance capacitors to act as a local energy source.

Using the two stages of regulator, we achieve a noise floor equal or better than most battery supplies, and a effective source resistance of the order of 0.02 ohm (and the short cable run to the load avoids increasing this valve by adding copper where its not needed, and the use of a discrete regulator design allows that tiny value to be maintained way above frequency any audio device operates at.
