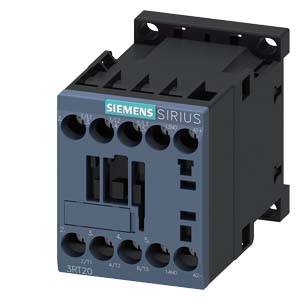

Siemens 3RT2016-1BB41 Contattore 3 NA 4 kW 24 V/DC 9 A con contatto ausiliario 1 pz.
I nostri prodotti su ebay

Siemens 3RT2016-1BB41 Contattore 3 NA 4 kW 24 V/DC 9 A con contatto ausiliario 1 pz.

https://asset.conrad.com/media10/isa/160267/c1/-/it/001431024PI00/image?x=1000&y=1000&ex=1000&ey=1000&align=center&format=jpg https://asset.conrad.com/media10/isa/160267/c1/-/it/001431024II00/image?x=1000&y=1000&ex=1000&ey=1000&align=center&format=jpg https://asset.conrad.com/media10/isa/160267/c1/-/it/001431024TI00/image?x=1000&y=1000&ex=1000&ey=1000&align=center&format=jpg https://asset.conrad.com/media10/isa/160267/c1/-/it/001431024TI01/image?x=1000&y=1000&ex=1000&ey=1000&align=center&format=jpg https://asset.conrad.com/media10/isa/160267/c1/-/it/001431024TI02/image?x=1000&y=1000&ex=1000&ey=1000&align=center&format=jpg

Online


3RT20161BB41 Codice articolo del costruttore:3RT20161BB41
4011209783942 EAN:4011209783942

Etichetta di efficienza energetica:Download
Documentazione tecnica:Download

Documenti:Download
Dichiarazione di sicurezza:Download
Garanzia:Download
Caratteristiche relè: con contatto ausiliario · Collegamento (Componenti): Morsetto a vite · Contatto ausiliario: 1 NA · Corrente di carico: 9 A · Dimensione (relè): S00 · Dimensione del prodotto, larghezza: 45 mm · Dimensione, profondità: 73 mm · Dimensioni prodotto Altezza: 58 mm · Durata (meccanica): 3.0E7 · Numero di poli (LOV): 3 poli · Potenza: 4 kW · Temperatura (max.): +60 °C · Temperatura (min.): -25 °C · Tens.comm.max: 400 V/AC · Tensione nom.: 24 V/DC · Tipo contatto: 3 NA · Tipo di montaggio (relè): Guida DIN · Tipo di protezione: IP20 · Ulteriori dati tecnici: Peso: 290 g Potenza dissipata: 0.7 W

Specifiche tecniche

Caratteristiche relè: con contatto ausiliario
Collegamento (Componenti): Morsetto a vite
Contatto ausiliario: 1 NA
Corrente di carico: 9 A
Dimensione (relè): S00

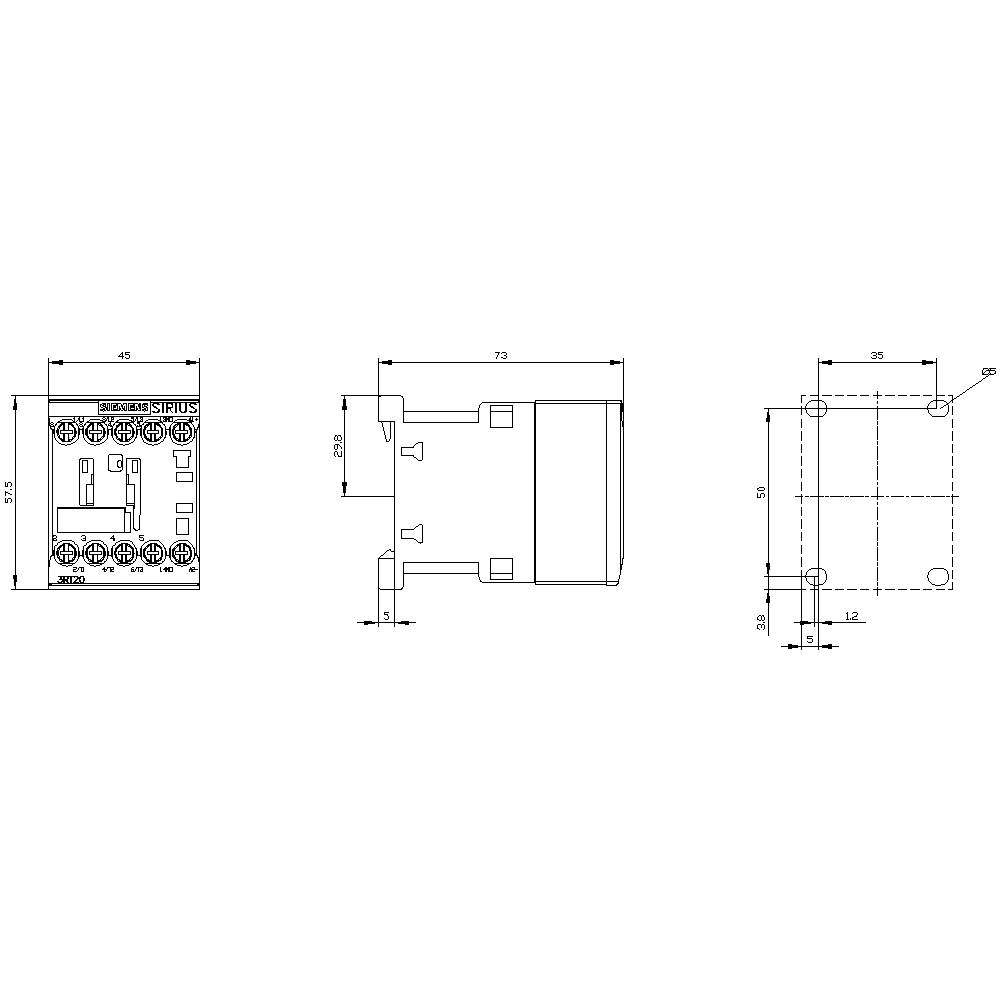

Dimensione del prodotto, larghezza: 45 mm
Dimensione, profondità: 73 mm
Dimensioni prodotto Altezza: 58 mm
Durata (meccanica): 3.0E7
Numero di poli (LOV): 3 poli
Potenza: 4 kW
Temperatura (max.): +60 °C
Temperatura (min.): -25 °C
Tens.comm.max: 400 V/AC
Tensione nom.: 24 V/DC
Tipo contatto: 3 NA
Tipo di montaggio (relè): Guida DIN
Tipo di protezione: IP20
Ulteriori dati tecnici: Peso: 290 g Potenza dissipata: 0.7 W

In evidenza


Power contactor, AC-3 9 A, 4 kW / 400 V 1 NO, 24 V DC 3-pole, Size S00 screw terminal Power contactor SIRIUS 3RT2 for switching motors. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection. The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense. The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW). Simple, efficient and always up to date - SIRIUS modular system. Testo tradotto automaticamente

Descrizione

Power contactor, AC-3 9 A, 4 kW / 400 V 1 NO, 24 V DC 3-pole, Size S00 screw terminal Power contactor SIRIUS 3RT2 for switching motors. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection. The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense. The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW). Simple, efficient and always up to date - SIRIUS modular system. Testo tradotto automaticamente
