Details
Specification:

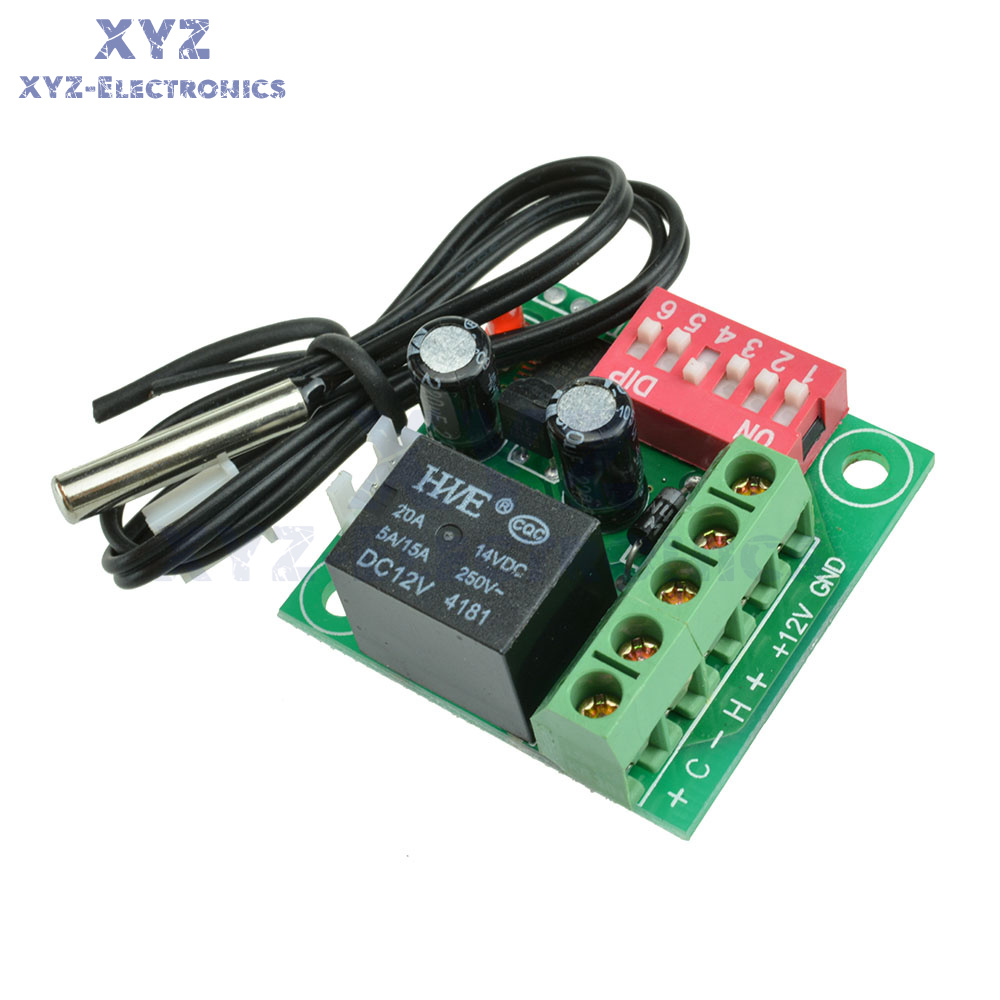

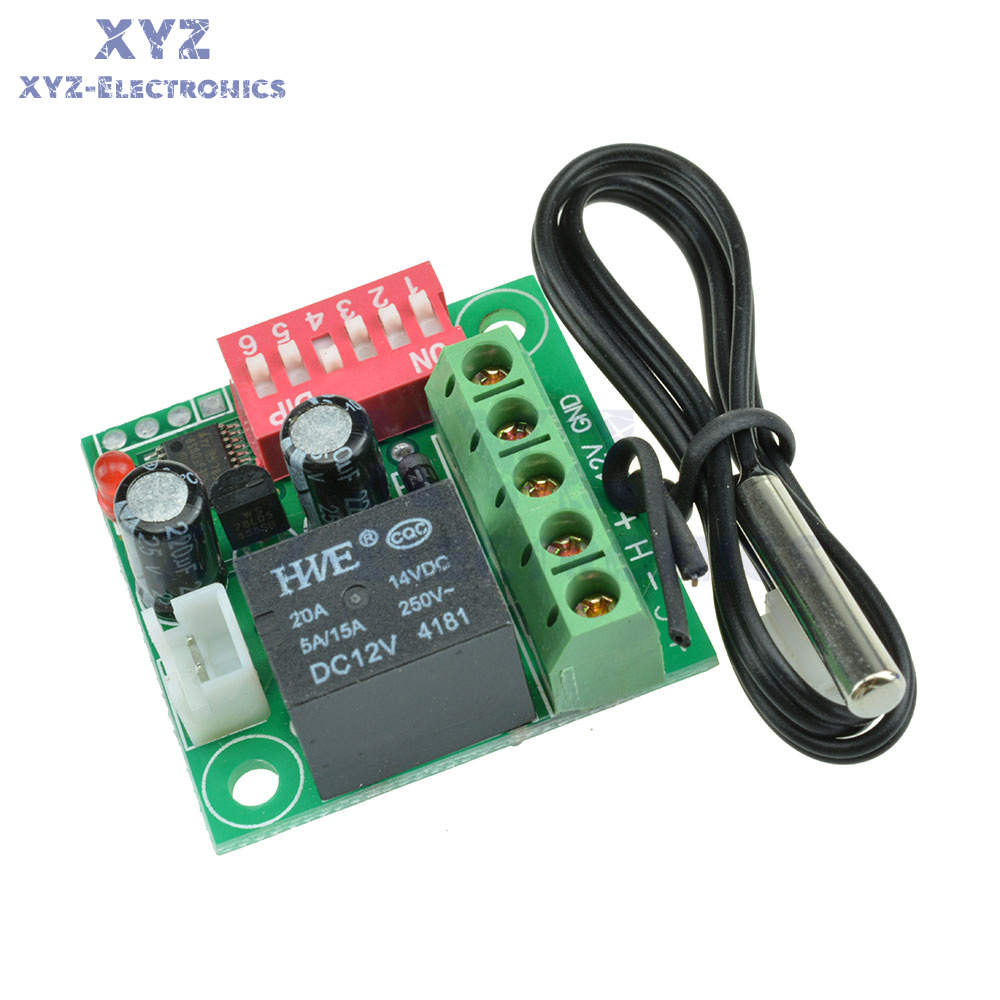

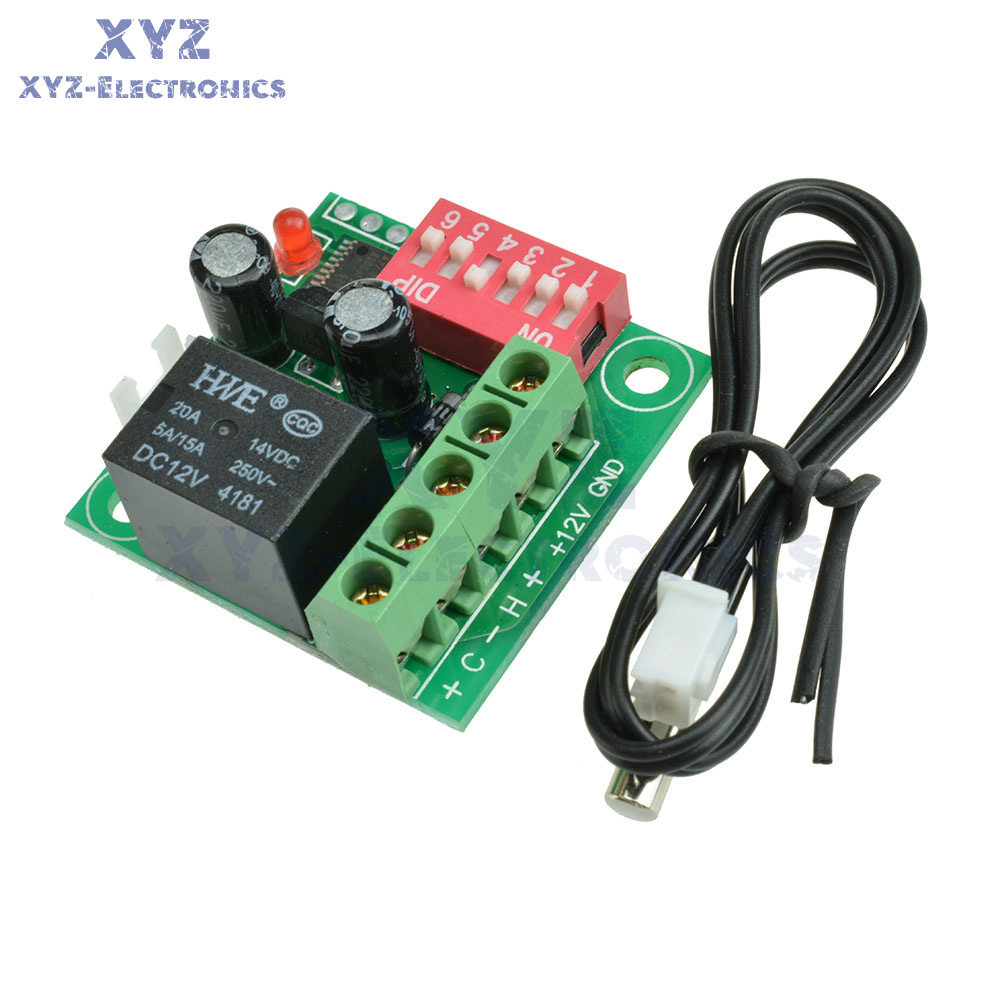

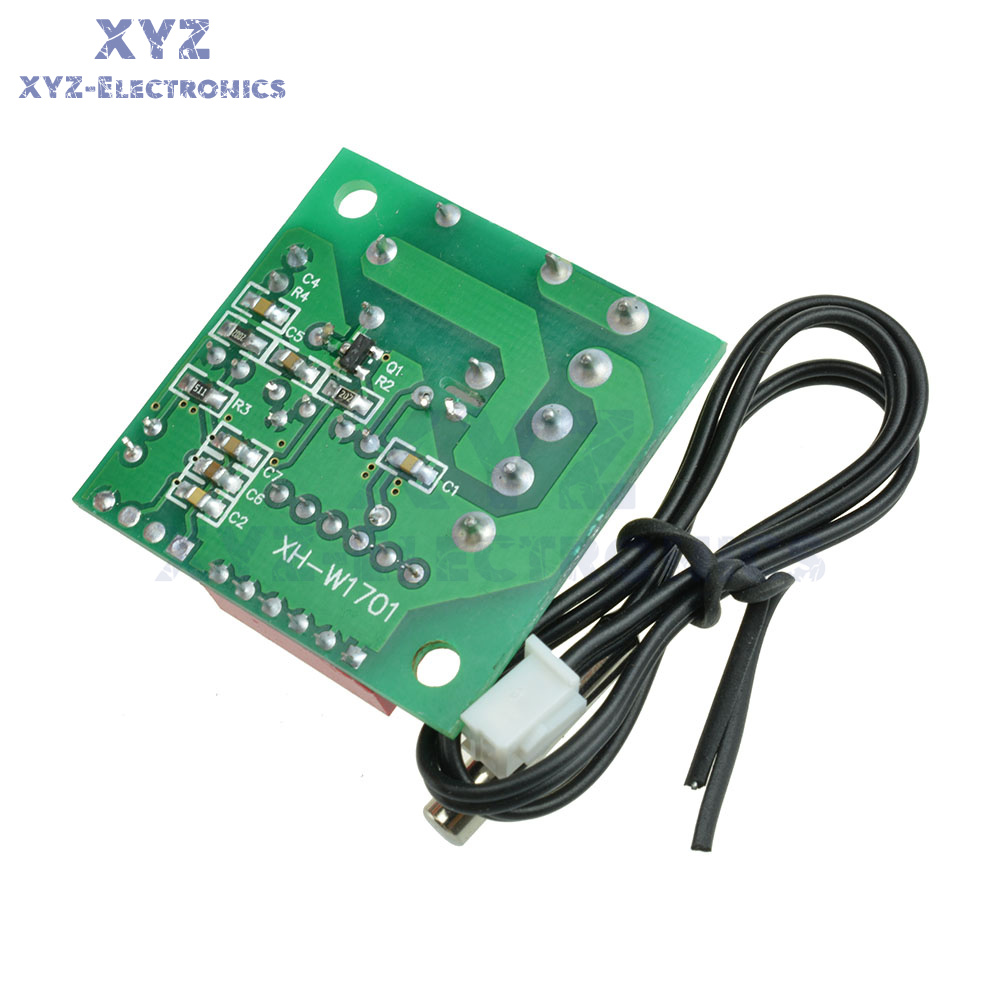

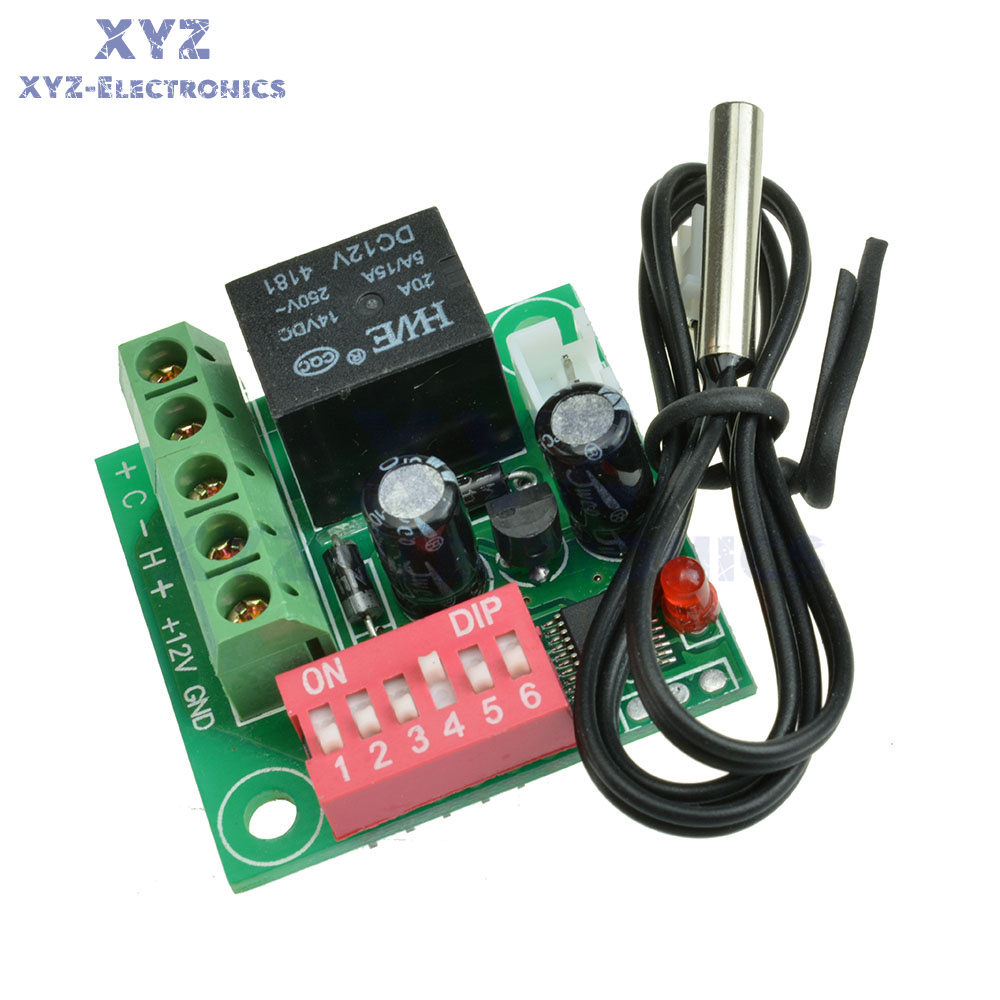

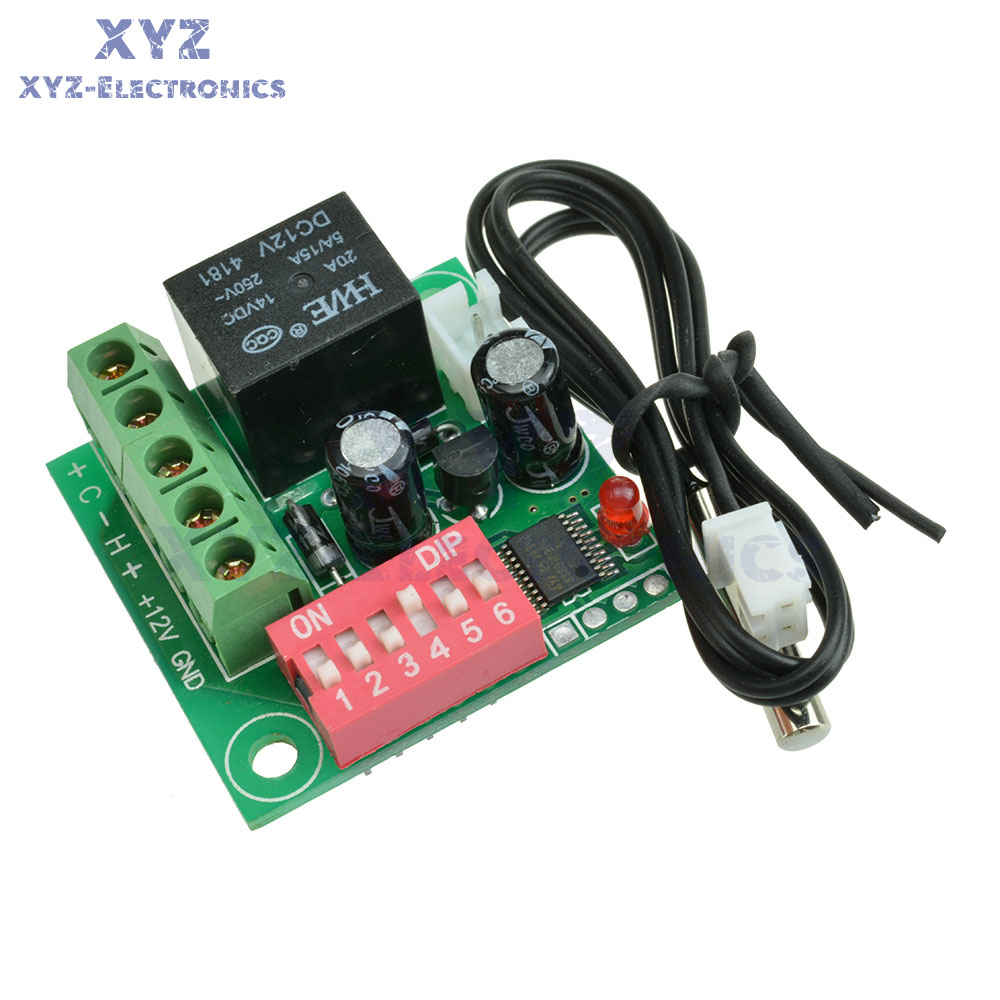

Model: W1701
Size: Approx. 36.5x36.5x18 mm/1.44x1.44x0.71 inch
Installation screw: M3 * 2 diagonal size 39.5mm
Temperature range: 20-90 ℃
Control Mode: Heating, Cooling, Heat dissipation
Control Accuracy: 0.1 ℃
Hysteresis Setting: 1-10 ℃
Refresh Rate: 0.5S
Supply Voltage: DC 12V
Output Voltage: DC 12V
Output Power: Max 200W
Static Current: ≤ 3MA, attract current ≤ 60MA
Temperature Probe: 10K thermistor
B25 = 10K 3950
30cm Waterproof Sensor
Environmental Requirements: -10 ~ 60 ℃
Humidity 20% -85%
Can be used in the (liquid, mold, space) and other control heating,
Also can be used (box, the device, water, pet rooms, air conditioning) and other control refrigeration.
Instructions:
Please connect the circuit according to the wiring diagram, power supply is DC12V (+12 V is positive , and GND is negative).
The probe is connected to the object you want to control.
For heating: Please connect 12V heater to the - H +
For cooling: Please connect cooler to the + C -
For heat-sinking: Please connect cooler or heatsink connected to the + C -
Indicator Status : the red light is on indicating the cooling (+ C-) output,
